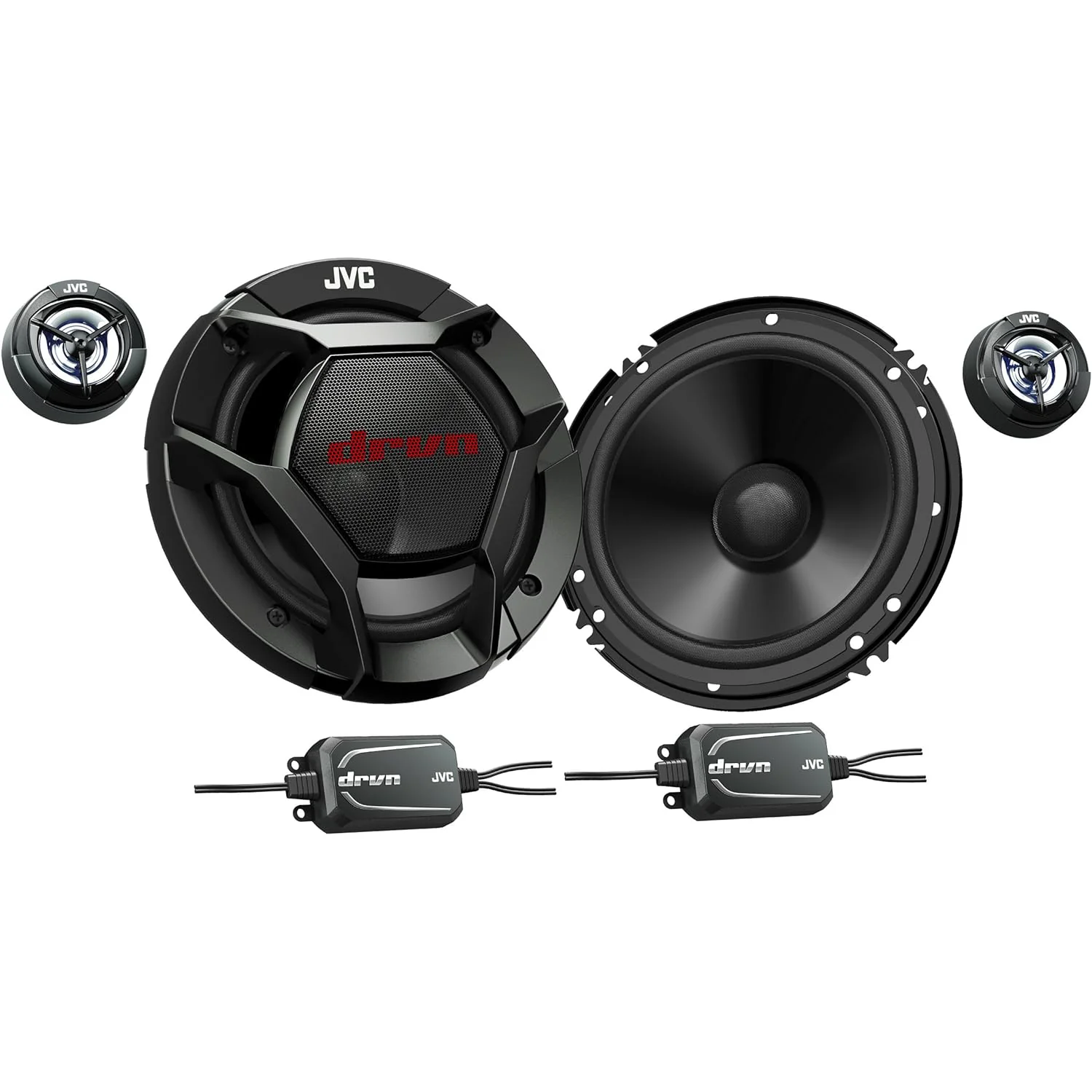

JVC CS-DR601C DRVN Series 6.5" 360W Shallow-Mount Component Speaker System

JVC DRVN Series 6.5" 360W Shallow-Mount Component Speaker System: Slim-Profile Speakers Offer Strong Performance With Good Power Handling!

Balanced Neodymim Tweeter
It provides a detailed high-range and smooth mid-range.

Great Factory Replacement
Installable vehicle types are greatly increased thanks to their shorter height.

Wide Opening Grill
The grill’s opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.

Dimensions

JVC CS-DR601C Features:

• Carbon Mica Cone: Robust and lightweight carbon mica material provides highly responsive, clear, and undistorted reproduction.
• Hybrid Surround: Rubber-coated cloth with increased mobility enables high efficiency and improved follow-up to audio signals.
• Small Design Tweeter Cover: A newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.

JVC CS-DR601C Specifications:

• Woofer:
  Size: 16cm (6.5'')
  Diaphragm: Carbon Mica Cone
  Surround: Hybrid Surround (Rubber & Cloth)
  Magnet: Ferrite
• Tweeter:
  Size" 2.5cm (1'')
  Type: Separate Type, Unit: Balanced
  Diaphragm: Poly-Ether Imide
  Magnet: Neodymium
• General:
  Power Handling Capacity - Peak: 360W
  Power Handling Capacity - RMS: 60W
  Impedance: 4Ω
  Sound Pressure Level: 88dB
  Frequency Response: 76 - 24,000Hz
  Magnet Mass: 285g (10oz)
  Mounting Depth: 56.5 mm (2-1/4")
  Weight: 2.17kg
