JL Audio JLA-010-03283-00 M6 Enclosed Tower Speakers
JL Audio JLA-010-03283-00 M6 Enclosed Tower Speakers
High-output enclosed tower speaker system engineered for maximum marine performance, delivering powerful sound with integrated RGB LED lighting for wakeboard towers and T-tops.
Product Overview

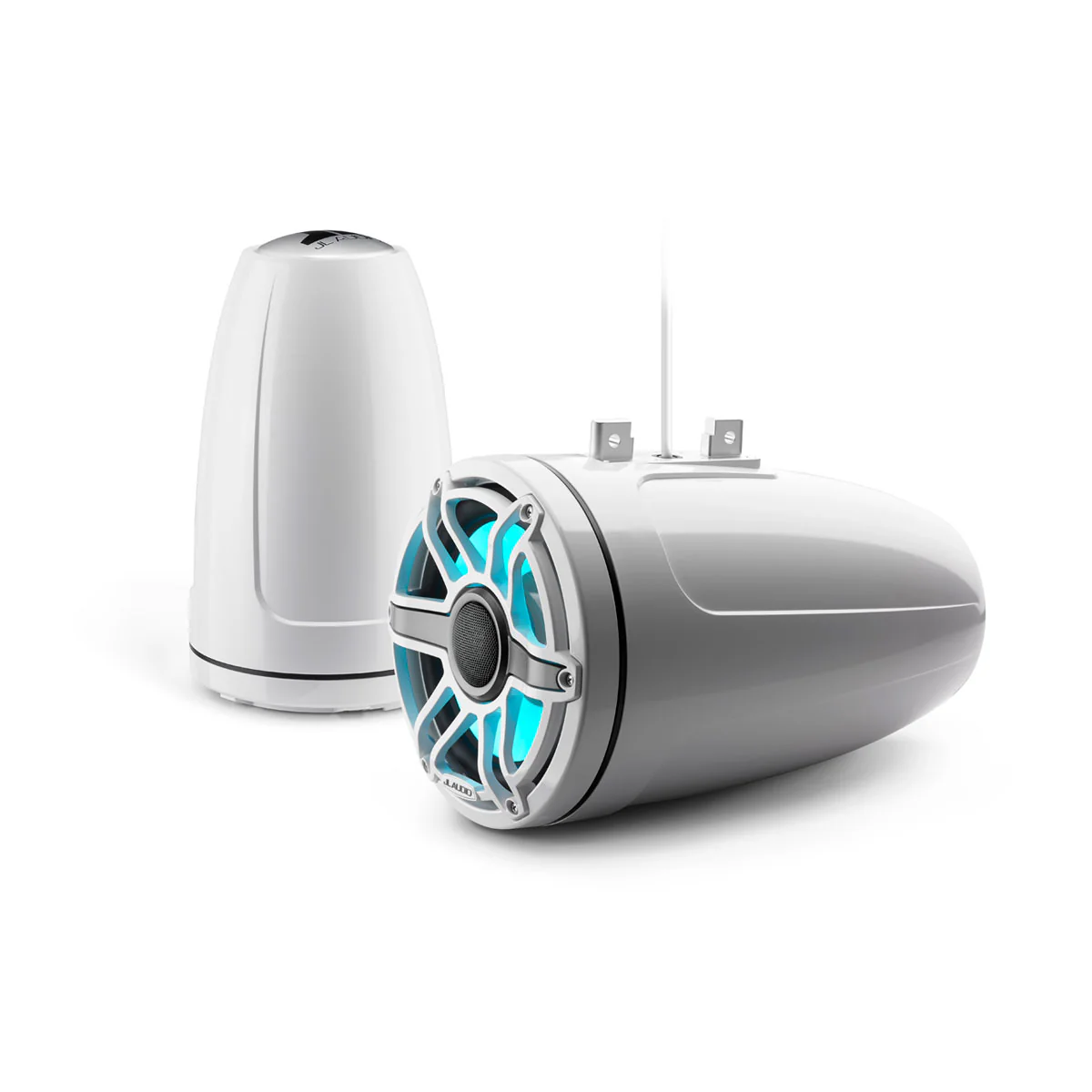

The JL Audio M6 8.8" Enclosed Tower Speaker System combines premium marine-grade components with aggressive sport styling and integrated LED illumination for superior audio performance on the water. Each speaker features a white sport grille with Transflective technology that allows LED lighting to shine through while maintaining structural integrity. The enclosed design provides plug-and-play installation with integrated mounting clamps and optimized acoustic performance. These speakers are specifically engineered for tower mounting applications where maximum SPL output, weather resistance, and visual impact are essential.
Features & Benefits
- Larger 8.8" Driver: Increased cone area delivers deeper bass response and higher output capabilities compared to 7.7" models
- Integrated RGB LED Lighting: Built-in Transflective LED illumination with selectable color options creates stunning visual effects on the water
- Sport Grille Design: White sport grille provides aggressive styling with enhanced protection and durability
- Fully Enclosed System: Complete plug-and-play solution with integrated mounting clamps and optimized enclosure eliminates custom fabrication
- Marine-Grade Construction: Sealed components and UV-resistant materials ensure long-term reliability in harsh saltwater environments
- High SPL Output: Engineered to deliver 125W RMS continuous power handling for superior volume levels
- Silk Dome Tweeter: Large 1.25" tweeter delivers smooth high-frequency response with wide dispersion for consistent coverage
- Mica-Filled Polypropylene Cone: Injection-molded cone provides excellent stiffness-to-weight ratio for accurate reproduction across the frequency range
- Extended Frequency Response: 38 Hz - 20 kHz range ensures full-spectrum audio reproduction
- Sealed Motor Structure: Prevents water intrusion and corrosion in critical voice coil components
- 316L Stainless Steel Mounting Hardware: Premium marine-grade hardware resists corrosion in saltwater environments
- Transflective Grille Technology: Allows LED illumination to shine through while maintaining grille strength and protection
Technical Specs
| Specification | Details |
|---|---|
| Model | JLA-010-03283-00 |
| Speaker Size | 8.8" (224mm) coaxial |
| Grille Style | White Sport with LED |
| Configuration | 2-way enclosed tower system |
| Power Handling (Cont.) | 125W RMS |
| Power Handling (Peak) | 250W |
| Impedance | 4 ohms |
| Sensitivity | 90.5 dB @ 1W/1m |
| Frequency Response | 38 Hz - 20 kHz (+/- 3dB) |
| Woofer Composition | Injection-molded mica-filled polypropylene cone |
| Tweeter Type | Silk dome |
| Tweeter Size | 32mm (1.25") |
| Recommended Amp Power | 50-250W RMS per channel |
| Physical Diameter | 224mm (8.80") |
| Physical Depth | 376mm (14.80") |
| Mounting Diameter | Fits 1.75" - 3" (44mm - 76mm) tower tubes |
| Enclosure Material | Roto-molded polypropylene with UV inhibitors |
| Sealed Design | Fully sealed motor structure and terminals |
| LED Lighting | Transflective RGB LED (controller required) |
| LED Supply Voltage | 10-14.4 VDC |
| LED Load Current | 486 mA @ 14.4 VDC (max) |
| Speaker Connection | Flying lead with 16AWG wire (10 ft) |
| LED Connection | Flying lead with 4-conductor 20AWG wire (10 ft) |
| Grille Material | Transflective sport mesh with powder-coated frame |
| Mounting Hardware | 316L stainless steel clamps and fasteners included |
| Warranty | 3 years |
| Sold As | Pair |
Compatible With / Goes Well With
Essential Amplifiers:
- JL Audio MVi Marine Amplifiers (purpose-built for M6 systems)
- JL Audio MHD Marine Amplifiers (high-output power delivery)
- JL Audio XDM Car and Marine Amplifiers (versatile installation options)
Source Units:
- Fusion Apollo MS-RA800 Marine Stereo (Bluetooth streaming and premium audio control)
- JL Audio MediaMaster marine source units (seamless system integration)
- JL Audio MBT-CRX Bluetooth Controller (for LED color control and audio streaming)
System Building:
- JL Audio M6 Marine Subwoofers (deep bass extension)
- JL Audio M6 Marine Thin-Line Subwoofers (space-saving bass solutions)
- JL Audio M7 Marine Subwoofers (maximum output capability)
- JL Audio M6 in-boat speakers (complete marine audio system)
Installation Accessories:
- Marine-grade speaker wire (14AWG or 12AWG recommended)
- Silicone adhesive (included in box)
- Butt splice connectors (included: eight red #22-18 AWG, four blue #16-14 AWG)
- Aluminum logo caps (included)
Frequently Asked Questions
Q: What amplifier power is recommended for the M6 8.8" tower speakers?
A: These speakers perform optimally with 50-250 watts RMS per channel. The JL Audio MHD or MVi marine amplifiers are ideal matches, providing clean power with marine-specific protection circuits and enough headroom for dynamic passages.
Q: How do I control the RGB LED lighting in these speakers?
A: The integrated LEDs require the JL Audio MBT-CRX Bluetooth Controller (sold separately), which allows you to select colors, adjust brightness, and create custom lighting effects via smartphone app. The LED system operates on 10-14.4 VDC and draws 486mA maximum current.
Q: What's the advantage of the 8.8" size over the 7.7" M6 speakers?
A: The 8.8" model provides deeper bass extension (down to 38 Hz vs 45 Hz), higher power handling (125W vs 100W RMS), and a larger 1.25" tweeter for enhanced high-frequency output. This translates to fuller sound with more impact at higher volumes.
Q: Can I install these speakers on my existing tower without modifications?
A: Yes, the M6 enclosed speakers include proprietary mounting clamps designed to fit 1.75"-3" diameter tubes. The complete enclosure eliminates custom fabrication, and the flying lead connections provide flexible routing to your amplifier location.
Q: Are the LED lights visible in daylight conditions?
A: While the RGB LEDs are most dramatic at dusk and night, the Transflective grille technology allows visible illumination even in daylight conditions. The effect is enhanced in shaded areas or under T-tops where direct sunlight is reduced.
