JL Audio JLA-010-03865-00 M6 Marine Speakers - 6.5" with Black Luxe Grille (Single)
JL Audio JLA-010-03865-00 M6 Marine Speakers - 6.5" with Black Luxe Grille (Single)
Premium marine coaxial speaker engineered for exceptional in-boat audio performance, featuring sophisticated black luxe styling with low-profile design for seamless integration.
Product Overview

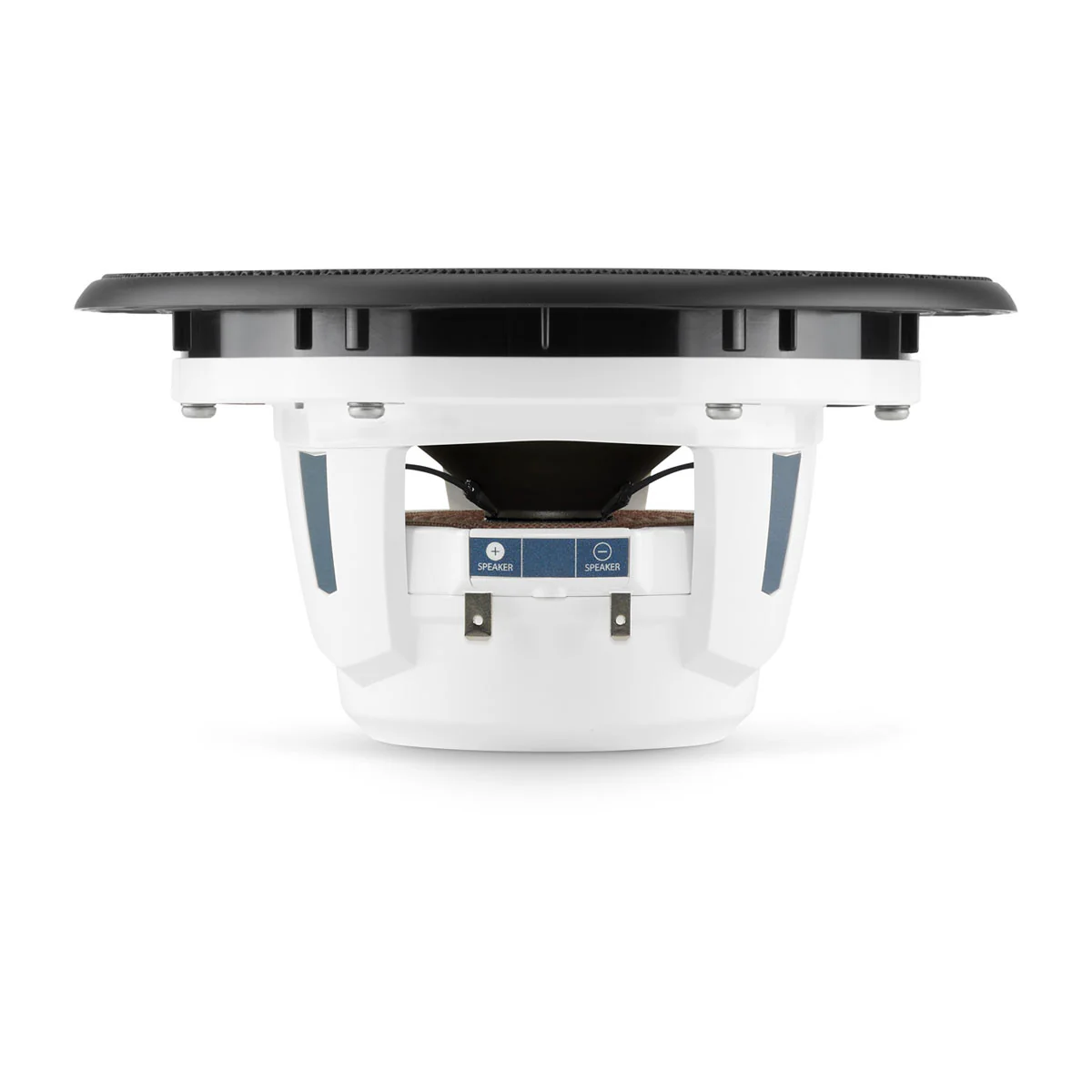

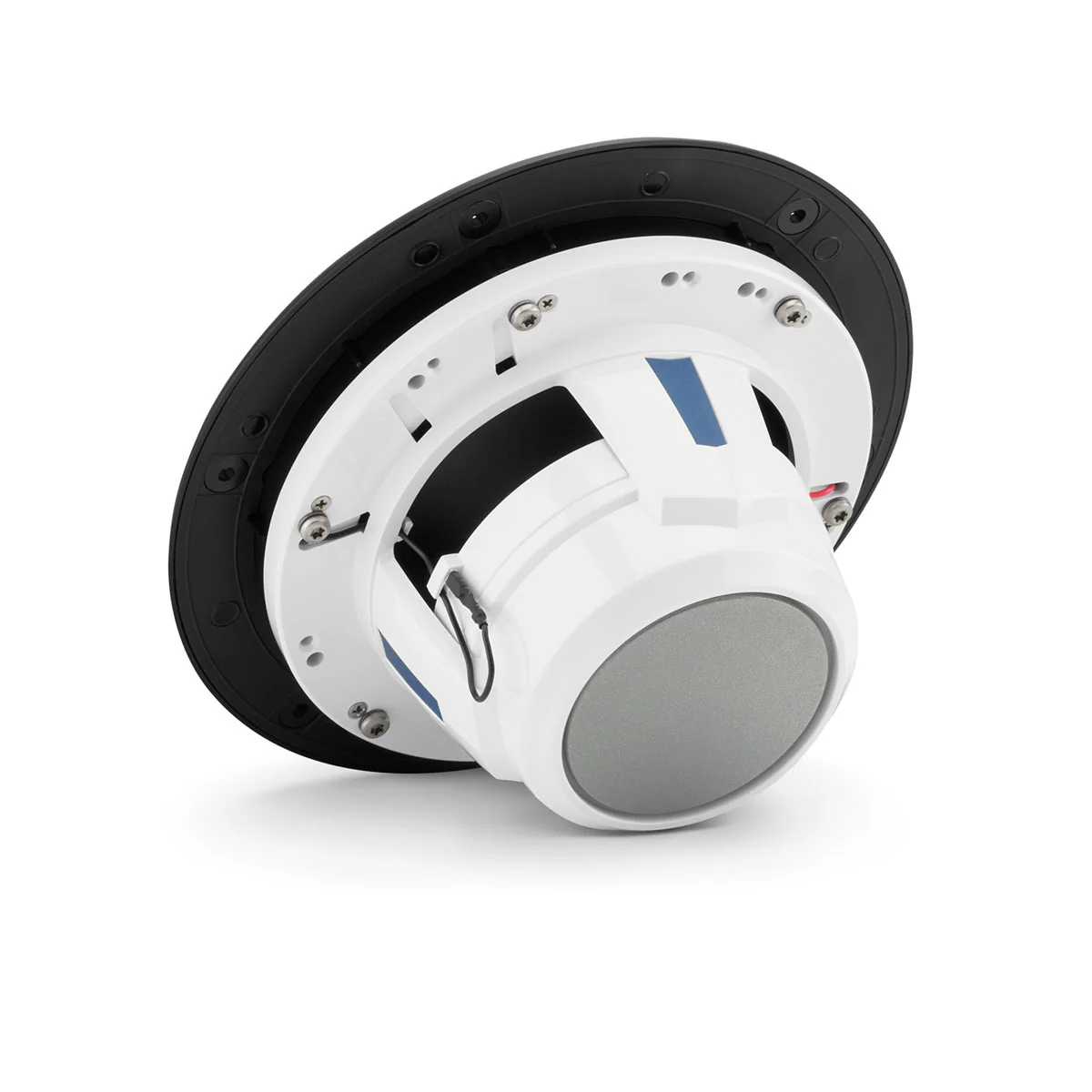

The JL Audio M6 6.5" Marine Speaker with Black Luxe Grille combines premium marine-grade components with sophisticated aesthetics for superior audio performance on the water. The Luxe series features a satin black grille with ultra-low profile design that provides elegant styling while maintaining robust protection. This coaxial speaker delivers full-range performance with a silk dome tweeter and mica-filled polypropylene cone, engineered specifically for the demanding marine environment. The M6 series is designed for flush-mounting applications in boats, providing exceptional sound quality with proven weather resistance.
Features & Benefits

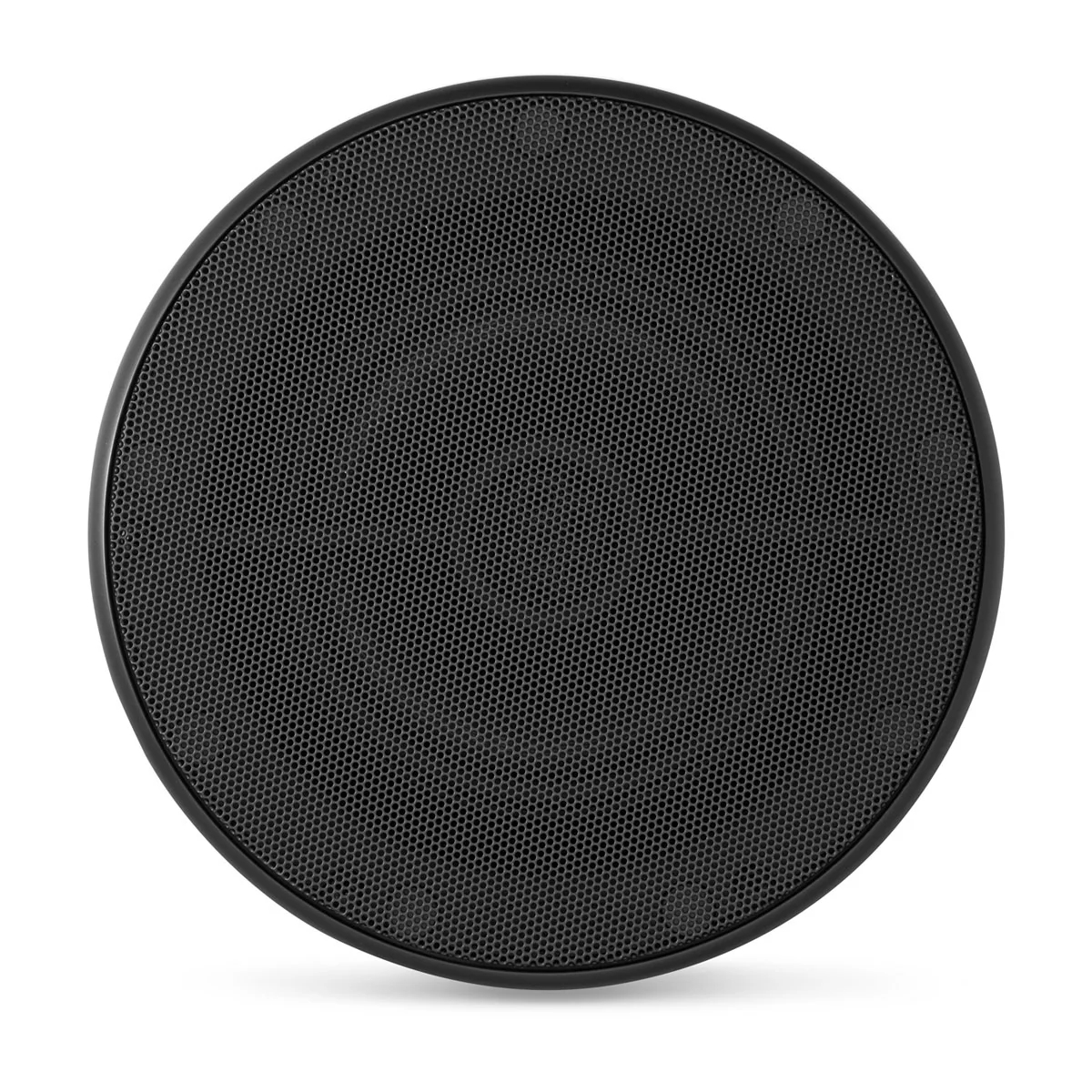

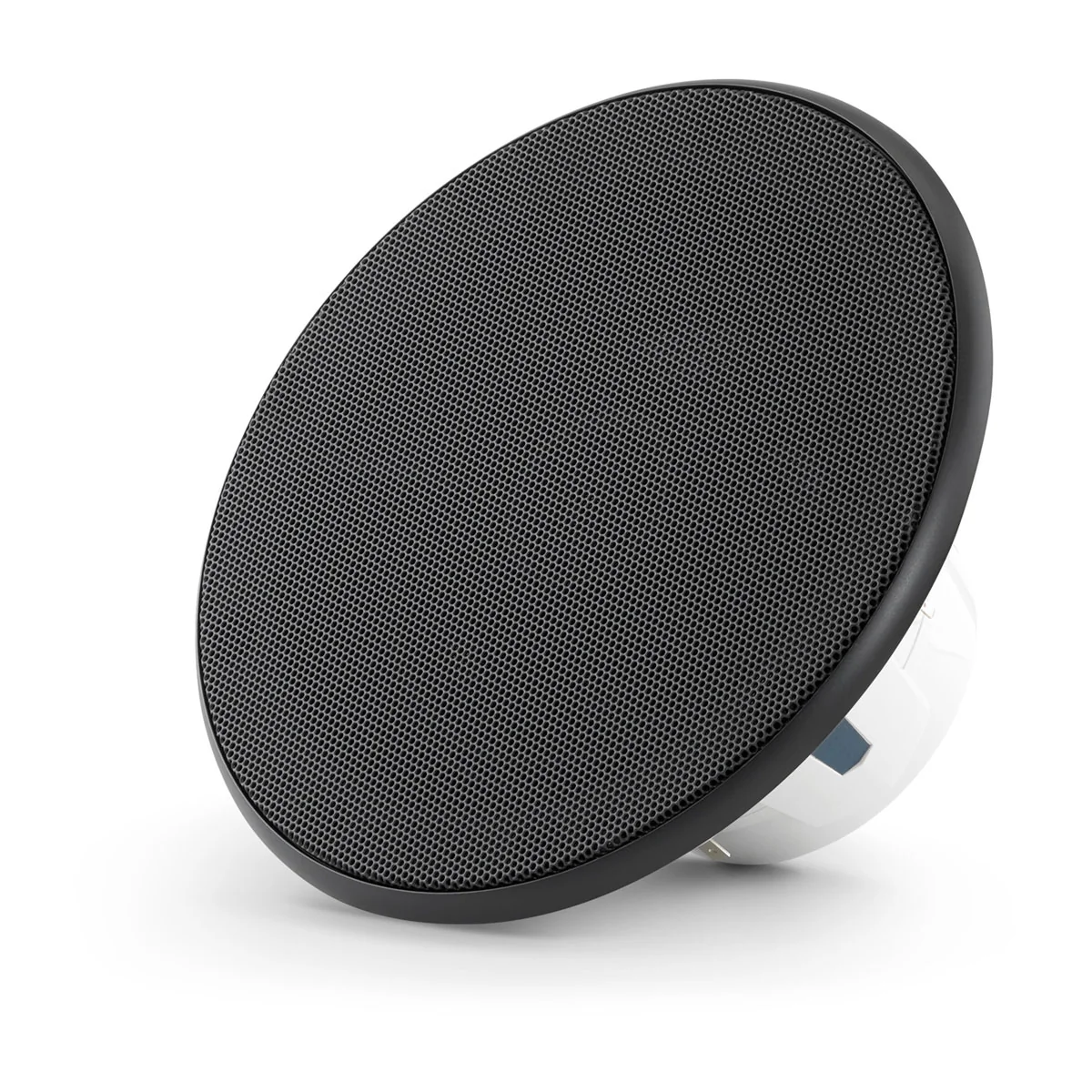

- Luxe Satin Black Grille: Sophisticated low-profile design with premium finish complements modern boat interiors
- Ultra-Low Profile: Only 9mm frontal grille protrusion minimizes visual impact for seamless integration
- Marine-Grade Construction: Sealed components and UV-resistant materials ensure long-term reliability in harsh saltwater environments
- Silk Dome Tweeter: 20mm (0.8") tweeter delivers smooth high-frequency response with wide dispersion
- Mica-Filled Polypropylene Cone: Injection-molded cone provides excellent stiffness-to-weight ratio for accurate reproduction
- Wide Frequency Response: 55 Hz - 25 kHz range ensures full-spectrum audio with extended high-frequency detail
- High Power Handling: 75W RMS continuous power handling with 150W peak capability
- Spade Connector Terminals: Professional-grade connections ensure reliable signal transfer
- Sealed Motor Structure: Prevents water intrusion and corrosion in critical voice coil components
- Stainless Steel Mounting Hardware: Marine-grade screws and washers resist corrosion in saltwater environments
- Complete Installation Kit: Includes mounting template, hardware, and grille removal tool for professional installation
Technical Specs
| Specification | Details |
|---|---|
| Model | JLA-010-03865-00 |
| Speaker Size | 6.5" (165mm) coaxial |
| Grille Style | Black Luxe (Satin Black) |
| Configuration | 2-way coaxial |
| Power Handling (Cont.) | 75W RMS |
| Power Handling (Peak) | 150W |
| Impedance | 4 ohms |
| Sensitivity | 89.5 dB @ 1W/1m |
| Frequency Response | 55 Hz - 25 kHz (+/- 3dB) |
| Woofer Composition | Injection-molded mica-filled polypropylene cone |
| Tweeter Type | Silk dome |
| Tweeter Size | 20mm (0.8") |
| Recommended Amp Power | 25-150W RMS per channel |
| Physical Diameter | 212mm (8.34") |
| Physical Depth | 102mm (4.02") |
| Mounting Depth Clearance | 98mm (3.87") |
| Frontal Grille Protrusion | 9mm (0.37") |
| Mounting Hole | 172mm (6.75") |
| Bolt Hole Circle | 188mm (7.39") |
| Connection Type | Spade connectors |
| Mounting Hardware | Stainless steel screws and washers included |
| Warranty | 3 years |
| Sold As | Single speaker |
Compatible With / Goes Well With
Essential Amplifiers:
- JL Audio MVi Marine Amplifiers (purpose-built for M6 systems)
- JL Audio MHD Marine Amplifiers (high-output power delivery)
- JL Audio XDM Car and Marine Amplifiers (versatile installation options)
Source Units:
- Fusion Apollo MS-RA800 Marine Stereo (Bluetooth streaming and premium audio control)
- JL Audio MediaMaster marine source units (seamless system integration)
System Building:
- JL Audio M6 Marine Subwoofers (deep bass extension)
- JL Audio M6 Marine Thin-Line Subwoofers (space-saving bass solutions)
- JL Audio M7 Marine Subwoofers (maximum output capability)
- JL Audio M6 Enclosed Tower Speakers (complete marine audio system)
Installation Accessories:
- Marine-grade speaker wire (14AWG or 16AWG recommended)
- Mounting template (included)
- Grille removal tool (included with Luxe models)
- Stainless steel mounting screws and washers (included)
Frequently Asked Questions
Q: What amplifier power is recommended for the M6 6.5" marine speakers?
A: These speakers perform optimally with 25-150 watts RMS per channel. For single speaker installations, 50-75 watts RMS provides excellent performance, while higher power levels deliver maximum output capability when needed.
Q: What's the difference between Luxe grilles and Classic/Sport grilles?
A: Luxe grilles feature an ultra-low 9mm profile with satin finish for sophisticated aesthetics and minimal visual impact. Classic and Sport grilles protrude 24-26mm with more traditional mesh designs. Luxe models include a dedicated grille removal tool for easy servicing.
Q: Can I use these speakers without an amplifier?
A: While these speakers can be powered by a marine head unit's internal amplifier, they perform best with dedicated amplification in the 25-150W RMS range. External amplification provides better dynamic range, clarity, and maximum output capability.
Q: How much mounting depth do I need behind the panel?
A: The M6 6.5" Luxe requires 98mm (3.87") of clearance behind the mounting surface. Always verify clearance before cutting mounting holes, as obstructions like fuel tanks or structural members may interfere with installation.
Q: Is this speaker sold individually or as a pair?
A: This model (JLA-010-03865-00) is sold as a single speaker. It includes one speaker, one grille, six mounting screws, six washers, grille removal tool, and mou
