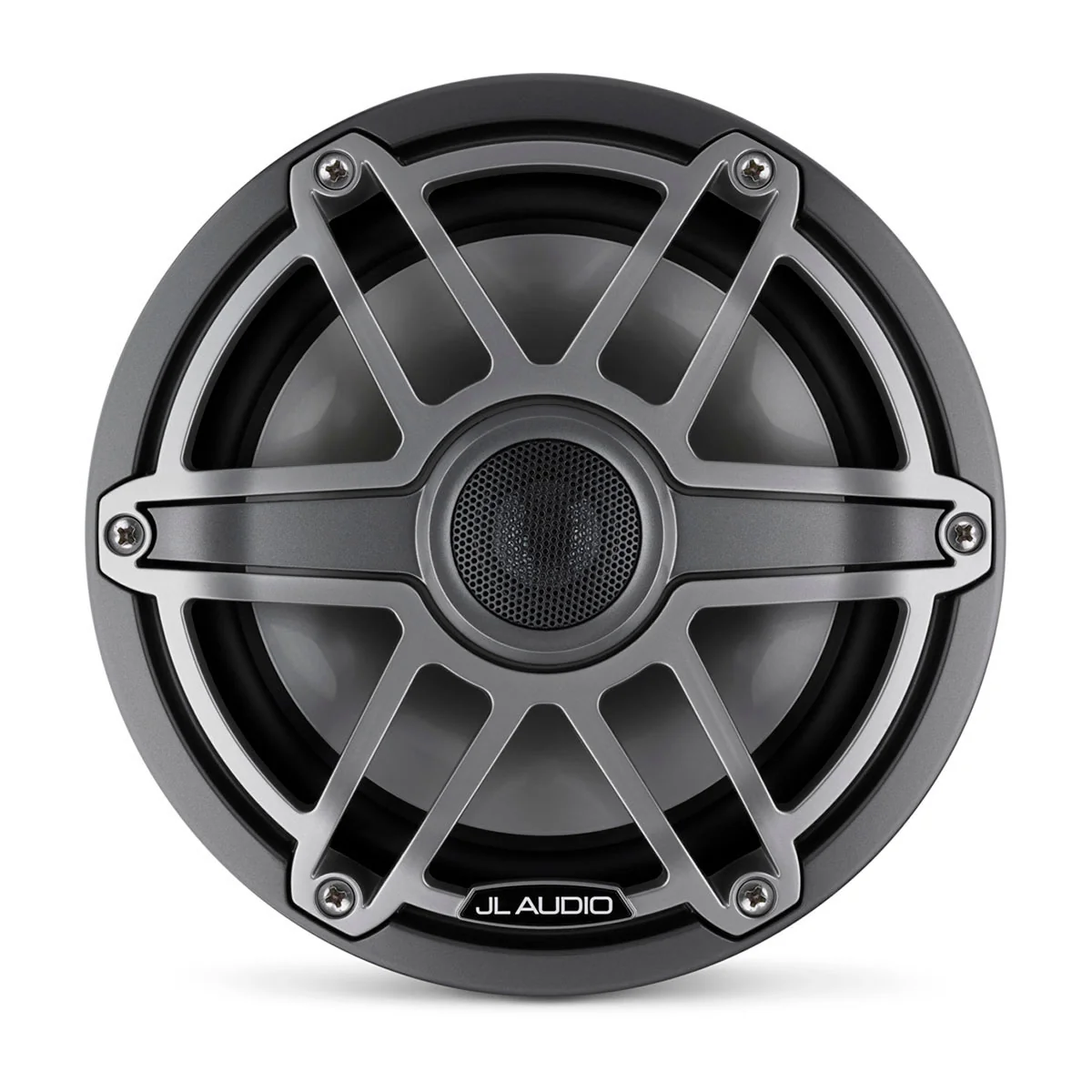

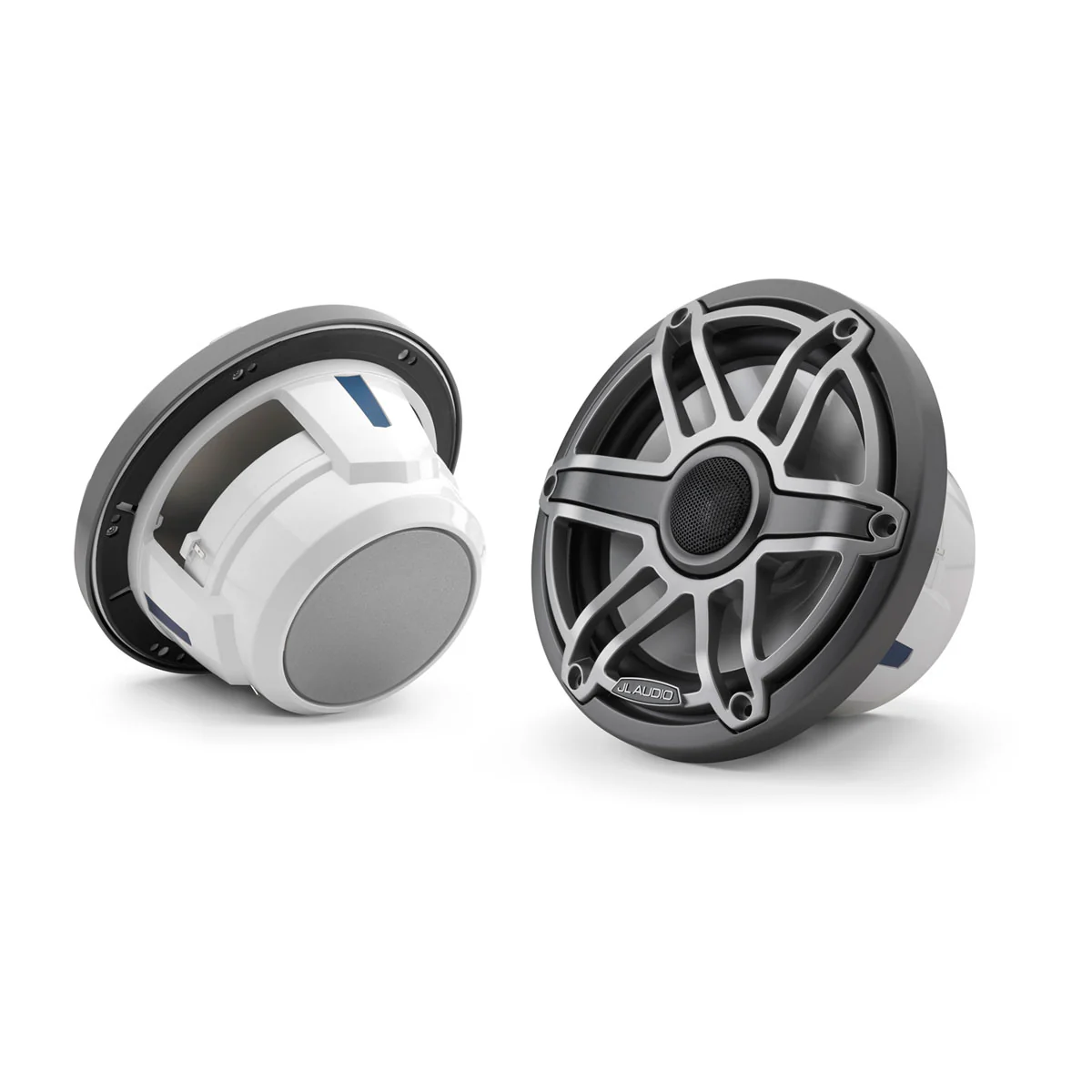

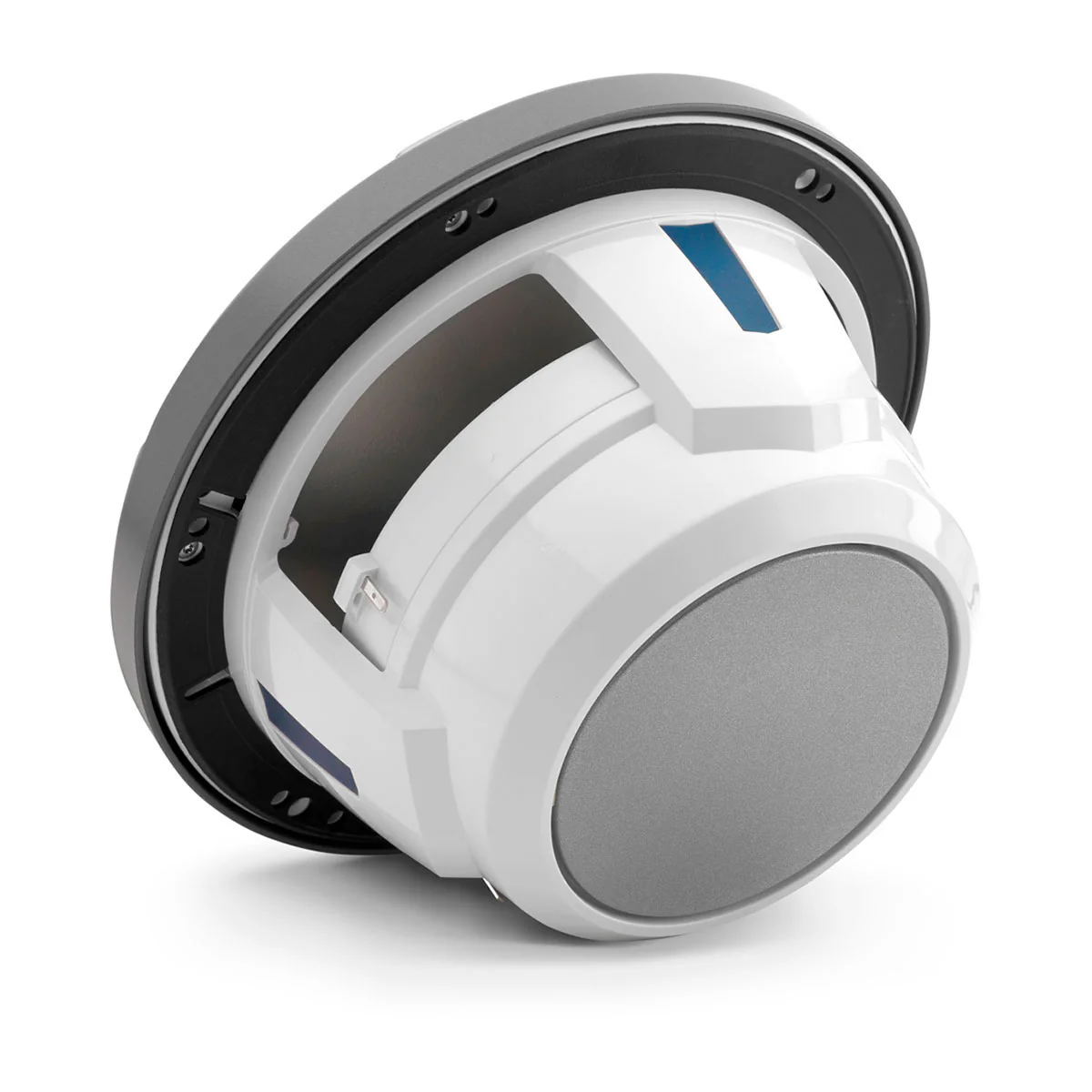

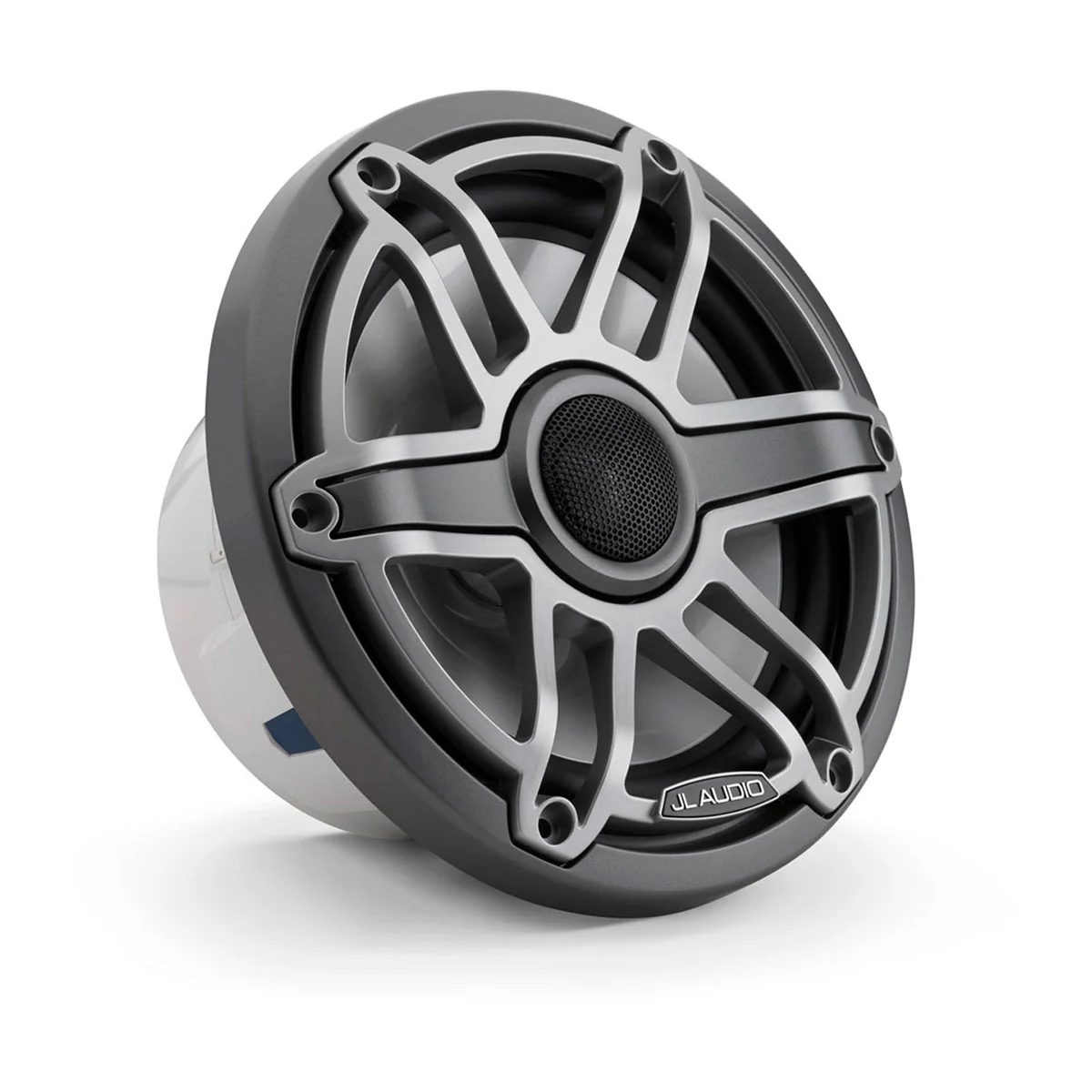

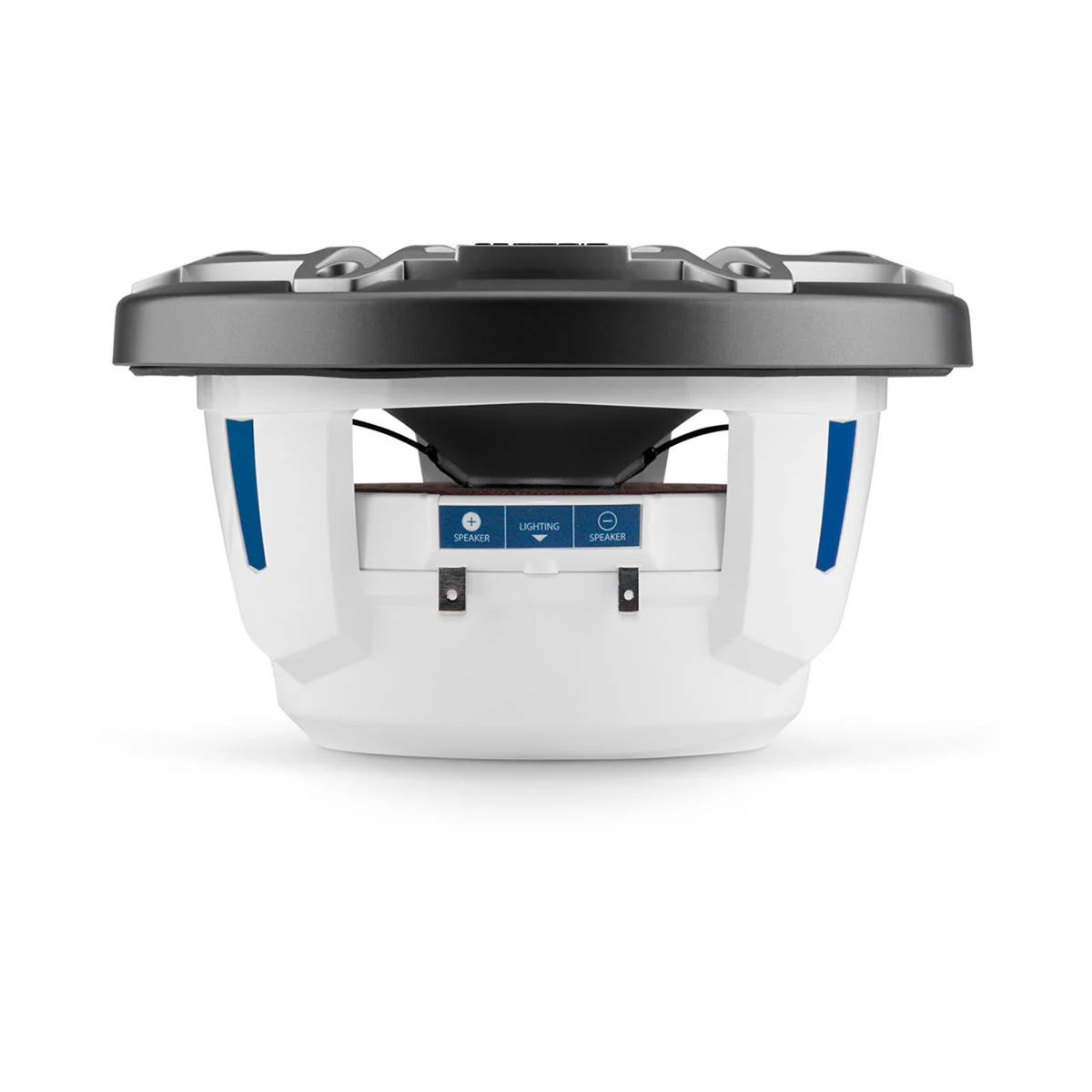

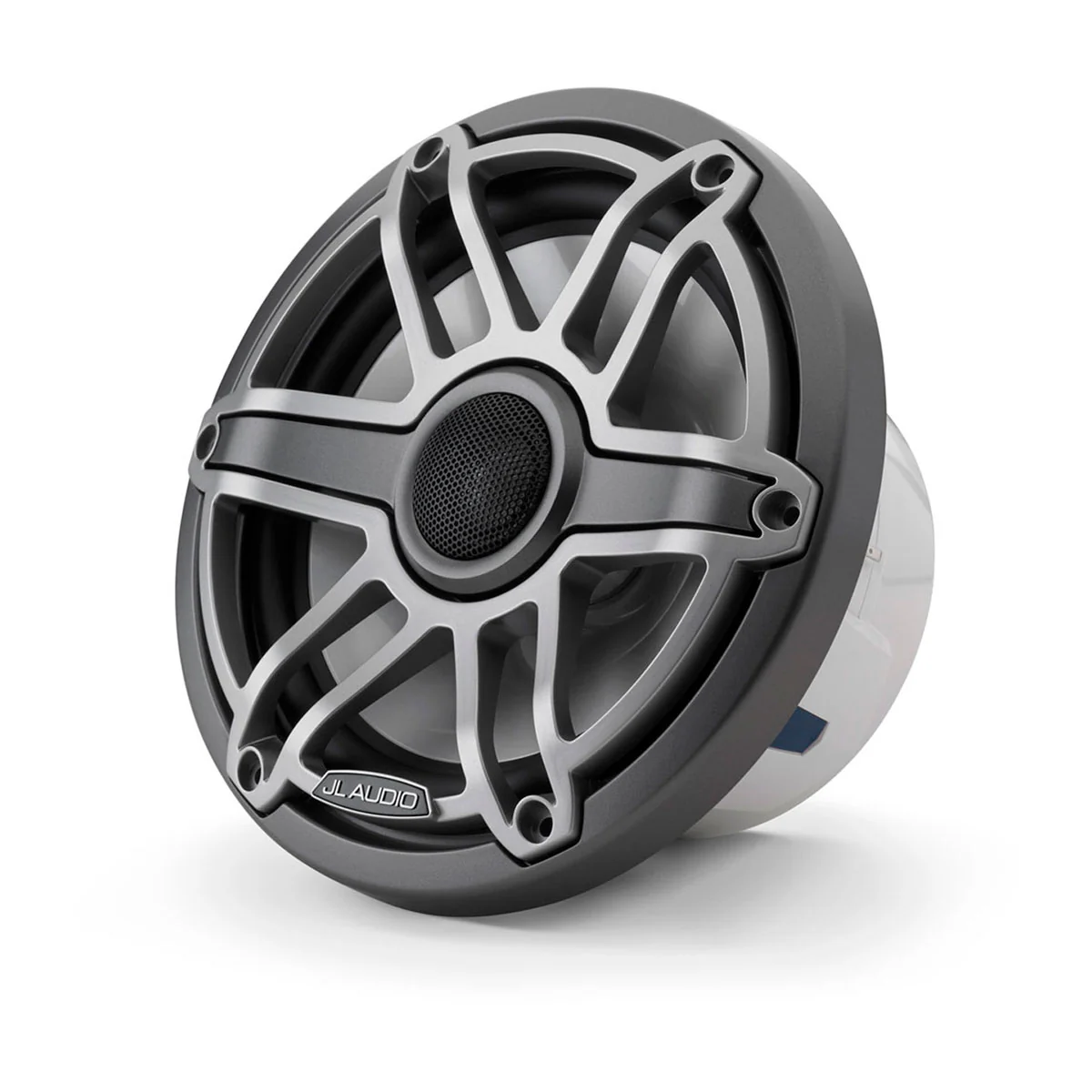

JL Audio JLA-010-03075-00 M6 7.7" Marine Speakers - Titanium Sport Grille
JL Audio JLA-010-03075-00 M6 7.7" Marine Speakers - Titanium Sport Grille
High-output marine audio with premium titanium styling — M6 Sport series delivers increased power handling and sophisticated metallic aesthetics for Australian offshore conditions.
Product Overview
The JL Audio M6 7.7" marine speakers with titanium sport grilles deliver reference-grade sound quality in a corrosion-resistant package with premium metallic styling. Engineered with injection-moulded mica-filled polypropylene cones and 25mm silk dome tweeters, these coaxial speakers handle 100W RMS continuous power with 91 dB sensitivity across a 45 Hz-25 kHz frequency range. The larger 7.7" format provides enhanced bass response and increased output compared to 6.5" models, while titanium sport grilles add sophisticated metallic styling ideal for luxury yachts and premium vessel installations where distinctive aesthetics complement high-performance marine audio.
Features & Benefits
7.7" High-Output Format: Larger driver diameter delivers increased cone area and bass extension down to 45 Hz compared to 6.5" speakers, providing fuller low-frequency reproduction critical for cutting through engine noise, wind, and water splash during high-speed cruising or offshore fishing operations.
100W RMS Power Handling: Enhanced thermal management and robust voice coil construction supports continuous 100W power with 200W peak capacity, enabling higher output levels and dynamic headroom for demanding marine entertainment systems, multi-zone installations, and amplified audio configurations.
Premium Titanium Sport Grille: Sophisticated metallic titanium finish combines aggressive sport styling with corrosion-resistant construction, offering distinctive aesthetic presence ideal for luxury yachts, performance vessels, and premium recreational craft requiring upscale visual impact beyond standard white or classic grille finishes.
25mm Silk Dome Tweeter: Premium 1-inch soft dome tweeter provides enhanced high-frequency output and wider dispersion compared to smaller tweeters, ensuring clear vocal reproduction and detailed audio imaging across broader listening areas in open cockpit environments and flybridge installations.
Enhanced Sensitivity Rating: 91 dB efficiency (1W/1m) provides 1.5 dB increased output over 6.5" models, maximizing performance from moderate amplifier power while reducing system requirements for battery-conscious installations and direct head unit connection without external amplification.
Extended Frequency Response: 45 Hz-25 kHz range delivers deep bass extension and extended high-frequency clarity, providing full-range audio reproduction with enhanced low-end impact critical for music genres requiring substantial bass presence including electronic, hip-hop, and rock music.
Marine-Grade Corrosion Protection: Fully marinized component construction with UV-resistant materials, sealed motor structures, and corrosion-resistant hardware provides reliable long-term performance in harsh saltwater environments including coastal cruising, offshore fishing, and tropical marine conditions with sustained exposure to spray, humidity, and sunlight.
Mica-Filled Polypropylene Cone Technology: Advanced injection-moulded cone material delivers exceptional rigidity, controlled damping characteristics, and superior moisture resistance compared to paper or treated fabric cones, ensuring consistent audio performance in high-humidity marine environments with temperature fluctuations and continuous vibration.
Simplified Installation: Sport grille design without LED components reduces installation complexity compared to LED-equipped models, eliminating additional wiring requirements while maintaining premium titanium aesthetics and reference-grade audio performance ideal for straightforward upgrades or retrofit installations.
4-Ohm Nominal Impedance: Standard impedance rating ensures broad compatibility with marine head units, aftermarket amplifiers, and multi-speaker configurations while maintaining stable load characteristics during extended operation in varying temperature conditions and demanding marine environments.
Technical Specs
| Specification | Value |
|---|---|
| Speaker Type | 2-way coaxial marine speaker |
| Woofer Size | 196mm (7.7") |
| Tweeter Size | 25mm (1") silk dome |
| Continuous Power Handling | 100W RMS |
| Recommended Amplifier Power | 40-200W per channel |
| Nominal Impedance | 4Ω |
| Sensitivity | 91 dB (1W/1m) |
| Frequency Response | 45 Hz-25 kHz (±3 dB) |
| Overall Diameter | 196mm (7.70") |
| Mounting Depth | 112mm (4.4") |
| Mounting Depth Clearance Required | 84mm (3.32") |
| Frontal Grille Protrusion | 27mm (1.08") |
| Mounting Hole Diameter | 159mm (6.25") |
| Bolt Hole Circle | 176mm (6.92") |
| Cone Material | Injection-moulded mica-filled polypropylene |
| Grille Colour | Titanium sport finish |
| Grille Style | Sport (performance styling) |
| LED Lighting | No |
| Speaker Connection | Spade connectors |
| Mounting Hardware | Stainless steel screws and washers included |
| Quantity | Pair (two speakers) |
| Warranty Period | 3 years |
| Part Number | JLA-010-03075-00 |
Compatible With / Goes Well With
- Fusion Apollo MS-RA800 marine stereo
- JL Audio MHD marine amplifiers
- JL Audio MVi marine amplifiers
- JL Audio XDM car and marine amplifiers
- JL Audio M6 marine subwoofers
- JL Audio M6 marine thin-line subwoofers
- JL Audio M7 marine subwoofers
- Luxury yachts with 159mm speaker cutouts
- Performance boats requiring high output
- Premium cruisers with titanium accents
- Flybridge installations
- Centre console fishing boats
- Bowriders with metallic trim
- Recreational vessels with upscale finishes
Caution: Verify mounting depth clearance (84mm minimum) and mounting hole diameter (159mm) before installation. This model does NOT include LED lighting functionality. 7.7" models require LARGER cutouts than 6.5" speakers. For LED-equipped titanium sport speakers, see part number JLA-010-03076-00.
Frequently Asked Questions
What's the difference between this model and JLA-010-03076-00?
This model (JLA-010-03075-00) features titanium sport grilles WITHOUT LED lighting, offering simpler installation and lower cost. Model JLA-010-03076-00 includes Transflective™ LED lighting with multi-colour illumination requiring additional wiring. Both share identical audio specifications and titanium sport styling.
Do these speakers come as a pair or individually?
This model is sold as a PAIR (two speakers) for complete stereo installation. Package includes two speakers with titanium sport grilles, mounting hardware, and mounting template for both units.
What's the advantage of 7.7" speakers over 6.5" models?
The 7.7" format provides enhanced bass extension down to 45 Hz (versus 55 Hz), increased power handling (100W vs 75W), and 1.5 dB higher sensitivity. This translates to fuller low-frequency reproduction, higher output capability, and improved performance for larger vessels or demanding installations.
What mounting depth clearance is required for 7.7" M6 speakers?
You'll need 84mm clearance behind the mounting surface, with the speaker requiring 112mm total depth including the 27mm frontal grille protrusion for sport models. Verify adequate clearance before installation in shallow mounting locations.
Can I mix titanium and white grille speakers in the same system?
Yes, mixing grille colours is possible as all M6 7.7" sport models share identical audio specifications and mounting dimensions. Titanium grilles are typically used in primary listening zones (cockpit, flybridge) while white grilles may be used in secondary zones for aesthetic variety.
