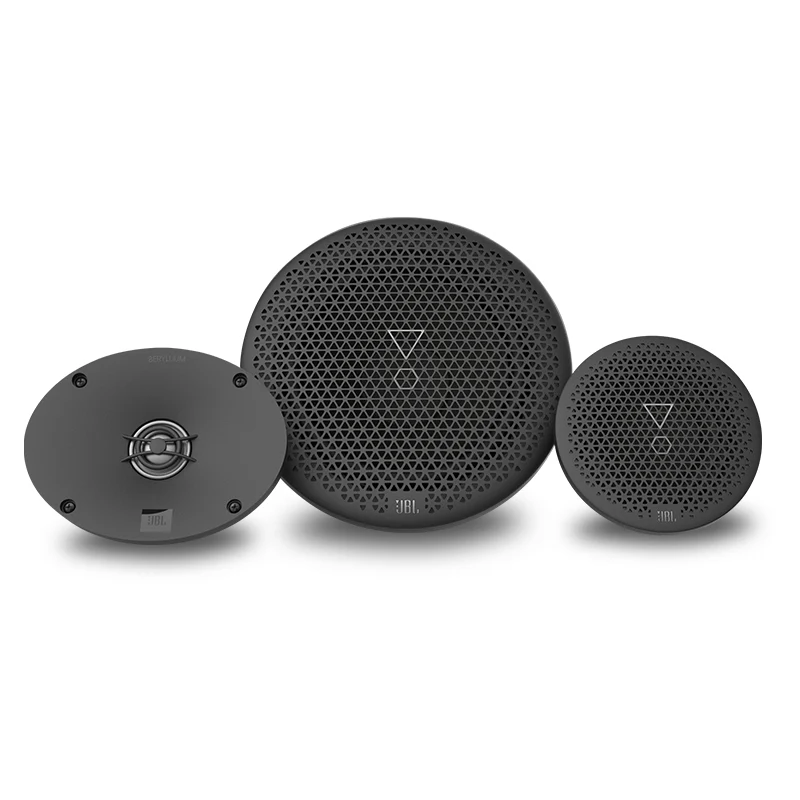

JBL Arena X 6.5" Woofer - 3.5" Midrange Active Three Way Component System 100 Watts RMS - 4 Ohms

Finest-Ever Automotive Component Speakers in a 3-Way System from JBL!

JBL Arena X is the flagship automotive loudspeaker from our ARENA series, expect to be finest-ever automotive component speakers in a 3-way system including pair Beryllium tweeter with special Revel Performa waveguide and require with 3.5” midrange , 6.5” woofer optimized for car audio applications for smooth, off-axis response, dynamic stability and low distortion.

The gorgeous cosmetic grills and innovative custom mounting rings allow for a seamless elegant install hiding all midrange fasteners behind a magnetic trim ring and grill.

Features:

• Arena X Tweeter had optimized oval waveguide Beryllium tweeter of Luxury Revel Performa design, and optimized to powerful ND magnet for the ultimate in lightweight performance (weight be reduced 69% from1,300g to 400g/pc) and to make it thinner and smaller (Motor size be reduced 70% to 12cm^2) for car aftermarket installation market
• New 3.5” carbon fiber midrange to bridge smoothly deeper bass woofer and high frequency extend TW in 3-way system. The 6.5-inch / 165mm woofer performance more deeper bass than GTI 670 with new carbon fiber material and new grille, New CMF
• High Res Audio Certification
• Supply more easier installation accessories included customized plastic rings, Metal Tweeter plates, etc.

Benefits:

• Be tweeter provides smooth extended up to 40KHz frequency response and well-behaved off-axis response throughout the entire operating range
• Removable grills and fantastic decoration rings supply multi-options visual
• Luxury audio of “Revel Performa” design joint with JBL Flagship product

Specifications:

• Type Active 3-way system
• Woofer Pair 6.5” woofer, 4ohm
• Woofer Bandwidth 60Hz-6Khz (-6dB)
• Woofer Power 100Wrms/600W peak
• Woofer Sensitivity 91dB (2.83V/1m)
• Woofer Fs 60Hz
• WF mounting depth/cutout 69mm/128mm
• Tweeter Pair 1” tweeter, 4ohm
• Tweeter Bandwidth 1KHz-40KHz
• Tweeter Power 50Wrms w/o filtering/200W peak
• Tweeter Sensitivity >95dB (2.83V/1m)
• Tweeter Dome Beryllium dome
• Tweeter Fs 1.35K Hz
• TW mounting depth/cutout 20mm X 52mm
• Midrange Pair 3.5” midrange
• Midrange Power 50W RMS/200W peak
• Midrange Fs 125Hz
• Midrange Sensitivity >87dB (2.83V/1m)
• Midrange Bandwidth 200Hz – 6KHz (-6dB)
• MR mounting depth/cutout 37mm max /73mm (Ref)
