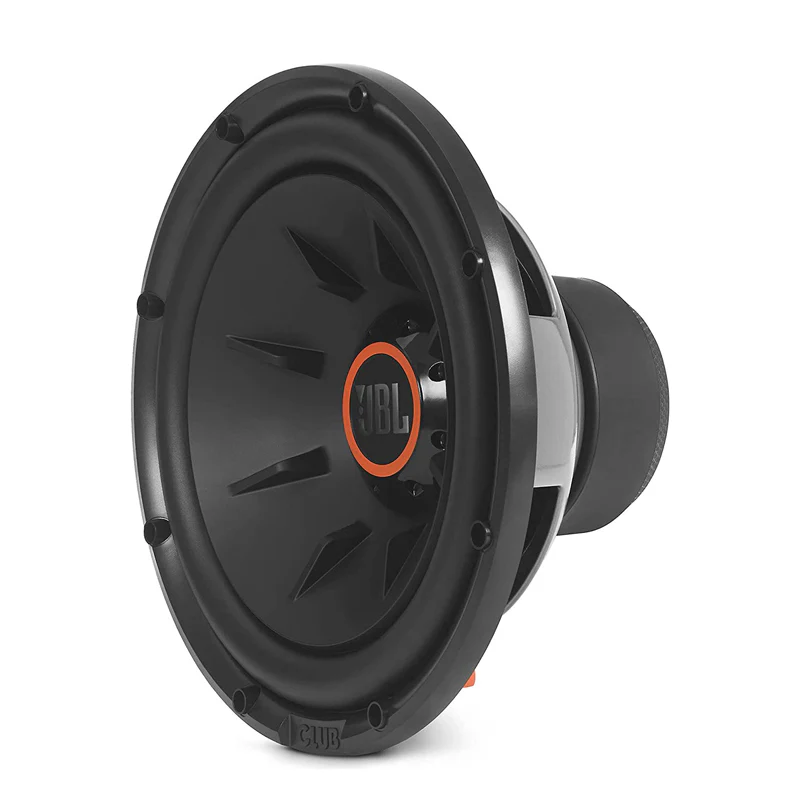

JBL Club 1224 12" Woofer 275 Watts RMS - Sensitivity 93dB - 2 or 4 Ohm Selectable

Club Series Car Woofer from JBL!

Car audio systems rely on powerful bass for great sound. System designers look for configuration flexibility. The Club Series deliver both. Designed to suit a range of applications, these 10- and 12-inch subwoofers produce signature JBL bass performance in sealed or vented enclosures. But the flexibility doesn’t end there. These subwoofers feature SSI (Selectable Smart Impedance), an exclusive impedance switch that lets you select the optimum impedance—2 or 4 ohms—for your system. So you get the powerful JBL bass you want, in the configuration you choose.

Features:

• Peak power handling: 1100W
• RMS power handling: 275W
• Selectable 2 or 4 Ohm Impedance
• Nitrile rubber surround
• Polypropylene cone
• Simple switch for selecting resistance
• 2" voice coil
• Quick disconnect compatible terminals
• Single-stacked magnet

Specifications:

• Peak power handling: 1100W
• RMS power handling: 275W
• Voice coils(s): Single
• Impedance (per voice coil): 2 or 4Ohms
• Voice coil diameter: 2"
• Frequency response: 25-175 Hz
• Sensitivity: 93dB
• Xmax: 10.25mm
• Main cone colour: Black
• Woofer Composition: Polypropylene
• Woofer Surround: Rubber
• Magnet Structure: Single Stacked
• Top-mount depth: 6.5"
• Cutout diameter: 11.25"
