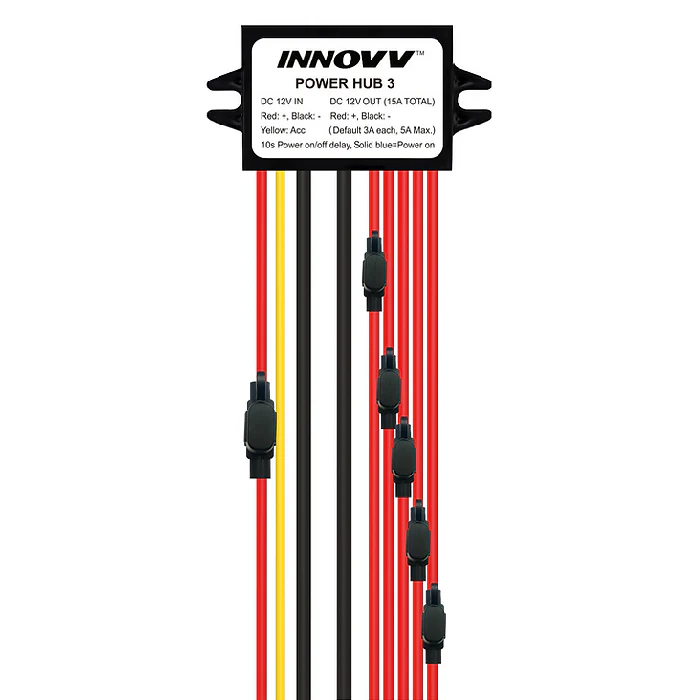

INNOVV INNPOWERHUB3 Power Hub 3 DC 12V Motorcycle Power Distribution Hub

Allows You to Connect Up to 5 Different Accessories Such as Lights, Horns, Power Outlets & More!

POWER HUB 3
The INNOVV Power Hub 3 was developed in response to the demands of our customers... “The INNOVV Power Hub 3 keeps everything tidy, is simple and easy to use whilst being very compact in size.” It’s powered with the ignition so it turns on and off with the bike. A shared ground connection keeps everything tidy and easy to use.

More than just motorcycle cameras... we also have GPS, driving lights, heated clothing/gloves, and other accessories on our offroad toys.

• Flat Battery?
• Power up/power off the devices manually?
• Are devices getting damaged by poor power supply?
• Multiple connections to the battery look unprofessional and messy!

• Simple Design
• Solid Construction
• Water Proof
• Dust Proof
• Easy Use and Installation
• 1 x 15A inline fuse for input
• 5 x 3A inline fuse for output
• Connect up to 5 devices
• 46.2mm x 31mm x 18mm (1.8” x 1.2” x 0.7”)

Clear Indicator ​
With a 10-second power on and power off delay to help avoid low power supply to devices with engine start/stop. Blue LED solid on, power supply.

Features:

• Input, the max is 15A.
• Output, Each wire has a 3A inline fuse, the total current for 5 wires is no more than 15A.
• Blue LED solid on, power supply.
• Ignition trigger- yellow wire – connect to a switched power source like headlight, taillight, etc.
• This wire sends an electrical signal to trigger the power supply for 5 red positive (+) output leads.
• Positive(+) power lead (Input)- Red wire – connect to the positive point on the battery from the bike.
• Ground(-) (Input)- Black wire – connect to the ground point on the battery or frame of the bike.
• Positive(+) power lead (output)- Red wire – connect to the positive lead of the device.
• Ground(-) (output)- Black wire – connect to the ground lead of all devices.

Specifications:

• Input Voltage: DC 9V-16V
• Input Current: ≤15A
• Output Voltage: DC 9V-16V
• ACC Voltage: DC 9V-16V
• Each Output Current: 3A
• Single Output Current: ≤5A
• Max Output Power: ≤200W
• Standby Current: ≤10uA
• No Load Power Consumption: ≤0.2W
• Waterproof IP Rating: IP67
• Overcurrent Protection: Fuse
• Operating Temperature: -30℃ ~ 70℃
• Delay Output: 10 Seconds
