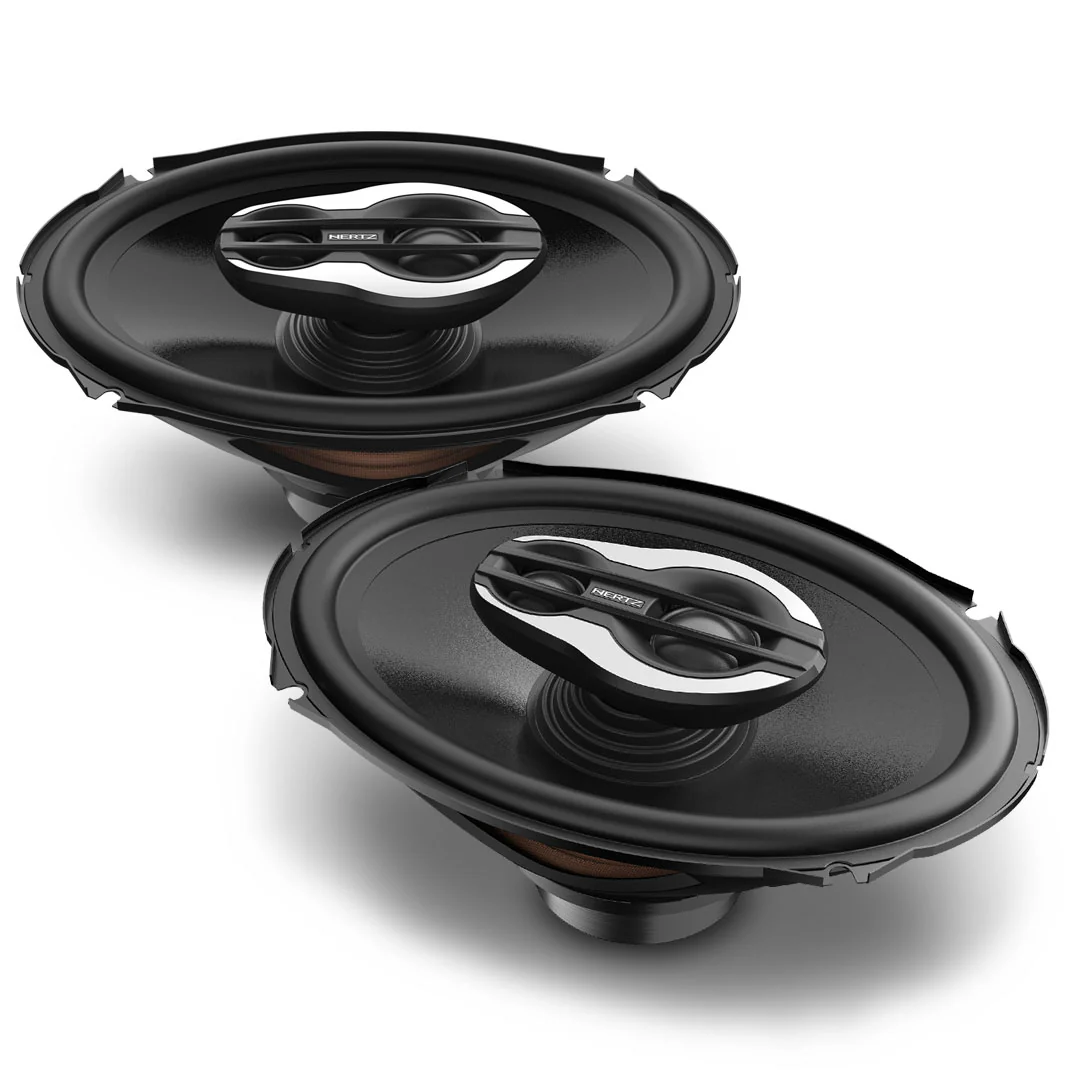

Hertz SX690H | 6X9" 3-Way Coaxial Speaker | 260W SPL Show Pair

Hertz 6X9" 3-Way Coaxial Speaker SPL Show Pair

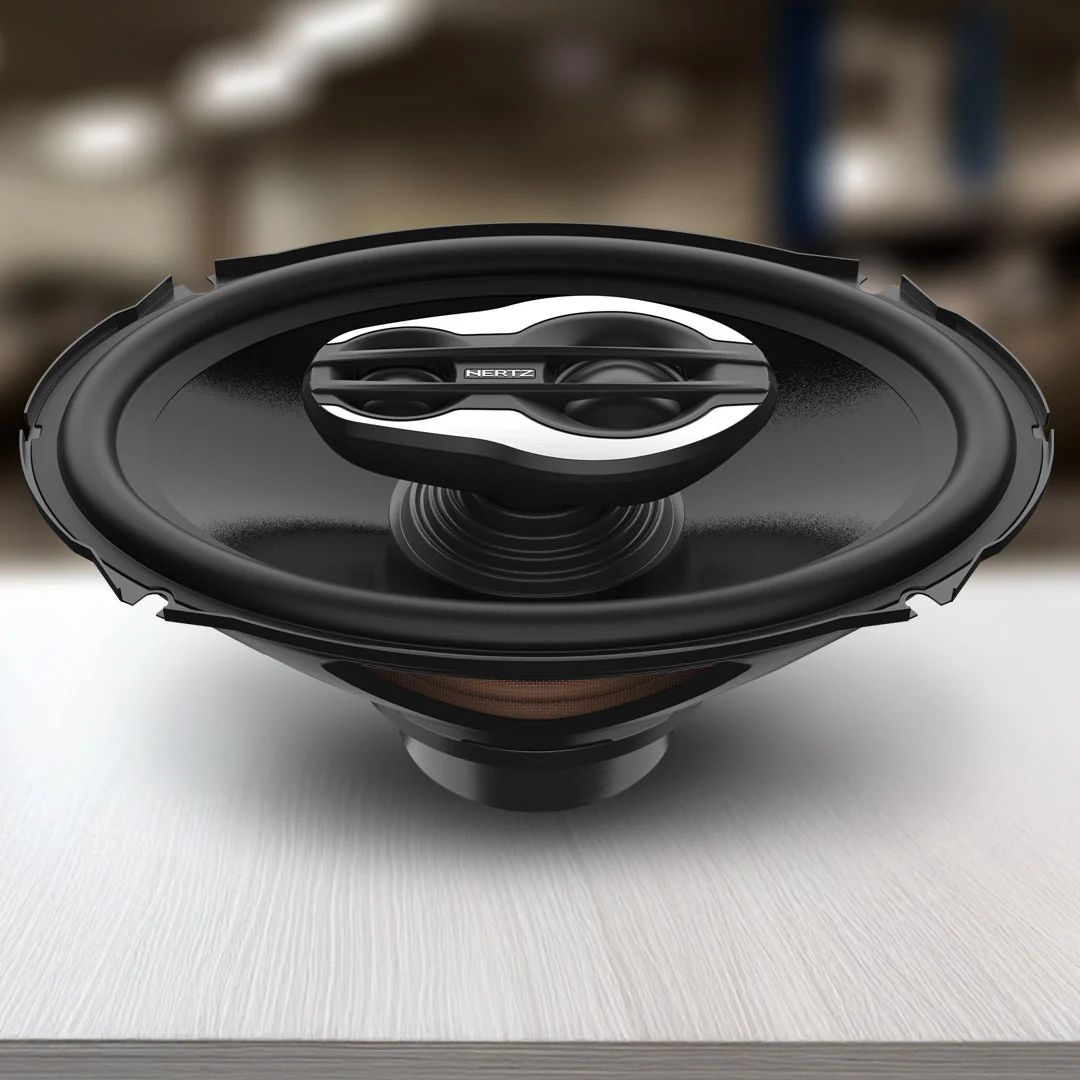

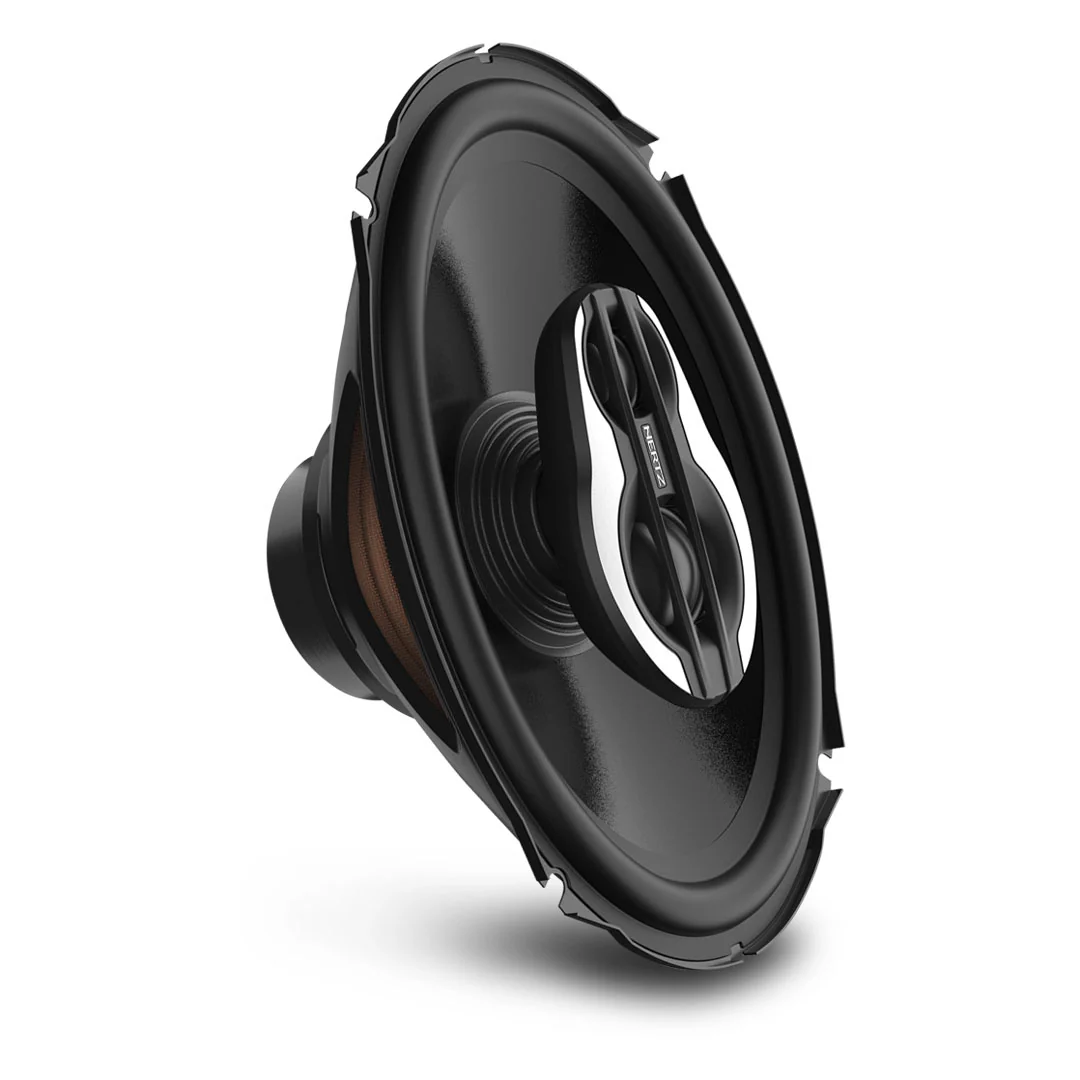

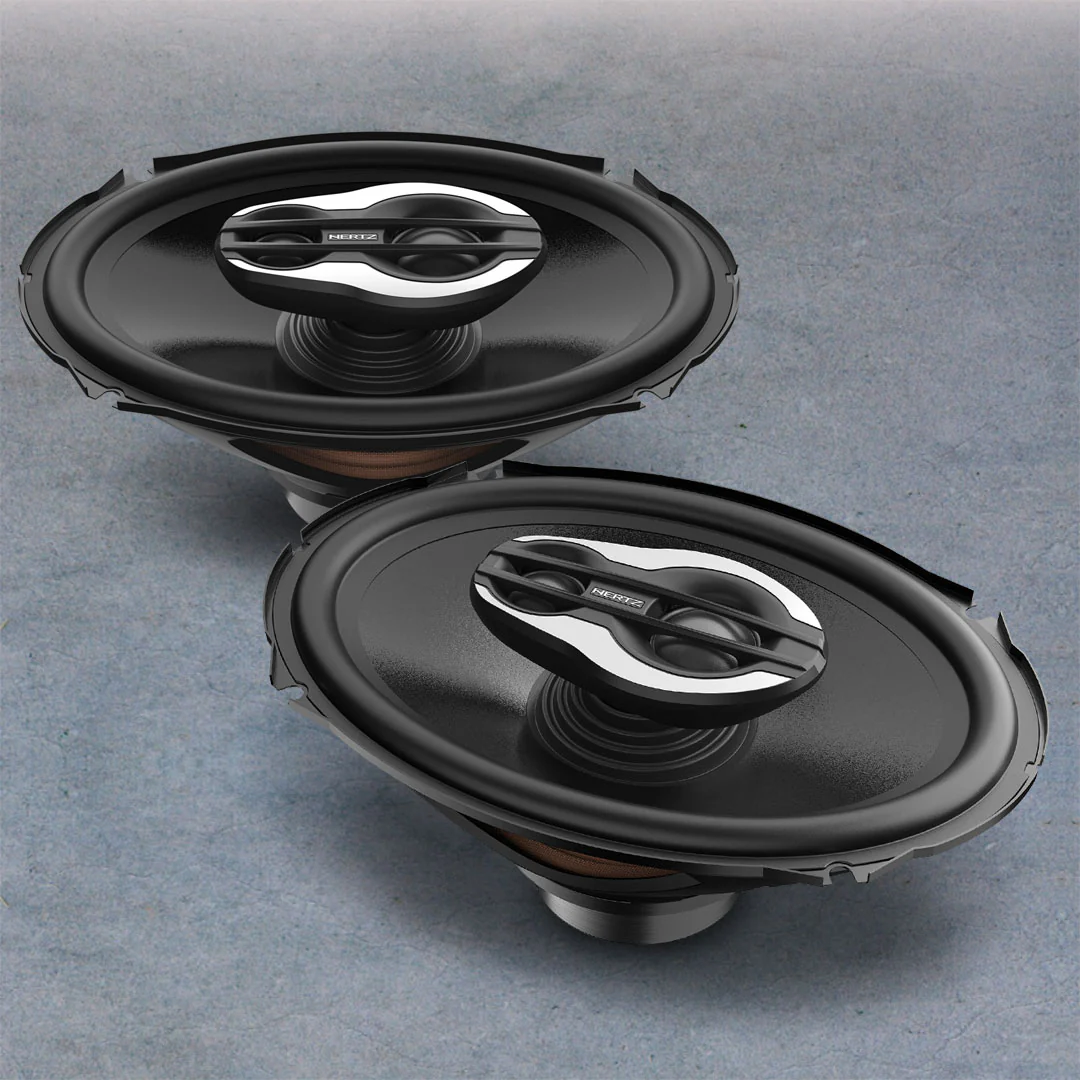

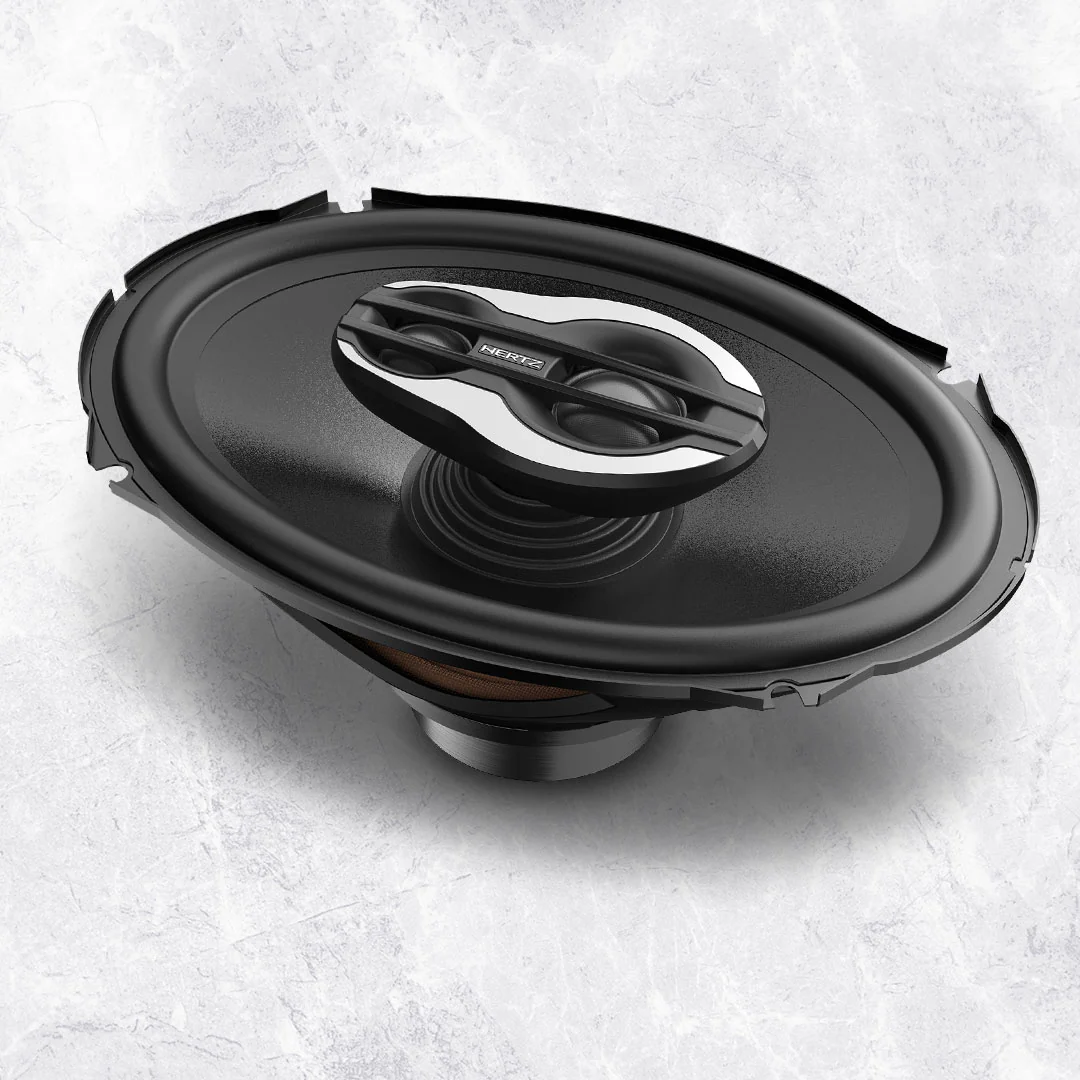

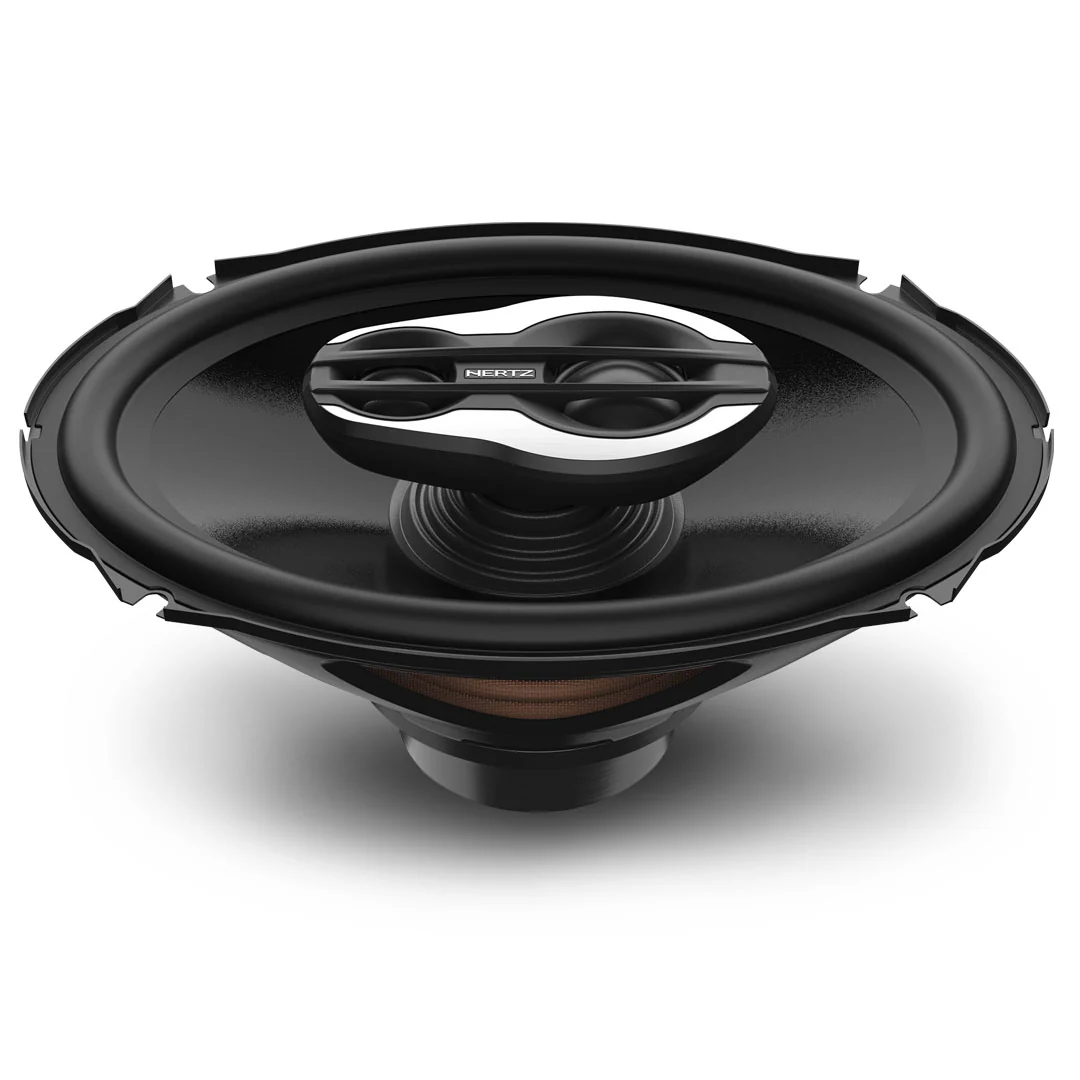

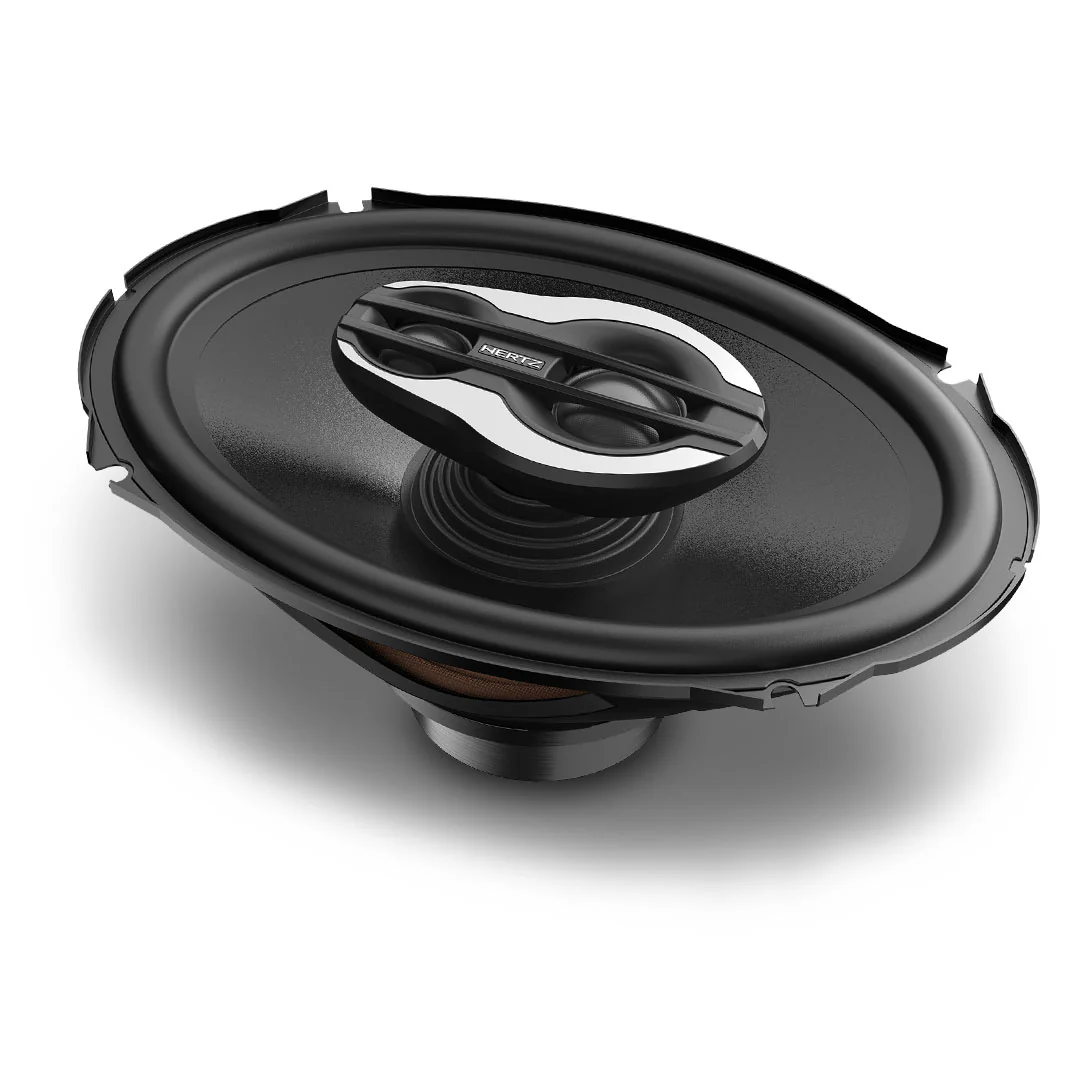

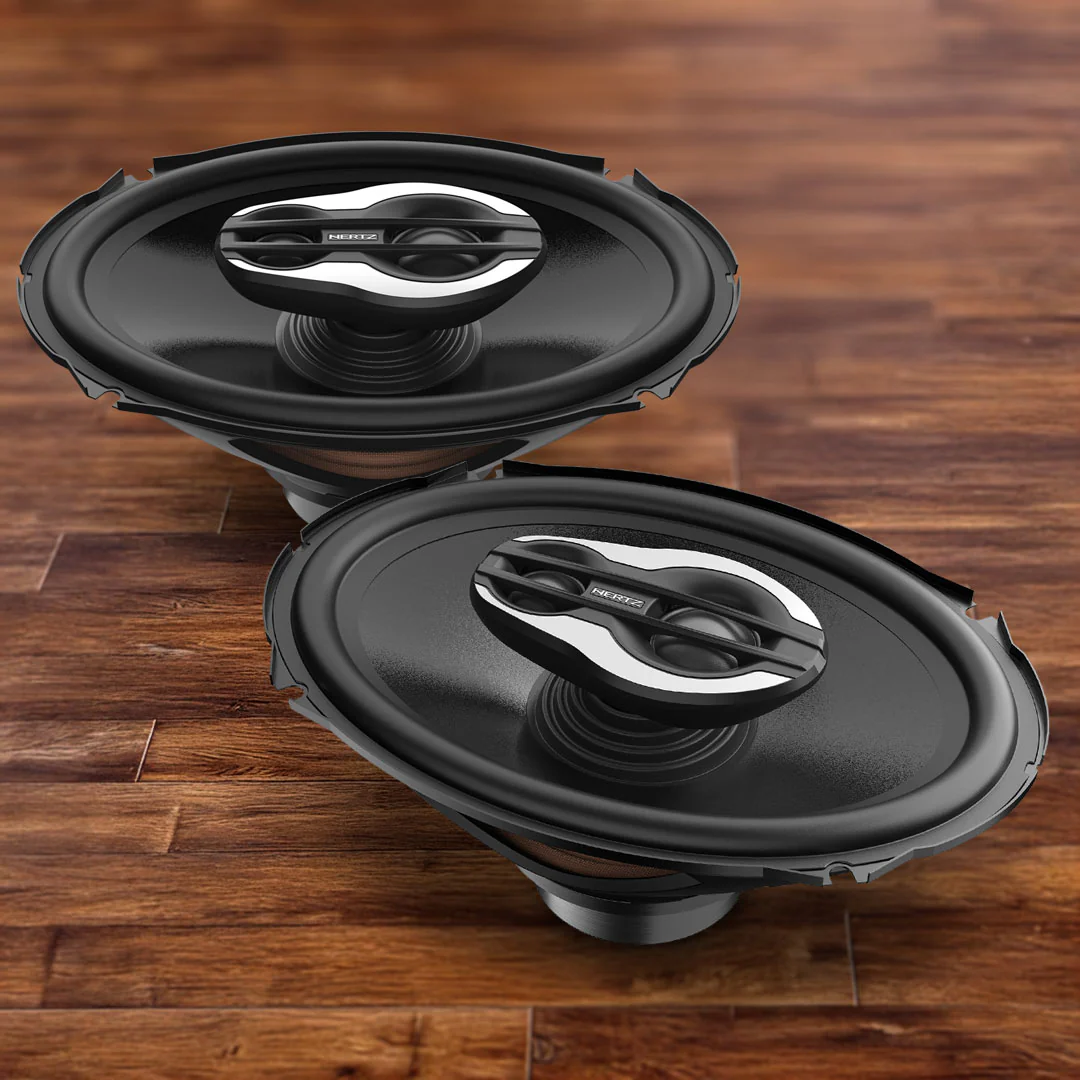

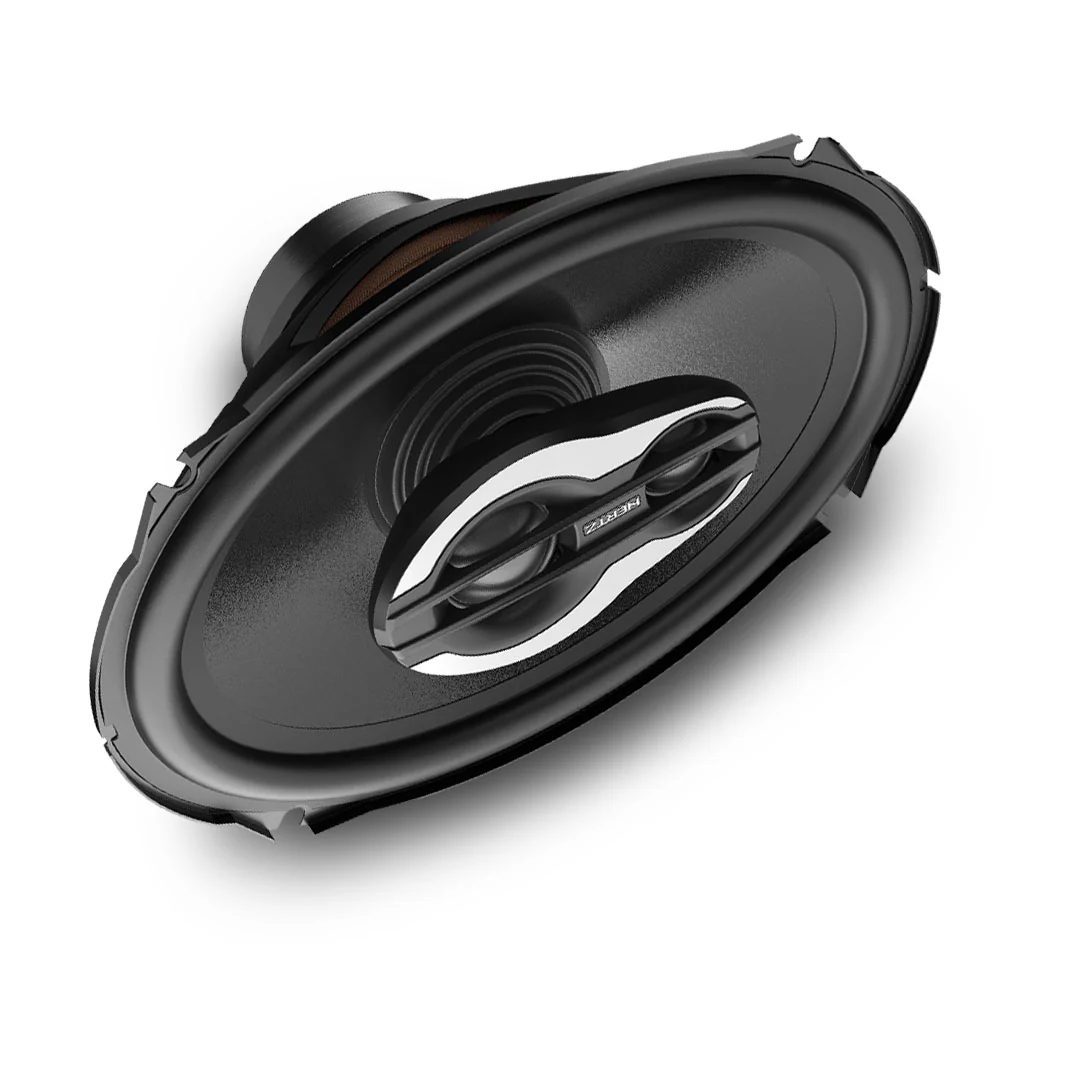

SX 690 H NEO coaxial for 2024 Harley is a real beast with a Hi-SPL Mid-Hi unit based on a 1.4” dome tweeter and 1” dome super tweeter with a resettable solid-state protection circuit. The cone is made with nature-proof high-stiffness pressed paper featuring innovative water/humidity resistance and anti-UV treatments. The double-layer copper voice coil wound on polyimide former ensures unparalleled power handling. New motor units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.
NATURE PROOF: Compact and lightweight, the new Spl Neo systems are extremely loud and do not fear nature elements for unlimited fun in every condition!

Hertz SX690H Features:

• Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.
• Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.
• Unparalleled power handling is delivered by the double-layer copper voice coil, wound on a polyimide former.
• Hi-SPL Mid-Hi unit based on 1.4” dome tweeter and 1” dome super tweeter with resettable solid-state tweeter protection circuit.
• Double faston terminals allow daisy-chaining of multiple units and provide compatibility with the most common motorcycle connections.

Hertz SX690H Specifications:

• Component SPL COAXIAL

• Size mm (in.)    in. 6 x 9

• Power Handling - Continuous W    130

• Power Handling - Peak W    260

• Impedance Ohm    4

• Tweeter diaphragm mm (in.)    29 (1.14)

• Woofer Voice Coil Ø mm (in.)    38 (1.5)

• Tweeter Voice Coil Ø mm (in.)    25 (1)

• Frequency Response Hz    65 ÷ 24k

• Woofer Magnet size D x d x h mm (in.)    110 x 45 x 20 (4.33 x 1.77 x 0.79)

• Tweeter Magnet size D x h mm (in.)    24,5 x 6 x 3,5 (0.96 x 0.24 x 0.14)

• Weight of one speaker kg (lb..) 1,69 (3.73)

• Woofer Magnet    Special Neodymium N38 H

• Tweeter Magnet    Special Neodymium N38 H

• Cone Water repellent pressed paper

• Dome Tetolon

• D mm 169

• Xmax mm 5,5

• Re Ohm 3

• Fs Hz  65

• Le mH 0,4

• Vas I 11,29

• Mms g 36,1

• Cms mm/N 0,16

• BL T*m    7,665

• Qts  0,62

• Qes  0,78

• Qms  2,9

• Spl dB  94

Accessories:

• MPG 690 Optional grille: Elegant grille made with a high-resistance ABS plastic structure with a metallic finish, combined with a protective metal mesh.
