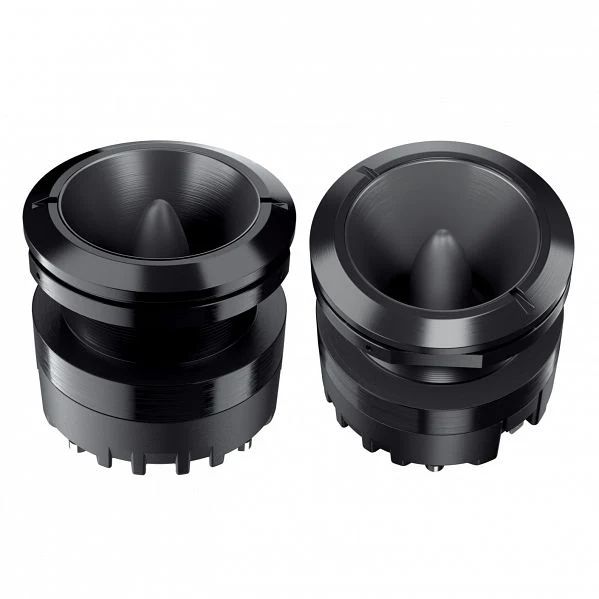

Hertz ST35ANEO SPL Show Series High Efficiency Compression Driver Bullet Tweeters - Pair

Built to Be a Big Player in An Awesome Audio System, Serving Up

High Efficiency Compression Driver | 120 W | 4 Ohm
NEO line bullet tweeters are a totally new project, lighter and more compact compared to the previous ST 35 and with superior performance thanks to the use of Neodymium N38 H for the motor units and a FEM (Finite Element Method) optimized driver/horn design. The “Active” version, ST 35A Neo provides tweeter only.

Features:

• Powerful Neodymium magnet providing high performance with compact size
• FEM (Finite Element Method) optimized phase-plug and loading horn
• CCAR (Copper Clad Aluminium Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit
• Extra-light aluminium membrane to maximize SPL with high current, screw terminals
• Body waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time
• Aluminium back cover for superior heat dissipation
• Impressive low frequency extension and efficiency

Specifications:

• Component: High Efficiency Compression Driver
• Size: mm (in.) 46 (1.8)
• Power Handling - Peak W: 120
• Power Handling - Peak Note: Hi-pass filtered @ 5 kHz - 12 dB Oct.
• Impedance: Ohm 4
• Voice Coil: Ø 35 (1.4)
• Frequency Response: Hz 2k ÷ 20k
• Weight of One Component Kg (Lb.): 0.53 (1.17)
• Magnet: Neodymium
• Dome: Aluminium
