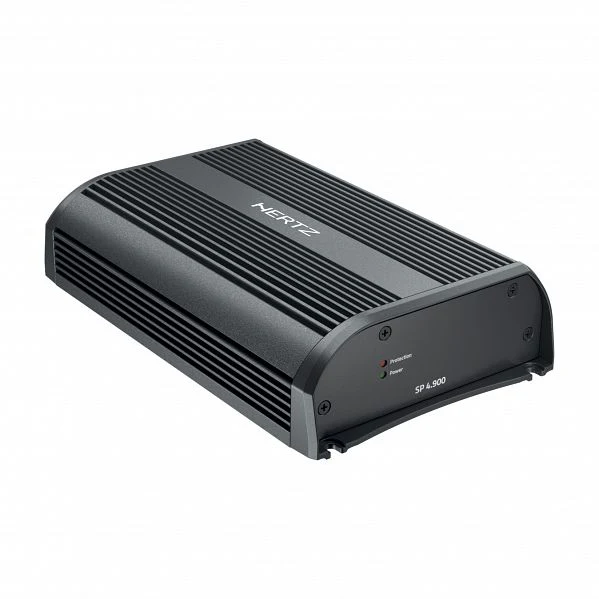

Hertz SP 4.900 SPL Show 1000W Advanced D-Class 4-Channel Amplifier

Ultra-Compact Size Amplifier With Impressive Power!

SPL Show 1000W 4 Channel Amplifier (SP 4.900)
The Hertz SP 4.900 is the first Hertz amplifier featuring the renewed Hertz ADC (Advanced D-Class) output stage, reaching up to 85 percent efficiency and delivering an impressive power rating of 160W x 4 (4 Ohm) RMS or 500W x 2 (4 Ohm) RMS when bridged, with an ultra-compact size of 211.6 x 130 x 49mm. Being ultra-compact with impressive power, SP 4.900 is the ideal choice for Motorcycle applications and for under-seat in sports cars and behind-seat installations in trucks.

Features:

• Up to 85 percent efficiency thanks to ADC (Advanced D-Class) output stage
• USS (Universal Speakers Simulators) allows SP 4.900 to work with head units featuring the speaker load detection circuit
• 160W x 4 RMS x with ultra-compact size (211.6 x 130 x 49mm)
• IP55 Aluminium chassis for maximum protection against humidity and external agents
• No cooling fan to prevent internal accumulation of dirt
• Sealed power cord, line inputs, and speaker outputs to prevent oxidation
• Crossover filters and controls on a single side to facilitate calibration when the product is installed

Specifications:

• Channels: 4 - 3 - 2
• Nominal Power Supply Voltage: 11 ÷ 15V DC
• Pulse Operating Voltage: 6 ÷ 16V DC
• Idling Current: 1.1A
• Idling Current When Off: 0.03mA
• Consumption @ 14.4V DC, Min. Load Impedance (Max Musical Power): 50 A
• Remote IN: 6 ÷ 15V DC (9mA)
• DC-REM - Remote Turn On By SPK DC From Output BTL Speakers: 3.5 ÷ 7V DC
• Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.02%
• Damping Factor @ 1 kHz, 4Ω, 2V RMS: 200
• Bandwidth @ -3dB: 10 Hz ÷ 35 kHz
• S/N ratio (A Weighted @ 1V Input): 105 dBA
• Pre-In sensitivity: 0.6 ÷ 6V RMS
• Speaker-In Sensitivity: 2.2 ÷ 22V RMS
• Minimum Load Impedance:
  @ 4Ch 2Ω
  @ 3Ch 2Ω + 2Ω + 4Ω
  @ 2Ch 4Ω
• IP Rating: IP55
• Operating Temperature Range: 0°C (32°F) ~ 55°C (131°F)
• Adjustable Crossovers: Yes
• Output Nominal Power (RMS) @ 14.4V DC, THD 1%:
  4 Ch: 160W x 4 (4Ω)
  4 Ch: 250W x 4 (2Ω)
  3 Ch: 160W x 2 (4Ω) + 500W x 1 (4Ω)
  3 Ch: 250W x 2 (2Ω) + 500W x 1 (4Ω)
  2 Ch: 500W x 2 (4Ω)
• Total Power: 1000W (RMS)
• Max Size: 211.6mm x 130mm x 49mm (8.33" x 5.118" x 1.929")
• Weight: 2.15kg (4.74 Lbs.)
