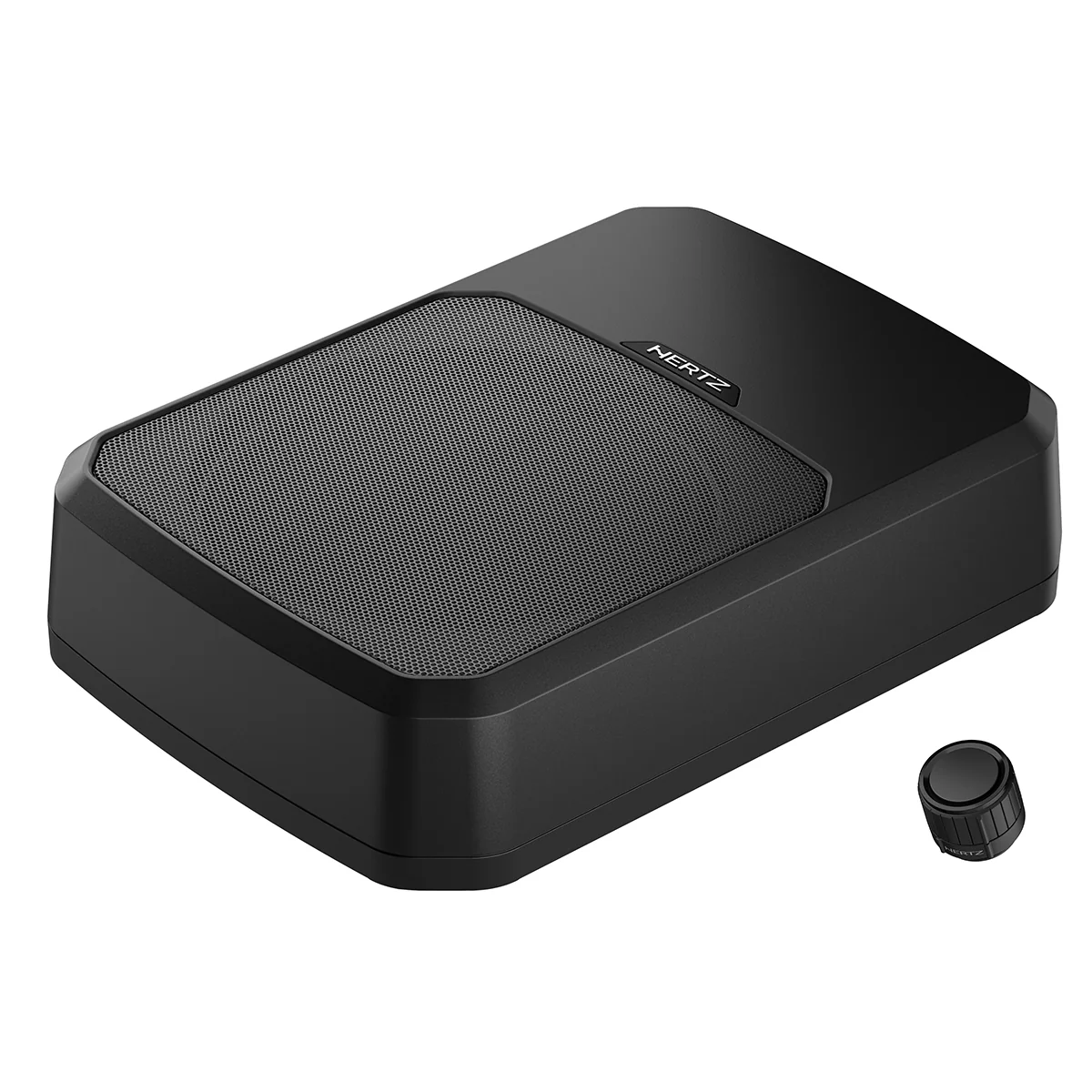

Hertz DBA 201 F Dieci Series 8" 440W Flat Active Underseat Subwoofer Enclosure

Ensures Superior Performance, Maximizing the Subwoofer Output With Super Flat Size!

HIGH PERFORMANCE IN A SUPER FLAT DESIGN
The DBA 201 F (Order Code DBA201F) Flat Active Subwoofer Enclosure optimized with FEM simulation ensures superior performance, maximizing the subwoofer output with a super flat size. The massive magnet of the 8-inch driver provides optimal control during the highest cone excursion.

EXTRA FULL SET OF CONTROLS TO FINE-TUNE THE IN-CAR PERFORMANCE
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 F to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 F and your speaker system, regardless of the subwoofer’s position in the car.

The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.

AUTO TURN-ON & STANDBY MODE
The built-in audio sense circuit allows the DBA 201 F to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.

Features:

• High performance in a super flat design
• Internal 440-watt peak Class D amplifier
• Compatible with every car audio system
• Plug & Play connection
• Extra full set of controls to fine-tune the in-car performance
• Auto turn-on and standby mode
• Provided remote-level control

Specifications:

• Size: 200mm (8")
• Power Handling - Continuous: 220W
• Power Handling - Peak: 440W
• Impedance: 0.4Ω
• Voice Coil: 38.6mm (1.5")
• Frequency Response: 32 ~ 400Hz
• Magnet Size: (D) 110mm x (D) 45mm x (H) 17mm (4.3" x 1.78" x 0.67")
• Magnet: High-Density Flux Ferrite
• Cone: Polycarbonate
• Power Supply Voltage: 6.5 ~ 18V DC
• Idling Current (Power ON/OFF): 260mA/1mA
• Consumption @ 14.4V DC (Max Musical Power): 8.5A
• Remote-In: 4 ~ 15V DC - 1mA
• Distortion - THD (100Hz @ 4Ω): 0.15%
• Bandwidth: 15 ~ 150Hz
• S/N Ratio (A-Weighted @ 1V): 100dB
• Pre-ln Sensitivity: 0.2 ~ 5V RMS
• Lo-Pass: 50 ~ 150Hz
• Phase Switch: Yes
• Remote Control: 0 ~ -15dB
• Dimensions: (L) 345mm x (W) 245mm x (H) 79mm (13.58" x 9.64" x 3.11")
• Component Weight: 4.30kg
