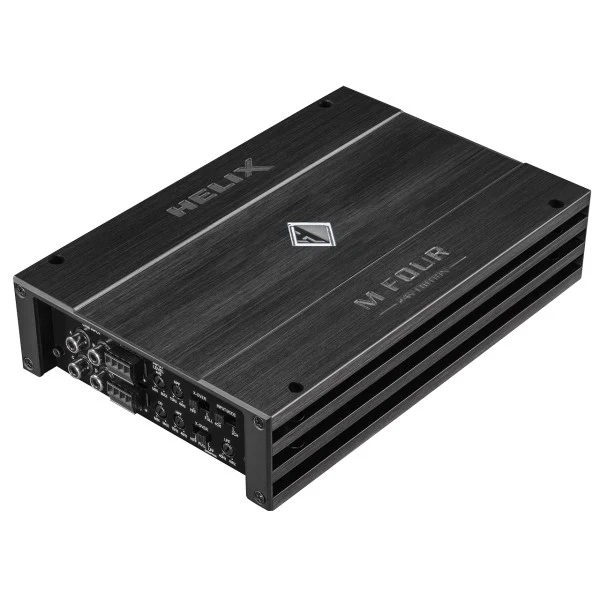

HELIX M FOUR 24 Volt | 4 Channel Digital Amplifier | 100W x 4 2Ω Stable

HELIX M FOUR 24 Volt Edition 4 Channel Digital Amplifier | 100W x 4 2Ω Stable

Commercial Power. Compact Design.

Experience reliable 24V amplification with HELIX M FOUR 24V Edition's Class D efficiency—delivering 100W RMS per channel at both 4Ω and 2Ω loads with smart high-level input featuring ADEP circuit protection.

If you like to rev up your front and rear speakers, the M FOUR - 24V Edition will be exactly the right "tool" to do so. With generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load this amp will heat up your voice coils in no time despite its super-compact dimensions. On the other hand the M FOUR - 24V Edition stays totally cool thanks to the highly efficient Class D design topology. 3-channel or 2-channel configurations are possible as well, delivering up to 2 x 200 Watts RMS of clean and undistorted output power. Needless to say that the M FOUR - 24V Edition is equipped with a bunch of intelligent attributes like "start-stop capability" and our proprietary "ADEP" highlevel input so that it easily deals with all installation challenges of modern cars. Finally the extensive audio features will offer a sound quality at its best.

M FOUR 24 Volts Features:

• Small footprint Class D amplifier with high output power of 100 Watts RMS @ 4 and 2 Ohms load
• Start-Stop capability down to 12V supply voltage
• Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
• Integrated, active crossover with highpass, lowpass and bandpass
• "Input mode" switch for flexible input signal routing
• SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
• Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
• 24V power supply designed for commercial and truck applications
• Advanced Diagnostics Error Protection (ADEP) prevents OE radio error messages
• Maintains factory features like fader function with OE integration
• Bridgeable for 2x200W RMS configuration flexibility
• Wide operating voltage range (18-36V) for commercial reliability
• Professional Class D efficiency with minimal power consumption
• Auto Turn-On function for seamless operation
• Ultra-compact design without performance compromise


Specifications:

• Channels: 4 Channel
• Built-in DSP: No
• RCA Input: 4x RCA
• High-Level Input: 4x High level
• Power W RMS/ch | 4Ω: 100W x 4
• Power W RMS/ch | 2Ω: 100W x 4
• Power W RMS/ch | 1Ω: N/A
• Bridged @ 4Ω: 200W x 2
• Max Output Power: 135W RMS per channel @ 4/2Ω
• Class: D
• Max Input Sensitivity: 13V (High-level), 6V (RCA)
• THD+N: 0.05%
• RCA Out: 0x | No Pre-out
• Frequency Response: 10 Hz - 30,000 Hz
• Highpass: 15 Hz - 4,000 Hz adjustable
• Lowpass: 40 Hz - 4,000 Hz adjustable
• Bandpass: 15 Hz - 4,000 Hz adjustable
• Crossover Slope: 12 dB/Oct.
• Signal-to-Noise Ratio: 98 dB (A-weighted)
• Damping Factor: 100
• Operating Voltage: 18-36V (max. 5 sec. down to 12V)
• Operating Temperature: -40°C to +70°C
• Dimensions (H x W x D): 50 x 230 x 154mm
• Fuse: 2 x 15A Maxi-fuse (APX)
• Power Rating: DC 24V ⎓ 25A max.
• Idle Current: 550mA


Scope of Delivery:

• 1 x Amplifier HELIX M FOUR - 24V Edition
• 1 x Mounting material
• 1 x Instruction manual


Perfect for:

• Commercial vehicle installations, truck audio systems, 24V system applications, fleet installations, heavy-duty mobile equipment, and any 24V multi-channel application requiring reliable power with minimal footprint and professional reliability.
