Helix CONDUCTOR PRO Premium Programmable LED Remote Control for DSP Amplifiers
Helix CONDUCTOR PRO Premium Programmable LED Remote Control for DSP Amplifiers
The premium evolution of the proven CONDUCTOR, the CONDUCTOR PRO delivers one-touch control of DSP volume, input source selection, sound setup switching, and optional Bluetooth HD Extension Card operation - housed in a high-grade aluminium body with an ergonomic rubber-touch rotary knob and 12 RGB LEDs across a 16-million-colour spectrum. Compatible with all BRAX, HELIX, and MATCH DSP devices featuring ACO platform and SCP (Smart Control Port).
Product Overview
The Helix CONDUCTOR PRO is a premium programmable remote control designed for DSP-based car audio systems. Building on the operating logic of the CONDUCTOR, the PRO model adds a high-grade aluminium housing, an ergonomically shaped rotary knob with a rubber-touch side surface for precise control while driving, and 12 RGB LEDs supporting over 16 million colours with configurable brightness and automatic dimming.
The CONDUCTOR PRO provides independent control of up to 4 individual volume channels including Master, Digital, HEC/AUX, Rear Attenuation, or Subwoofer, with full system mute, selectable volume ranges of 60dB, 24dB, or 12dB, and step sizes of 1dB or 0.5dB. Sound setup switching supports up to 10 presets. Each volume menu can be assigned an individually configurable LED colour for quick visual identification. ToneControl allows precise bass and treble boost or cut in the range of -6dB to +6dB. With an optional Bluetooth HD Extension Card, the CONDUCTOR PRO also controls Bluetooth playback including play, pause, track navigation, and pairing.

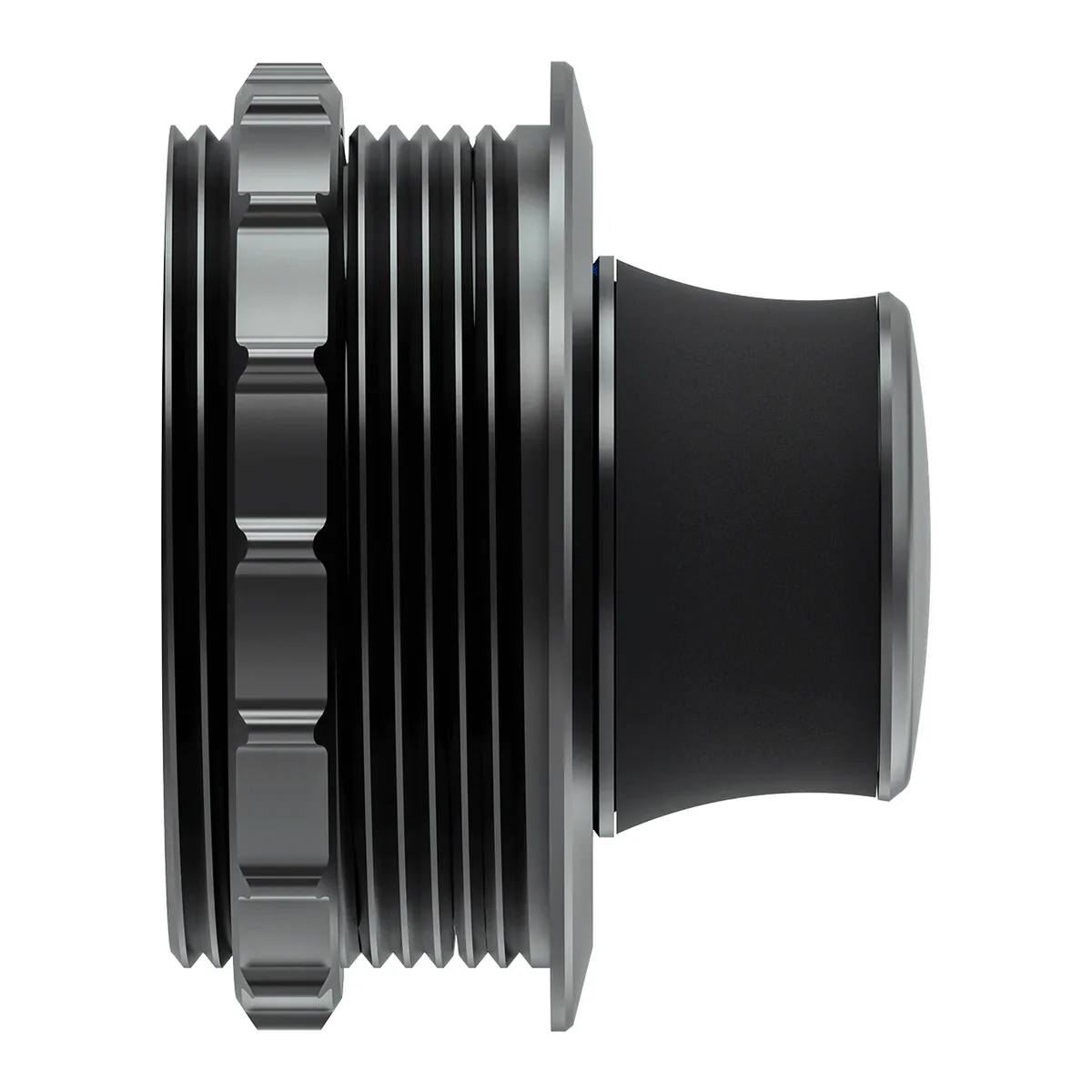

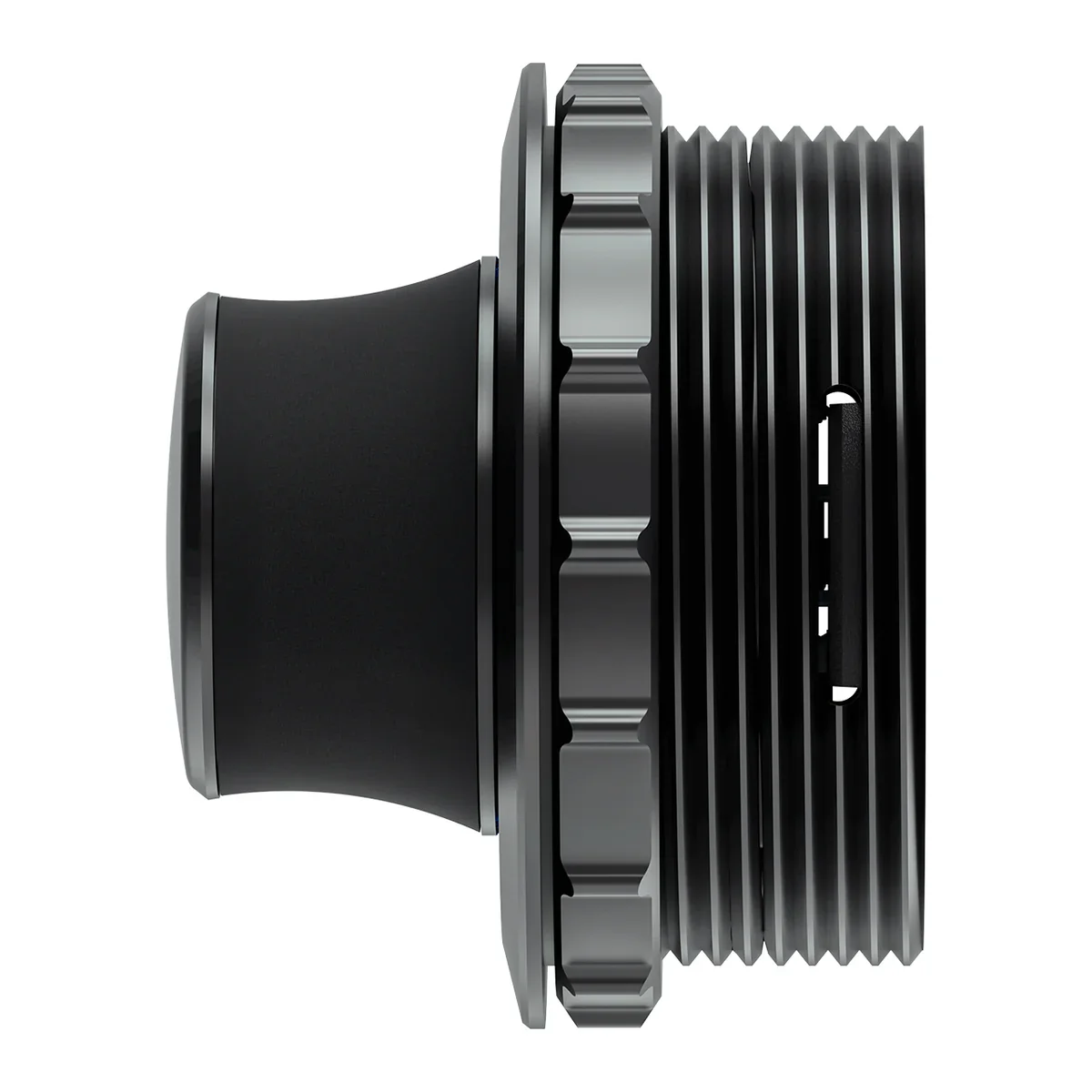

Installation is flush mount using a 40mm hole cut-out with a rear mounting ring and fine thread. No separate power supply is required. A 5m SCP connection cable with split connector is included. Full configuration and firmware updates are managed through the HELIX DSP PC-Tool software. Please note the CONDUCTOR PRO cannot be combined with another control unit.
Features & Benefits
Independent Control of Up to 4 Volume Channels: Control up to four individual volumes such as Master, Digital, HEC/AUX, Rear Attenuation, or Subwoofer independently, including full system mute. Selectable volume ranges of 60dB, 24dB, or 12dB with step sizes of 1dB or 0.5dB.
Sound Setup Switching with Up to 10 Presets: Store and switch between up to 10 sound setup presets directly from the rotary knob, allowing different sound profiles and signal source configurations to be recalled instantly to suit personal preference or listening context.

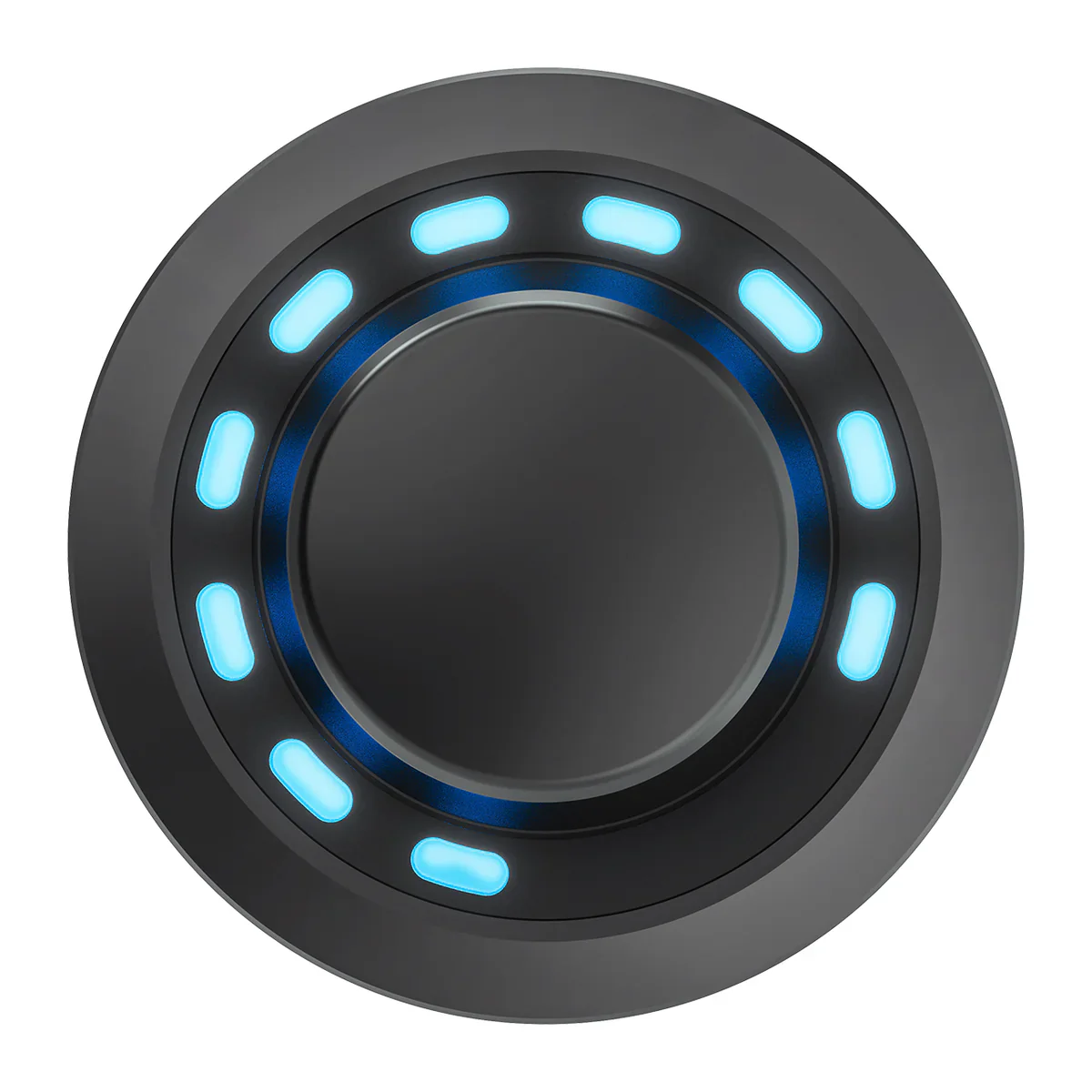

12 RGB LEDs with Over 16 Million Colours: Twelve RGB LEDs provide visual feedback for all control operations, with individually configurable colours per volume menu, adjustable brightness, and automatic dimming for a seamless in-cabin aesthetic.

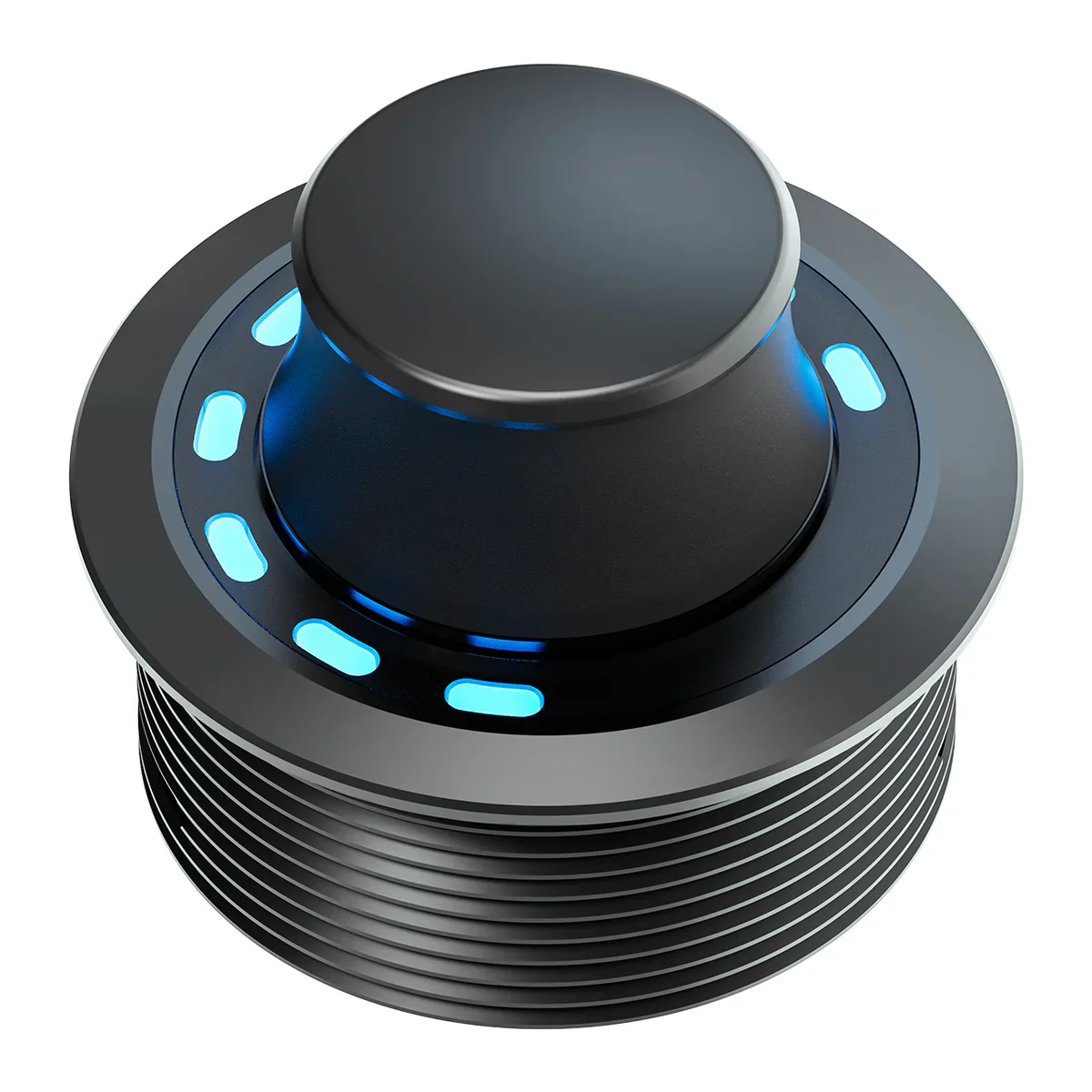

Premium Aluminium Housing with Rubber-Touch Rotary Knob: High-grade aluminium construction delivers a premium look and long-term durability. The ergonomically shaped knob features a rubber-touch side surface for confident, precise operation while driving.
ToneControl for High and Low Frequency Adjustment: Precise boost or cut of high and low frequencies in the range of -6dB to +6dB for flexible sound tuning directly from the control unit.
Optional Bluetooth HD Extension Card Control: When used with a compatible Bluetooth HD Extension Card, the CONDUCTOR PRO controls Bluetooth playback including play, pause, track forward/back, volume, and pairing activation.
Flush Mount, No Separate Power Supply Required: Installs flush into a 40mm hole cut-out with rear mounting ring and fine thread for secure fastening. Draws power directly from the SCP connection with no separate power supply required.
Full Configuration via DSP PC-Tool: All parameters, LED colours, volume ranges, and channel assignments are fully configurable and updatable via the HELIX DSP PC-Tool software.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | CONDUCTOR PRO |
| Brand | Helix |
| Type | Programmable DSP Remote Control |
| Application | Amplifiers / DSP |
| Housing | High-Grade Aluminium |
| Hardware | Rotary Encoder, 12 x RGB LEDs, 48 MHz ARM Processor |
| Connection | SCP (Smart Control Port) |
| Power Supply | No separate power supply required |
| Cable Length | 5m total (4.8m connection cable + 0.2m CONDUCTOR cable) with split connector |
| Volume Channels | Up to 4 independent (Master, Digital, HEC/AUX, Rear Attenuation, Subwoofer) |
| Volume Ranges | 60dB, 24dB, 12dB (selectable) |
| Volume Step Size | 1dB or 0.5dB (selectable) |
| Sound Setup Presets | Up to 10 |
| ToneControl | -6dB to +6dB (highs and lows) |
| LED | 12 x RGB, over 16 million colours, configurable brightness, auto dimming |
| LED Colour per Menu | Individually configurable |
| Dimensions | Diameter 46mm x Height 36mm |
| Installation Depth | 18mm |
| Hole Cut-Out | 40mm diameter |
| Configuration | HELIX DSP PC-Tool software |
| Compatibility Note | Cannot be combined with another control unit |
What's in the Box
- 1x Helix CONDUCTOR PRO Remote Control
- 1x Mounting Ring
- 1x 5m SCP Connection Cable (split connector)
Compatible With
All BRAX, HELIX, and MATCH DSP devices featuring ACO platform and SCP (Smart Control Port).
Note: The CONDUCTOR PRO cannot be combined with another control unit. Bluetooth HD Extension Card control requires a compatible Extension Card 2.0 BT HD or HEC/MEC BT HD (sold separately). The BT HD STREAMER is not supported.
Frequently Asked Questions
Is the CONDUCTOR PRO compatible with all HELIX DSP products?
The CONDUCTOR PRO is compatible with all BRAX, HELIX, and MATCH DSP devices featuring the ACO platform and SCP (Smart Control Port). Please confirm your DSP product features both ACO platform and SCP before purchasing. Please also note the CONDUCTOR PRO cannot be combined with another control unit in the same system.
Does the CONDUCTOR PRO require a separate power supply?
No. The CONDUCTOR PRO draws power directly through the SCP (Smart Control Port) connection. No separate power supply is required.
Can I control Bluetooth playback with the CONDUCTOR PRO?
Yes, but only when used with a compatible Bluetooth HD Extension Card (Extension Card 2.0 BT HD or HEC/MEC BT HD). The BT HD STREAMER is not supported. When the correct extension card is installed, the CONDUCTOR PRO can control play, pause, track navigation, volume, and pairing activation.
How are the LED colours and volume parameters configured?
All CONDUCTOR PRO settings including LED colours per volume menu, volume ranges, step sizes, channel assignments, and ToneControl parameters are configured using the HELIX DSP PC-Tool software on a Windows or Mac computer.
What is the difference between the CONDUCTOR PRO and the standard CONDUCTOR?
The CONDUCTOR PRO builds on the same operating logic as the CONDUCTOR but adds a high-grade aluminium housing, an ergonomic rubber-touch rotary knob for improved grip and haptic feedback, and a more refined premium material concept. The core DSP control functions are the same across both units.
