GLADEN GM-ATM24 Active Terminal Module For Subwoofer Boxes (ATM 2/4 Module)

ATM Module - Complete With High-Level Input & Power Connections!

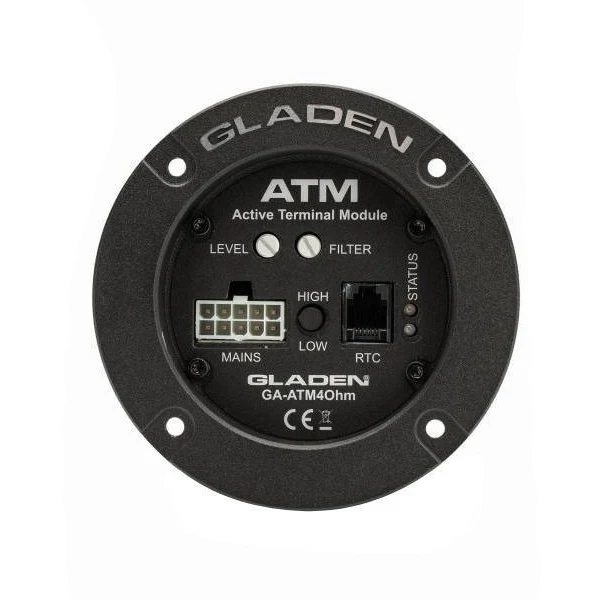

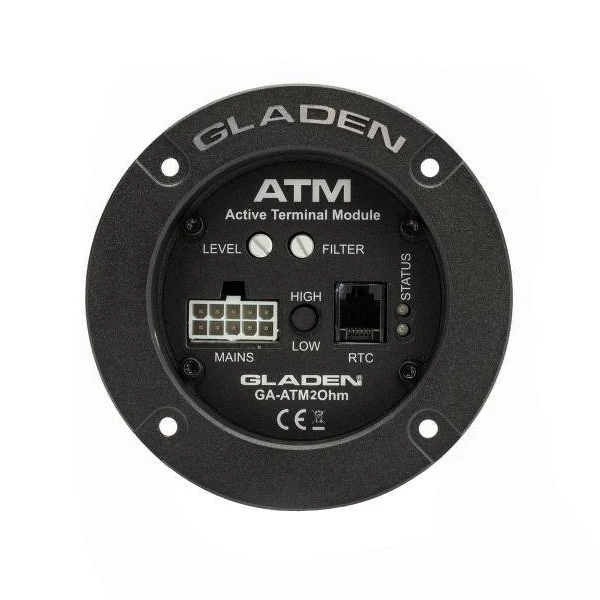

Active Terminal Module (ATM)

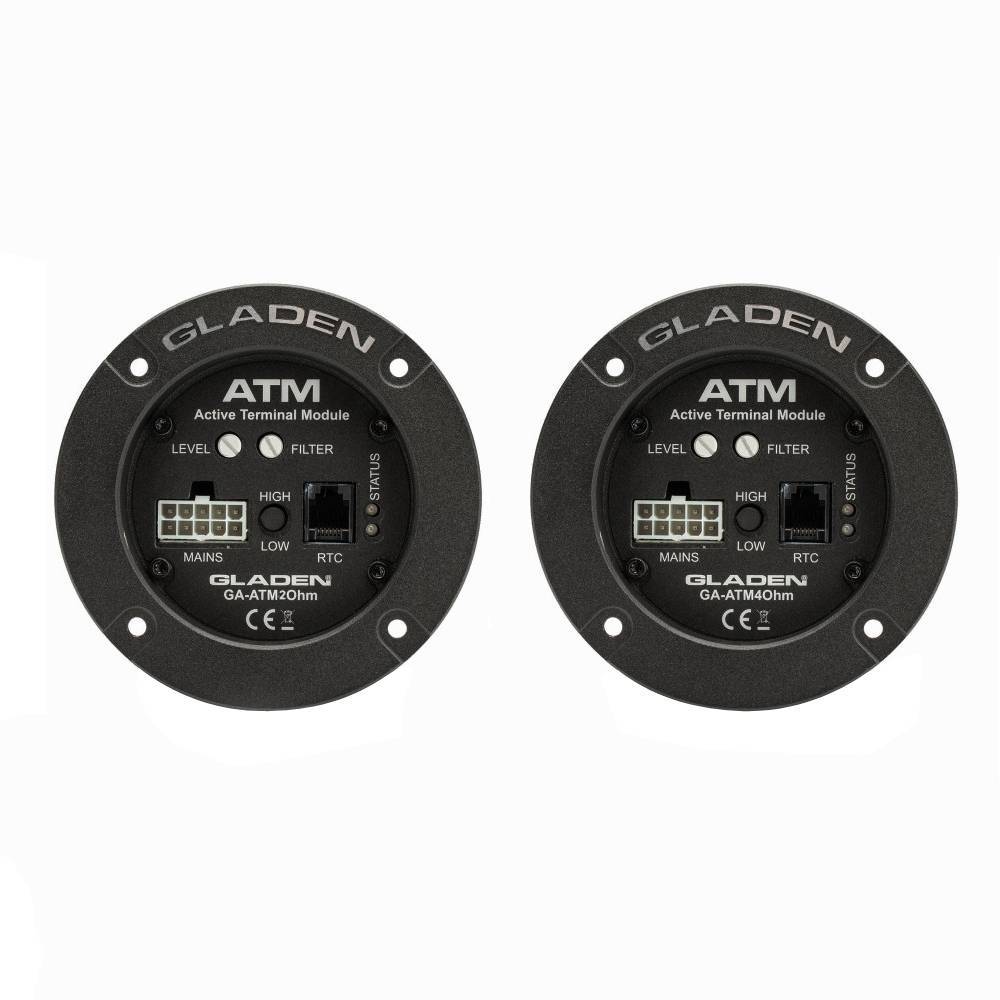

The Gladen ATM 2/4 Module can be exchanged for a 78mm round terminal of a subwoofer cabinet due to its round design. This mono amplifier supplies the subwoofer chassis with 200 Watts RMS at 4 Ohms and is supplied with power and input signals via a Molex Mini-Fit JR connector. The amplifier is available for 2 and 4 Ohm subwoofer chassis.

To adjust the subwoofer amplifier, the low pass filter, a high/low input and the level can be set. With the optional RTC2 module (Sold Separately), the amplifier can also be controlled remotely. The equipment of the ATM Module is complete with high level input and power connections. Highly efficient technology enables an installation depth of only 125mm in the housing

Features:

• Hi and Low-level Inputs (HL With Autosense)
• Allows easy and safe connection and disconnection
• Remote Detection
• Lowpass Filter
• Connection for RTC.2 pot (Sold Separately)
• Molex connector, short circuit protected

Specifications:

• Power: 200W @ 14.4V
• Frequency Range: 25Hz - 220Hz
• Low Pass Filter: 50Hz - 120Hz, 12dB/Oct
• Low-Level Inputs: Yes
• High-Level Inputs: Yes
• Automatic Switch-On: Yes
• Remote Control: Gain (Via Optional RTC2)
• Weight: 0.90kg
