Gator GRV2F Video Converter / Video Noise Filter

Designed for Use when Installing an Aftermarket Radio Into a Vehicle that Uses a Differential Camera

Video Converter / Video Noise Filter

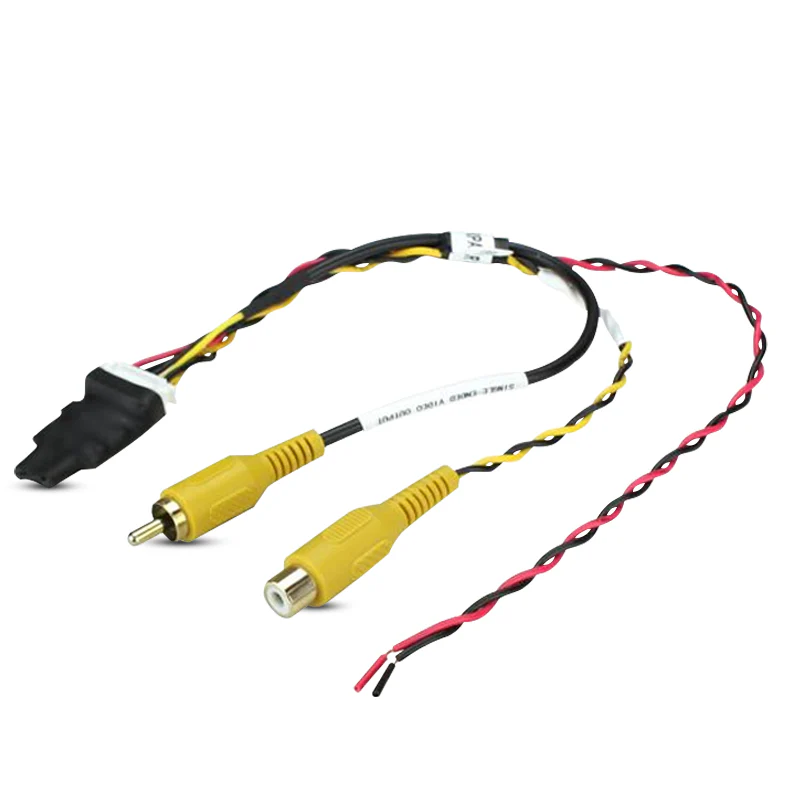

The GRV2F is a differential to single ended video converter, designed for use when installing an aftermarket radio into a vehicle that uses a differential camera. It can also be used as a video noise filter in cases where the camera ground is on a different plane than the aftermarket radio, by eliminating the ground loop and fixing distortion such as horizontal lines in the video.

Features:

• Converts differential video signal to a single-ended composite video signal
• Reduces/eliminates video noise (eg. scrolling lines)
• Two wire power connection for simple installation
• Easy to hardwire into the vehicle if required

Specifications:

• RCA Connection:
  • RCA Male: Video Out
  • RCA Female: Video In (Yellow Video + / Black Video -)
• Hard-Wire Connection:
  • Black: Ground Negative
  • Red: Accessories 12V+
• Notes:
  • It is very important that you connect the GRV2F ground wire to the aftermarket radio's ground wire. These two components sharing the same ground is critical to the noise filter feature.
  • The video input connector has 2 independent wires for when you are connecting to a factory reverse camera. The RCA end can be cut off and the harness wires connected directly to the vehicle.
