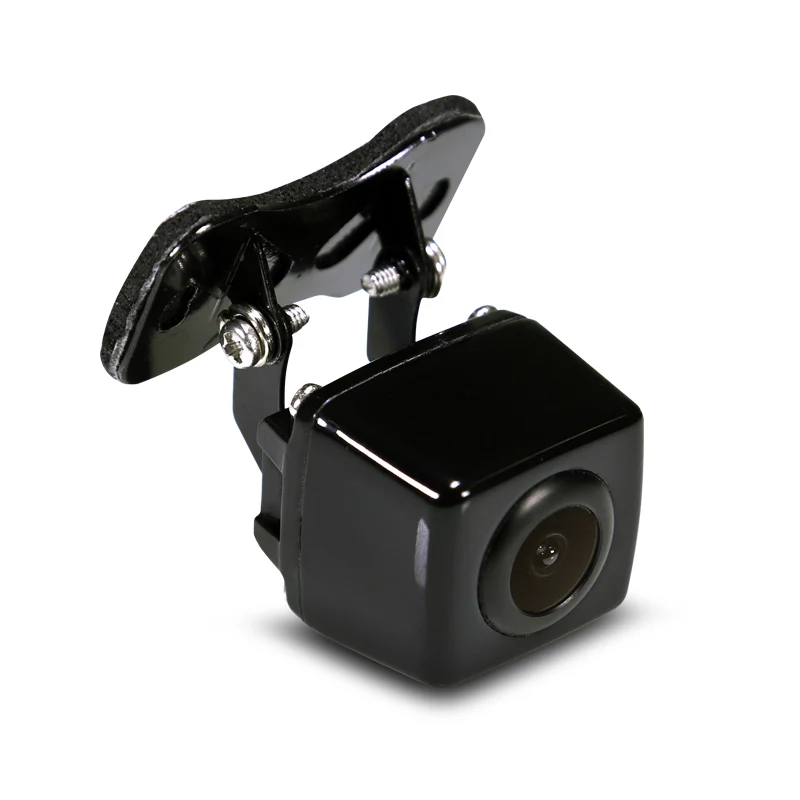

Gator G55CL Surface Mount Reverse Camera With Loop System

Gator G55CL Reverse Camera: Our Highly Versatile & Easy to Install Gator™ Driver Assist!

Surface Mount Reverse Camera
The Gator G55CL, ideal for anyone looking for a high-quality camera, is a super compact one that mounts virtually anywhere on the front or rear of the vehicle. Comes with optional built-in parking gridlines that help guide you when reverse parking, G55CL has a wide 110-degree anti-blindspot viewing angle. It's clad in a sturdy aluminium case and rated IP67 for water and debris protection. G55CL also sports a 4-pin Micro Din connector, enabling a clean and simple installation. It has three wire loops on the wiring and during the installation, cutting the specific loop can effect adjustments:

• BLUE - Default setting PAL, cut the loop for NTSC
• GREEN - Default setting PARKING LINES, cut the loop to remove PARKING LINES
• WHITE - Default setting MIRROR IMAGE, cut the loop for FORWARD FACING IMAGE

The G55CL is PAL/NTSC switchable and comes with a standard RCA cable, making it compatible with any monitor or dash AV headunit with an RCA camera input. It comes supplied with a 2-metres power wire and 6-metres video RCA.

Gator G55CL Features:

• Surface mount design for simple installation on the front or rear of the vehicle
• Can be used as a front view, rear view, or reverse camera thanks to the loop feature
• Equipped with optional parking gridlines that help you reverse the vehicle with ease even in tight parking spots
• 110-degree super wide-angle lens for reduced rearview blind spots
• Aluminum case and rated IP67 that guarantee the camera will withstand the impact of water and debris normally hounding the vehicle's exterior
• The camera is PAL/NTSC switchable, making it compatible with all display monitors and aftermarket AV headunits with RCA input
• Low lux image sensor for use in low-light environments
• Includes 2-metre power wire and 6-metre RCA lead
• Loop system for adjustable settings during installation

Gator G55CL Specification:

• Mount Type: Surface Mount
• Reverse or Rear View: Switchable Reverse/Rear Camera
• Lens Angle: 110 Degree
• Image Sensor (CMOS or CCD): CMOS
• Resolution: 648 x 488
• TV Lines: 480
• Parking Gridlines: Switchable On/Off
• PAL or NTSC: Switchable NTSC/PAL
• IP Rating: IP67
• Voltage: 12V
• Minimum Illumination: 0.2LUX
• Number of LED's: N/A
• Led Type: N/A
• Plug Type Camera End: 4-Pin Micro DIN Plug
• Plug Type Monitor End: RCA
• Length of Video Cable: 6M
• Reverse Trigger on Video Cable: Yes
• Dimensions (Camera Only): 19mm (H) x 24mm (W) x 22mm (L)
• Dimensions (Camera & Bracket): 29mm (H) x 34mm (W) x 33mm (L)
• Wired or Wireless: Wired
• Other Features: Loop System for Setting Adjustments
• Weight: 0.25kg
