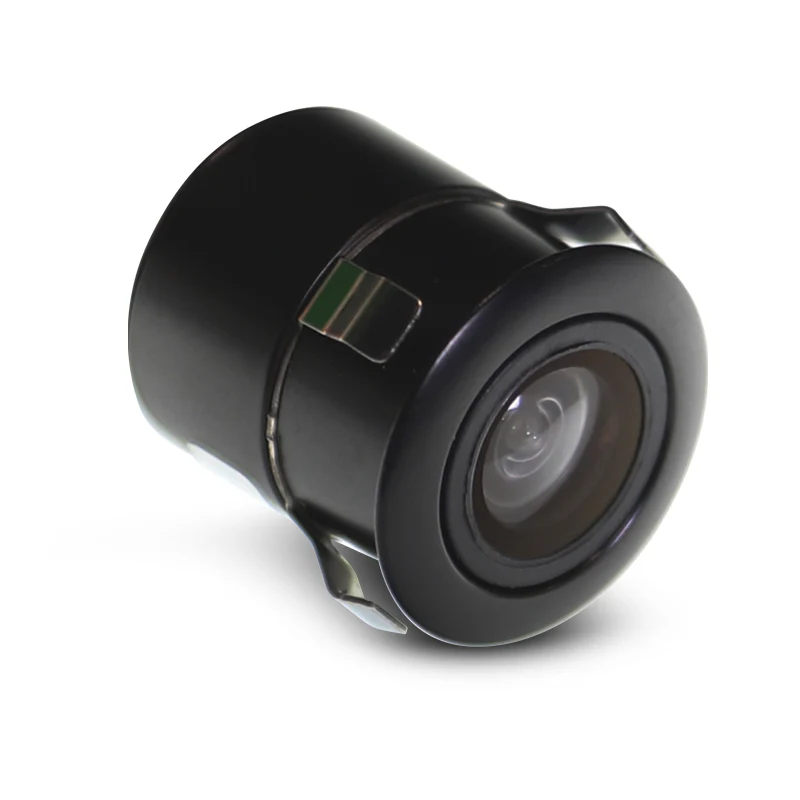

Gator G35CL Flush Mount Camera With Loop System

Great Option For Anyone Looking For A Compact, High-Quality Camera!

Flush Mount Camera
The Gator G35CL can be used as a front, rear, or reverse camera. The IP67-Rated camera discreetly mounts into the front or rear bar of the vehicle and provides a 100-degree field of view. It has three loop setting adjustments which can be changed during installation:

• Blue Loop - Default Setting PAL, Cut the Loop for NTSC.
• Green Loop - Default Setting Parking Lines, Cut the Loop to Remove Parking Lines.
• White Loop - Default Setting Mirror Image, Cut the Loop for Forward Facing Image.

The Gator G35CL Flush Mount Camera is compatible with any PAL or NTSC display with an RCA connection and it comes supplied with an 18.5mm hole saw for installation, a 1.5-metre power wire, and a 6-metre video RCA.

Features:

• Front, Rear, or Reverse Camera
• Universal Flush Mount Design
• 100° Horizontal Lens Angle
• CMOS Image Sensor
• Optional Parking Guidelines (To Be Set During Installation)
• Mirror Image Switchable (To Be Set During Installation)
• PAL / NTSC Image Switchable (To Be Set During Installation)
• 12V DC Compatible
• IP67 Weatherproof

Specifications:

• Mount Type: Flush Mount
• Camera Type: Front, Rear or Reverse
• Lens Angle: 100°
• Image Sensor (CMOS or CCD): CMOS
• Parking Grid-Lines: Optional (Loop Setting Adjustment)
• PAL/NTSC: Switchable (Loop Setting Adjustment)
• Mirror Image: Switchable (Loop Setting Adjustment)
• IP Rating: IP67
• Voltage: 12V DC
• Plug Type Camera End: 4 Pin Micro DIN Plug
• Plug Type Monitor End: RCA
• Video Cable Length: 6M
• Dimensions: 18mm (Camera Diameter)
• Weight: 0.20kg

Kit Inclusions:

• Flush Mount Camera
• 18.5mm Drill Bit Hole Saw
• 6M RCA Lead With Trigger
• Camera Harness
• Product Manual
