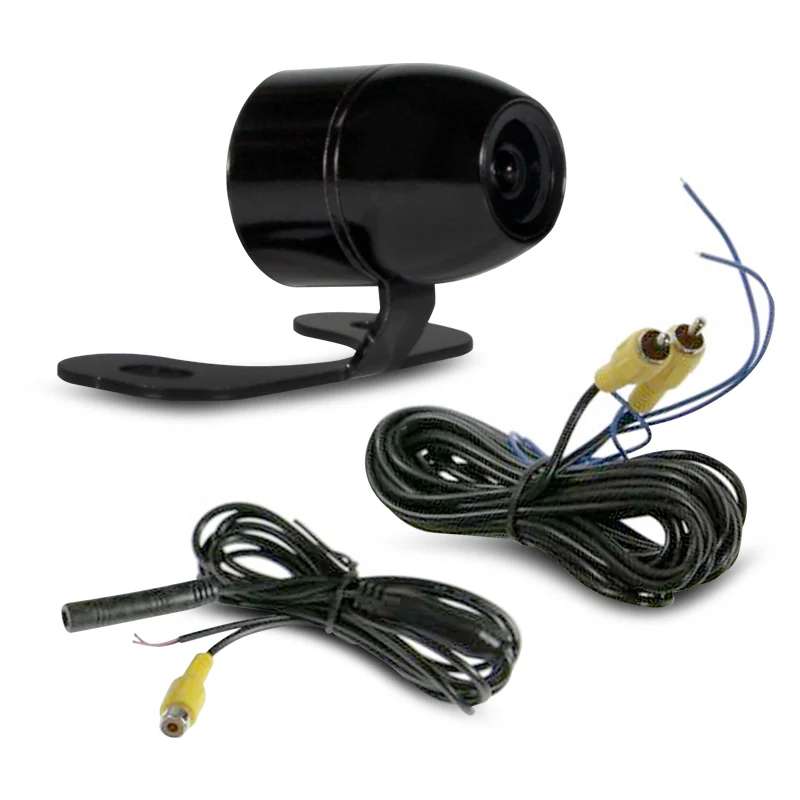

Gator G30CL Surface Mount Butterfly Reverse Camera With Loop System

Our Highly Versatile & Easy to Install Gator™ Driver Assist Reverse Cameras Have Universal Mounts of Various Designs!

Butterfly Mount Camera
The Gator G30CL, ideal for anyone looking for a high-quality camera, is a super compact one that mounts virtually anywhere on the front or rear of the vehicle. Comes with optional built-in parking grid-lines that help guide you when reverse parking, G30CL has a wide 105-degree anti-blind-spot viewing angle. It's clad in a sturdy aluminium case and rated IP67 for water and debris protection. It also sports a 4-pin Micro Din connector, enabling a clean and simple installation. It has three wire loops on the wiring and during the installation, cutting the specific loop can effect adjustments:

• BLUE - Default setting NTSC, cut the loop for PAL;
• GREEN - Default setting NO parking grid lines, cut the loop for parking grid lines;
• WHITE - Default setting rear view image, cut the loop for reverse image.

The Gator G30CL is PAL/NTSC switchable and comes with a standard RCA cable, making it compatible with any monitor or in-dash AV headunit with RCA input. It's supplied with a 1.5-meter power wire and a 6-meter video RCA.

Features:

• Surface mount design for simple installation on the front or rear of the vehicle
• Can be used as a front view, rear view, or reverse camera thanks to the loop feature
• Equipped with optional parking grid-lines that help you reverse the vehicle with ease even in tight parking spots
• 105-degree super wide angle lens for reduced rearview blind spots
• Aluminium case and rated IP67 that guarantee the camera will withstand the impact of water and debris normally hounding the vehicle's exterior
• The camera is PAL/NTSC switchable, making it compatible with all display monitors and aftermarket AV headunits with RCA input
• Low lux image sensor for use in low-light environments
• Includes 1.5-metre power wire and 6-metre RCA lead
• Features loop system for adjustable settings during installation

Specifications:

• Resolution: 480 TV Lines
• Mount Type: Surface Mount Butterfly
• Reverse or Rear View: Switchable Reverse / Rear View
• Lens Angle: 170-Degree
• Image Sensor (CMOS or CCD): CMOS
• Parking Gridlines: Switchable ON/OFF
• PAL or NTSC: Switchable PAL & NTSC
• IP Rating: IP67
• Voltage: 12V
• Minimum Illumination: 0.2LUX
• Plug Type Camera End: 4 PIN Micro DIN Plug
• Plug Type Monitor End: RCA
• Video Cable Length: 6M
• Video Cable Reverse Trigger: Yes
• Wired or Wireless: Wired
• Dimensions (Camera Only): 15mm (H) x 15mm (W) x 21mm (L)
• Dimensions (Camera & Bracket): 25mm (H) x 38mm (W) x 30mm (L)
• Weight: 0.17kg
