Gator G158V Vehicle Specific Reverse Camera To Suit Isuzu D-Max - Black

The Perfect Reverse Camera Solution for Isuzu D-Max 2012- Models without Factory Locking Tailgate

Vehicle Specific Reverse Camera

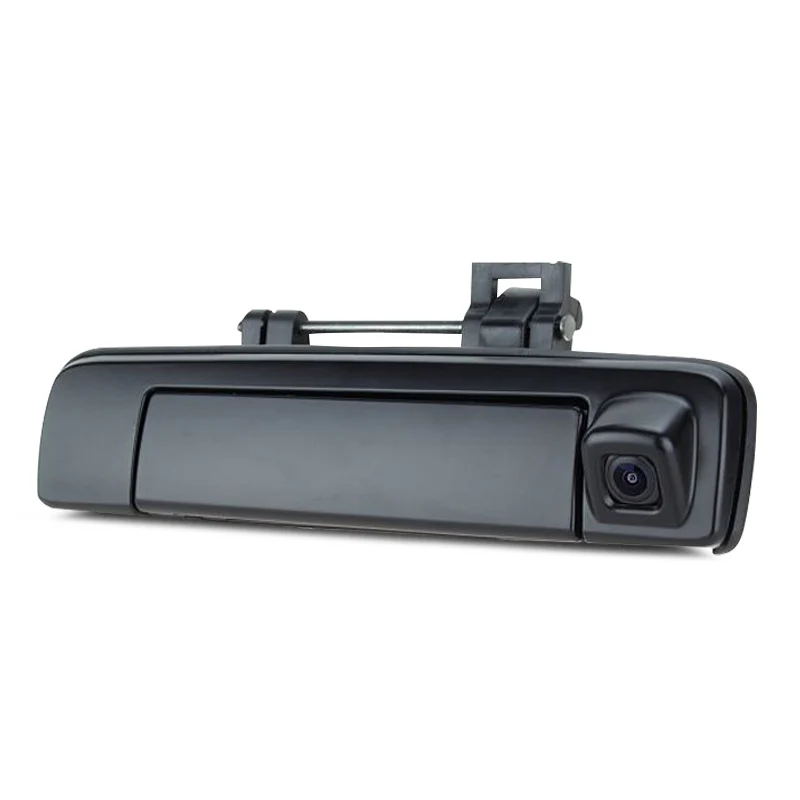

The G158V is a black vehicle specific reverse camera built for your Isuzu D-Max Ute, models without factory locking tailgate. The tailgate handle replacement design provides a discreet installation solution without the need to drill any additional holes into the vehicle.

The G158V camera has a wide 150 degree field of view that minimises blind spots and provides a clear view at the rear of the vehicle. The camera is designed specifically for reversing or rear-view, featuring mirror image option and parking guidelines to assist the driver while reversing (these can be changed/removed during installation).

The camera is built tough and will withstand the harsh environment thanks to its IP68 rating and its operating temperature range of -20 degree to 70 degrees Celsius.

Features:

• Designed to replace the factory tailgate handle providing a discreet and professional rear camera solution
• No additional holes need to be drilled into the vehicle, only suitable for models without factory locking tailgate
• High quality image sensor produces clear images and enhanced low light performance
• 150 Degree field of view minimises blind spots at the rear of the vehicle
• IP68 Rating and wide operating temperature range makes it suitable for use in the harsh Australian conditions
• Parking guidelines to assist with reverse parking (guidelines to be removed at time if installation)
• Mirror image option allows camera to be utilised as a reverse camera or rear view camera (must be set at time if installation)
• 8m extension cable length to run between the front and back of the vehicle
• PAL/NTSC compatible with RCA connection makes it suitable for use with all aftermarket display monitors

Specifications:

• Vehicle Compatibility: Isuzu D-Max 2012-2015 (All Badges), 2016-2020 (SX Only)
• Camera Type: Reverse / Rear-View
• Housing Colour: Black
• Lens Angle: 150°
• PAL/NTSC: Both
• Parking Guidelines: Switchable
• Mirror Image: Switchable
• Monitor Connection Type: RCA
• LUX Rating: 0.2 LUX
• Operating Voltage: 12V
• IP Rating: IP68
• Operating Temperature: -20°c to +70° C
• Inclusions:
  • Camera in Tailgate Handle Housing
  • 8M Camera Extension Cable
  • Instructions
• Notes:
  • Parking guidelines are set to ON as default, to remove parking guidelines cut the GREEN loop on the camera cable at time of installation.
  • Normal image is set to ON as default, to MIRROR the image cut the WHITE loop on the camera cable at time of installation.
