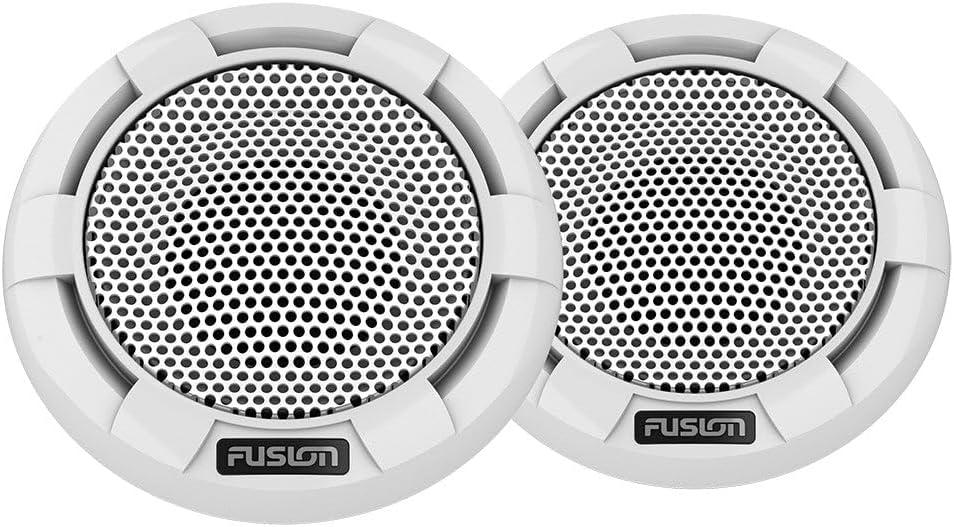

Fusion SG-TW101SPW Signature Series 3i Component Tweeters

Enhance Your Listening Experience While You’re On The Move With These Marinized Component Tweeters

Designed to be dash-mounted in raised positions to restore high frequencies, you can hear vocals over engine, wind, and wave noise. Key features include a compact form factor, low-profile mounting design, IP65 weather rating, and True-Marine™ design with a 3-year warranty. Now with plug-and-play, water-resistant connectors as a standard, you can enjoy simplified installation and improved protection from the elements.

Specifications:

• Physical dimensions (diameter x depth) 2.91" x 1.64" (74 x 41.6 mm)
• Weight 4.2 oz (0.12 kg)
• Water and dust rating IP65
• Tweeter size 1"
• Peak power (watt) 330 W
• RMS power (watt) 60 W
• Sensitivity (1 W / 1 m) 91 dB
• Frequency response 3 kHz - 20 kHz
• Nominal impedance 4 ohms
• Recommended amplifier power (RMS) 25 - 140 W/Ch
• Operating temperature range 32° to 122° F (0° to 50° C)
• Voice coil diameter 1"
• Material Aluminum dome
• Tweeter connection Flying lead with water-resistant 2-way connector, 5.9" (150 mm)
• Compass-safe distance 43.3" (110 cm)
• Warranty 3 years
• Mounting Dimensions
• Mounting diameter clearance 2.01" (51 mm)
• Mounting depth clearance 1.22" (31 mm)

Compatible Devices:

• Fusion Apollo MS-RA670 Marine Amp
• Fusion Apollo MS-RA770 Marine Stereo
• Fusion ApollO MS-SRX400 Marine Zone Stereo
• Fusion Apollo MS-WB670 Marine Hideaway Stereo
• Fusion Apollo MS-WB675 Marine Hideaway Stereo
• Fusion MS-BB100 Black Box
• Fusion MS-RA210 Marine Stereo
• Fusion MS-RA60 Marine Stereo
• Fusion RA70 Series Marine Stereos
• Fusion Signature Series 3i Marine Coxial Speakers

What's in the Box:

• One pair of component tweeters
• 6 Phillips stainless steel mounting screws (3.5 mm x 25.4 mm (6 gauge x 1”))
• 2 water-resistant cable assemblies with 2-pin connector (5.9" (150 mm))
• Documentation
