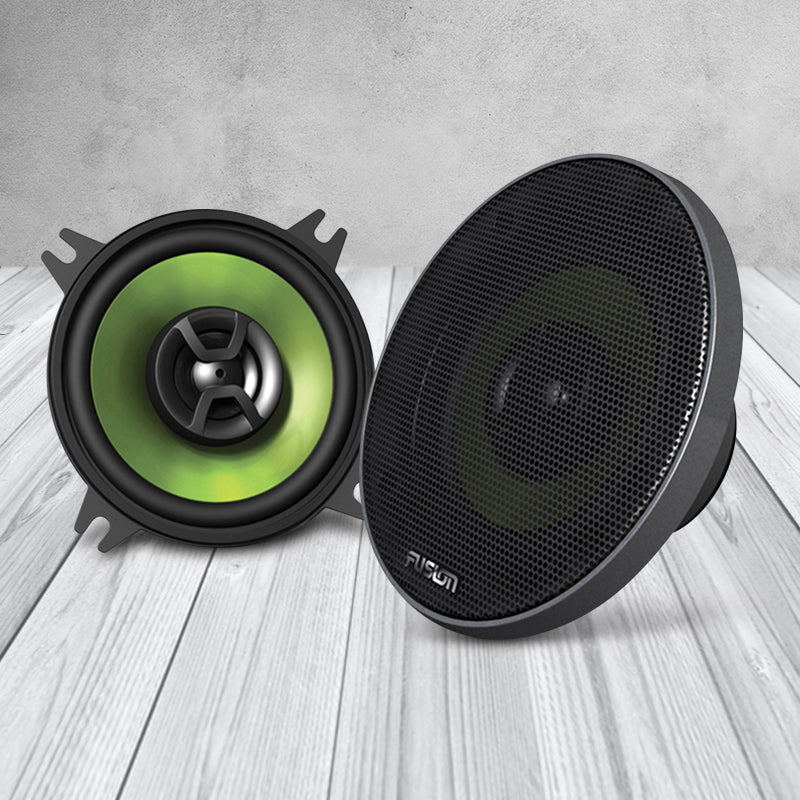

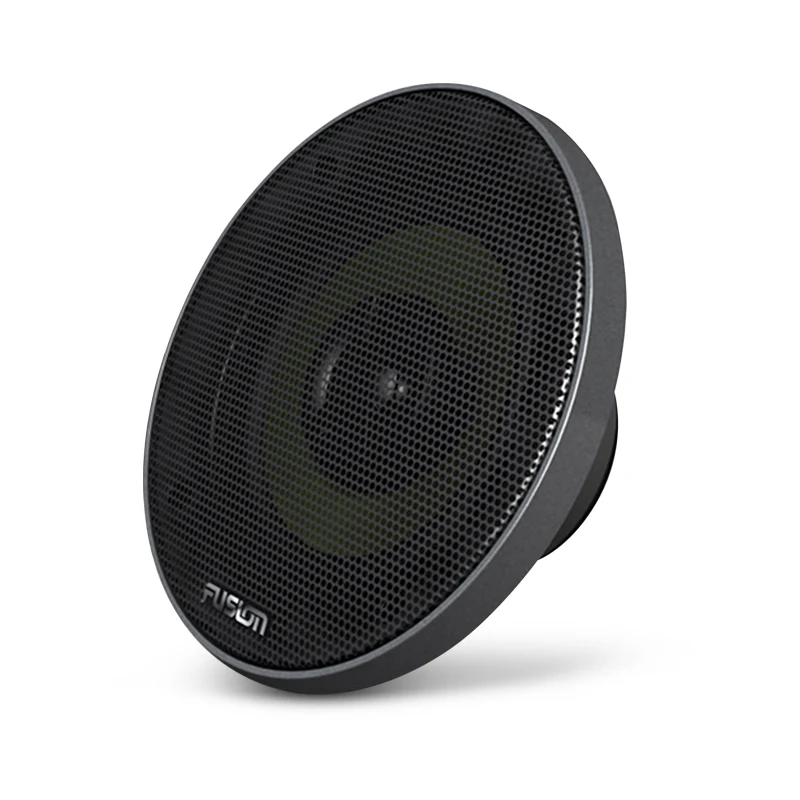

Fusion CS-FR4020 4” 160W 2-Way Full Range Speakers

Fusion Car Speakers Deliver Clarity of Sound Like No Other in Their Market Range

Massive performance in a small package is the hallmark of the fusion cs speaker range. Industry-leading technology, combined with state-of-the-art design ensures a “no compromise” speaker range that can be installed in most vehicle situations.

Product Specifications:

• Peak Power (Watts): 160
• Rated Power (Watts): 30
• Frequency Response: 44Hz - 24kHz
• Sensitivity (dB): 83
• Cone Material: Polypropylene
• Surround Material Rubber
• Basket: Steel Frame
• Protection Boot: No

Tweeter Specifications

• Tweeter Type: PEI

Crossover Specifications

• Crossover Type: 1st Order

Thiele Small Parameters

• D.C. Coil Resistance (Re) (Ohm): 3.14
• Free Air Resonance (Fs): 98.8
• Cone Area (Sd) (cm²): 52.81
• VAS (L): 2.2012
• VAS (CuFt): 0.078
• Compliance (Cms) (M/N): 558
• Diaphragm Mass (Mmd) (Kg): 0.00443
• Force Factor (Bl) (TM): 1.583
• Mechanical Q (Qms): 4.051
• Electrical Q (Qes): 3.622
• Total Loudspeaker Q (Qts): 1.912
• Voice Coil Impedance: 4 Ohm

Mounting Dimensions

• Mounting Depth: 45mm (1-3/4”)
• Mounting Diameter: 103mm (4-1/16”)
