Fusion CS-FR6930 6 X 9” 3 Way Full Range Speakers

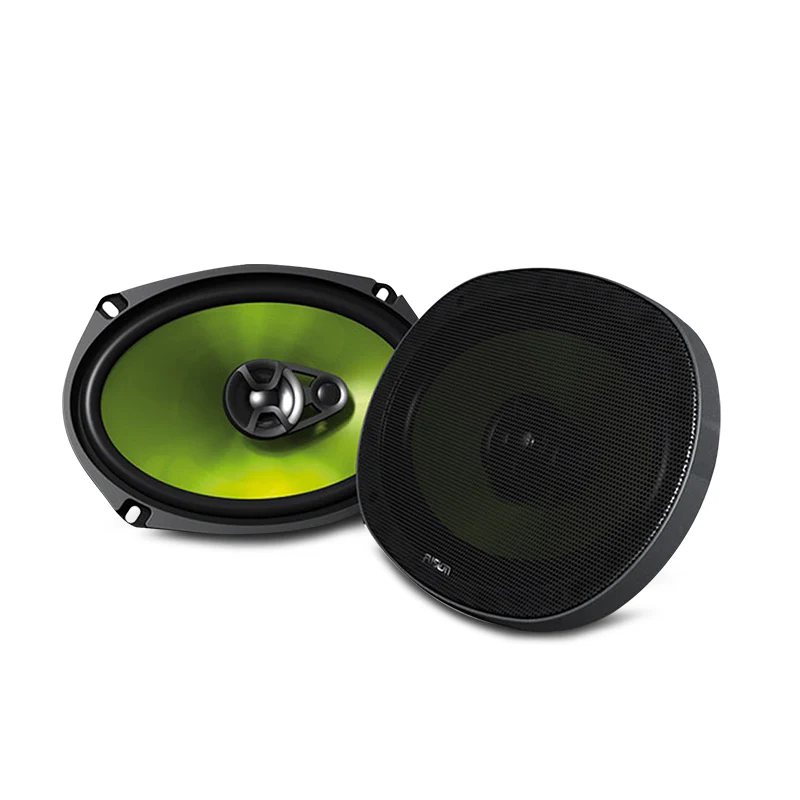

Product image 1

Fusion CS-FR6930 6 X 9” 3 Way Full Range Speakers

3 Way Full Range Speakers

Massive performance in a small package is the hallmark of the fusion cs speaker range. Industry-leading technology, combined with state of the art design ensures a “no compromise” speaker range that can be installed in most vehicle situations.

Specifications:

  • Mounting Depth 71.5mm (2-14/16”)
  • Mounting Diameter 156mm (6-3/16”) X 222mm (8-24/32”)
  • Peak Power (Watts) 310
  • Rated Power (Watts) 55
  • Frequency Response 28hz - 25khz
  • Sensitivity (Db) 87
  • Cone Material Polypropylene
  • Surround Material Rubber
  • Basket Steel Frame
  • Protection Boot No
  • Tweeter Type Pei
  • Crossover Type 1st Order

Thiele Small Parameters:

  • D.C Coil Resistance (Re) (Ohm) 3.3
  • Free Air Resonance (Fs) 57.489
  • Cone Area (SD) (Cm²) 209
  • Vas (L) 22.769
  • Vas (CUFT) 0.804
  • Compliance (CMS) (?m/n) 367
  • Diaphragm Mass (MMD) (Kg) 0.0191
  • Force Factor (BL) (Tm) 3.878
  • Mechanical Q (QMS) 2.13
  • Electrical Q (QES) 1.654
  • Total Loudspeaker Q (QTS) 0.931
  • Voice Coil Impedance 4 Ohm
$32.89

Original: $93.98

-65%
Fusion CS-FR6930 6 X 9” 3 Way Full Range Speakers—

$93.98

$32.89

Product Information

Shipping & Returns

Description

3 Way Full Range Speakers

Massive performance in a small package is the hallmark of the fusion cs speaker range. Industry-leading technology, combined with state of the art design ensures a “no compromise” speaker range that can be installed in most vehicle situations.

Specifications:

  • Mounting Depth 71.5mm (2-14/16”)
  • Mounting Diameter 156mm (6-3/16”) X 222mm (8-24/32”)
  • Peak Power (Watts) 310
  • Rated Power (Watts) 55
  • Frequency Response 28hz - 25khz
  • Sensitivity (Db) 87
  • Cone Material Polypropylene
  • Surround Material Rubber
  • Basket Steel Frame
  • Protection Boot No
  • Tweeter Type Pei
  • Crossover Type 1st Order

Thiele Small Parameters:

  • D.C Coil Resistance (Re) (Ohm) 3.3
  • Free Air Resonance (Fs) 57.489
  • Cone Area (SD) (Cm²) 209
  • Vas (L) 22.769
  • Vas (CUFT) 0.804
  • Compliance (CMS) (?m/n) 367
  • Diaphragm Mass (MMD) (Kg) 0.0191
  • Force Factor (BL) (Tm) 3.878
  • Mechanical Q (QMS) 2.13
  • Electrical Q (QES) 1.654
  • Total Loudspeaker Q (QTS) 0.931
  • Voice Coil Impedance 4 Ohm
