ePOWER EN1226S-X 12V 2600W 12V True Sine Wave Inverter With AC Transfer & Safety Switch

Affordable, High-Quality, Professional-Level Inverters By Enerdrive!

2600W Inverter With AC Transfer & Safety Switch
The ePOWER EN1226S-X 2600W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high-quality, professional-level inverters by Enerdrive. By using the latest power conversion technology, ePOWER inverters deliver clean and energy-efficient true sine wave AC power from your DC supply. This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board.

Also included in the unit is an RCD Safety Switch. This switch monitors the flow of electricity through the inverter detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second. The ePOWER 2600W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions, and other appliances that use up to 2600W of power for operation.

Features:

• Seamless 16A AC Internal Transfer Switch
• AC RCD/Safety Switch With Test Button

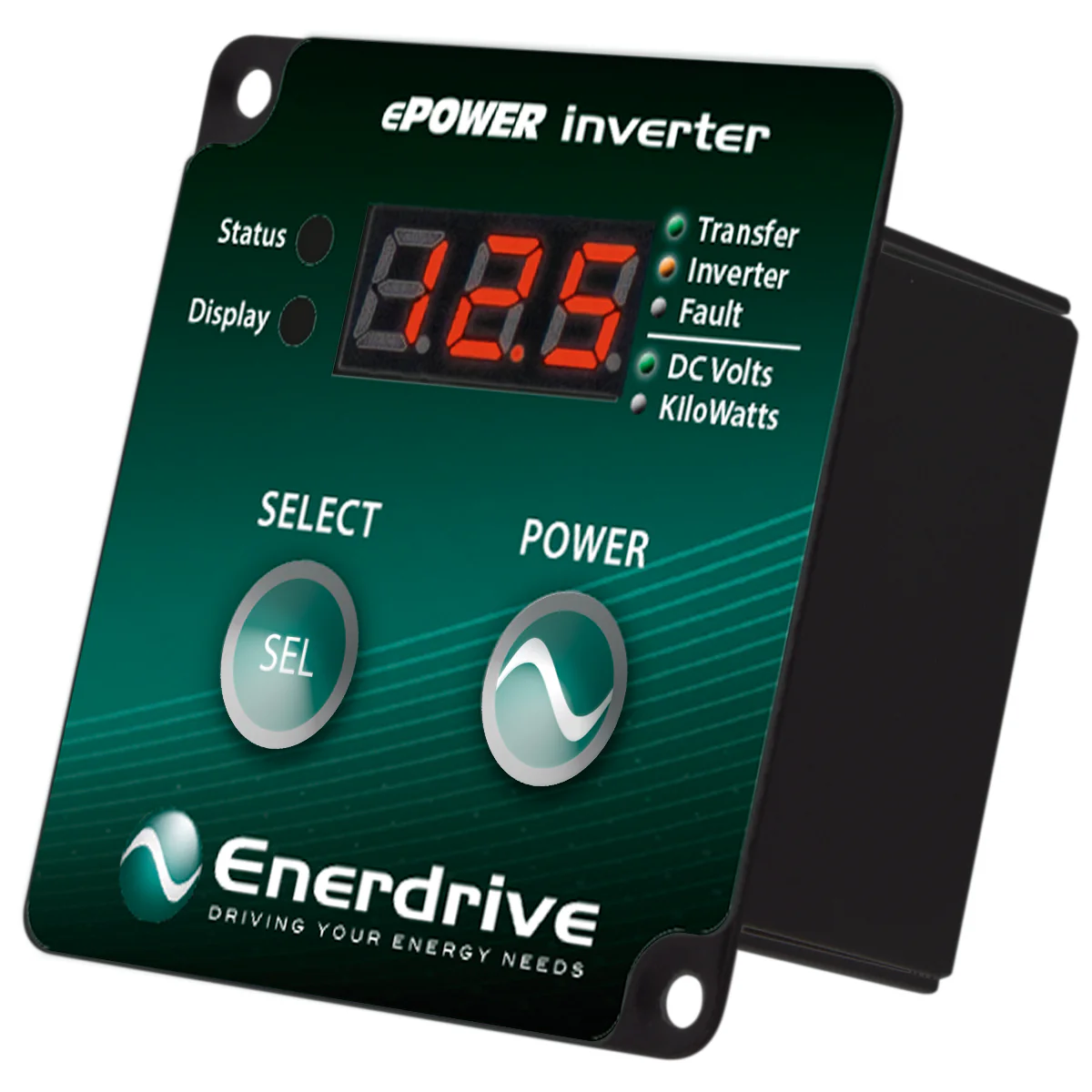

• Removable LED Remote Control Display Panel
• Regulated Pure Sine Wave Output
• Silent Operation
• Compact Size For Easy Installation
• USB Port For Charging USB Devices

Specifications:

• AC Output Power: 2600W
• AC Output Current: 11.3A
• AC Output Voltage: 230V AC / 50Hz
• AC Output Waveform: Sine Wave (< 3% THD)
• Nominal DC Input Voltage: 12.5V DC
• No Load Battery Draw: < 1.5A DC
• DC Input Voltage Operating Range: 10.5 – 15.5V DC
• Under Voltage Alarm: 11.0 / 12.1V DC
• Under Voltage Alarm Recovery: 11.3 / 12.3V DC
• Under Voltage Shutdown: 10.5 / 11.8V DC
• Under Voltage Shutdown Recovery: 12.0 / 12.6V DC
• Over Voltage Shutdown: 15.5V DC
• USB Port: 5V, 2.1A
• Transfer Time: < 30MS
• Transfer Relay Rating: 16A (Resistive Load)
• AC Input Socket IEC-C20: 16A (Max)
• AC Output Socket IEC-C19: 16A (Max)
• AC Output Front GPO: 10A (Max)
• Conformance: All Required Australian Standards (CE LVD: EN/IEC 62040-1 | IEC61558-2-16)
• EMI/EMC: CE EMC: EN/IEC 62040-2 Category C1
• Agency Markings: RCM, CE
• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -20°C ~ 60°C
• Relative Humidity: 5 – 90% (Non-Condensing)
• Operating Altitude: Up to 3000 Meters Above Sea Level
• Dimensions: (W) 560mm x (L) 230mm x (H) 115mm
• Weight: 7.00kg
