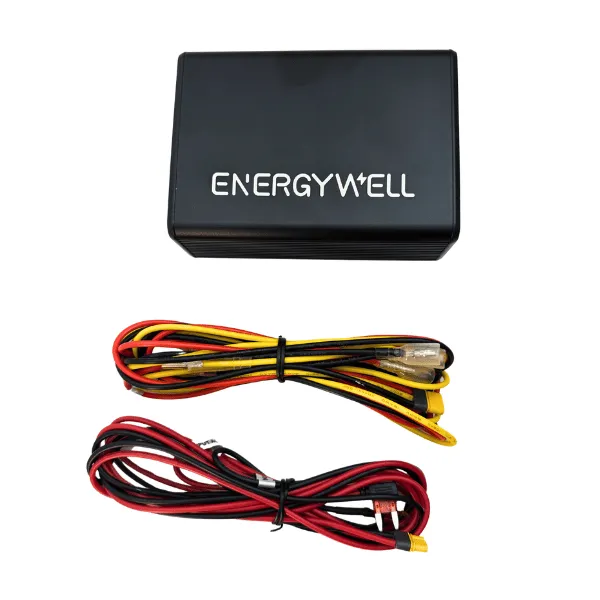

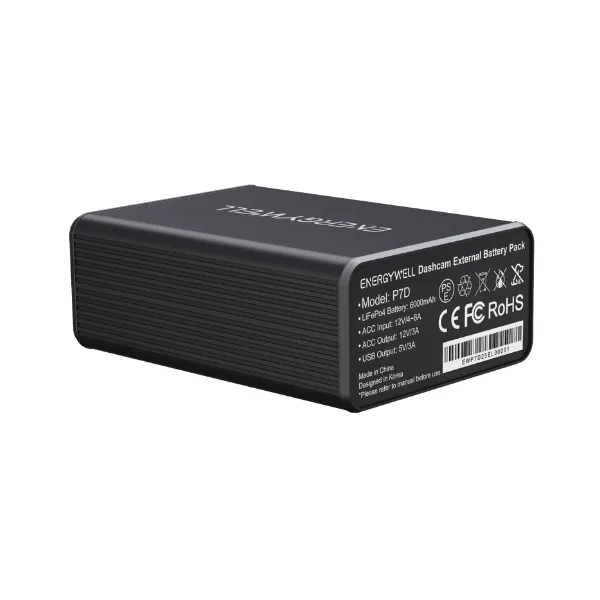

EnergyWell P7D 12.8V 6000mAh LiFePO4 Dash Cam Battery Pack
EnergyWell P7D 12.8V 6000mAh LiFePO4 Dash Cam Battery Pack
A compact, purpose-built parking mode power solution, the EnergyWell P7D delivers up to 49 hours of single-channel runtime from a 12.8V 6000mAh LiFePO4 battery that fully recharges in approximately 52 minutes during normal driving.
Product Overview
The P7D is EnergyWell's compact entry in the dash cam battery pack range, designed to power dash cam systems during parking mode without drawing from the vehicle's main battery. At 12.8V and 6000mAh, it provides an estimated 45 hours or more of single-channel runtime at 1.7W consumption and approximately 24 hours of dual-channel runtime at 3.2W consumption, covering overnight parking, long workday sessions, airport stays, and extended surveillance scenarios. Runtime varies depending on the connected dash cam model and recording settings in use.
The P7D uses LiFePO4 (Lithium Iron Phosphate) cell chemistry housed in a high-temperature resistant, fire-retardant material casing, providing improved thermal stability and enhanced safety over conventional lithium-ion battery packs in the automotive environment. Two selectable charging modes are provided via the onboard power switch: 8A high mode charges the battery to 100% in approximately 52 minutes, while 4A standard mode charges in approximately 104 minutes, both operating within the 11.5-15V input voltage range. The battery charges from the vehicle's 12V system while driving and seamlessly switches to battery output power when the engine is switched off. Output voltage is regulated at 12-14.2V at up to 3A maximum for stable dash cam power delivery. A USB output at 5V/3A (15W) is provided for compatible accessories. An indicator light displays battery status, and the compact 9.15 x 12.7 x 4.75cm footprint allows discreet installation under seats, behind trim panels, or in storage compartments.
Features & Benefits
Up to 45 Hours Single-Channel and 24 Hours Dual-Channel Runtime: Based on 1.7W single-channel and 3.2W dual-channel power consumption, the P7D provides extended parking mode coverage for overnight, workday, and travel parking scenarios without the vehicle engine running. Runtime varies depending on the connected dash cam model and active recording settings.
12.8V / 6000mAh LiFePO4 Cell Chemistry: The P7D uses LiFePO4 (Lithium Iron Phosphate) cells, which offer improved thermal stability, enhanced safety against thermal runaway, and a longer rated cycle life compared to standard lithium-ion chemistry, making it a more appropriate and durable technology for automotive battery pack applications.
High-Temperature Resistant, Fire-Retardant Housing: The outer casing is constructed from high-temperature resistant and fire-retardant material, providing an additional layer of protection against the elevated temperatures experienced inside parked vehicles in Australian summer conditions.
Fast Charge in Approximately 52 Minutes (8A Mode): The selectable 8A high charging mode fully recharges the 6000mAh battery in approximately 52 minutes, allowing the battery to restore full capacity during a typical daily drive and ensuring it is ready for the next parking session.
Selectable 4A and 8A Charging Modes via Power Switch: The onboard power switch allows the user to select between 4A standard mode and 8A high mode, giving flexibility to match the charging rate to the vehicle setup and daily drive time available for recharging.
Regulated 12-14.2V Output for Stable Dash Cam Power: The output voltage is regulated between 12V and 14.2V at up to 3A maximum, delivering clean and consistent power to the dash cam system throughout the discharge cycle and protecting the dash cam from voltage fluctuations that could cause recording errors or hardware wear.
Automatic Switchover from Vehicle Charging to Battery Output: The P7D charges from the vehicle's 12V electrical system while the engine is running and automatically transitions to supplying power to the dash cam when the engine is switched off, providing seamless parking mode activation without any manual intervention.
5V / 3A (15W) USB Output: The onboard USB port provides 5V at up to 3A (15W) for powering compatible accessories alongside the main 12V dash cam output.
LED Indicator Light for Battery Status: The onboard indicator light provides a visible reference for battery charge status during use and charging.
Protects Vehicle Main Battery: By providing a dedicated power source for parking mode recording, the P7D eliminates the risk of the dash cam drawing the vehicle's main battery below the minimum level required to start the engine, a common concern with direct hardwire parking mode installations.
Compact Installer-Friendly Dimensions: At 9.15cm x 12.7cm x 4.75cm, the P7D is the smallest model in the EnergyWell range, suited to mounting discreetly under seats, behind trim panels, and in tight storage compartments where larger battery packs cannot be accommodated.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | P7D |
| Brand | EnergyWell |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Capacity | 12.8V / 6,000mAh |
| Input Voltage | 11.5-15V (8A max) |
| Output Voltage | 12-14.2V (3A max) |
| Charging Modes | 4A (Standard) / 8A (High) |
| Charging Time (8A) | Approximately 52 minutes (100%) |
| Charging Time (4A) | Approximately 104 minutes (100%) |
| Runtime (1CH, 1.7W consumption) | Up to 45+ hours |
| Runtime (2CH, 3.2W consumption) | Up to 24+ hours |
| USB Output | 5V / 3A (15W) |
| Indicator Light | Yes |
| LCD Display | No |
| Housing Material | High-temperature resistant, fire-retardant |
| Dimensions | 9.15cm x 12.7cm x 4.75cm |
Compatible With
The P7D is compatible with 12V dash cam systems that accept a regulated 12-14.2V power input, covering most single and dual-channel dash cam brands and models when paired with the appropriate hardwire or power cable setup. Confirm the power input specification and connector type of the dash cam system before purchase to ensure correct wiring compatibility.
Frequently Asked Questions
How does the P7D protect the vehicle's main battery during parking mode?
When a dash cam is hardwired directly to the vehicle's battery for parking mode, it draws current continuously while the engine is off. Without a battery management cutoff, this can reduce the main battery charge to the point where the engine cannot start after an extended parking session. The P7D acts as a dedicated power reservoir for the dash cam, supplying power independently of the main battery and allowing the main battery to remain at full charge for reliable engine starting.
Does the P7D charge automatically while driving?
Yes. The P7D charges from the vehicle's 12V electrical system while the engine is running and automatically transitions to supplying output power to the dash cam when the engine is switched off. This seamless switchover activates parking mode without requiring any manual input from the driver.
What is the difference between the P7D, P6, and P9D models?
The P7D is EnergyWell's most compact model at 6000mAh with a 9.15 x 12.7 x 4.75cm footprint, providing up to 45 hours single-channel and 24 hours dual-channel runtime with a 52-minute fast charge time in 8A mode. The P9D offers 9000mAh capacity and up to 47 hours single-channel runtime in a slightly taller 9.15 x 17 x 4.75cm housing with an 80-minute charge time. The P6 offers 8000mAh capacity with the longest single-channel runtime at up to 60 hours, and adds an LCD display and Dual USB with USB-C PD (45W) output in a wider 16.3 x 16 x 3.83cm housing. Choose based on the runtime required, available installation space, and whether an LCD display or USB-C PD output is needed.
What does LiFePO4 chemistry provide compared to standard lithium-ion?
LiFePO4 (Lithium Iron Phosphate) offers significantly better thermal stability than standard lithium-ion, reducing the risk of thermal runaway under high-temperature conditions such as those experienced inside a parked vehicle in direct sunlight. It also provides a longer rated cycle life, meaning the battery retains a greater proportion of its original capacity across more charge and discharge cycles over its service life, making it a more appropriate chemistry for long-term automotive installation.
Will the 52-minute fast charge keep up with daily parking mode use?
In 8A high mode, the P7D reaches full charge in approximately 52 minutes of driving. For most typical daily commutes of 30 minutes or more each way, the battery recovers the majority of the capacity used during the previous night's parking session. For very short daily drives or particularly long parking sessions, the 4A standard mode over a longer drive or a supplementary charge via a compatible 12V charger may be required to maintain consistent full capacity.
