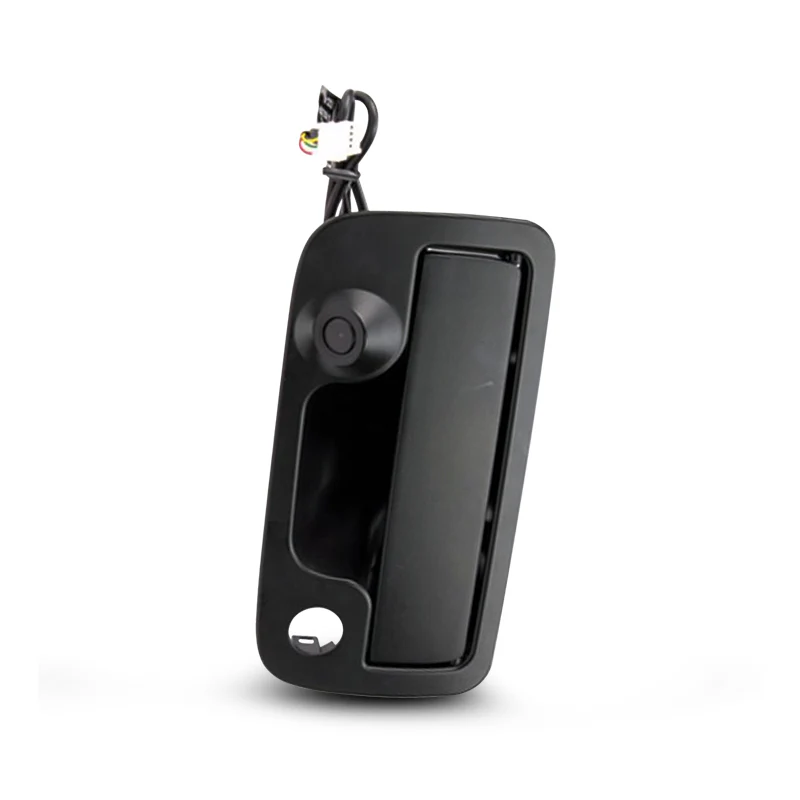

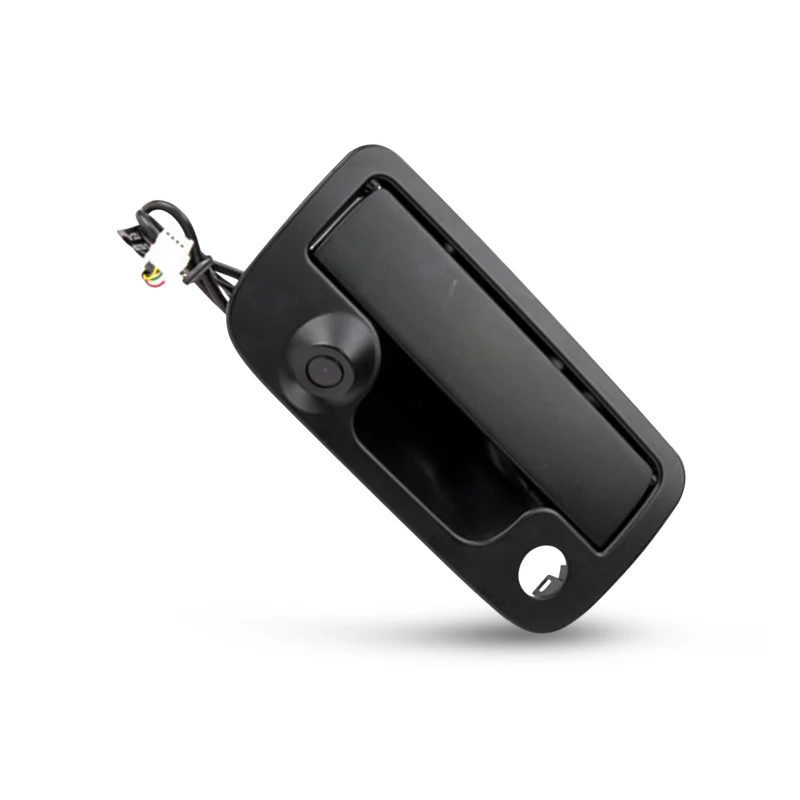

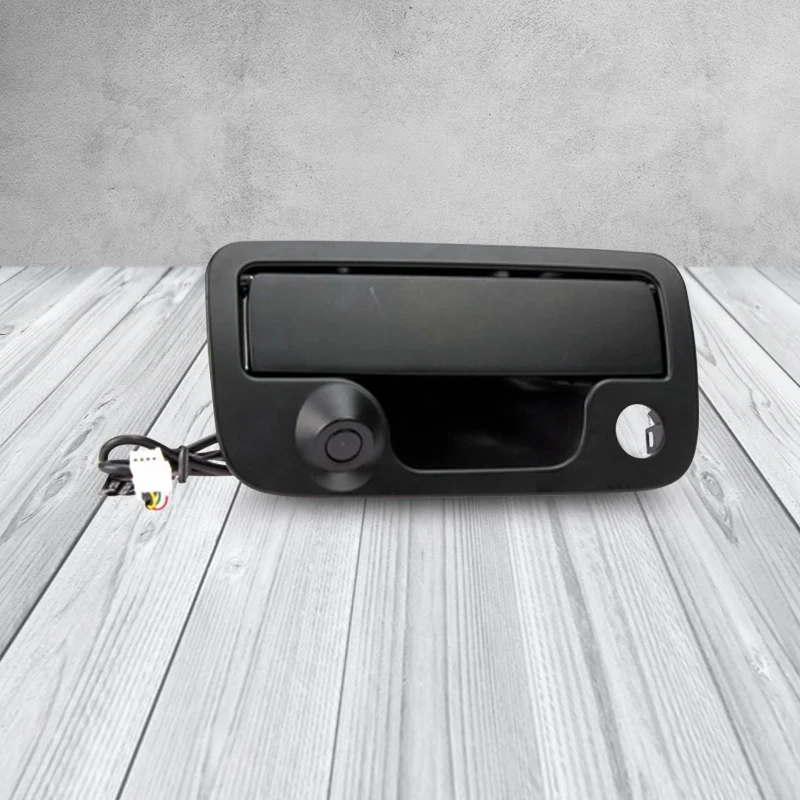

Echomaster PCAM-VW6 Tailgate Reverse Camera To Suit Volkswagen Amarok

Improve your safety when reversing by providing high quality images of surrounding areas and obstacles in the vicinity of the vehicle.

Pickup trucks are never the easiest things to reverse, suffering from seriously reduced rear visibility. To reduce the potential of causing an unnecessary accident, we’ve introduced the PCAM-VW6 Tailgate Handle Camera to help.

The PCAM-VW6 is a direct replacement for the factory tailgate handle for with models with locking tailgate.

Specifications:

• CMOS Image Sensor
• 640 x 480 Resolution
• Max Relative Aperture: 2.2 (+/- 5%)
• Fixed Iris
• Lens Construction: 3 elements + 1 IR filter
• Field Of View: D = 168 Degrees, H = 136 Degrees, V = 100 Degrees
• Hard/Anti-Fog/IR-Cut Coating
• PAL Compatible
• Video Output: 1.0V p-p 75ohm
• Minimum Illumination: 0.1 Lux
• Parking Lines: Yes
• Removable Lines: Yes
• Operating Voltage: 12V DC (Negative Ground)
• Current Consumption: 33mA @ 13.8V
• Operating Temperature: -20 Degrees C to +70 Degrees C
• Waterproof Rating: IP68
• IP Rated: Yes – IP68
• Video System: PAL/NTSC

Compatibility:

• VOLKSWAGEN AMAROK 2011 - 2015 (2H Series)
• VOLKSWAGEN AMAROK 2015 - 2020 (2H Series)
