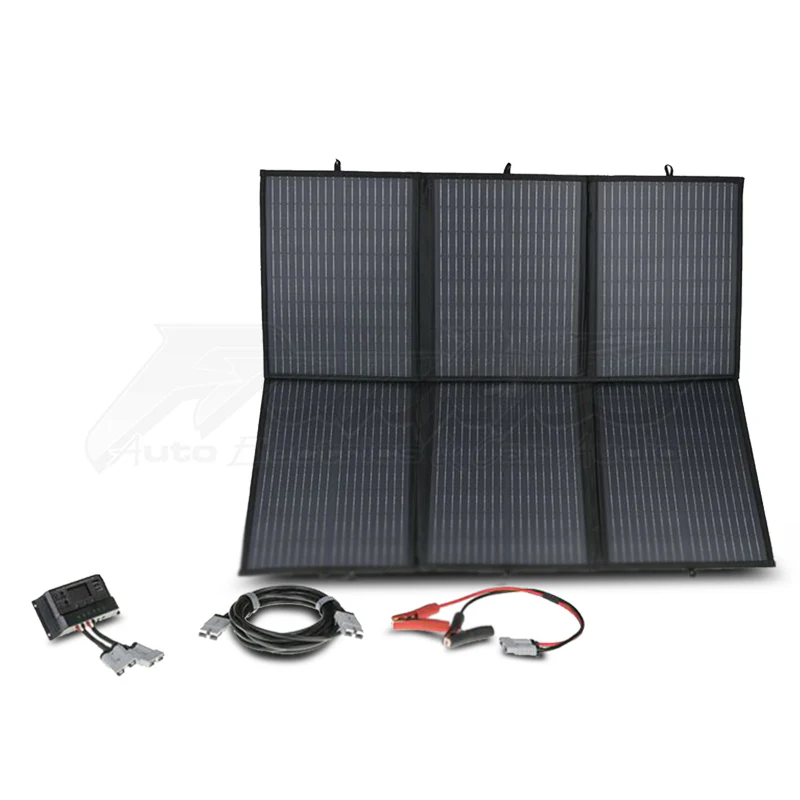

Drivetech4X4 DTSB200 200W Foldable Solar Blanket

200W Foldable Solar Blanket

High-quality, lightweight solar panels and solar blankets designed for camping and 4WD off-roading.
Backed by a 12-month guarantee and crafted with high-quality, lightweight and durable materials, you can be sure it will last the distance.
Each panel is manufactured with monocrystalline solar cells which provide better sunlight absorption and more power when compared to traditional polycrystalline panels. Ideal for caravans, camper trailers, boats and 4x4s.

Features:

• Monocrystalline
• PWM regulator
• Open measurements 1110 x 1105 x 5mm
• Closed measurements 530 x 385 x 105mm
• Open circuit voltage 22.1V
• Short Circuit current 11.53A
• Portable, compact and lightweight, the 200W Foldable Solar Blanket is the perfect way to charge your batteries while allowing you to power your inverter, fridge, lights and mobile devices

Specifications:

• Part Number: DTSB200
• Rated Maximum Power (PM): 200W
• Voltage at Pmax VMP: 18.70V
• Current at Pmax IMP: 10.86A
• Open-Circuit Voltage VOC: 22.51V
• Short-Circuit Current ISC: 11.53A
• Maximum Series Fuse Rating: 20A
• Dimensions (Open): 1100x1105x5mm (HxWxD)
• Dimensions (Closed): 530x385x105mm (HxWxD)
• Solar Cell Type: Monocrystalline
• Tolerance: ± 3%
• Normal Operating Cell Temp (NOCT): 47 ± 2°C
• Maximum System Voltage: 1000VDC
• Operating Temperature Solar Blanket: -40°C to +85°C
• Connections: 50A Power Connectors
• Regulator Type: PWM (pulse width modulation)
• Regulator Current Rating: 20A
• Maximum Regulator Voltage Input: 50V
• Float Charge: 13.7V - Default, Adjustable
• Discharge Stop: 10.7V - Default, Adjustable
• Discharge Reconnect: 12.6V - Default, Adjustable
• USB Output: 5V 3A
• Kit Weight Including Panel and Accessories: 5.95kg
