Drivetech 4x4 DT-SWP06 6-Way Touch Switch Panel with Bluetooth Control

Drivetech 4x4 DT-SWP06 6-Way Touch Switch Panel with Bluetooth Control - Ultra-Compact IP67 Waterproof Touch Panel with Smartphone App Control, Programmable Momentary Switching, and Backlit Display for 4WD, Caravan, and Marine Accessory Control

Control your vehicle accessories with Drivetech 4x4 DT-SWP06 6-Way Touch Switch Panel—featuring ultra-compact touch-sensitive control panel (91mm × 75mm) with Bluetooth smartphone connectivity enabling remote accessory control from iOS and Android devices, six independent touch switches each rated 10A capacity controlling driving lights, light bars, auxiliary lighting, water pumps, air compressors, and vehicle accessories, maximum 35A total panel capacity supporting multiple simultaneous high-current loads, programmable momentary switching function enabling push-button operation for horn, winch remote, spotlight control, and momentary activation requirements, IP67 waterproof and dustproof touch panel withstanding harsh off-road environments, rain exposure, water spray, and dusty conditions, built-in resettable fuse protecting panel circuitry from overload without requiring fuse replacement, wide DC 11-30V voltage rating compatible with 12V passenger vehicles and 24V commercial trucks, customizable Bluetooth app interface enabling virtual switch panel design with selectable backgrounds, panel styles, and custom icons matching switch functions, pairs up to four control boxes enabling multi-panel installations controlling numerous accessories from single smartphone app, backlit touch panel providing illuminated night-time operation without external lighting, includes 60-piece assorted graphics sticker set labeling switches for driving lights, spotlights, camp lights, water pump, air compressor, and common 4WD accessories, 1m micro USB cable providing flexible wiring and simple connection to vehicle power, sleek slim-line design fitting tight dashboard spaces, centre consoles, and custom switch panel locations, replaces bulky traditional rocker switch panels with modern touch interface, eliminates mechanical switch failures from dust ingress, moisture, and repeated switching cycles, smartphone control enabling accessory activation from outside vehicle during campsite setup or equipment operation, virtual panel customization matching vehicle interior aesthetics and personal preferences, professional flush-mount installation creating integrated OEM-quality appearance, suitable for 4WD vehicles controlling auxiliary lighting and equipment, caravan and motorhome installations managing house systems and outdoor lighting, camper trailers controlling annex lights and water systems, marine applications managing navigation lights and bilge pumps, and commercial vehicles controlling work lights and hydraulic equipment, Drivetech 4x4 Australian designed and engineered for extreme outback conditions and commercial applications, 12-month or 20,000km warranty covering manufacturing defects, and providing modern touch-screen accessory control solution replacing traditional mechanical switch panels.

Product Overview

Drivetech 4x4 DT-SWP06 6-Way Touch Switch Panel revolutionizes vehicle accessory control with modern touch-sensitive interface and Bluetooth smartphone connectivity. Eliminates bulky mechanical rocker switch panels with sleek ultra-compact touch panel consuming minimal dashboard space while controlling up to six independent accessories. Touch-sensitive switches respond instantly without mechanical movement—no moving parts to fail from dust, moisture, or repeated use. Significantly more reliable than traditional mechanical switches prone to contact corrosion and mechanical failure in harsh environments.

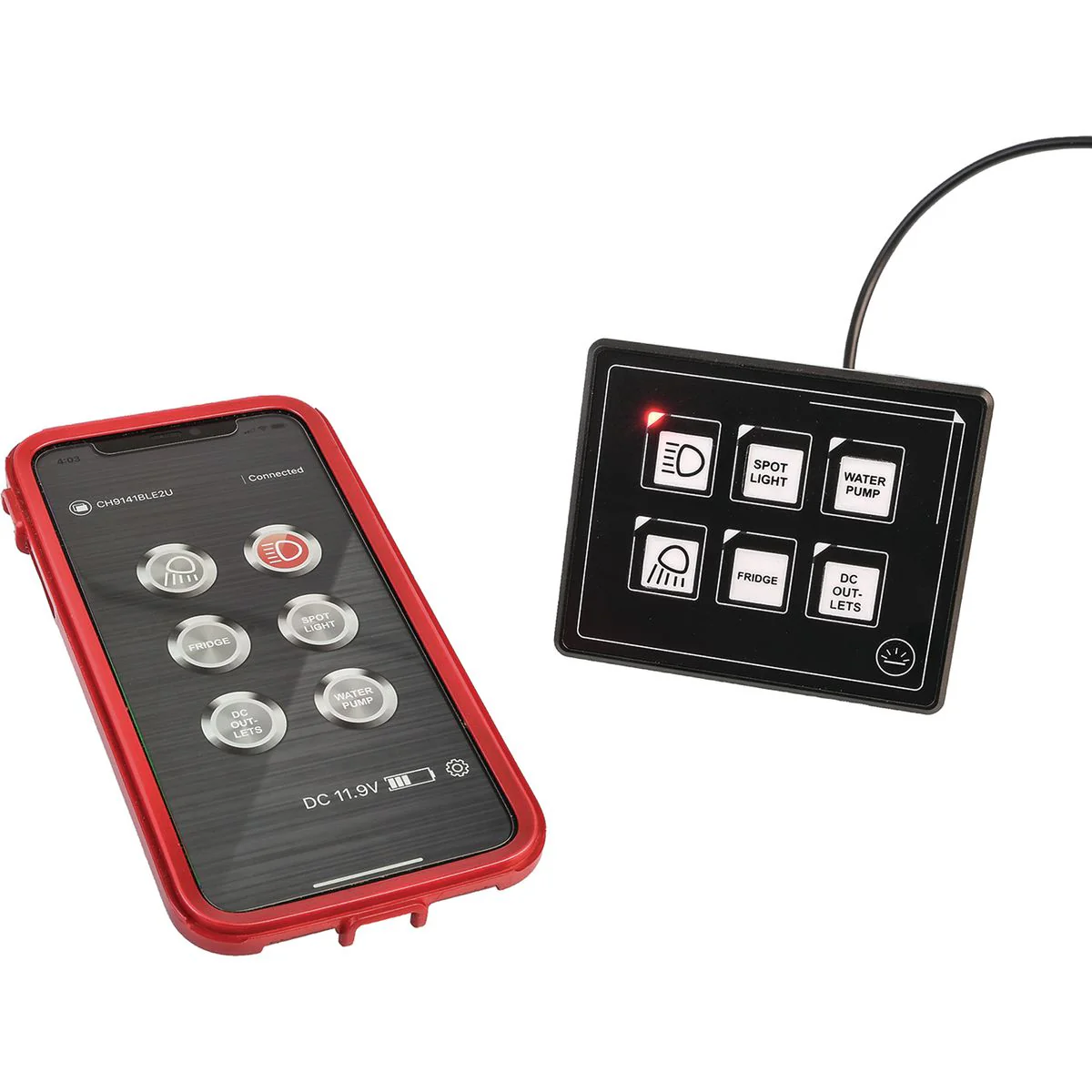

Bluetooth smartphone connectivity enables remote accessory control from iOS and Android devices through dedicated app. Control driving lights, spotlights, camp lights, water pump, and accessories from smartphone without reaching dashboard switches. Particularly valuable during campsite setup—activate awning lights, camp lights, and water pump from outside vehicle without repeatedly entering cabin. Winch operation benefits from remote switch control enabling operator visibility of winch and vehicle during recovery operations. App interface provides visual confirmation of switch status preventing uncertainty about accessory state.

Programmable momentary switching function enables each switch operation in latching mode (toggle on/off with each press) or momentary mode (active only while pressed, releases when finger removed). Momentary mode essential for horn, spotlight control, winch remote pulsing, and applications requiring brief activation. Configure switches individually matching accessory requirements—driving lights latching mode for continuous operation, spotlight momentary mode for brief illumination during night driving, winch controls momentary for precise cable tensioning. Flexibility eliminates need for separate momentary switch panel alongside latching panel.

IP67 Waterproof Protection: Touch panel fully sealed against moisture and dust ingress. IP67 rating withstands water immersion up to 1m depth for 30 minutes—significantly exceeds typical dashboard moisture exposure from rain, humidity, and spillage. Dust-proof construction prevents contamination from outback dust, beach sand, and work site conditions. Reliable operation in all weather conditions without protection concerns. Easy cleaning with damp cloth removing dust, mud, and grime—sealed construction prevents moisture damaging internal electronics. Superior to mechanical switches with exposed contacts prone to corrosion from moisture ingress.

Built-In Resettable Fuse: Integrated circuit breaker protecting panel electronics from overload and short circuit damage. Overload condition triggers automatic shutdown protecting panel from damage. Reset button restores operation after fault condition cleared—eliminates need for replacement fuses and ensures panel functionality restored quickly. Traditional switch panels require spare fuses and troubleshooting to identify blown fuse location. Resettable fuse simplifies fault recovery and eliminates consumable fuse inventory requirements.

Customizable App Interface: Bluetooth app enables complete virtual switch panel customization. Select from multiple background images matching vehicle interior colors and personal aesthetic preferences. Choose panel style mimicking traditional switch layout or modern minimalist design. Assign custom icons to switches from extensive library—driving light icon for auxiliary lights, spotlight icon for roof-mounted spot, water drop icon for water pump, air icon for compressor. Label switches with custom text descriptions. Virtual panel customization creates personalized control interface matching individual preferences impossible with physical switch labels.

Multi-Panel Capability: Single smartphone app pairs with up to four control boxes enabling large accessory installations. Control 24 independent accessories (4 panels × 6 switches) from single app interface. Organize switches logically—Panel 1 for lighting (driving lights, spotlights, camp lights, rock lights), Panel 2 for equipment (water pump, air compressor, fridges), Panel 3 for interior systems (interior lights, USB charging, accessories), Panel 4 for trailer accessories (trailer lights, breakaway, electric brakes). Multi-panel capability accommodates comprehensive vehicle builds without overwhelming single-panel button count.

Ultra-Compact Dimensions: 91mm wide × 75mm high panel fits tight dashboard spaces impossible for traditional multi-switch panels. Significantly smaller than six-rocker switch panel (typically 150-200mm wide) saving valuable dashboard real estate. Slim profile enables flush-mount installation creating seamless integrated appearance. Fits between factory controls, in centre console spaces, and custom switch panel locations. Minimal footprint maximizes available dashboard space for gauges, head units, and other equipment.

Professional Installation Quality: Flush-mount design creating OEM-quality integrated appearance. Panel sits flush with dashboard surface matching factory instrument cluster aesthetics. Backlit touch switches provide clear visibility matching factory gauge illumination. Professional automotive electrical installers achieve dealer-quality installations. DIY installers create professional results with basic electrical knowledge and panel cutting tools. Removable panel enables relocation or replacement without permanent dashboard damage.

Drivetech 4x4 Quality and Support: Drivetech 4x4 Australian designed for extreme outback touring and commercial mining applications. Components engineered for maximum durability in harsh conditions. 12-month or 20,000km warranty providing peace of mind. Australian-based technical support assisting with installation and app configuration. Quality assurance for critical control equipment.

Technical Specifications

Frequently Asked Questions

Q: How do I connect accessories to this switch panel?

A: Each switch controls one accessory via relay or direct connection depending on accessory current draw. Low-current accessories (LED lights under 10A) connect directly—panel switch output wire connects to accessory positive, accessory negative connects to ground. High-current accessories (light bars, winches, compressors exceeding 10A) require relay installation—panel switch output triggers relay coil, relay contacts switch high current to accessory. Typical installation: panel receives 12V power from fused source, each switch output wire routes to accessory or relay, accessories receive switched power when switch activated. Comprehensive wiring diagram included with panel showing relay installation for high-current loads. Professional installation recommended for complex multi-accessory setups ensuring proper fusing and relay sizing.

Q: Can I control the switches without using the smartphone app?

A: Yes, touch panel functions independently without smartphone connection. Press touch switches directly on panel activating accessories immediately. Smartphone app provides additional remote control capability and virtual panel customization but not required for basic operation. Panel remembers switch programming (latching vs momentary) and operates normally without active Bluetooth connection. Bluetooth reconnects automatically when smartphone in range enabling remote control when desired. Most users operate switches primarily via touch panel, using smartphone control for specific situations requiring remote activation (campsite setup, winch operation, outside vehicle equipment control).

Q: What is momentary switching and when would I use it?

A: Momentary switch activates only while pressed, automatically deactivates when released—similar to horn button or doorbell. Latching switch toggles on with first press, remains on until pressed again toggling off—traditional light switch behavior. Momentary mode essential for: spotlight control (illuminate briefly while pressed, release to extinguish conserving power), horn activation (sound while pressed), winch remote (pulse winch in/out for precise control), and any application requiring brief activation without latching on. Program each switch individually via app—configure Switch 1-3 as latching for driving lights maintaining constant illumination, Switch 4 as momentary for spotlight, Switch 5-6 as latching for camp equipment. Flexible programming eliminates need for separate momentary and latching switch panels.

Q: How many accessories can I control if I install multiple panels?

A: Single smartphone app pairs with up to four DT-SWP06 panels controlling 24 total accessories (4 panels × 6 switches). App displays all four panels enabling selection between panels within app interface. Organize logically: Panel 1 (primary panel on dashboard) controls frequently-used items—driving lights, spotlights, camp lights. Panel 2 (secondary panel on console) controls equipment—water pump, air compressor, fridge. Panel 3 (mounted near rear) controls rear accessories—reversing lights, work lights, tailgate lighting. Panel 4 (in camper/caravan) controls separate systems. Each panel operates independently—power failure on one panel doesn't affect others. Maximum total current limited by vehicle electrical system capacity and wiring—calculate total current draw ensuring adequate alternator capacity and fusing.

Q: Is this suitable for marine applications on boats?

A: Yes, IP67 waterproof rating suitable for marine applications withstanding splash, spray, and humidity. Touch panel resists salt water corrosion better than mechanical switches with exposed metal contacts. Install in protected location (helm console, cabin panel) avoiding direct heavy water exposure and submersion. Wide DC 11-30V rating accommodates 12V and 24V marine electrical systems. Particularly valuable for boats managing multiple accessories—navigation lights, bilge pump, cabin lights, deck lights, anchor light, live well pump—from compact single panel. Bluetooth control enables accessory activation from anywhere on boat without returning to helm. Ensure wiring includes proper marine-grade fusing and circuit protection meeting marine electrical standards. Panel replaces traditional marine switch panels prone to corrosion and mechanical failure in saltwater environments.
