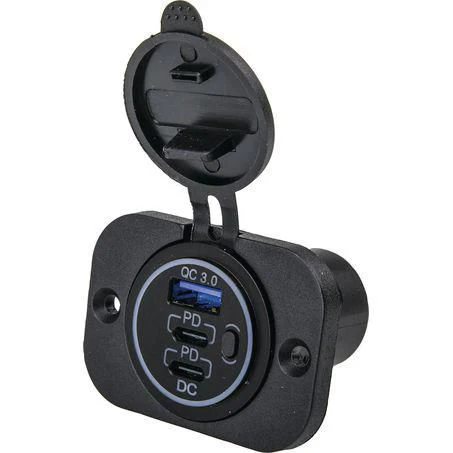

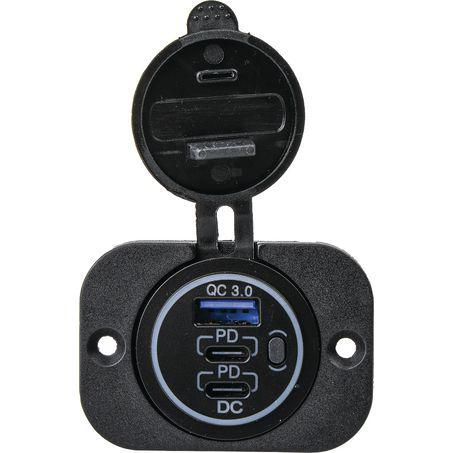

Drivetech 4x4 DT-17104 QC3.0 Quick Charge USB and Dual 55W Type-C Port Power Socket
Drivetech 4x4 DT-17104 QC3.0 Quick Charge USB and Dual 55W Type-C Port Power Socket
A multi-port fast charging power socket combining a QC3.0 Quick Charge USB port with two 55W Type-C ports, designed for dash or panel mount installation across 12V and 24V vehicles.
Product Overview
The Drivetech 4x4 DT-17104 is a three-port in-vehicle charging socket providing a QC3.0 Quick Charge USB port alongside two 55W Type-C ports, covering fast charging needs for smartphones, tablets, portable batteries, and USB-C powered accessories simultaneously. Compatible with both 12V and 24V electrical systems, the DT-17104 is suitable across light passenger vehicles, 4WDs, trucks, and commercial vehicles.
Blue LED backlight illumination marks the socket position clearly in dim conditions, and a protective cover shields the ports from dust and grime when not in use. ABS plastic housing provides durable, lightweight construction suited to permanent panel installation. Fitting hardware including two terminals, a plastic fitting ring, and two screws is included for installation.
Features & Benefits
The QC3.0 Quick Charge USB port delivers significantly faster charging speeds to compatible devices compared to a standard 5V USB output, reducing charge times for smartphones, GPS units, and other QC3.0-compatible accessories while on the move.
Two 55W Type-C ports provide high-power USB-C output for charging modern laptops, tablets, smartphones, and USB-C powered accessories at full rated speed. With two Type-C ports available simultaneously, multiple high-draw devices can be charged at the same time without compromising output.
The 12V and 24V dual input compatibility makes the DT-17104 suitable for installation in both standard light vehicle and heavy commercial 24V electrical systems. A dust and grime protective cover keeps the ports clean when not in use, extending the service life of the socket in dirty or dusty vehicle environments. ABS plastic housing balances durability and weight for a permanent panel installation. Included fitting hardware covers all components required for installation out of the box.
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | DT-17104 |
| Type | Accessory Socket Plug & Panel |
| USB Port | QC3.0 Quick Charge |
| Type-C Ports | 2 x 55W |
| Input Voltage | DC 12V / DC 24V |
| Illumination | Blue LED Backlight |
| Protective Cover | Yes — dust and grime protection |
| Housing | ABS Plastic |
| Included Hardware | 2x Fitting Terminals, 1x Plastic Fitting Ring, 2x Screws |
| Warranty | 1 Year |
Goes Well With
- Drivetech 4x4 DT-06101 12/24V 20A Power Socket for a matched panel installation
- Drivetech 4x4 OE Style Push Button Switches for a complete factory-style panel build
- Automotive Cable and Wiring Accessories for clean installation runs
Frequently Asked Questions
What is QC3.0 Quick Charge and which devices support it?
QC3.0 is Qualcomm's third-generation fast charging standard, capable of charging compatible devices significantly faster than a standard 5V USB output by negotiating a higher voltage and current with the connected device. Most modern Android smartphones and a wide range of accessories support QC3.0. Apple devices connected via a USB-A to Lightning cable will charge at standard speed from the QC3.0 port; Apple fast charging is supported via the Type-C ports.
Can all three ports be used simultaneously?
Yes. The DT-17104 provides one QC3.0 USB port and two 55W Type-C ports that can be used at the same time, allowing up to three devices to charge simultaneously. Actual charging speeds per port may vary depending on the total load across all active ports.
Is this socket compatible with 24V truck and commercial vehicle systems?
Yes. The DT-17104 accepts DC 12V and DC 24V input, making it compatible with both standard light vehicle and 24V heavy commercial electrical systems without requiring an additional voltage converter.
Does the protective cover need to be removed to use the ports?
Yes. The cover is designed to protect the ports from dust and grime when not in use and should be opened or removed to access the USB and Type-C ports for charging. The cover helps extend the service life of the socket in dusty or dirty vehicle environments.
Does the DT-17104 come with all hardware needed for installation?
Yes. The pack includes two fitting terminals, one plastic fitting ring, and two screws, covering the hardware required for panel installation. Wiring to the vehicle's electrical system will be required and is not included.
