Drivetech 4x4 DT-17012 Battery Monitor Display

Drivetech 4x4 DT-17012 Battery Monitor Display - Digital Battery Monitor with Shunt for Accurate State of Charge, Current Draw, Voltage, and Time to Empty Monitoring for 4WD, Caravan, and Marine Battery Systems

Monitor your auxiliary battery system accurately with Drivetech 4x4 DT-17012 Battery Monitor Display—featuring precision shunt-based current measurement providing accurate state of charge, current draw, voltage, wattage usage, and time remaining calculations for battery banks up to 590Ah capacity, compact digital display (66x40x10mm) with clear 32x23mm LCD window showing real-time battery parameters at a glance, 150A shunt accurately measuring charging current inwards and load current outwards enabling precise state of charge calculation, wide 8-60VDC operating voltage compatible with 12V, 24V, and 48V battery systems, lithium battery compatible supporting LiFePO4, AGM, gel, and flooded lead-acid battery chemistries with programmable battery capacity, time to empty calculation showing remaining runtime at current load draw preventing unexpected battery depletion, battery percentage display showing precise state of charge based on actual amp-hour counting not inaccurate voltage estimation, current draw monitoring showing instantaneous load enabling identification of high-drain appliances and power consumption optimization, current inwards monitoring showing charging current from solar panels, DC-DC chargers, or mains chargers, wattage usage display showing total system power consumption in watts, compact external shunt (23x18x5mm) installing inline with battery negative connection, simple installation with clear wiring diagram and included mounting hardware, flush-mount or surface-mount display options fitting standard panel cutouts or mounting brackets, professional dashboard integration matching vehicle interior aesthetics, essential monitoring for solar power systems, dual battery setups, caravan auxiliary batteries, marine house banks, and off-grid power systems, prevents battery damage from over-discharge by providing accurate remaining capacity information, optimizes charging system performance by monitoring charging current and efficiency, Drivetech 4x4 12-month or 20,000km warranty covering manufacturing defects, Australian designed for local 4WD and caravan applications, and providing critical battery system visibility for extended off-grid adventures and remote touring.

Product Overview

Drivetech 4x4 DT-17012 Battery Monitor Display delivers accurate real-time battery system monitoring essential for off-grid power management. Shunt-based current measurement technology provides precision monitoring impossible with voltage-only meters. Shunt measures actual current flowing in and out of battery calculating true state of charge based on amp-hour counting—significantly more accurate than voltage-based estimation methods affected by battery chemistry, temperature, and load conditions.

Comprehensive multi-parameter display shows all critical battery information on single screen. State of charge percentage shows remaining battery capacity based on actual amp-hours consumed. Voltage display monitors battery voltage identifying charging status and detecting potential charging system problems. Current draw shows instantaneous load current—negative values indicate discharge, positive values indicate charging. Wattage display converts voltage and current to total system power consumption enabling load analysis. Time to empty calculates remaining runtime at current discharge rate warning of approaching battery depletion.

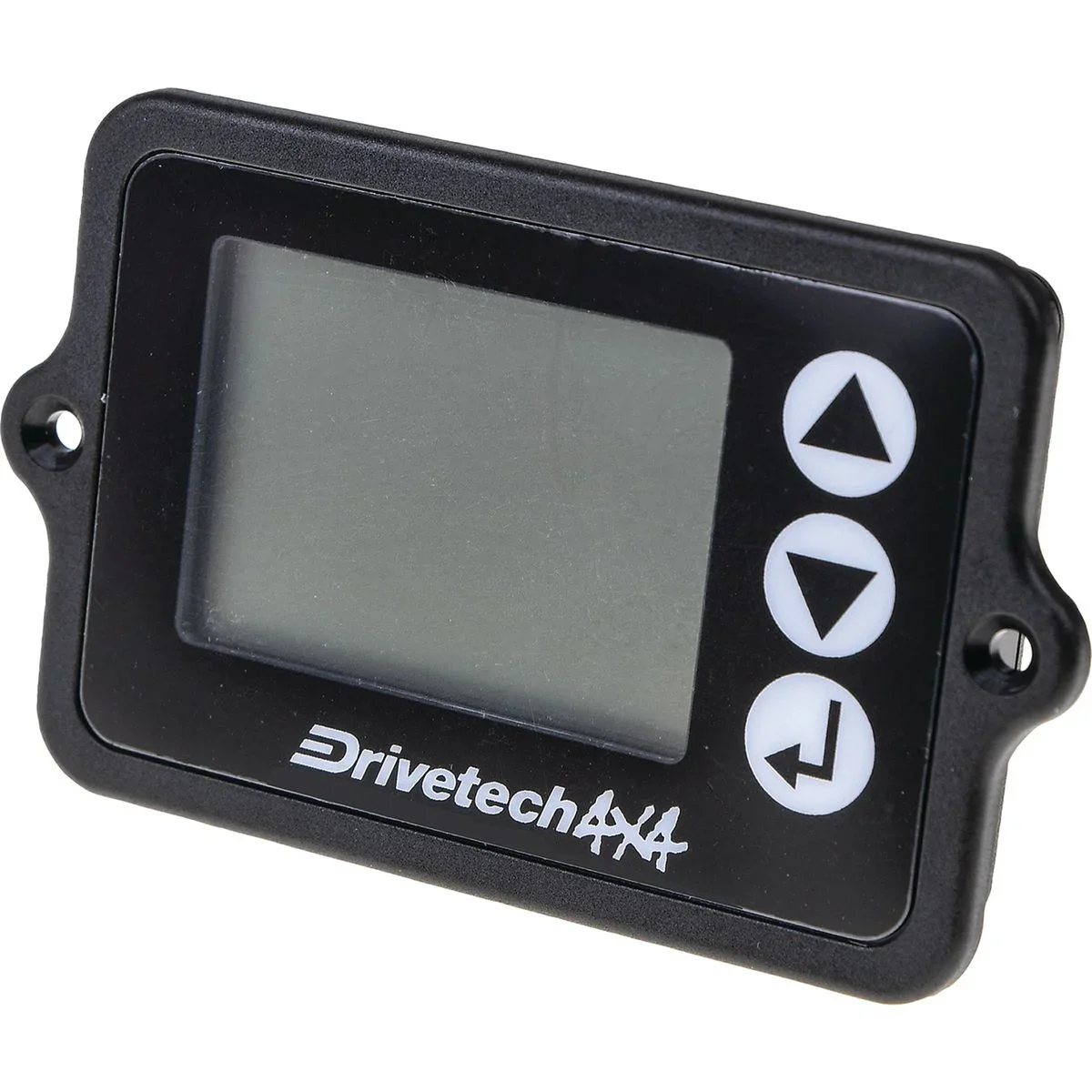

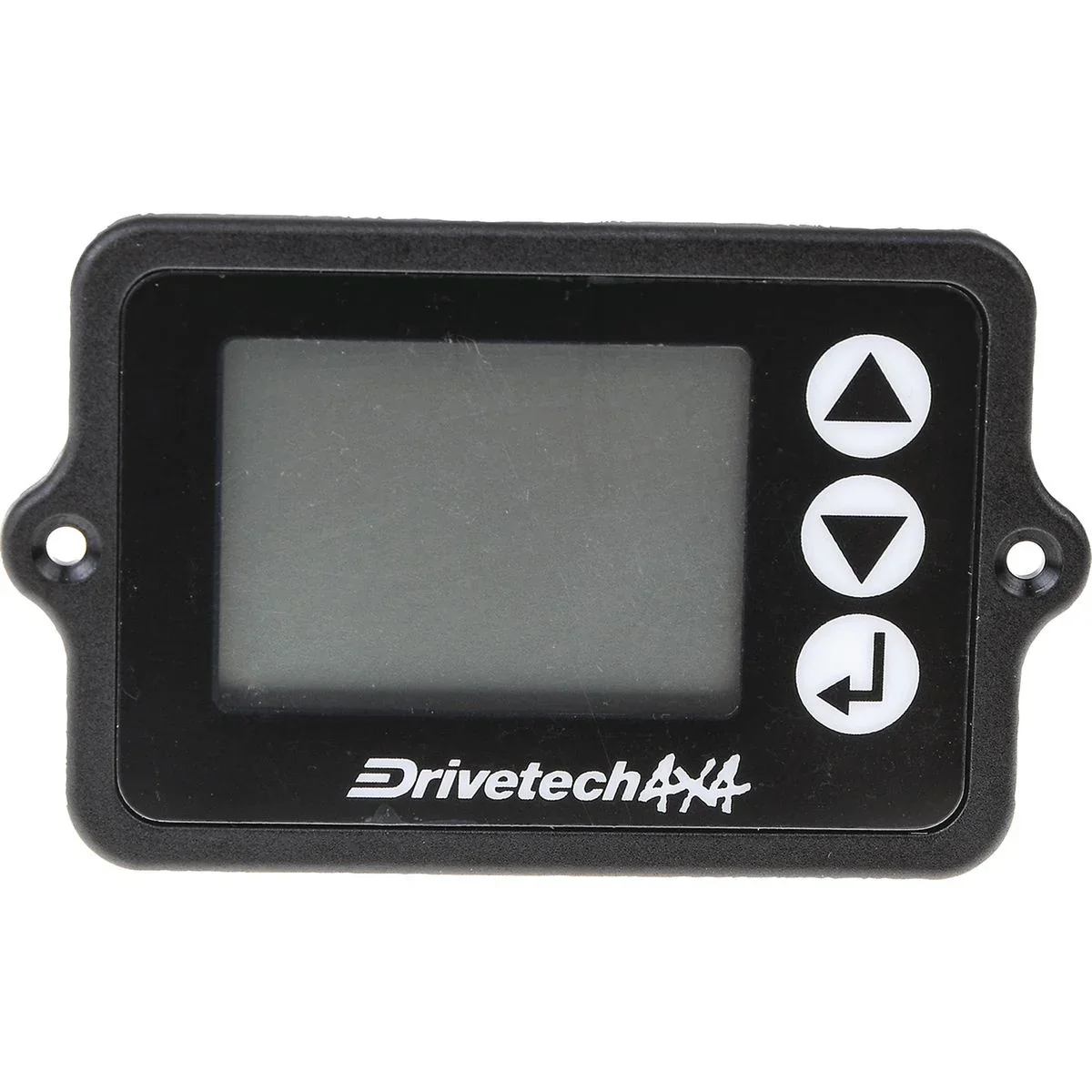

Compact display unit (66x40x10mm) with clear LCD window (32x23mm) fits tight dashboard spaces. Flush-mount installation provides professional integrated appearance. Surface-mount option using included bracket enables installation on any flat surface. Backlit display ensures visibility in low-light conditions—essential for nighttime monitoring without additional lighting. Straightforward menu navigation with single-button operation simplifying setup and use.

Shunt-Based Accuracy Advantage: Shunt technology measures actual electron flow through battery circuit providing true amp-hour accounting. Battery monitor tracks amp-hours removed during discharge and amp-hours returned during charging maintaining running total. State of charge calculation based on actual energy transferred not voltage estimation—accurate within 1-2% under proper calibration. Voltage-based meters suffer 10-20% accuracy errors due to battery voltage variation under load, temperature effects, and chemistry differences. Critical for lithium batteries where voltage remains relatively flat across 20-80% state of charge range—voltage meters cannot accurately determine lithium battery state of charge.

Comprehensive Load Monitoring: Current draw monitoring identifies power-hungry appliances and phantom loads. See instantaneous current consumption when turning on appliances—identify inefficient devices consuming excessive power. Monitor baseline current draw when all loads supposedly off—detect phantom loads from standby circuits, LED lights, USB chargers, and alarm systems. Optimize power consumption by replacing high-draw appliances with efficient alternatives. Essential for solar power systems where minimizing consumption maximizes battery autonomy.

Charging System Verification: Monitor charging current inwards verifying solar panel, DC-DC charger, or mains charger performance. Low charging current indicates shading, panel problems, or charger malfunction. Charging current monitoring enables solar panel positioning optimization—adjust panel angle observing immediate current increase. Verify DC-DC charger operation while driving confirming auxiliary battery charging. Monitor mains charger confirming proper charging algorithm and current delivery.

Time to Empty Protection: Time remaining calculation prevents unexpected battery depletion. Display shows estimated runtime at current discharge rate—"4.5 hours remaining" warning enables proactive load reduction or generator starting before battery depletes completely. Prevents damage from excessive discharge (particularly critical for lead-acid batteries suffering permanent capacity loss from deep discharge). Enables confident energy management knowing exactly how long current load sustainable.

Wide Voltage Compatibility: 8-60VDC operating range supports 12V, 24V, and 48V battery systems. Single monitor suitable for passenger vehicles (12V), trucks and buses (24V), and high-voltage off-grid systems (48V). Compatible with single batteries and series-connected battery banks. Monitor powered from monitored battery—no external power supply required.

Lithium Battery Support: Fully compatible with LiFePO4 lithium batteries increasingly popular in 4WD and caravan applications. Programmable battery capacity accommodates any battery size up to 590Ah. Lithium chemistry setting ensures accurate state of charge calculation accounting for lithium discharge characteristics. Also supports AGM, gel, and flooded lead-acid batteries with appropriate chemistry selection.

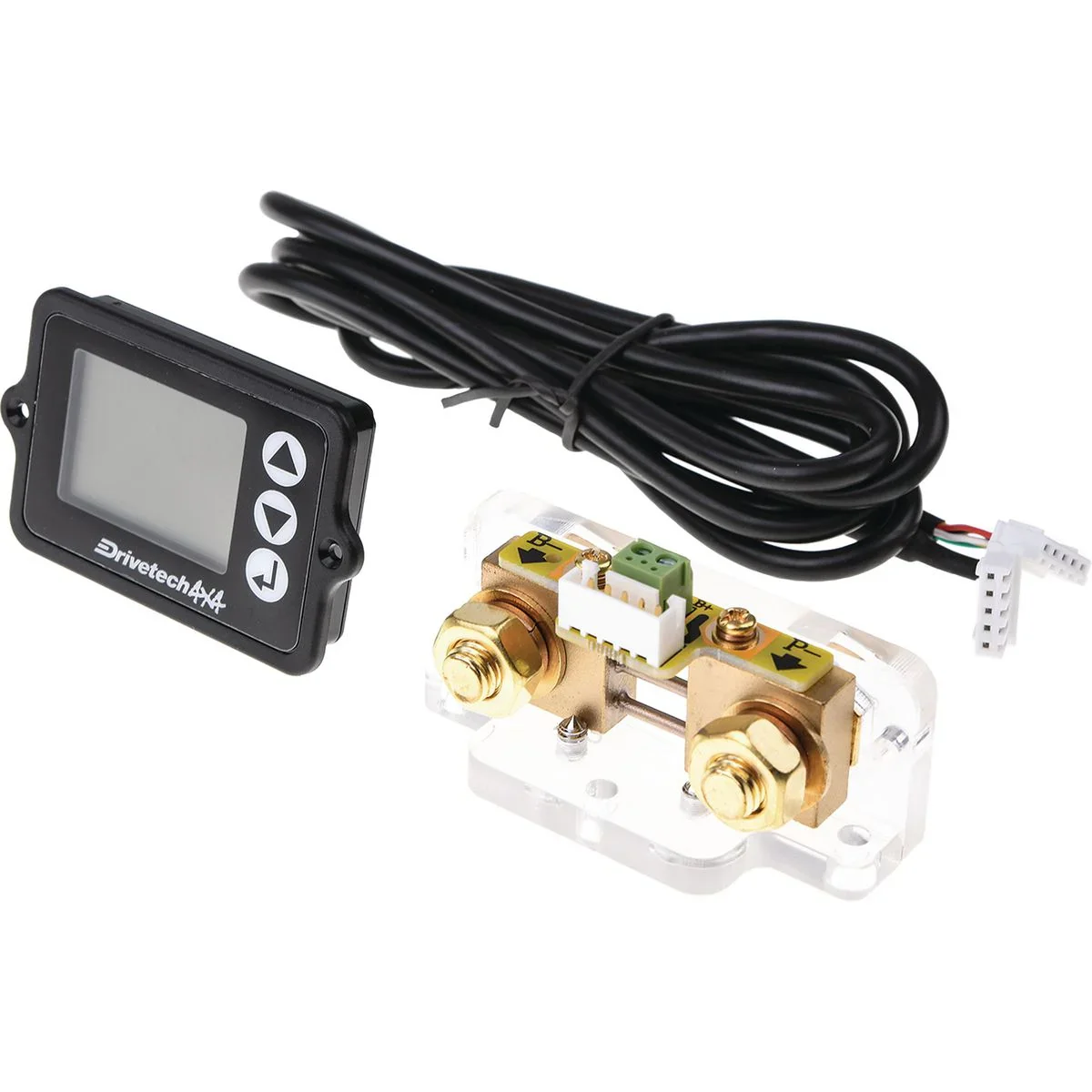

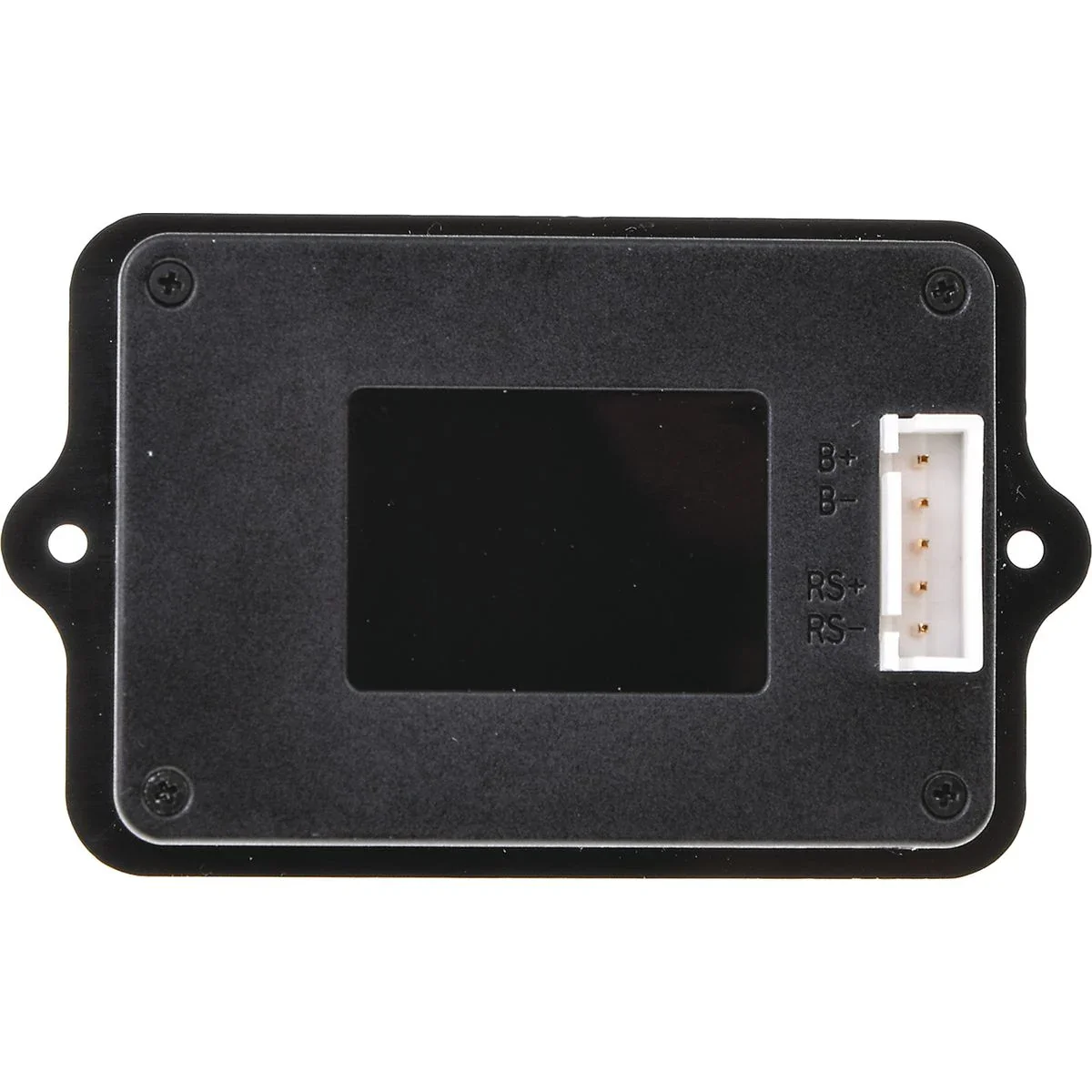

Professional Installation Quality: Clear terminal labeling and wiring diagram simplifying installation. Shunt installs inline with battery negative connection—all load and charging current passes through shunt enabling accurate measurement. Display connects to shunt via thin wire harness mounting anywhere convenient. Typical installation time 1-2 hours including panel cutout and wiring. Competent DIY installers achieve professional results with basic electrical knowledge and tools.

Drivetech 4x4 Quality and Support: Drivetech 4x4 proven in extreme Australian outback and commercial mining applications. 12-month or 20,000km warranty providing peace of mind. Australian-based technical support assisting with installation and operation. Replacement parts availability ensuring long-term product support.

Technical Specifications

Frequently Asked Questions

Q: How is this battery monitor more accurate than voltage-based meters?

A: DT-17012 uses shunt-based current measurement tracking actual amp-hours in/out of battery—true state of charge based on energy transferred not voltage estimation. Voltage-based meters estimate charge from battery voltage but voltage varies significantly under load, temperature, and battery chemistry. Lead-acid voltage drops under load falsely indicating low charge, recovers when load removed falsely indicating full charge. Lithium batteries maintain flat voltage across 20-80% state of charge—voltage meters cannot determine lithium state of charge accurately. Shunt-based monitoring accurate within 1-2% regardless of battery chemistry, temperature, or load conditions. Essential for reliable battery management preventing premature depletion and optimizing charging.

Q: Where exactly do I install the shunt and how does it work?

A: Shunt installs inline with battery negative connection between battery negative terminal and vehicle/system ground. ALL load current and charging current must pass through shunt for accurate measurement—shunt essentially precision resistor creating tiny voltage drop proportional to current flow, monitor measures voltage drop calculating current. Critical: install shunt in negative line between battery and ALL loads/chargers—if any current bypasses shunt, measurement inaccurate. Typical installation: disconnect battery negative terminal, install shunt between battery negative and negative cable, connect monitor sense wires to shunt, route display wire harness to dashboard. Display shows current flowing through shunt enabling accurate state of charge calculation.

Q: Can I use this monitor with lithium (LiFePO4) batteries?

A: Yes, fully compatible with lithium batteries. Program monitor with actual battery capacity (up to 590Ah) and select lithium chemistry setting. Monitor tracks amp-hours consumed and returned calculating accurate state of charge. Particularly important for lithium where voltage-based meters fail due to flat discharge curve—lithium voltage remains ~13.0-13.3V from 20-80% state of charge making voltage useless for state estimation. Shunt-based monitoring essential for lithium battery management preventing BMS disconnect from unexpected over-discharge. Also supports AGM, gel, and flooded lead-acid with appropriate chemistry selection.

Q: What does "time to empty" calculation tell me and how is it calculated?

A: Time to empty shows estimated runtime at current discharge rate before battery depletes. Calculation: remaining amp-hours ÷ current draw = hours remaining. Example: 100Ah remaining capacity, 20A current draw = 5 hours until empty. Display updates continuously as load changes—increase load, time remaining decreases; reduce load, time remaining increases. Critical warning system preventing unexpected depletion—when time shows 2 hours remaining, reduce load or start generator before battery depletes. Prevents damage from excessive discharge particularly important for lead-acid batteries suffering permanent capacity loss from deep discharge. Note: time calculation assumes constant current draw—actual time varies if load changes.

Q: Can I monitor multiple batteries or a battery bank with this monitor?

A: Yes, monitor measures total current flowing through shunt regardless of battery configuration. For batteries wired in parallel (12V system with multiple 12V batteries), monitor shows combined capacity and state of charge—program monitor with total capacity (two 100Ah batteries = 200Ah total capacity). For series-connected batteries (24V system with two 12V batteries in series), monitor shows series bank voltage and capacity. Single shunt monitors entire battery bank—cannot monitor individual batteries separately. Maximum supported capacity 590Ah regardless of battery configuration. For larger banks exceeding 590Ah or exceeding 150A current, require higher-capacity shunt and compatible monitor.
