Drivetech 4x4 DT-11077 OE Style Push Button Switch Beacon Suits Toyota and Mitsubishi
Drivetech 4x4 DT-11077 OE Style Push Button Switch Beacon Suits Toyota and Mitsubishi

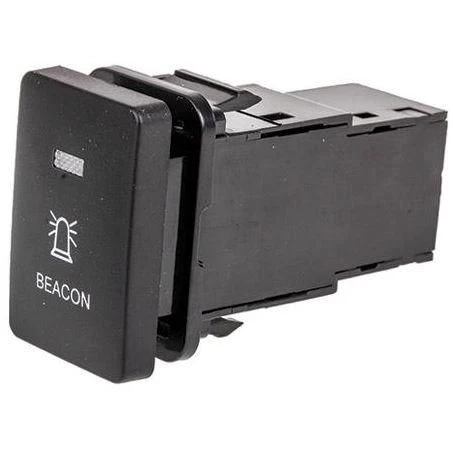

A direct OE-style replacement beacon push button switch engineered to fit seamlessly into factory switch panels on selected Toyota and Mitsubishi vehicles, matching the look and function of the original equipment.
Product Overview
The Drivetech 4x4 DT-11077 is an OE-style push button switch designed as a factory-matched replacement or addition for beacon control across a wide range of popular Toyota and Mitsubishi platforms. Sized at 32.5mm x 22mm to fit standard OEM switch blanks and panels, the DT-11077 integrates cleanly into the factory dashboard without modifications, maintaining the factory appearance.
The switch operates as a simple On-Off SPST unit rated at 3A at 12V with blue LED illumination for easy identification in low-light cabin environments. A straightforward four-wire connection covers earth, dash light circuit, 12V input, and 12V output, making installation accessible for both professional installers and experienced DIY fitters. Compatible vehicles include the Prado 150 Series, LandCruiser 200 Series, RAV4, HiLux GUN Series, and Mitsubishi Triton.
Features & Benefits
The OE-style design matches factory switch aesthetics on compatible Toyota and Mitsubishi vehicles, allowing installation directly into existing switch panel blanks without any panel cutting or custom fabrication. The compact 32.5mm x 22mm footprint is engineered to the same dimensions as the factory switch positions on supported platforms.
Blue LED illumination provides clear visual confirmation of switch status in all cabin lighting conditions, consistent with factory switch panel illumination. The SPST On-Off action provides straightforward beacon control without accidental state changes.
At 3A at 12V, the switch handles beacon accessory loads while the optional blue wire dash light circuit connection allows the switch illumination to dim with the factory instrument lighting for a fully integrated appearance.
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | DT-11077 |
| Type | Push Button Switch |
| Switch Action | On-Off (SPST) |
| Power Rating | 3A @ 12V |
| Voltage | 12V |
| Mount Dimensions | 32.5mm (L) x 22mm (W) |
| Switch Illumination | Blue LED |
| Wiring — Black | Earth |
| Wiring — Blue | Dash Light Circuit (optional) |
| Wiring — Red | 12V Input |
| Wiring — Green | 12V Output |
| Warranty | 1 Year |
Compatible With
- Toyota Prado 150 Series — 2010 to 2018
- Toyota LandCruiser 200 Series — 2008 to current
- Toyota RAV4 — 2006 to 2011
- Toyota HiLux GUN Series — 09/2015 to current
- Mitsubishi Triton — 2015 to current
Frequently Asked Questions
Will this switch fit directly into my factory switch panel without modifications?
Yes. The DT-11077 is sized at 32.5mm x 22mm to match the OE switch blank dimensions on compatible Toyota and Mitsubishi platforms, allowing it to install directly into existing factory switch panel positions without cutting or custom fabrication.
What is the blue wire used for?
The blue wire connects to the vehicle's dash light circuit and is optional. When connected, it allows the switch's blue LED illumination to dim in sync with the factory instrument panel lighting for a fully integrated factory appearance. If not connected, the LED will remain at full brightness regardless of instrument lighting state.
What does SPST On-Off mean?
SPST stands for Single Pole Single Throw. In practical terms, this means the switch has one input and one output and toggles between two states — on and off. Each press of the button changes the state, providing straightforward beacon control without momentary or multi-position complexity.
Is this switch suitable for accessories other than a beacon?
The DT-11077 is rated at 3A at 12V. It is suitable for any 12V accessory within this current rating that benefits from an OE-style panel-mounted switch, provided the accessory load does not exceed the rated current. For higher-draw accessories, a relay should be used with this switch as the trigger.
Does this switch work on vehicles outside the listed compatibility range?
The listed vehicles are those confirmed compatible with the OE panel fitment dimensions of the DT-11077. The switch may physically fit other vehicles with the same 32.5mm x 22mm switch blank size, but fitment outside the listed models is not confirmed by Drivetech 4x4 and should be verified before purchase.
