Drivetech 4x4 DT-06104 12/24V Round Voltmeter
Drivetech 4x4 DT-06104 12/24V Round Voltmeter - Blue LED Digital Voltage Display with 5-30V Range for Battery Monitoring, Auxiliary Battery Systems, and Trailer Breakaway Battery Monitoring
Monitor your battery voltage accurately with Drivetech 4x4 DT-06104 Round Voltmeter—featuring bright blue LED digital display showing real-time voltage readings for 12V and 24V electrical systems, wide 5-30V measurement range compatible with 12V passenger vehicles, 24V commercial trucks, and voltage monitoring from discharged to fully charged states, compact 29mm diameter socket mount design fitting standard dashboard panel cutouts and instrument clusters, simple two-wire installation connecting directly to monitored battery or circuit requiring only positive and negative connections, continuous voltage monitoring enabling early detection of charging system problems, battery deterioration, and electrical system faults, suitable for monitoring main starter battery voltage, auxiliary battery state of charge, dual battery system performance, solar charging system voltage, and trailer breakaway battery condition, blue LED display providing excellent visibility in direct sunlight and low-light conditions without excessive glare, digital readout eliminating analog gauge interpretation errors providing precise voltage measurements to 0.1V accuracy, flush-mount socket installation creating professional integrated dashboard appearance, weatherproof construction suitable for exposed panel mounting in caravans, trailers, and marine applications, low power consumption drawing minimal current from monitored circuit, essential diagnostic tool for identifying battery discharge, alternator charging problems, and voltage drop issues, prevents unexpected battery failure by monitoring voltage trends and detecting deterioration before complete failure, optimizes battery charging by monitoring charge voltage ensuring proper charging system operation, trailer breakaway battery monitoring ensuring emergency brake system battery maintained at adequate charge level, ideal for 4WD dual battery systems enabling simultaneous monitoring of starter and auxiliary battery voltages with multiple meters, caravan installations monitoring house battery and tow vehicle battery separately, commercial vehicle applications monitoring 24V truck electrical systems, and marine applications monitoring house bank and starter battery systems independently, Drivetech 4x4 quality construction proven in extreme outback and commercial applications, 12-month or 20,000km warranty covering manufacturing defects, Australian designed for local vehicle and caravan applications, and providing essential voltage monitoring solution for battery system management and electrical system diagnostics.
Product Overview

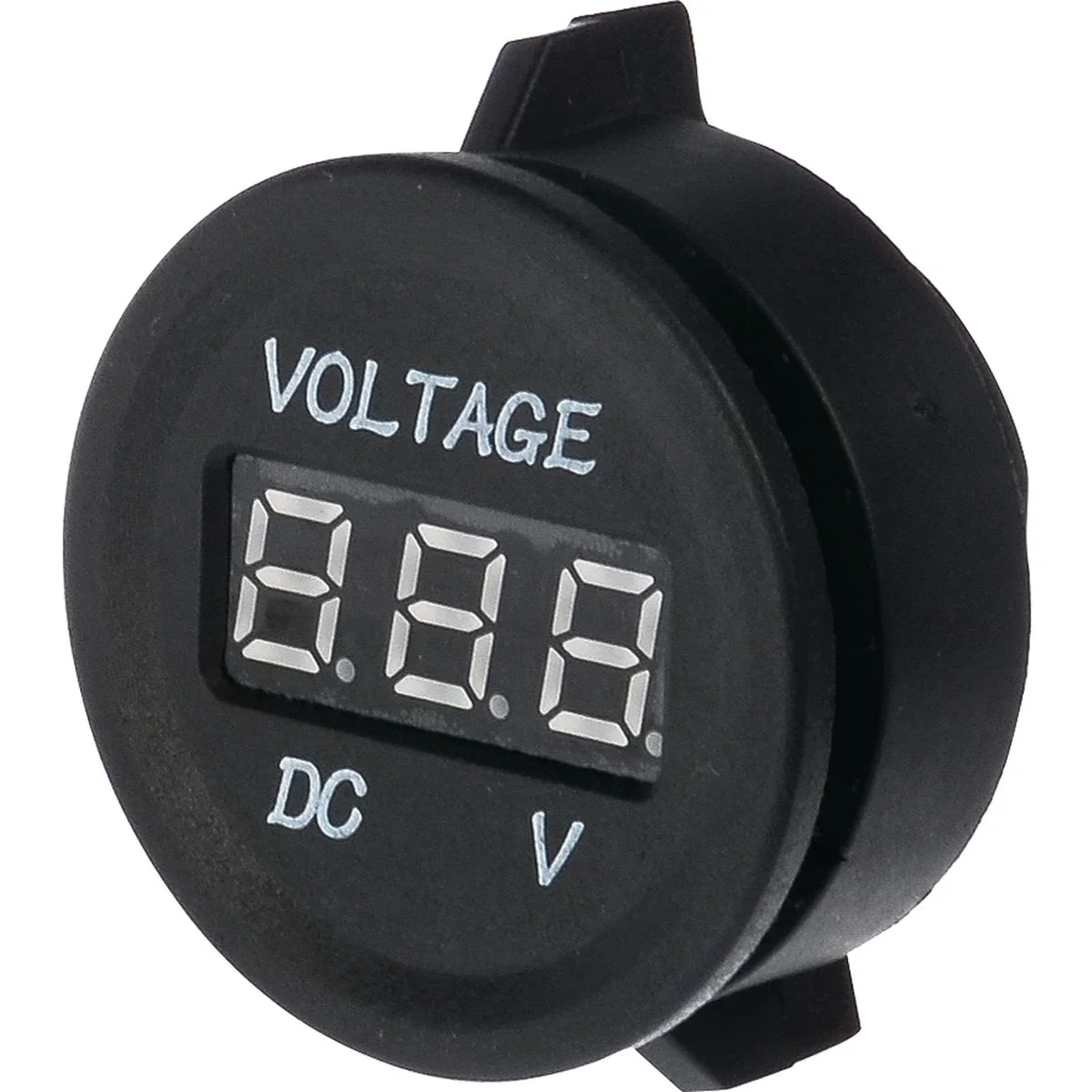

Drivetech 4x4 DT-06104 Round Voltmeter provides continuous real-time voltage monitoring essential for battery system management and electrical system health. Digital LED display shows precise voltage readings enabling early detection of battery problems, charging system faults, and electrical issues before causing breakdowns or equipment damage. Battery voltage primary indicator of battery state of charge and charging system performance—monitoring voltage reveals information invisible without instrumentation.
Bright blue LED display ensures excellent visibility in all lighting conditions. Daylight-readable display eliminates washout problems common with LCD displays in direct sunlight. Low-intensity blue backlight provides comfortable nighttime visibility without excessive glare interfering with night vision. Digital readout eliminates interpretation errors inherent in analog needle gauges—precise numerical display removes guesswork from voltage assessment.
Wide 5-30V measurement range accommodates 12V and 24V electrical systems. 12V system measurement from deeply discharged (9-10V) through charging states (14-15V) enabling full-range monitoring. 24V system measurement from discharged (18-20V) through charging (28-30V) suitable for commercial trucks, buses, and heavy equipment. Single voltmeter suitable for both voltage systems simplifying inventory and installation planning.
Battery Health Monitoring: Voltage primary indicator of battery state of charge. Resting voltage (engine off, no loads) indicates charge level: 12.7V+ = fully charged, 12.4V = 75% charged, 12.2V = 50% charged, 12.0V = 25% charged, below 11.8V = discharged. Monitor voltage overnight detecting parasitic drain—voltage dropping significantly overnight indicates phantom load requiring investigation. Voltage dropping rapidly under load indicates battery deterioration or inadequate capacity requiring replacement. Continuous monitoring detects gradual battery degradation enabling proactive replacement before unexpected failure.
Charging System Verification: Monitor alternator charging voltage confirming proper operation. Typical charging voltage 13.8-14.4V for 12V systems, 27.6-28.8V for 24V systems. Charging voltage above range indicates overcharging damaging batteries through excessive gassing and plate corrosion. Charging voltage below range indicates weak alternator, loose belt, or corroded connections preventing proper charging. Monitor voltage while driving confirming charging system maintains battery—voltage remaining at resting level or dropping during driving indicates charging system failure requiring immediate attention.
Dual Battery System Monitoring: Install multiple voltmeters monitoring starter battery and auxiliary battery independently. Compare voltages identifying battery isolator problems, DC-DC charger performance, and individual battery condition. Auxiliary battery voltage lower than starter battery during driving indicates DC-DC charger malfunction or inadequate charging current. Auxiliary battery voltage higher than starter battery at rest indicates auxiliary battery superior condition or starter battery deterioration. Independent monitoring enables targeted troubleshooting eliminating guesswork about which battery or charging circuit causing problems.
Trailer Breakaway Battery Monitoring: Critical safety application monitoring trailer breakaway brake system battery. Breakaway battery powers electric brakes if trailer separates from tow vehicle during accident—inadequate battery charge results in brake failure during emergency. Voltmeter installation in caravan monitoring breakaway battery voltage ensures battery maintained at adequate charge. Voltage below 12.0V indicates charging system problem or battery deterioration requiring immediate attention before towing. Compliance with trailer regulations requiring functional breakaway system.

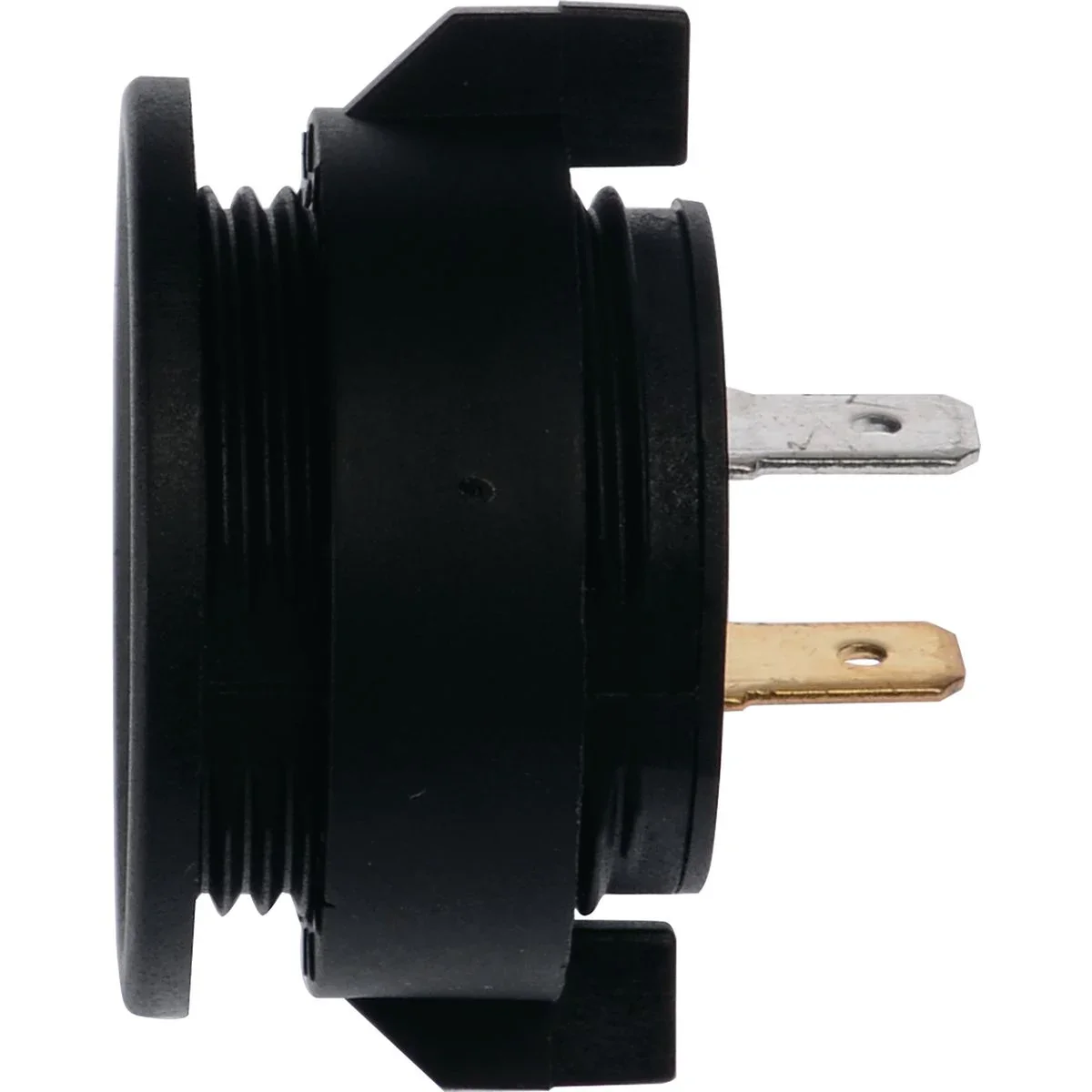

Compact Socket Mount Installation: 29mm diameter fits standard dashboard panel cutout—same size as common automotive indicator lights and switches. Flush-mount socket design creates integrated professional appearance matching factory instrument cluster aesthetics. Simple installation drilling 29mm hole in dashboard, inserting voltmeter into hole, securing with included retaining ring. Two-wire connection (positive and negative) to monitored battery completes installation—no complex wiring or calibration required. Removable design enabling meter relocation or replacement without permanent dashboard modification.
Multiple Installation Locations: Dashboard mounting positions meter in primary viewing area alongside factory instruments. Centre console mounting near auxiliary equipment switches monitoring auxiliary battery powering accessories. Battery box mounting on auxiliary battery enclosure providing local voltage indication. Trailer A-frame mounting monitoring breakaway battery voltage visible from tow vehicle. Caravan interior panel mounting monitoring house battery in living area. Versatile mounting options accommodating various monitoring requirements and vehicle configurations.
Drivetech 4x4 Quality and Support: Drivetech 4x4 proven in extreme Australian outback and commercial applications. Components designed for maximum durability in harsh conditions. 12-month or 20,000km warranty providing peace of mind. Australian-based technical support assisting with installation and application questions. Quality assurance for critical monitoring equipment.
Technical Specifications
| SKU | DT-06104 |
| Product Type | Round Digital Voltmeter |
| Brand | Drivetech 4x4 |
| Display Type | Blue LED Digital |
| Voltage Range | 5-30V DC |
| Display Accuracy | ±0.1V |
| Diameter | 29mm |
| Mounting Type | Socket Mount (flush panel installation) |
| Compatible Systems | 12V and 24V electrical systems |
| Display Colour | Blue LED |
| Installation | Two-wire (positive and negative) |
| Power Consumption | Low (powered from monitored circuit) |
| Weatherproof | Yes (suitable for exposed panel mounting) |
| Panel Cutout Size | 29mm diameter hole |
| Applications | Starter Battery, Auxiliary Battery, Dual Battery Systems, Trailer Breakaway Battery, Solar Systems |
| Warranty | 12 months or 20,000km |
| Installation Difficulty | Easy (basic electrical knowledge required) |
Frequently Asked Questions
Q: How do I interpret the voltage readings to know my battery state of charge?
A: Battery voltage indicates approximate state of charge when engine off and no loads connected (resting voltage after 30 minutes settling). 12V battery guidelines: 12.7V+ = 100% charged (fully charged), 12.5V = 90% charged, 12.4V = 75% charged, 12.2V = 50% charged, 12.0V = 25% charged, 11.8V or below = discharged (recharge immediately). While driving, voltage rises to charging level: 13.8-14.4V normal charging range. Voltage persistently below 13.5V during driving indicates charging system problem. Voltage above 14.8V indicates overcharging requiring immediate attention. AGM and lithium batteries have slightly different voltage profiles—consult battery manufacturer specifications for exact correlation.
Q: Can I monitor multiple batteries with one voltmeter?
A: Single voltmeter monitors one battery or circuit at a time—voltmeter displays voltage of circuit it's connected to. For dual battery systems requiring independent monitoring of starter and auxiliary batteries, install two voltmeters—one connected to starter battery, second connected to auxiliary battery. Position both meters on dashboard enabling simultaneous comparison. Alternatively, install manual switch selecting between batteries but this requires switching action and doesn't provide continuous simultaneous monitoring. Most dual battery installations benefit from two voltmeters providing instant comparison identifying charging system issues and individual battery condition.
Q: Where exactly do I connect the voltmeter wires?

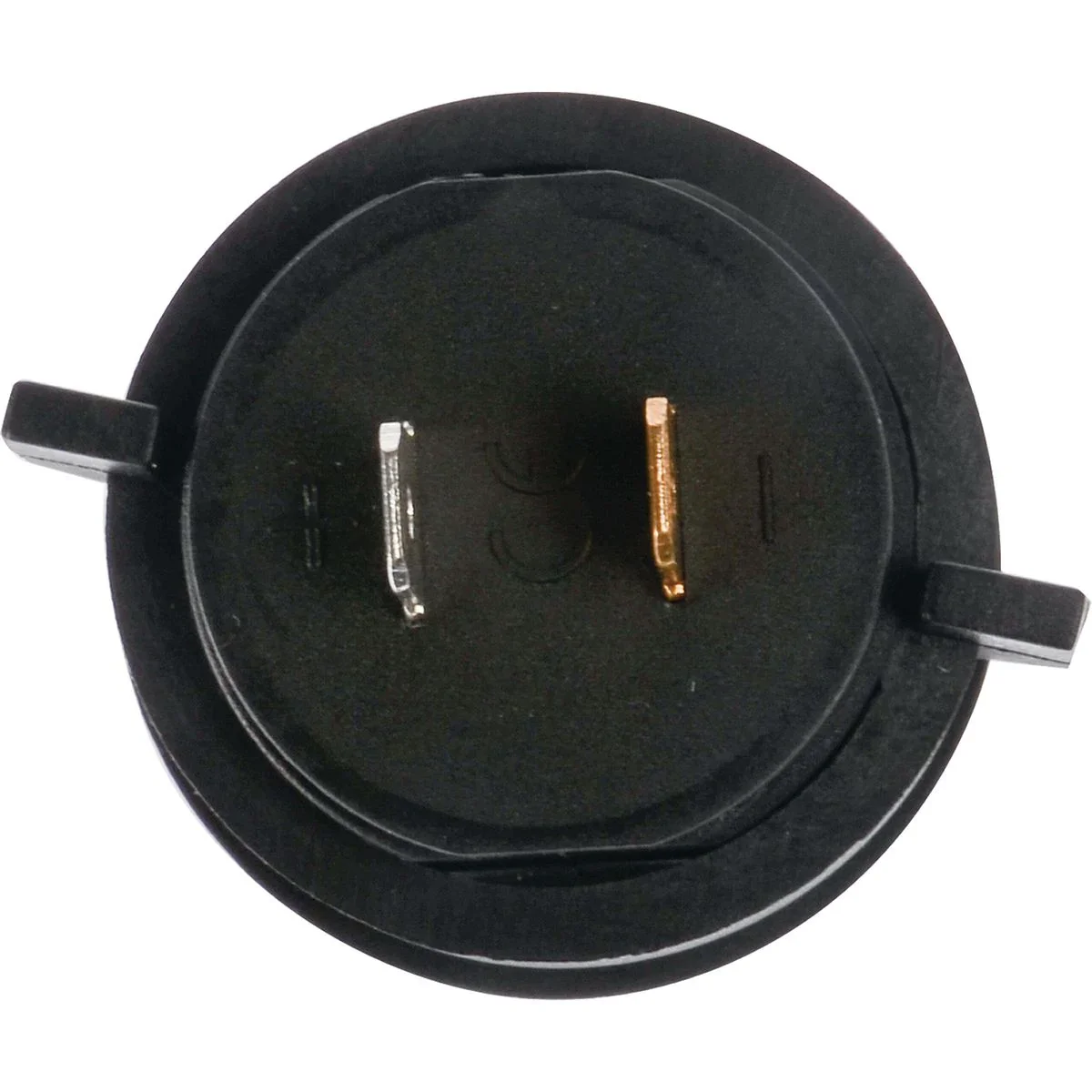

A: Connect voltmeter positive wire to battery positive terminal (or any positive connection point you want to monitor). Connect voltmeter negative wire to battery negative terminal or chassis ground. For main battery monitoring: positive to main battery positive terminal, negative to chassis ground. For auxiliary battery monitoring: positive to auxiliary battery positive terminal, negative to auxiliary battery negative terminal or chassis ground. For trailer breakaway battery: positive to breakaway battery positive, negative to breakaway battery negative. Voltmeter draws minimal current from monitored circuit—no fuse required in voltmeter circuit itself (monitored circuit should have appropriate fusing). Use 18AWG or larger wire for voltmeter connections—adequate for low current draw and minimizes voltage drop in measurement circuit.
Q: Will this voltmeter drain my battery when the vehicle is off?
A: Voltmeter draws very low current (typically 10-20mA) for LED display. Over 24 hours, total consumption approximately 0.24-0.48Ah—negligible for typical automotive batteries (50-100Ah capacity). If vehicle stored for extended periods (weeks/months), voltmeter contributes minor additional drain but typically insignificant compared to vehicle's own parasitic loads (alarm system, computer memory, clock). For extended storage exceeding one month, consider installing on/off switch in voltmeter positive wire enabling meter disconnection during storage, or disconnect battery entirely. For daily-use vehicles, voltmeter draw insignificant—alternator easily replaces consumed energy during normal driving.
Q: Can I use this to monitor my solar panel charging voltage?
A: Yes, voltmeter suitable for monitoring solar charging system voltage. Install voltmeter monitoring auxiliary battery voltage showing charging voltage when solar panels actively charging. Observe voltage rising during daytime solar charging confirming solar controller operation. Typical solar charging voltage 13.6-14.4V for 12V lithium batteries, 14.4-14.8V for AGM batteries (varies by controller settings). Voltage remaining at resting level during sunny conditions indicates solar system problem—panel shading, controller malfunction, or wiring fault. Voltmeter cannot measure solar panel open-circuit voltage directly (typically 18-22V for 12V panels exceeding meter's useful range)—meter monitors battery voltage which indirectly indicates solar charging performance.
