Drivetech 4x4 DT-06101 12/24V 20A Dash or Panel Mount Power Socket
Drivetech 4x4 DT-06101 12/24V 20A Dash or Panel Mount Power Socket
A versatile 20A rated power socket with blue LED backlight, designed for clean dash or panel mount installation across both 12V and 24V vehicle applications.
Product Overview

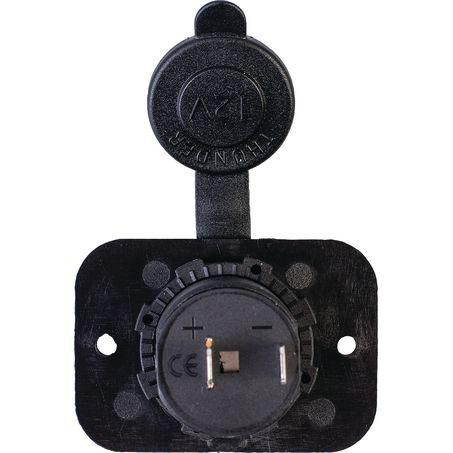

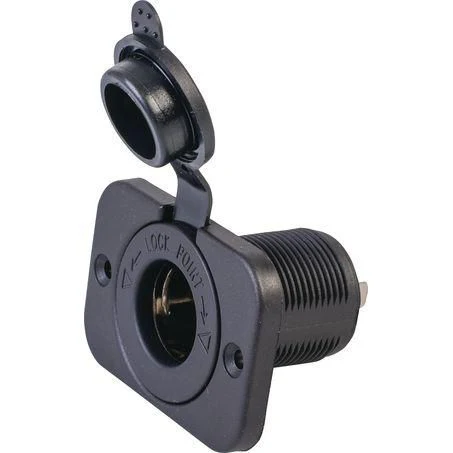

The Drivetech 4x4 DT-06101 is a 20A power socket rated for 12V and 24V electrical systems, suitable for a wide range of vehicle types from light passenger vehicles and 4WDs to 24V trucks and commercial vehicles. The socket installs directly into a 29mm mounting hole for a clean, flush finish in dash panels, centre consoles, or custom switch panels.

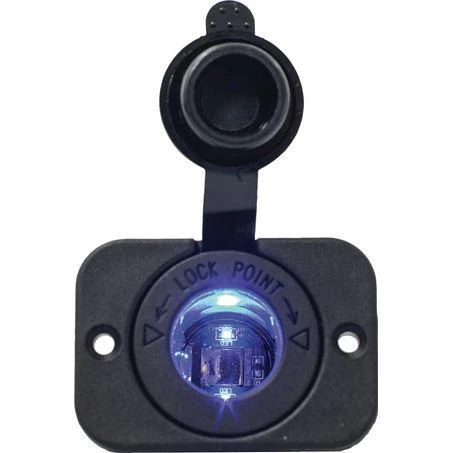

Blue LED backlighting provides clear visual identification of the socket location in low-light cabin and vehicle environments, making it easy to locate for connecting accessories day or night.
Features & Benefits
The 12/24V dual voltage compatibility makes the DT-06101 suitable for installation across both standard 12V light vehicles and 24V heavy commercial and truck applications without requiring separate part numbers for different fleets or builds.
The 20A current rating handles a broad range of accessory loads for a panel-mounted power socket, covering typical 4WD and vehicle auxiliary power applications. Blue LED backlighting illuminates the socket position for easy access in dim conditions. The 29mm mounting hole requirement suits standard aftermarket panel cut-outs and is compatible with a wide range of mounting options including dash panels, centre consoles, and custom fabricated switch panels.
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | DT-06101 |
| Type | Connector / Plug / Socket |
| Voltage | 12V / 24V |
| Current Rating | 20A |
| Mounting | Dash or Panel Mount |
| Mounting Hole | 29mm |
| Illumination | Blue LED Backlight |
| Warranty | 1 Year |
Goes Well With
- Drivetech 4x4 OE Style Push Button Switches for a matched panel installation
- Anderson Plugs and Connectors for extended auxiliary power distribution
- Automotive Cable and Wiring Accessories for clean installation runs
Frequently Asked Questions
Is this socket compatible with both 12V and 24V vehicles?
Yes. The DT-06101 is rated for use on both 12V and 24V electrical systems, making it suitable for light passenger vehicles, 4WDs, trucks, and commercial vehicles without requiring a separate part for each application.
What size hole is required to mount this socket?
A 29mm mounting hole is required. This is a standard size compatible with most dash panels, centre consoles, and aftermarket switch panels.
What current rating is this socket suited for?
The DT-06101 is rated at 20A. This suits a wide range of auxiliary accessory loads. For applications drawing more than 20A, a higher-rated socket or a relay-based circuit should be used.
Can this socket be mounted in a custom switch panel or console?
Yes. The dash or panel mount design and standard 29mm mounting hole make the DT-06101 compatible with a wide range of installation locations including factory dash blanks, aftermarket switch panels, and custom fabricated consoles.
Does the blue LED illuminate at all times when the vehicle is powered?
The LED backlight behaviour will depend on how the socket is wired in the vehicle. Wiring to a constant 12V or 24V source will keep the LED on whenever the vehicle is powered. Please refer to the product wiring instructions included with the unit for connection details.
Original: $16.63
-65%$16.63
$5.82Product Information
