DNA WCR004 Heavy-Duty Audio Cable Reducer 0 Gauge to 4 Gauge - 2 Pack

DNA WCR004 Heavy-Duty Audio Cable Reducer 0 Gauge to 4 Gauge - 2 Pack

Professional cable reducers for high-current audio installations requiring gauge adaptation

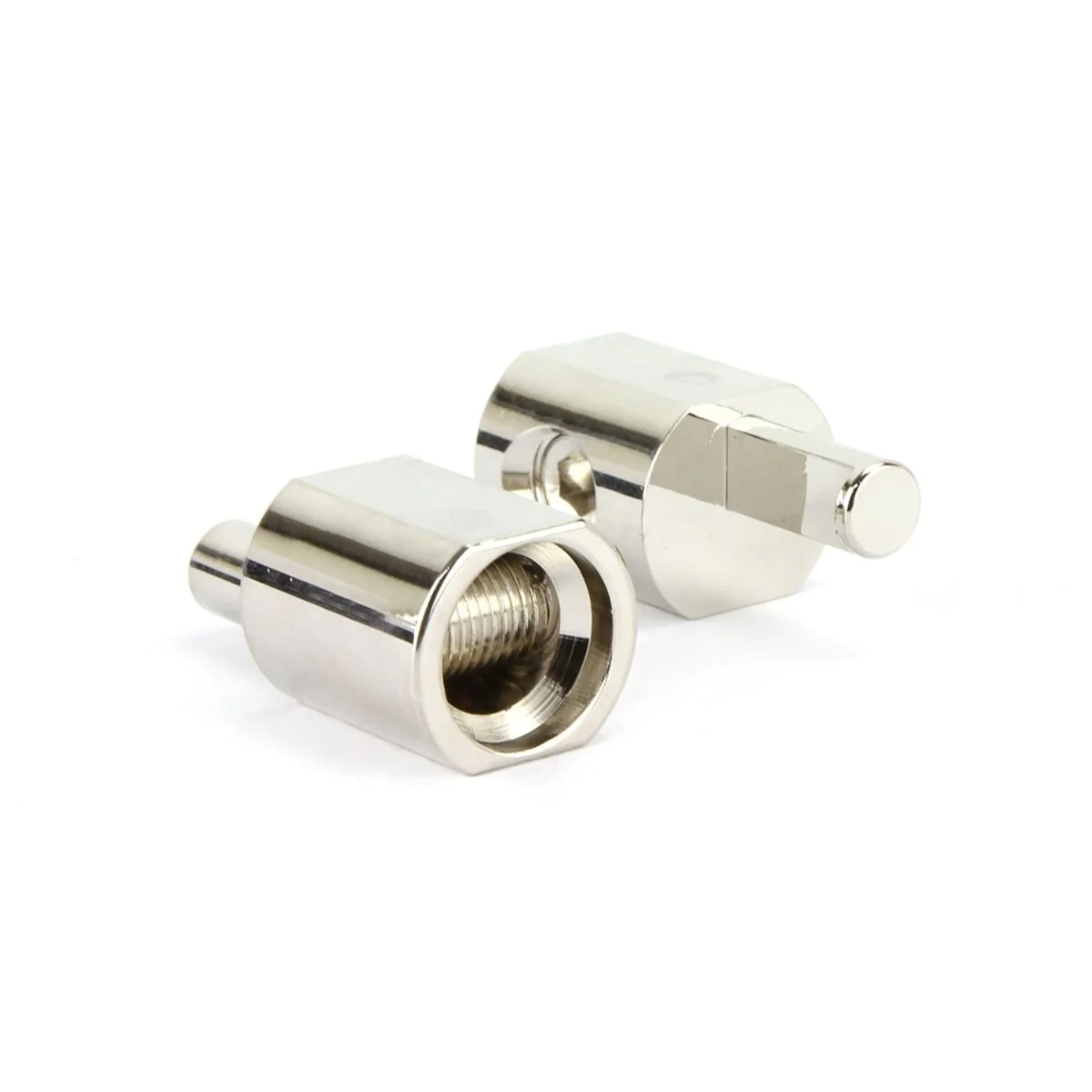

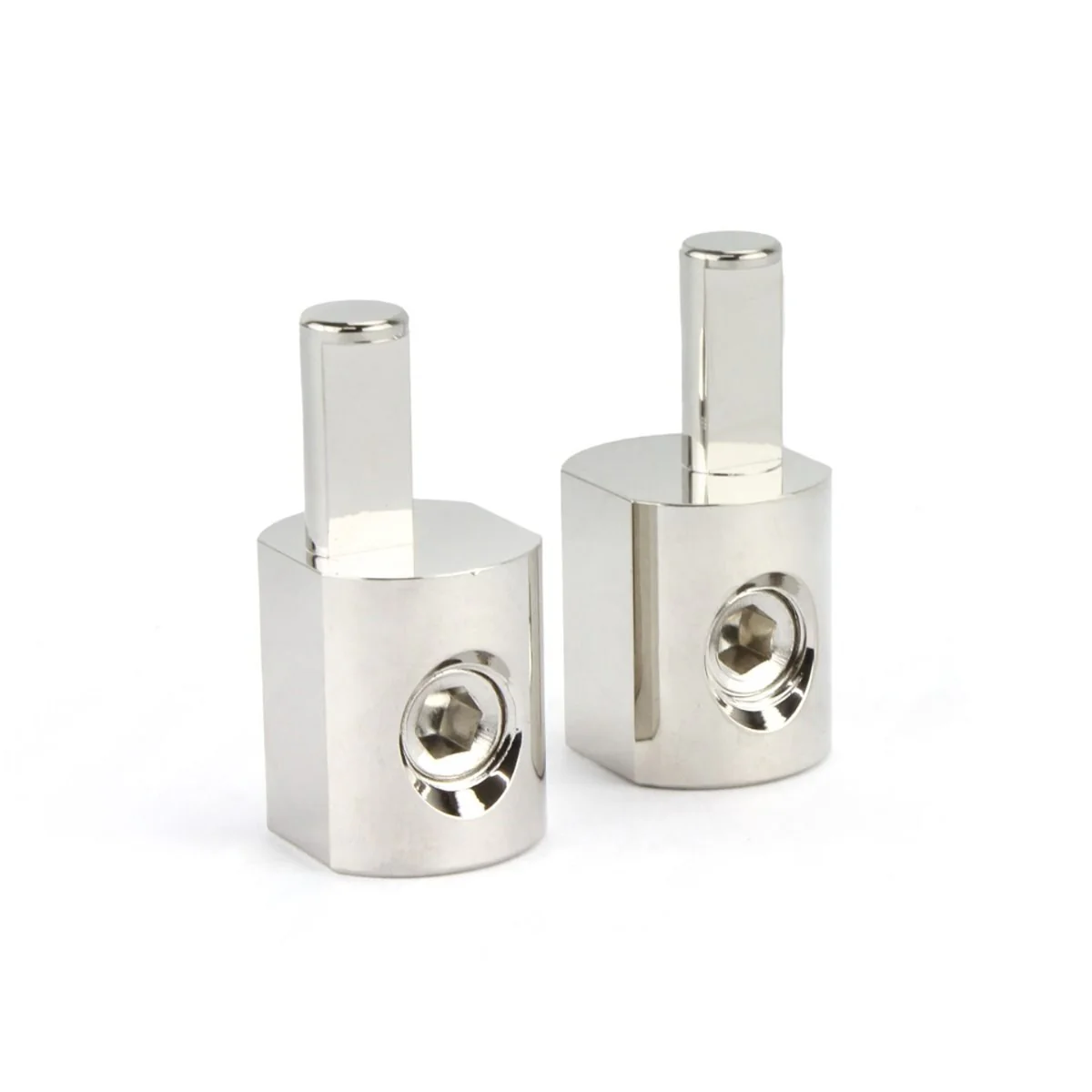

The DNA WCR004 Heavy-Duty Audio Cable Reducer enables connection of 0/2 AWG power cables to 4 AWG amplifier inputs, providing essential gauge adaptation for professional car audio installations. This 2-pack includes one reducer for power and one for earth connections, featuring nickel-plated alloy construction that prevents corrosion while maintaining maximum current pass-through capability.

Engineered for high-current audio applications where thick power cables must connect to smaller amplifier terminals, these reducers accommodate cables up to 0 AWG with secure hex-terminated screw-in wire clamps. The 8mm diameter output terminals feature retention lips to prevent disconnection from amplifier sockets.

DNA WCR004 Key Features & Benefits:

• Gauge Adaptation: Reduces 0/2 AWG cables to fit 4 AWG amplifier inputs without current loss
• Complete Power Solution: 2-pack provides both power and earth connection reducers
• Nickel-Plated Construction: Corrosion-resistant finish ensures long-term reliability and conductivity
• Maximum Current Flow: Alloy construction maintains full current capacity without voltage drop
• Secure Connection: Hex-terminated screw clamps provide reliable cable retention
• Amplifier Compatible: 8mm terminals with retention lips prevent accidental disconnection

Technical Specifications:

• Model: DNA WCR004
• SKU: WCR004
• Input Gauge: 0/2 AWG maximum
• Output Gauge: 4 AWG equivalent
• Cable Input Width: 12.5mm maximum
• Output Terminal: 8mm diameter with retention lip
• Construction: Nickel-plated alloy
• Connection Type: Hex-terminated screw-in wire clamp
• Pack Quantity: 2 pieces (1 power, 1 earth)
• Current Capacity: Maximum current pass-through design

Installation Applications:

• High-Power Car Audio: Connecting heavy gauge power cables to amplifiers with smaller terminals
• Competition Audio Systems: Professional installations requiring maximum current flow
• Marine Audio: Boat audio systems where corrosion resistance is critical
• Commercial Audio: Professional sound system installations requiring gauge adaptation
• Custom Audio Builds: Enthusiast installations mixing different cable and equipment specifications

Frequently Asked Questions

Why do I need cable reducers? When using thick 0/2 AWG power cables with amplifiers that only accept 4 AWG terminals.

Will this affect my amplifier's power output? No, designed for maximum current pass-through without voltage drop or power loss.

Can I use both reducers for power connections? One is designed for power, one for earth - using as intended ensures proper installation.

Are these suitable for marine applications? Yes, nickel-plated construction provides corrosion resistance for marine environments.

How do I ensure secure connection? Use hex tool to properly tighten screw clamps for secure cable retention.
