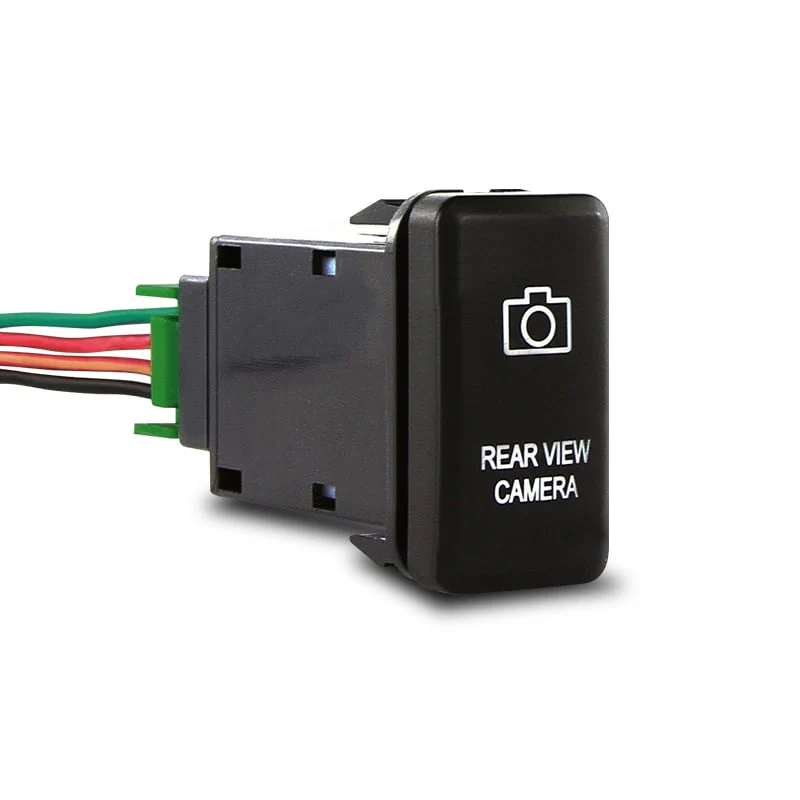

DNA TOYSW02RC Large Switch To Suit Toyota - Rear View Camera

Designed to Work with Large Switch

Designed to fit directly into a large blank factory switch socket in Toyota vehicles. Simply just pop out the old blanking socket and plug this switch in.

Features:

• Size: 40mm H x 20mm W x 61mm D

• Power Rating: 12VDC 3 Amp

• Illumination: Dual White

• Switch Style: SPST ON-OFF

• Switch Colour: Black

• Switch Markings: Rear View Camera

• Packaging: DNA Blister & Card

• Wiring - From Top to Bottom:
• Pin 1 (Green) - Positive Input - Wire Direct to Battery or ACC+
• Pin 2 (Red) - Positive Output - Wire to Relay
• Pin 4 (Red) - 12V Positive Illumination - Connect to Vehicle Illumination
• Pin 5 (Black) - Earth Wire - Run to Vehicle Ground/ Earth
• Designed for Positive Switching Only

Suits the following Toyota vehicles:

• 4Runner 2003-2009
• FJ Cruiser 2010-On
• Fortuner 2005-2014
• Hilux Models (Various) From 2005-2015
• Kluger 2001-2007
• Landcruiser 100 Series 1998-2007
• Landcruiser 75/ 76/ 78/79 Series (Most Years)
• Prado 120 Series 2003-2009
