DNA RVS79FM01 Premium 7.9" OEM Replacement Mirror - Ford Ranger/Mazda BT-50

DNA RVS79FM01 Premium 7.9" OEM Replacement Mirror - Ford Ranger/Mazda BT-50

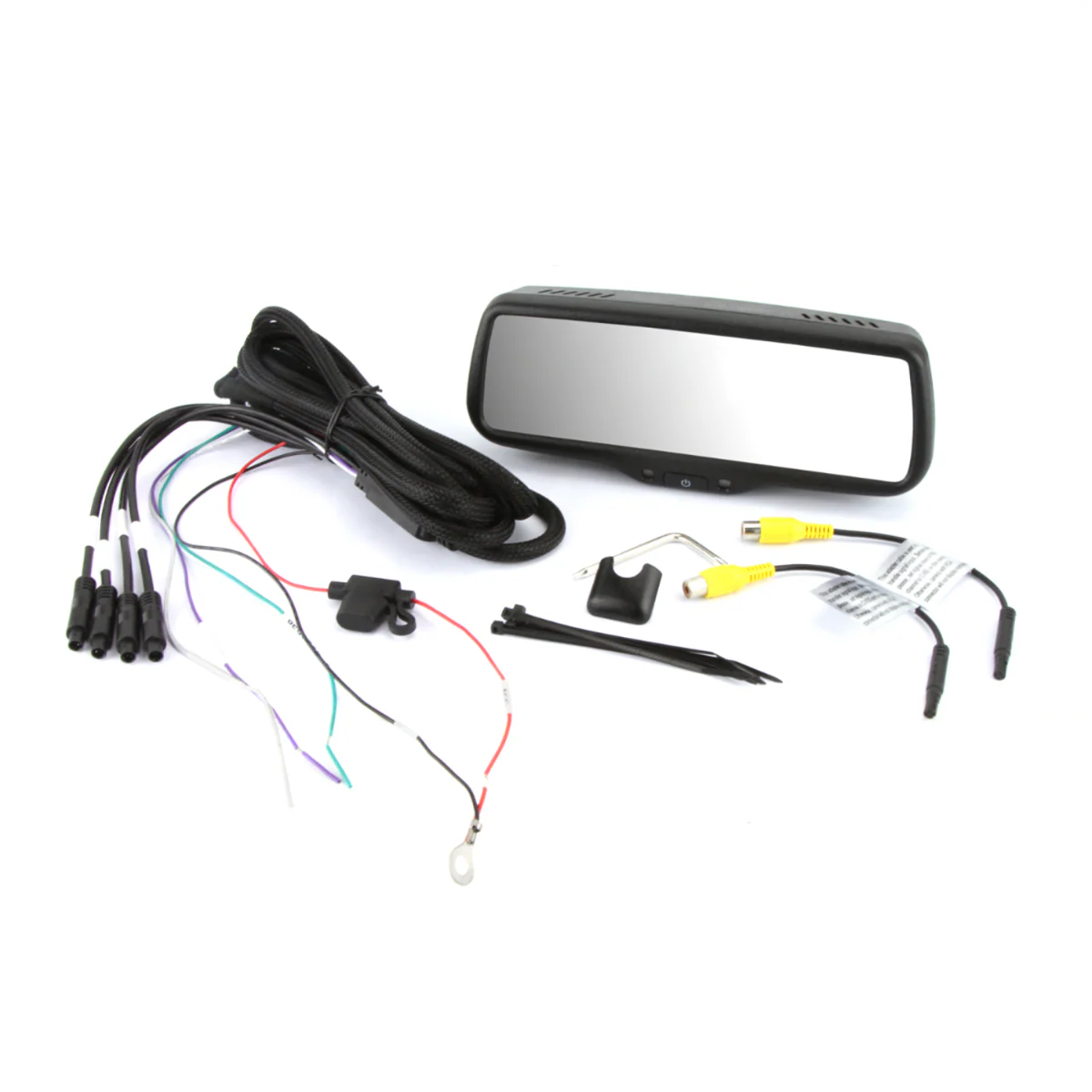

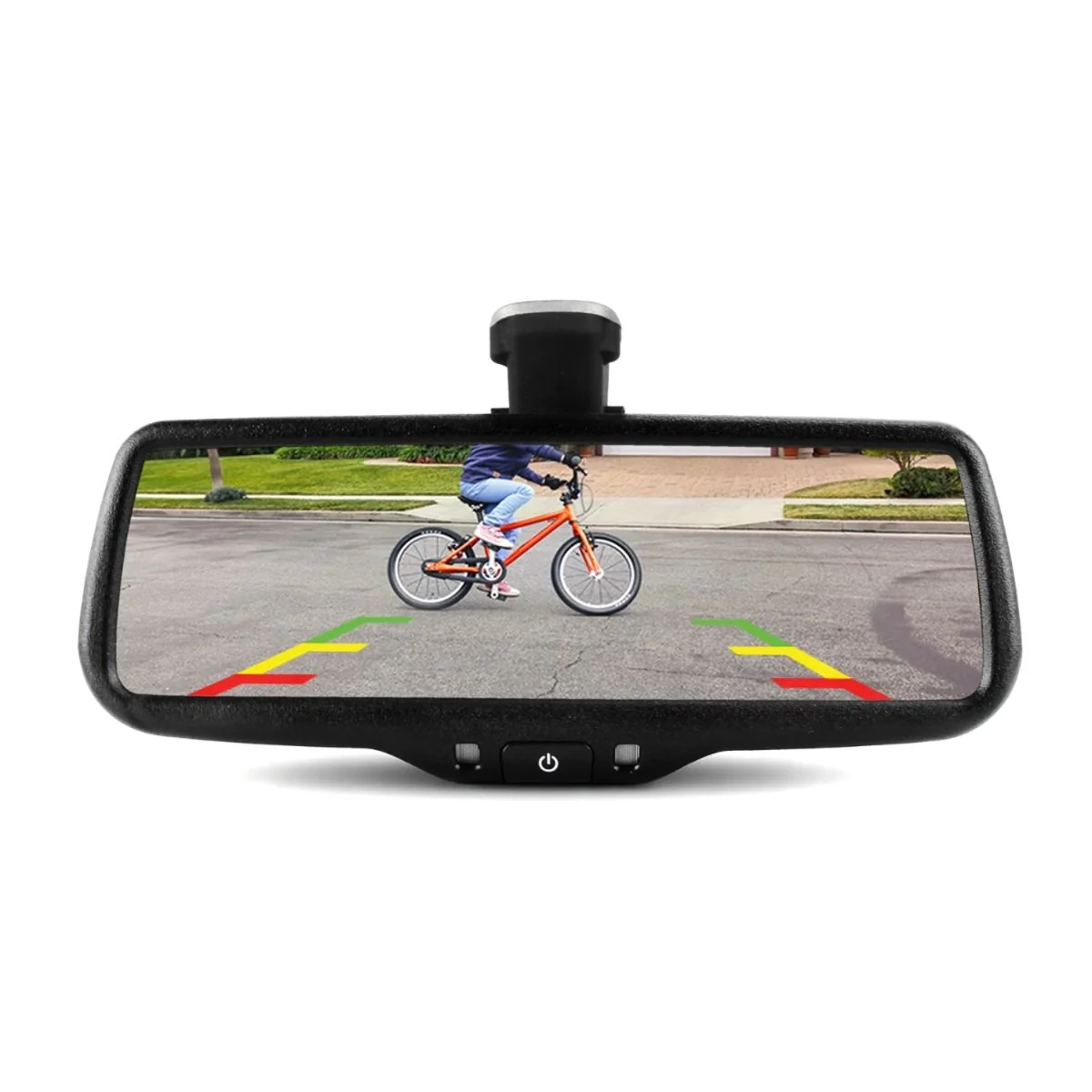

Professional OEM-style replacement mirror with 7.9" full screen display and multi-camera capability

The DNA RVS79FM01 Premium OEM Style 7.9" Replacement Mirror delivers professional-grade rear vision with crystal-clear full screen display designed specifically for Ford Ranger 2019+, Mazda BT-50, and Ford Transit series vehicles. This premium replacement mirror features auto brightness control, 4 video inputs, and illuminated smart touchscreen controls providing seamless integration with existing vehicle mirror mounts.

Engineered for Australian conditions with 4mm thick glass and high-quality PC+ABS housing, this mirror offers PAL/NTSC/AHD/HD-TVI compatibility for maximum camera system flexibility. Perfect for commercial operators, tradies, and 4WD enthusiasts requiring professional rear vision systems with OEM appearance and multi-camera monitoring capability.

DNA RVS79FM01 Key Features & Benefits:

• OEM Integration: Direct replacement using existing mirror mount - no dashboard modifications required
• Auto Brightness Control: Intelligent ambient light sensing adjusts display brightness for day/night/dusk conditions
• 4-Camera Capability: Multiple video inputs support vehicle, caravan, trailer, and auxiliary camera monitoring
• Smart Touchscreen: Hidden illuminated controls automatically activate when touched, hide after 10 seconds
• Australian-Built Tough: 4mm thick glass and reinforced housing withstand harsh Australian conditions
• Universal Compatibility: PAL/NTSC/AHD/HD-TVI selectable formats work with all camera types

Technical Specifications:

• Model: DNA RVS79FM01
• SKU: RVS79FM01
• Screen Size: 7.9" TFT-LCD full screen display
• Aspect Ratio: 16:9 widescreen
• Resolution: 1280 x 370 pixels
• Video Systems: PAL/NTSC/AHD/HD-TVI selectable
• Video Inputs: 4 channels with individual triggers
• Operating Voltage: 12V DC automotive
• Mirror Dimensions: 213mm W x 83.8mm H x 49.2mm D
• Glass Thickness: 4mm premium glass
• Housing Material: High-quality PC + ABS plastic
• Mount: Large diameter tube with internal spring
• Auto Features: Brightness control, reverse activation
• Controls: Smart touchscreen with 10-second auto-hide
• Packaging: Premium display box

Vehicle Compatibility:

• Ford Ranger: 2019 onwards models with OEM mirror mount
• Mazda BT-50: All models with standard mirror mounting
• Ford E-Transit: 2022 onwards commercial vehicles
• Ford Focus: 2015-2018 model years
• Ford Transit Connect: 2014-2023 model years
• Ford Transit: 2015 onwards commercial van series

Installation Applications:

• Dual-Cab Utes: Ford Ranger and Mazda BT-50 trade and commercial applications
• Commercial Fleets: Ford Transit series vans and commercial vehicle monitoring
• Caravan Towing: Multi-camera setup for vehicle and caravan rear vision
• Tradie Vehicles: Professional installation for work vehicles requiring multiple camera angles
• 4WD Touring: Off-road applications with auxiliary camera monitoring capability

Frequently Asked Questions

Will this fit my 2020 Ford Ranger? Yes, includes specific mounting bracket for Ford Ranger 2019 onwards models.

Can I connect multiple cameras? Yes, supports up to 4 cameras with individual trigger inputs for different applications.

Does it work with AHD cameras? Yes, selectable PAL/NTSC/AHD/HD-TVI compatibility works with all camera types.

How do I adjust the brightness? Auto brightness control automatically adjusts based on ambient light conditions.

Is installation plug-and-play? Uses existing mirror mount but requires professional installation for camera connections.
