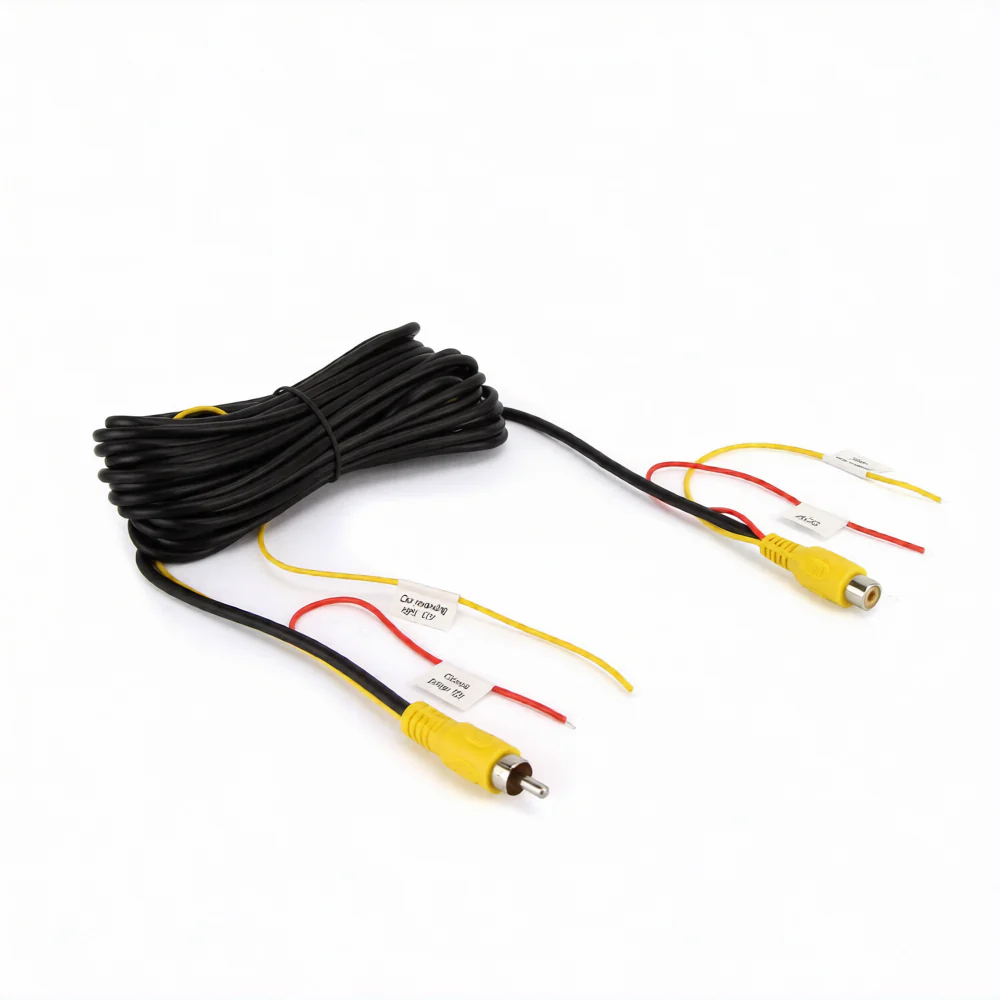

DNA RVS106F 6 Metre Male to Female RCA Video Cable with ACC and Reverse Trigger Wires

6 Metres. Video Signal. ACC Power. Reverse Trigger. Everything a Reverse Camera Needs.

---

Product Overview

The DNA Automotive RVS106F is a 6 metre RCA video extension cable with male RCA plug on one end and female RCA socket on the other and two dedicated power wires running the full length. Unlike the single-wire RVS006F, the RVS106F includes both a red ACC wire for constant or switched power supply and a yellow reversing light wire for the 12V reverse trigger signal. This makes it the more complete solution for reverse camera installations where the camera requires both a power feed and an automatic trigger that activates the camera view when reverse gear is selected.

With all three wires video, ACC, and reverse trigger in a single 6 metre cable run, the RVS106F simplifies installation by eliminating the need to run a separate trigger wire from the reversing lights to the headunit or camera controller. Route once, connect all three, and the camera switches on automatically every time reverse is selected.

---

Key Specifications

• Part Number: RVS106F
• Brand: DNA Automotive
• Cable Type: RCA video extension with dual power wires
• Connector End 1: Male RCA plug
• Connector End 2: Female RCA socket
• Red Wire: ACC — constant or switched 12V power supply
• Yellow Wire: Car reversing light 12V — reverse trigger signal
• Cable Length: 6 metres
• Packaging: Blister & Card
• Cable Gauge (wires): Not specified — confirm with supplier
• Video Signal Type: Not specified — confirm with supplier
• Shielding: Not specified — confirm with supplier

---

Features & Benefits

• Two power wires — ACC and reverse trigger in one run — The RVS106F includes both the red ACC wire (for camera power supply) and the yellow reversing light wire (for the 12V reverse trigger that switches the headunit or display to camera view). Running both wires alongside the video cable means a single 6 metre cable pass handles everything — no separate reverse trigger wire needed.
• Yellow reverse trigger wire — automatic camera activation — The yellow wire connects to the vehicle's 12V reversing light circuit. When reverse gear is selected and the reversing lights activate, the 12V signal travels back through the yellow wire to the headunit or camera controller, automatically switching the display to reverse camera view. This is how reverse cameras are designed to work — the trigger happens without any driver input.
• Red ACC wire — camera power supply — The red wire connects to a 12V ACC or constant power source to supply power to the camera. Running it alongside the video and trigger wires keeps all camera wiring in one neat cable run from the rear of the vehicle to the headunit.
• 6 metre length — standard reverse camera run — Six metres covers most ute, SUV, wagon, and van reverse camera installations from tow bar or tailgate camera mount to the headunit in the cabin. For longer-wheelbase vehicles or caravan tow camera setups, consider the RVS010F (10 metre, single power wire) or confirm whether a 10 metre dual-wire variant is available.
• Male to female RCA — extend or connect — The male-to-female configuration connects directly between a camera's male RCA output and a headunit's female RCA video input, or extends an existing RCA cable where more length is needed.

---

Technical Specs

---

Compatible With / Goes Well With

Typical Applications:

• Reverse camera installation — full cable run (video + power + trigger)
• Aftermarket reverse camera upgrade on any 12V vehicle
• Any installation where the camera requires separate ACC power and a 12V reversing light trigger

Goes Well With:

• Reverse cameras with RCA video output and 12V power input
• Aftermarket headunits with RCA reverse camera input and reverse trigger wire
• DNA Automotive reverse cameras and driving aid accessories
• DNA RVS006F (single power wire — for cameras not requiring a separate reverse trigger)

---

Frequently Asked Questions

What is the difference between this cable and the RVS006F?

The RVS106F includes two power wires — a red ACC wire for camera power and a yellow reversing light trigger wire. The RVS006F includes only a single power wire. Choose the RVS106F when your installation requires both a power feed and an automatic reverse trigger in the same cable run.

What does the yellow wire connect to?

The yellow wire connects to the 12V reversing light positive circuit in the vehicle. When reverse gear is selected and the reversing lights activate, the 12V signal travels through the yellow wire to the headunit or display, triggering automatic camera view. It carries a trigger signal — not a high-current power supply.

What does the red wire connect to?

The red wire connects to a 12V ACC or switched power source to supply power to the reverse camera. Connect it to an ACC circuit that is live when the ignition is on, or to a constant 12V source depending on your camera's requirements.

Can I use this cable for a front-facing dash camera?

This cable is designed for reverse camera installations — the yellow trigger wire is specific to the reversing light circuit. For a front-facing dash camera, a standard RCA extension or dedicated dash cam power cable is more appropriate.

Is 6 metres enough for my vehicle?

Six metres covers most standard ute, SUV, and wagon reverse camera installations. For longer-wheelbase vehicles, vans, or caravan tow camera setups, a longer cable run may be required. Measure your intended cable route before ordering.
