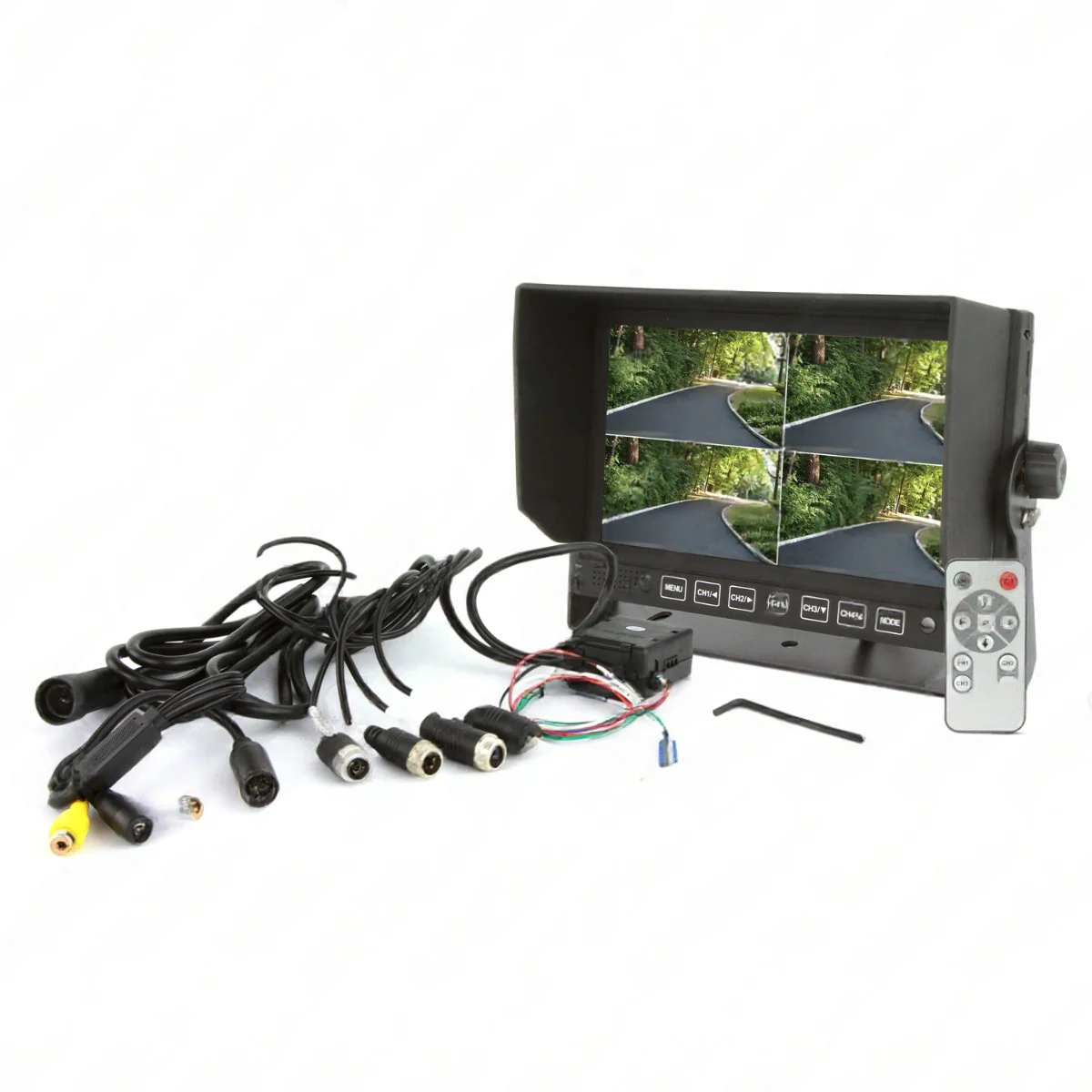

DNA RV74 7 Inch LCD 4 Channel Quad Rearview Screen

DNA RV74 7 Inch LCD 4 Channel Quad Rearview Screen

High-Resolution 7" Quad View TFT-LCD Monitor for Multi-Camera Setups

The DNA RV74 7 Inch LCD 4 Channel Quad Rearview Screen is designed for vehicles requiring multiple camera views and crystal-clear monitoring. Featuring a 7” high-resolution TFT-LCD display with 11 selectable image modes, this quad-view monitor allows seamless switching between full-screen, dual, and split-screen configurations. Perfect for caravans, trucks, buses, and RVs where multi-angle visibility is essential for safety and navigation.

With 4 independent camera inputs, triggered view switching, a detachable sun visor, and water-resistant lockable camera connections, the RV74 ensures superior reliability for both day and night driving conditions.

DNA RV74 Key Features & Benefits:

• Quad-View Display: Supports up to 4 cameras simultaneously with 11 image layouts, including full-screen and split-screen modes.
• High-Resolution TFT-LCD: 800 x 480 pixel clarity for sharp, vivid video monitoring.
• Multiple Triggered Inputs: Automatically switches views based on front, rear, left, or right trigger signals.
• Durable & Weather-Resistant: Features 4-pin lockable connections for enhanced reliability in all conditions.
• Wide Compatibility: Suitable for caravans, trucks, RVs, and buses requiring large-screen monitoring.
• Integrated Speaker: Built-in audio support for cameras with microphone capability.
• Sun Visor & Remote Control: Provides clear daytime viewing and convenient IR remote operation.

Technical Specifications:

• Model: DNA RV74
• SKU: RV74
• Type: 7" Quad View Rearview Screen
• Display: 7” TFT-LCD
• Aspect Ratio: 16:9
• Resolution: 800 (RGB) × 480 Pixels
• Video System: PAL & NTSC (Auto-Detect)
• Camera Inputs: 4 with triggered switching for front, rear, left, and right cameras
• Image Modes: 11 viewing configurations including full-screen, dual-view, and quad-view
• Audio: Inbuilt speaker with volume control
• Controls: Touch-sensitive front panel buttons with illumination
• Connections: 4-pin water-resistant lockable connectors
• Mounting: Dash mountable with U-shaped bracket
• Power Input: 12V–24V DC ±10%
• Power Consumption: 5W
• Operating Temperature: -20°C to +70°C
• Dimensions: 180mm W × 121mm H × 23mm D
• Packaging: Display gift box

Installation Applications:

• Caravans & Motorhomes: Enhance rear and side visibility for safer towing.
• Trucks & Heavy Vehicles: Ideal for wide-angle blind spot monitoring in large transport vehicles.
• Buses & Coaches: Perfect for multi-camera passenger safety monitoring setups.
• 4WD & Off-Road Vehicles: Multi-angle monitoring for extreme terrain navigation.
• Fleet Management: A reliable solution for businesses needing advanced vehicle vision systems.

Frequently Asked Questions

• How many cameras can I connect?
  The RV74 supports up to 4 cameras with triggered switching options.
• Does it support both PAL and NTSC formats?
  Yes, it automatically detects and supports both video formats.
• Can I customize the viewing layout?
  Absolutely, it offers 11 different display configurations including quad, split, and full-screen views.
• Is the monitor suitable for outdoor use?
  Yes, the water-resistant lockable connectors make it highly reliable in outdoor environments.
• Does the kit include a sun visor?
  Yes, a detachable sun visor is included for improved visibility in bright conditions.
