DNA RV103-AHD - Heavy Duty Compact AHD Camera - PAL/NTSC
DNA RV103-AHD - Heavy Duty Compact AHD Camera - PAL/NTSC
Heavy-duty compact AHD truck, bus, and caravan camera with all-metal waterproof construction, selectable PAL/NTSC format, adjustable resolution, and built-in IR night vision for professional commercial vehicle installations.
Product Overview
The DNA RV103-AHD Heavy Duty Compact AHD Camera delivers professional-grade video surveillance for trucks, buses, and caravans with selectable PAL/NTSC format, AHD 1080P/720P resolution, and mirror image options. This rugged camera features all-metal aluminium alloy construction with IP68 waterproof rating, built-in IR LEDs for excellent night visibility, and integrated microphone for enhanced safety. The compact footprint design operates on both 12V and 24V vehicles, making it ideal for heavy-duty commercial applications requiring reliable performance in demanding conditions.
Key Features
- Selectable Video Formats - PAL/NTSC format selection (white wire), mirror image for front/rear installation (blue wire), and AHD 1080P/720P resolution switching (green wire) via wire-cut configuration
- Heavy-Duty Metal Construction - All-metal aluminium alloy shell with IP68 waterproof rating for extreme weather resistance and durability in commercial applications

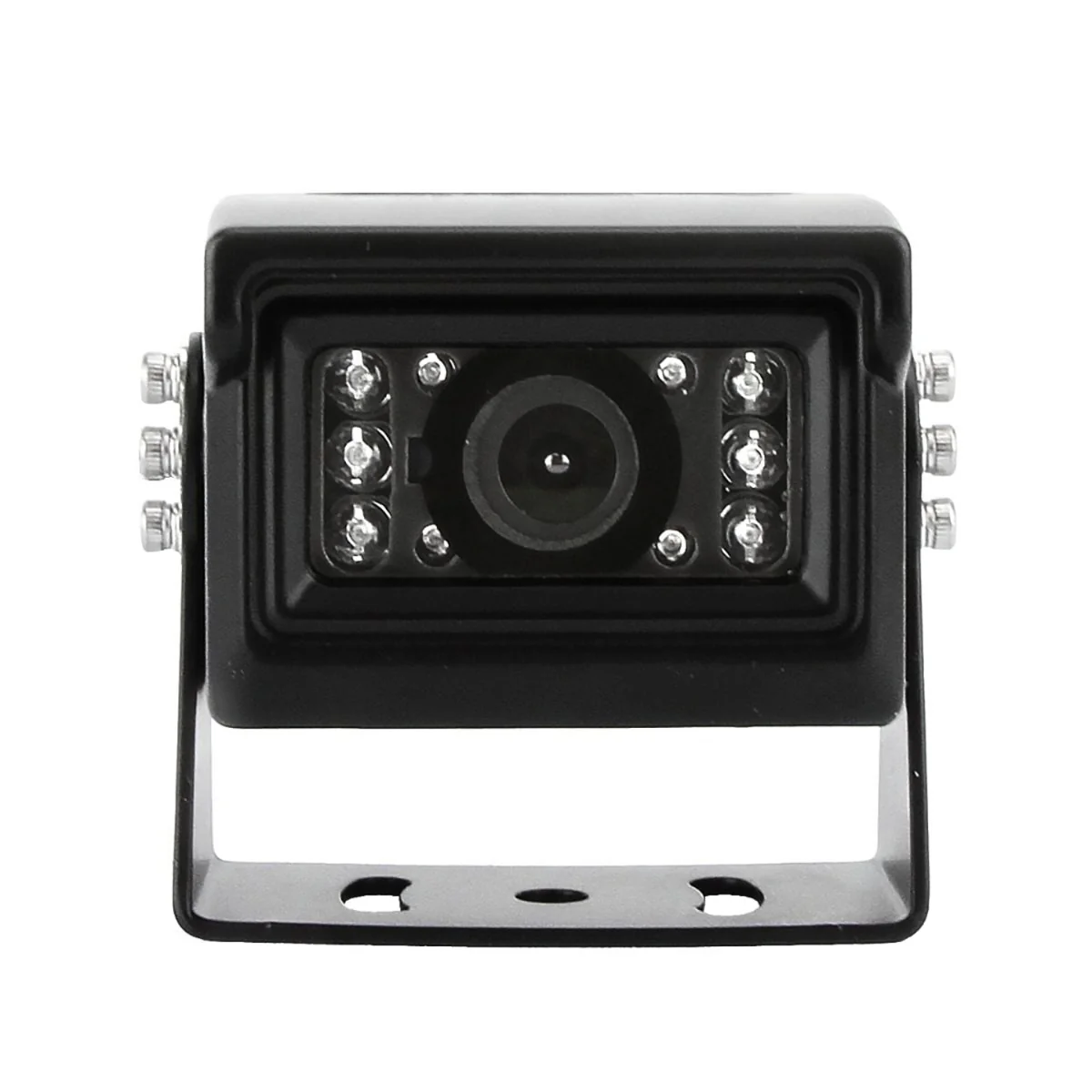

- Excellent Night Vision - 10 built-in IR LEDs provide 0 LUX illumination for clear night mode visibility in complete darkness
- Dual Voltage Compatibility - Operates on both 12V and 24V DC systems for compatibility with cars, trucks, buses, and commercial vehicles
- Integrated Audio and Sun Protection - Built-in microphone for audio monitoring and integrated sun visor casing for optimal viewing in bright conditions
Technical Specifications
| Specification | Details |
|---|---|
| Brand | DNA |
| Model | Heavy Duty Compact AHD Camera |
| SKU | RV103-AHD |
| Video Format | PAL/NTSC Selectable (Default: PAL) |
| Resolution | AHD 1080P/720P Selectable (Default: 1080P) |
| Horizontal Viewing Angle | 110° |
| Horizontal Resolution | 420 TV Line |
| IR LEDs | 10 IR LEDs |
| Night Vision | 0 LUX Illumination |
| Operating Voltage | 12V or 24V DC |
| Material | Aluminium Alloy Shell |
| Signal-to-Noise Ratio | >48dB |
| Waterproof Rating | IP68 |
| Video Output | 1Vp-p 75 Ohm Composite |
| Audio | Microphone Included |
| Sun Protection | Built Into Casing |
| Connector | 0.6m 4-Pin Water Resistant Lockable |
| Dimensions (Camera Only) | 54mm W x 40mm H x 52.5mm D |
| Dimensions (With Bracket) | 65.5mm W x 58mm H x 52.5mm D |
| Packaging | White Box with DNA Sticker |
| Availability | In Stock |
Selectable Configuration Features

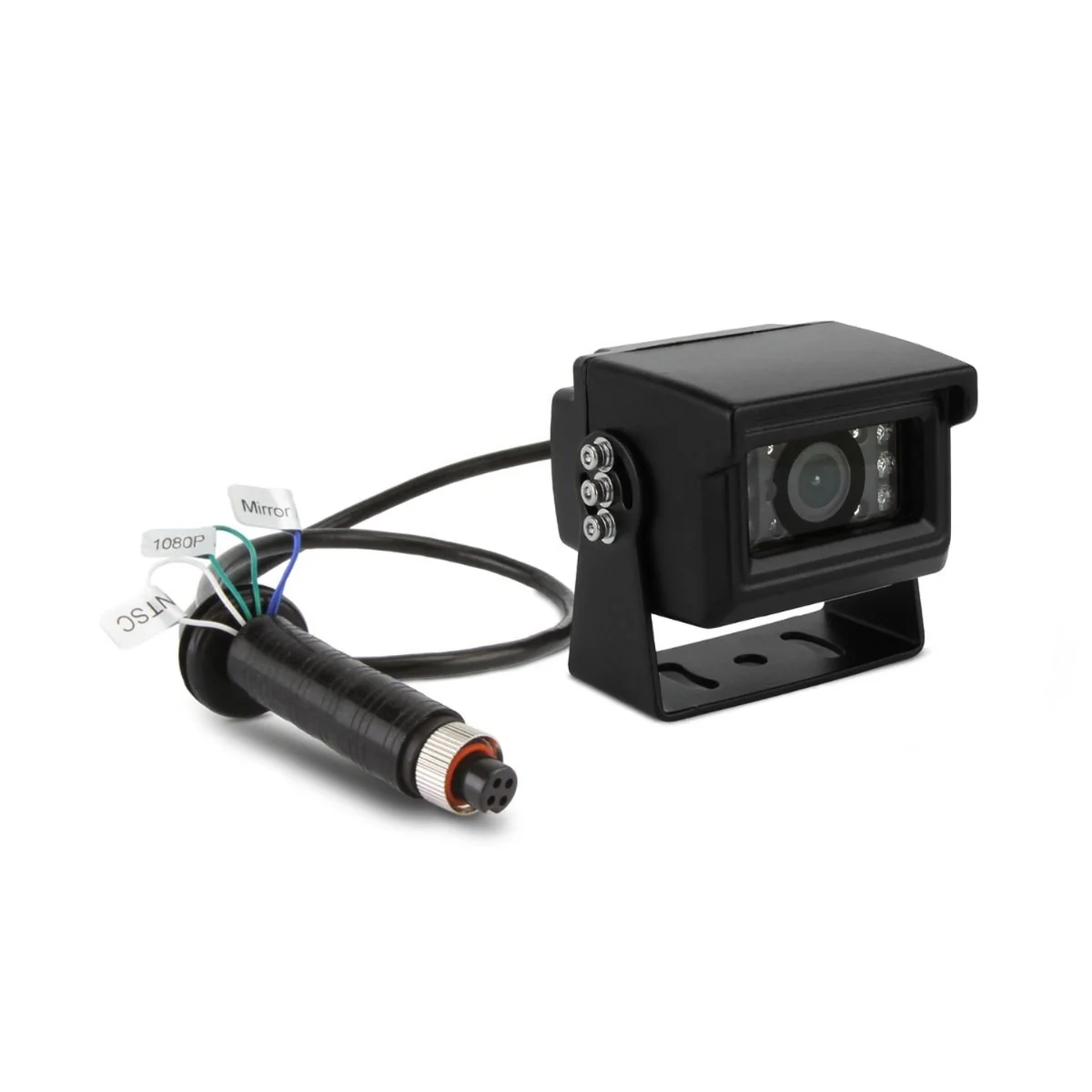

PAL/NTSC Format (White Wire):
- Default: PAL format
- Cut white wire to change to NTSC format
Mirror Image (Blue Wire):
- Default: Rear camera installation (normal image)
- Cut blue wire to change image for front camera installation (mirrored)
AHD Resolution (Green Wire):
- Default: AHD 1080P format
- Cut green wire to change to AHD 720P format
Applications
The DNA RV103-AHD is designed for heavy-duty commercial vehicle applications including truck reversing cameras, bus safety monitoring, caravan rear visibility, commercial fleet installations, and 4WD off-road applications requiring rugged construction and reliable performance.
Frequently Asked Questions
Q: Can this camera work on both 12V and 24V vehicles?
A: Yes, the RV103-AHD operates on both 12V and 24V DC systems, making it compatible with passenger vehicles, light commercial trucks, heavy-duty trucks, buses, and other commercial vehicles with either voltage system.
Q: How do I change between PAL and NTSC formats?
A: The camera defaults to PAL format. To change to NTSC format, simply cut the white wire. This allows compatibility with different regional video standards and display systems.
Q: Can I use this camera as a front-facing camera?
A: Yes, this camera can be used for front camera installations. Cut the blue wire to enable mirror image mode, which reverses the image orientation for proper front camera viewing.
Q: Does this camera work in complete darkness?
A: Yes, the camera features 10 built-in IR LEDs providing 0 LUX illumination, allowing clear night mode visibility in complete darkness without external lighting.
Q: Is this camera waterproof enough for outdoor installation?
A: Yes, the RV103-AHD has IP68 waterproof rating with all-metal aluminium alloy construction, providing complete protection against dust ingress and water immersion for reliable outdoor use in extreme weather conditions.
