Heavy-duty CCD/AHD hybrid truck, bus, and caravan camera with all-metal waterproof construction, removable sun visor, selectable PAL/NTSC format, switchable CVBS/AHD modes, and enhanced 18 IR LED night vision for professional commercial vehicle installations.

Product Overview

The DNA RV100-HYB Heavy Duty CCD/AHD Camera delivers professional-grade video surveillance for trucks, buses, and caravans with selectable PAL/NTSC format, switchable CVBS/AHD 1080P output, and mirror image options. This rugged CCD camera features all-metal aluminium alloy construction with IP68 waterproof rating, enhanced 18 built-in IR LEDs for excellent night visibility, integrated microphone for enhanced safety, and removable sun visor for flexible installation. Operating on both 12V and 24V vehicles with dual viewing angles (90° in CVBS mode, 110° in AHD mode), this camera provides reliable performance in demanding commercial applications.

Key Features

• Dual Output Modes - CVBS mode with 90° viewing angle (default) or AHD 1080P mode with 110° viewing angle for compatibility with different display systems via wire-cut selection

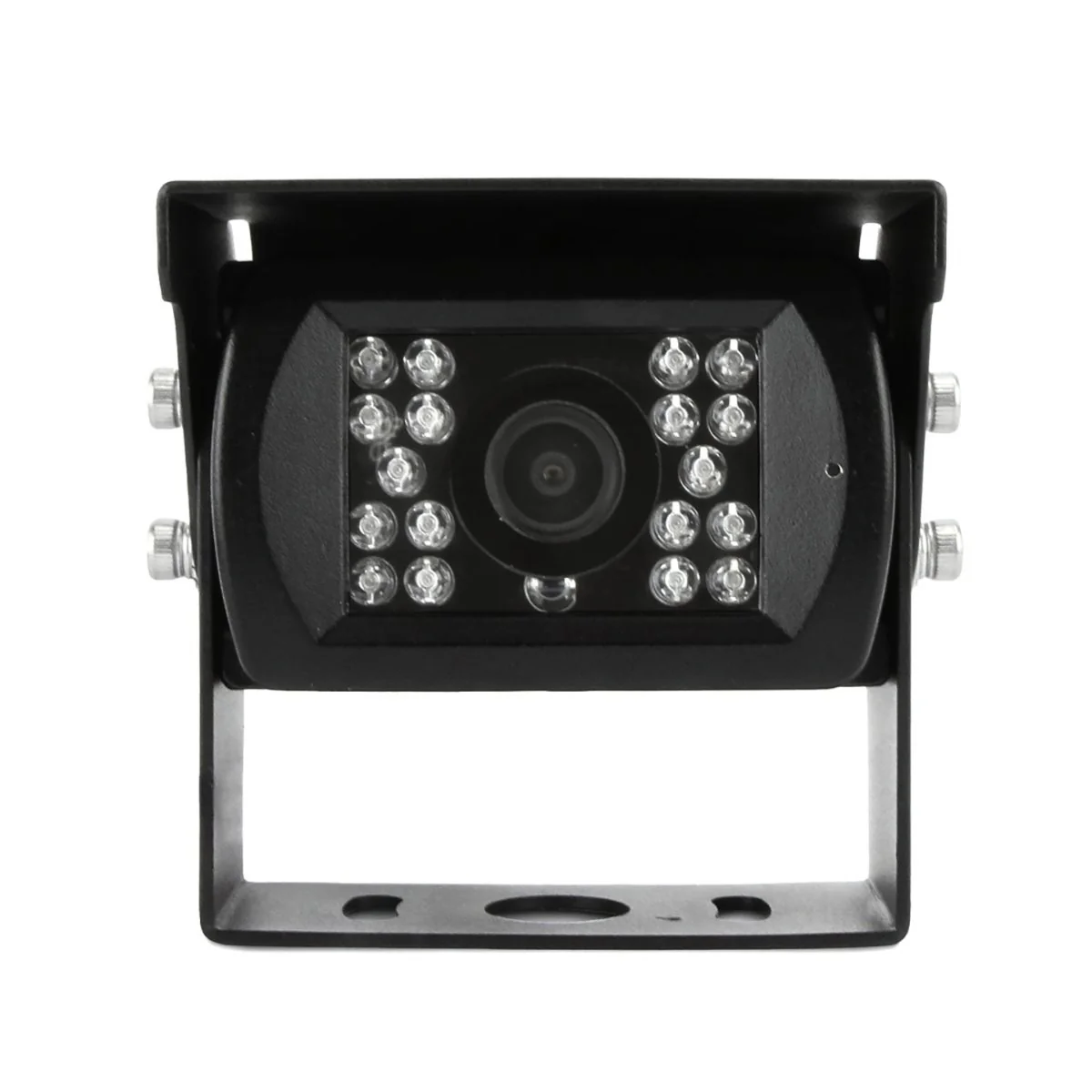

• Enhanced Night Vision - 18 built-in IR LEDs provide excellent night mode visibility in complete darkness with extended illumination range
• Heavy-Duty Metal Construction - All-metal aluminium alloy shell with IP68 waterproof rating for extreme weather resistance and durability in commercial applications
• Removable Sun Visor - Included detachable sun visor protects lens from direct sunlight and weather elements for optimal viewing in bright conditions
• Dual Voltage Compatibility - Operates on both 12V and 24V DC systems for compatibility with cars, trucks, buses, and commercial vehicles

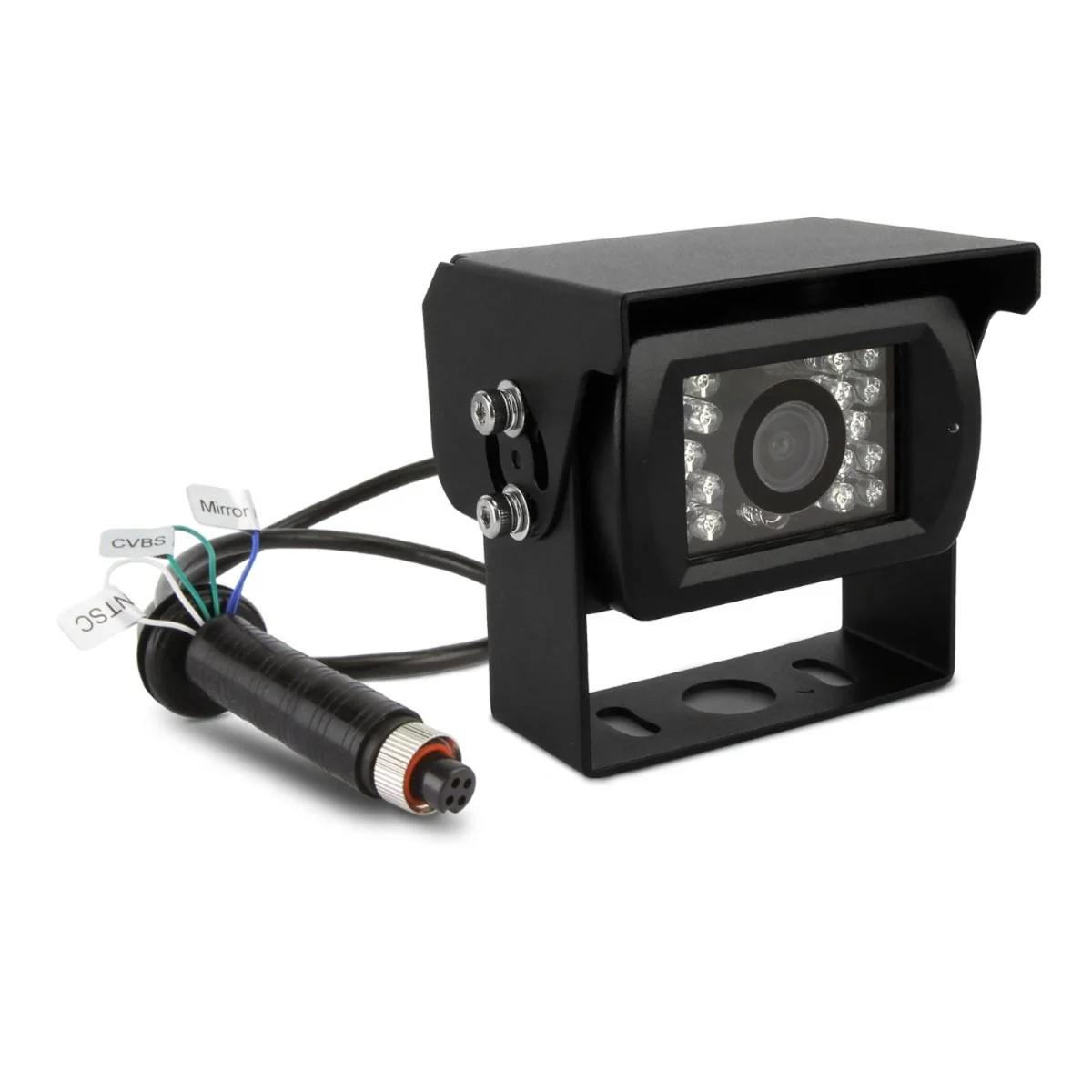

• Selectable Configuration - PAL/NTSC format selection (white wire), mirror image for front/rear installation (blue wire), and CVBS/AHD output switching (green wire)

Technical Specifications

Specification	Details
Brand	DNA
Model	Heavy Duty CCD/AHD Camera
SKU	RV100-HYB
Video Format	PAL/NTSC Selectable (Default: PAL)
Output Mode	CVBS/AHD 1080P Selectable (Default: CVBS)
Sensor Type	CCD
Horizontal Viewing Angle (CVBS)	90°
Horizontal Viewing Angle (AHD)	110°
Horizontal Resolution	420 TV Line
IR LEDs	18 IR LEDs
Operating Voltage	12V or 24V DC
Material	Aluminium Alloy Shell
Signal-to-Noise Ratio	>48dB
Waterproof Rating	IP68
Video Output	1Vp-p 75 Ohm Composite
Audio	Microphone Included
Sun Protection	Removable Sun Visor Included
Connector	0.6m 4-Pin Water Resistant Lockable
Dimensions (With Sunvisor)	76.5mm W x 77mm H x 64.5mm D
Dimensions (Without Sunvisor)	74mm W x 71mm H x 50mm D
Packaging	White Box with DNA Sticker
Availability	In Stock

---

Frequently Asked Questions

Q: What is the difference between CVBS and AHD modes?

A: CVBS (default) provides 90° viewing angle for standard analog displays, while AHD 1080P mode provides 110° viewing angle with higher resolution for compatible AHD displays. Cut the green wire to switch from CVBS to AHD 1080P mode.

Q: Can this camera work on both 12V and 24V vehicles?

A: Yes, the RV100-HYB operates on both 12V and 24V DC systems, making it compatible with passenger vehicles, light commercial trucks, heavy-duty trucks, buses, and other commercial vehicles with either voltage system.

Q: How do I change between PAL and NTSC formats?

A: The camera defaults to PAL format. To change to NTSC format, simply cut the white wire. This allows compatibility with different regional video standards and display systems.

Q: Can I use this camera as a front-facing camera?

A: Yes, this camera can be used for front camera installations. Cut the blue wire to enable mirror image mode, which reverses the image orientation for proper front camera viewing.

Q: Is the sun visor removable?

A: Yes, the sun visor is a separate included component that can be removed if not required for your installation. Dimensions are 76.5mm x 77mm x 64.5mm with sunvisor, or 74mm x 71mm x 50mm without sunvisor.
