DNA RCS170A-HDTVI Heavy Duty Stalk Mount Reverse Camera - HD-TVI Compatible

DNA RCS170A-HDTVI Heavy Duty Stalk Mount Reverse Camera - HD-TVI Compatible

Professional HD-TVI reverse camera with flexible stalk mount and selectable resolution options

The DNA RCS170A-HDTVI Heavy Duty Stalk Mount Reverse Camera delivers high-definition video with HD-TVI compatibility designed for professional installations requiring superior image quality. This advanced camera features flexible stalk mount design, zinc alloy housing, and selectable 1080p/720p resolution with customizable parking guidelines and image control options. The 170° ultra-wide view angle provides comprehensive rear coverage.

Engineered for HD-TVI compatible head units and monitoring systems, this camera offers professional-grade construction with IP68 waterproof rating and 360-degree rotation capability. Perfect for installers seeking OEM-quality installations with concealed wiring and adjustable positioning for optimal viewing angles in any vehicle configuration.

DNA RCS170A-HDTVI Key Features & Benefits:

• HD-TVI High Definition: 1280x720 resolution with 30fps frame rate for crystal-clear video transmission
• Selectable Resolution: Switch between 1080p/720p formats via purple wire cutting for system compatibility

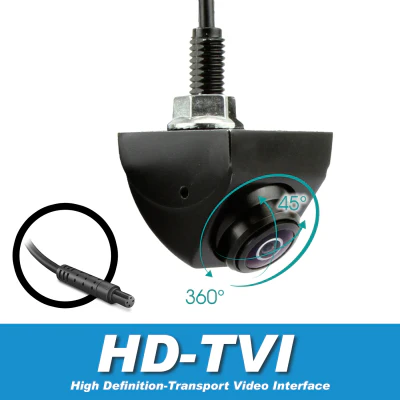

• Flexible Stalk Mount: 45-degree adjustment in all directions plus 360-degree rotation for perfect positioning
• Customizable Features: Parking guidelines and image control selectable via wire cutting options
• Professional Construction: Zinc alloy housing with IP68 waterproof rating for extreme durability
• Minimal Installation: Requires only 8mm mounting hole with concealed wiring capability

Technical Specifications:

• Model: DNA RCS170A-HDTVI
• SKU: RCS170A-HDTVI
• Video System: HD-TVI format
• Resolution: 1280(H) x 720(V) pixels
• Frame Rate: 30fps (frames per second)
• View Angle: 170° ultra-wide
• Operating Voltage: DC 6V-15V±0.5V
• Waterproof Rating: IP68 (fully submersible)
• Camera Dimensions: 25mm W x 24mm H x 28mm D
• Required Hole Size: 8mm diameter
• Construction: Heavy-duty zinc alloy housing
• Mount Type: Flexible stalk with butterfly mount
• Packaging: Premium DNA gift box with sleeve

Selectable Options:

• Resolution Control (Purple Wire): Default 1080p format - cut wire for 720p compatibility
• Image Control (Green Wire): Default rear camera setup - cut wire for front camera installation
• Parking Guidelines (White Wire): Default parking lines enabled - cut wire to disable guidelines

Installation Applications:

• HD-TVI Systems: Professional installations with HD-TVI compatible head units and monitors
• Commercial Vehicles: High-definition monitoring for trucks, buses, and fleet applications
• OEM Replacements: Professional-grade camera upgrades maintaining factory appearance
• Custom Installations: Applications requiring precise positioning and concealed wiring
• Security Systems: HD-TVI surveillance applications requiring wide-angle coverage

Frequently Asked Questions

What head units are compatible with HD-TVI? Only head units specifically designed for HD-TVI format - check compatibility before purchase.

Can I adjust the camera angle after installation? Yes, stalk mount allows 45-degree adjustment in all directions plus 360-degree rotation.

How do I change from 1080p to 720p? Cut the purple wire to switch from default 1080p to 720p format.

Will this work with standard analogue systems? No, requires HD-TVI compatible head unit or monitor for proper operation.

Can I disable the parking guidelines? Yes, cut the white wire to turn off the default parking line display.
