DNA RCS170A-AHD AHD 1080P Reverse Camera Adjustable Stalk Mount 170°
DNA RCS170A-AHD AHD 1080P Reverse Camera with Adjustable Stalk Mount - 170 Degree
A 1080P AHD reverse camera with an adjustable zinc alloy stalk mount, 170-degree wide-angle lens, and IP68 waterproof rating. The lens head adjusts 45 degrees in any direction with full 360-degree rotation for precise positioning. Selectable 1080P/720P format, parking guide lines, and mirror/flip image via wire-cut options. Requires only an 8mm mounting hole. Suited to OEM applications where concealed wiring and a professional finish are required.
Product Overview

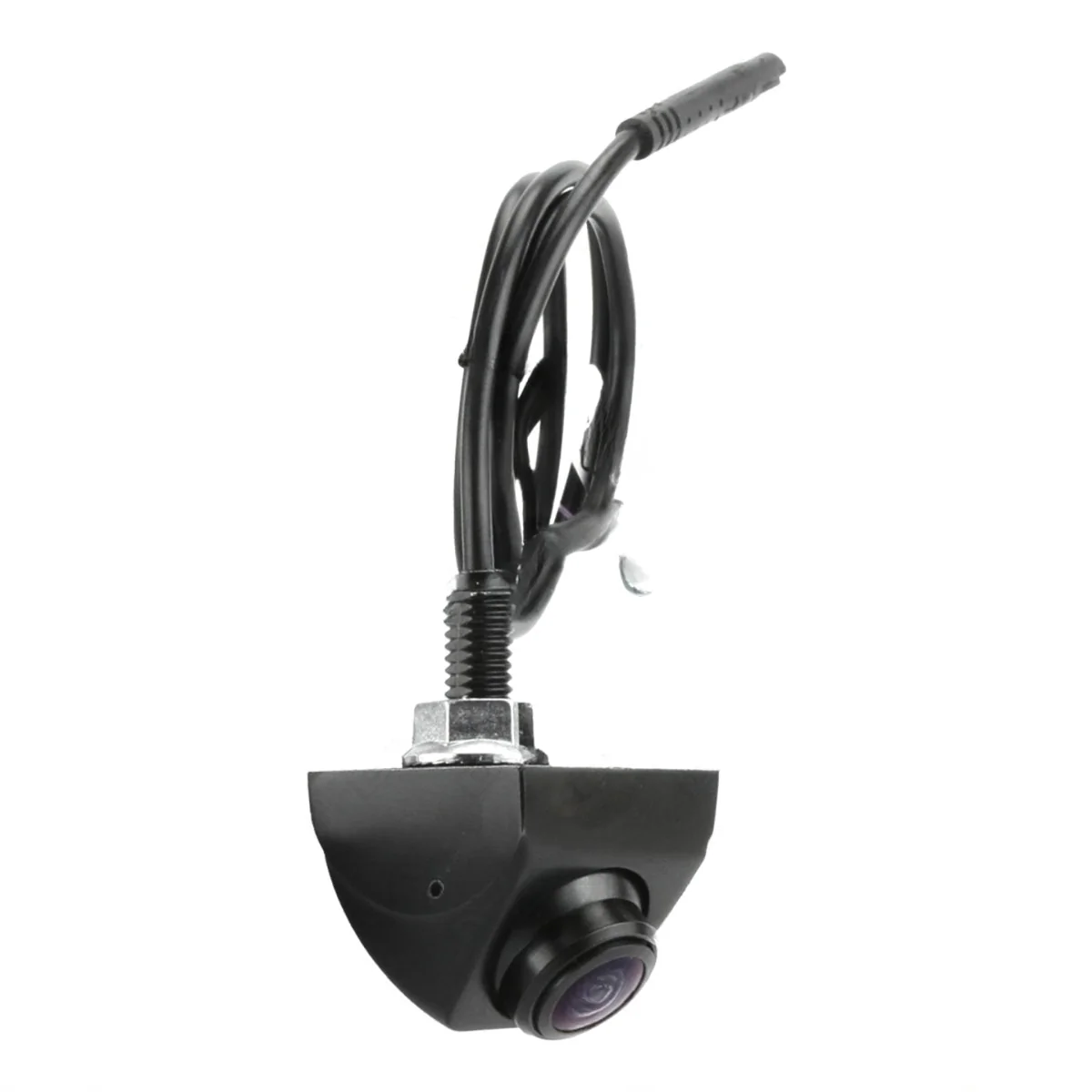

The DNA RCS170A-AHD is a 1080P AHD (Analogue High Definition) reverse camera with an adjustable stalk mount, designed for OEM-style installations where neat, concealed wiring and a factory-quality finish are important. The zinc alloy housing and stalk mount are compact and robust, requiring only an 8mm mounting hole for installation.
The flexible stalk allows the camera to be precisely positioned during installation. The lens head can be adjusted 45 degrees up, down, left, or right, and supports a full 360-degree rotation, enabling the viewing angle to be customised to suit any vehicle setup or parking scenario without repositioning the mount.
The camera outputs AHD video at 1920x1080 (default 1080P) across a 170-degree wide-angle field of view. Three selectable features are controlled by wire-cut options: resolution (1080P/720P via purple wire), image orientation for front or rear camera use (mirror/flip via green wire), and parking guide line display on or off (white wire). Working voltage is DC 6V-15V, making it compatible with both 6V and 12V vehicle electrical systems. IP68 waterproof rating confirms protection against sustained water immersion.
Features & Benefits

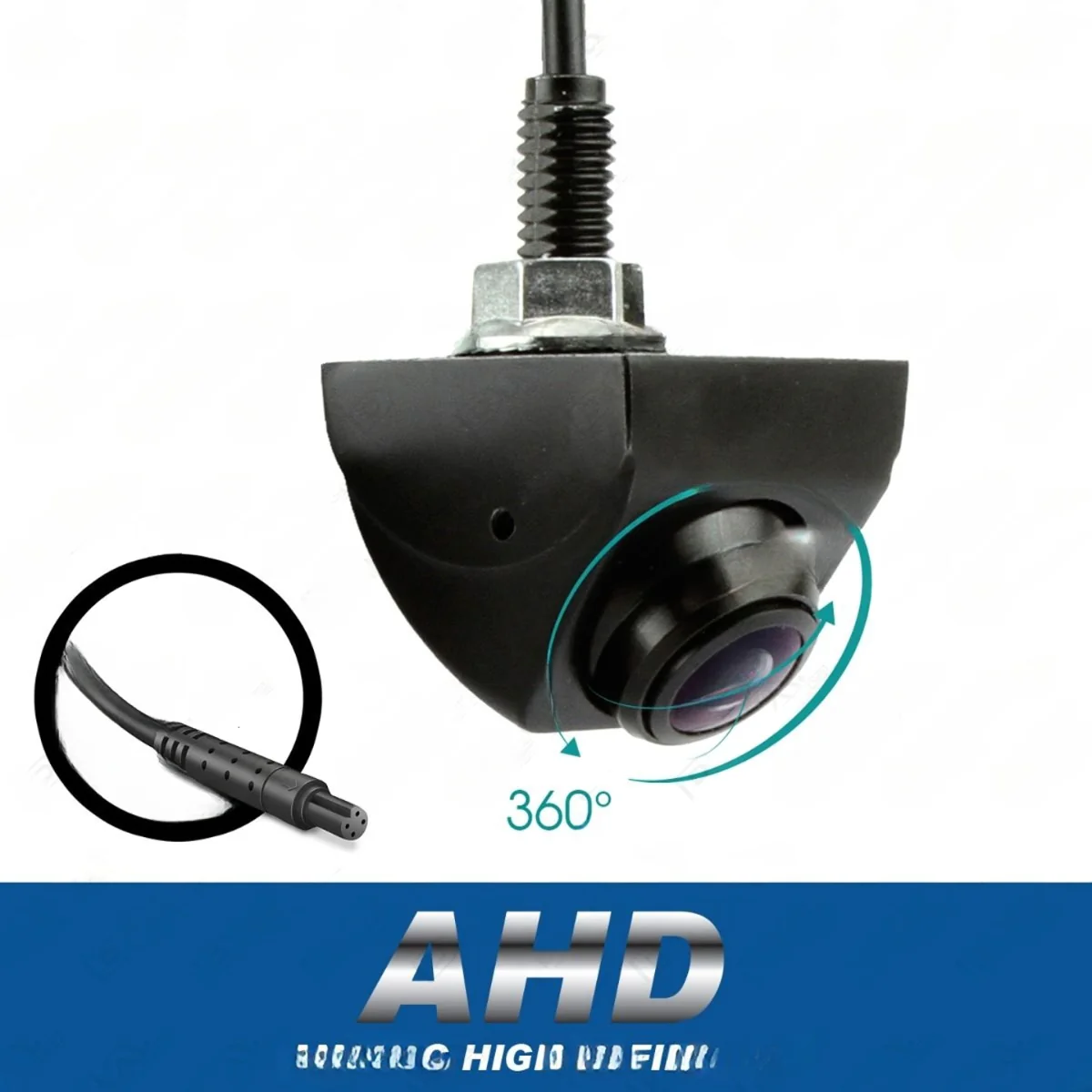

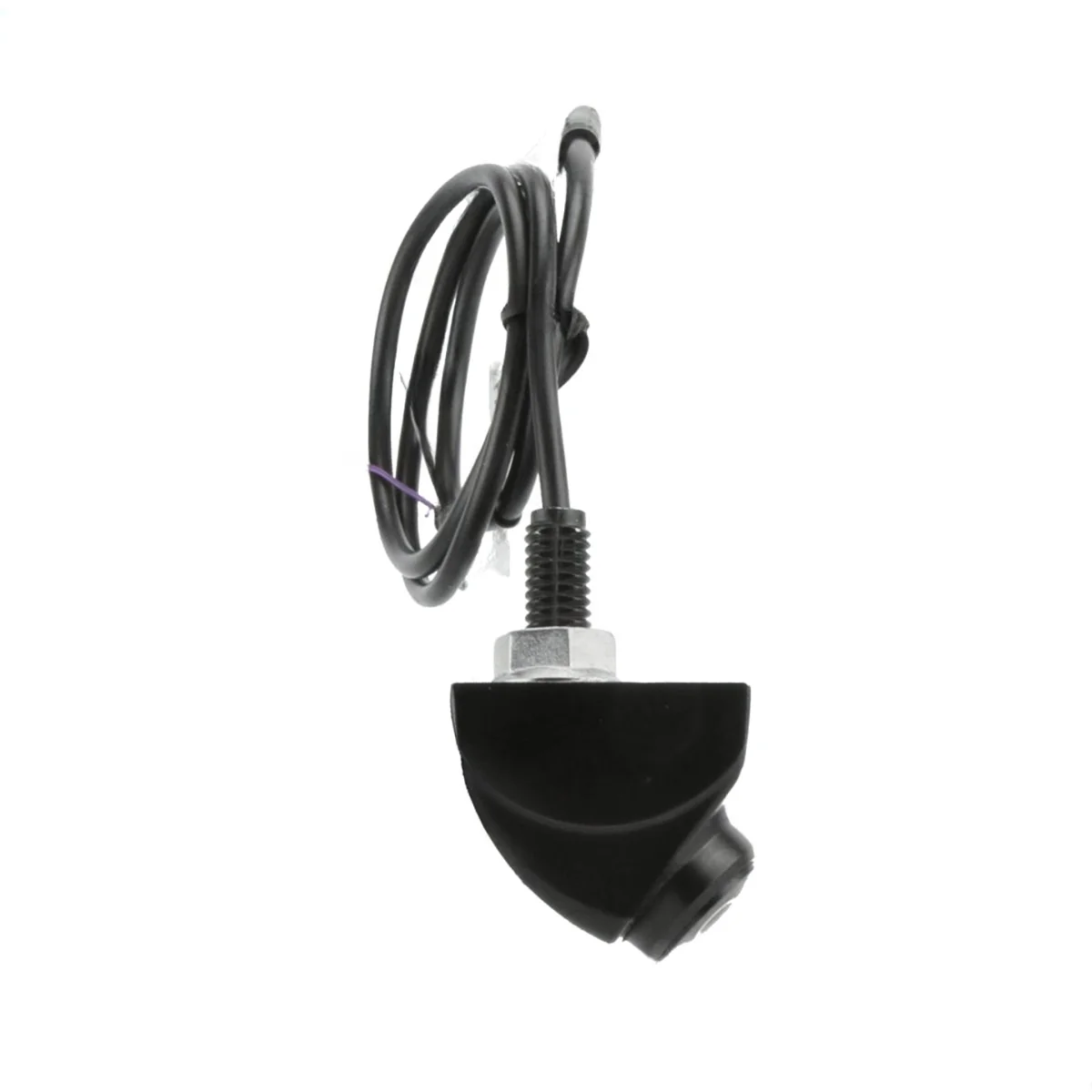

Adjustable Stalk Mount - 360-Degree Rotation and 45-Degree Head Adjustment: The stalk mount allows the lens head to be adjusted 45 degrees up, down, left, or right and rotated a full 360 degrees, enabling precise camera angle customisation for any vehicle or parking scenario after installation.
OEM-Suitable Installation - Only 8mm Mounting Hole Required: The compact 28 x 22 x 22mm camera body requires only an 8mm mounting hole, making it well suited to OEM and factory-finish installations where a discreet, professional appearance is required and wiring can be routed internally.
Zinc Alloy Housing - Durable and Compact: The zinc alloy body provides a rigid, corrosion-resistant housing in a compact form factor suited to tight mounting locations across a wide range of vehicles.

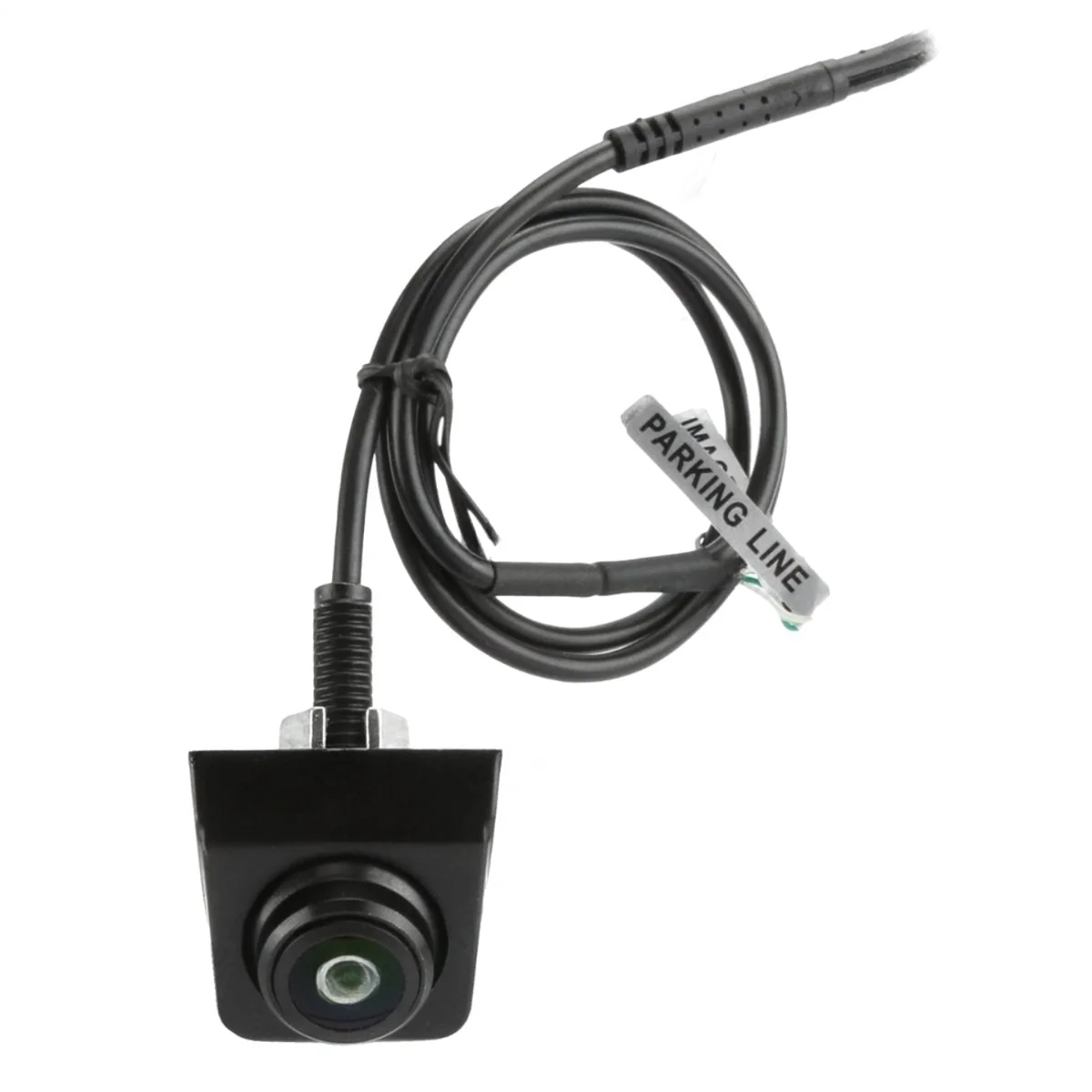

Selectable Features via Wire-Cut Options: Three on/off selectable features allow the camera to be configured without external switches or menus - resolution (purple wire: 1080P default, cut for 720P), image orientation (green wire: rear camera default, cut for front camera), and parking guide lines (white wire: on by default, cut to disable).
170-Degree Wide-Angle View: The 170-degree field of view provides a wide coverage area behind the vehicle, minimising blind spots and giving the driver maximum visibility when reversing in tight spaces.
IP68 Waterproof Rating: IP68 certification confirms the camera is protected against sustained water immersion, making it suitable for external mounting in exposed locations on all vehicle types including those subject to heavy rain and water spray.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | RCS170A-AHD |
| Brand | DNA |
| Video System | AHD (Analogue High Definition) |
| Resolution | 1920 x 1080 (1080P default / 720P selectable) |
| View Angle | 170 degrees |
| Working Voltage | DC 6V - 15V (±0.5V) |
| Waterproof Rating | IP68 |
| Camera Body Size | 28mm W x 22mm H x 22mm D |
| Butterfly Base Size | 44mm L x 18mm W |
| Mounting Hole Required | 8mm |
| Lens Adjustment | 45 degrees up / down / left / right |
| Rotation | 360 degrees |
| Housing Material | Zinc Alloy |
| Purple Wire | 1080P (default) / Cut for 720P |
| Green Wire | Rear camera / mirror image (default) / Cut for front camera / flip image |
| White Wire | Parking guide lines on (default) / Cut to disable |
| Packaging | DNA Gift Box |
Compatible With / Goes Well With
The RCS170A-AHD is compatible with AHD-capable head units and reverse camera systems. Confirm your head unit supports AHD input before purchasing - it is not compatible with CVBS (analogue composite) only head units.
Goes Well With:
- AHD-compatible head unit - A head unit or monitor with AHD reverse camera input is required to use this camera at full 1080P resolution
- Reverse camera extension cable - Depending on vehicle length, an extension cable may be required to route the camera cable from the rear of the vehicle to the head unit
Frequently Asked Questions
What is AHD and is my head unit compatible?
AHD (Analogue High Definition) is a video transmission standard that delivers 1080P or 720P resolution over standard coaxial cable, unlike CVBS which is limited to standard definition. The RCS170A-AHD requires a head unit or monitor with a dedicated AHD reverse camera input. If your head unit only has a standard CVBS reverse camera input, this camera will not display correctly. Check your head unit's specifications before purchasing.
How do I change the resolution, image orientation, or parking lines?
These features are controlled by cutting wires during installation. The purple wire controls resolution (1080P by default - cut to switch to 720P). The green wire controls image orientation (rear camera / mirror image by default - cut for front camera / flip image). The white wire controls parking guide lines (on by default - cut to disable). Once a wire is cut the setting cannot be reversed, so confirm your preferred configuration before making any cuts.
Does the camera require a large mounting hole?
No. The RCS170A-AHD requires only an 8mm mounting hole, which is one of the smallest footprints available for a reverse camera of this type. This makes it well suited to OEM-style installations in vehicle body panels, number plate surrounds, and other tight mounting locations.
What vehicles is the RCS170A-AHD compatible with?
The RCS170A-AHD is a universal camera compatible with any vehicle with a 12V (or 6V) electrical system and an AHD-capable head unit or monitor. The 8mm mounting hole requirement and compact stalk mount make it adaptable to a wide range of vehicle types and mounting positions.
Is the camera suitable for front camera installation?
Yes. The green wire image control option allows the camera to be configured for front camera use by cutting the wire, which flips the image to the correct orientation for forward-facing installation. This makes the RCS170A-AHD usable as either a front or rear camera depending on the installation requirement.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
DNA RCS170A-AHD AHD 1080P Reverse Camera with Adjustable Stalk Mount - 170 Degree
A 1080P AHD reverse camera with an adjustable zinc alloy stalk mount, 170-degree wide-angle lens, and IP68 waterproof rating. The lens head adjusts 45 degrees in any direction with full 360-degree rotation for precise positioning. Selectable 1080P/720P format, parking guide lines, and mirror/flip image via wire-cut options. Requires only an 8mm mounting hole. Suited to OEM applications where concealed wiring and a professional finish are required.
Product Overview
The DNA RCS170A-AHD is a 1080P AHD (Analogue High Definition) reverse camera with an adjustable stalk mount, designed for OEM-style installations where neat, concealed wiring and a factory-quality finish are important. The zinc alloy housing and stalk mount are compact and robust, requiring only an 8mm mounting hole for installation.
The flexible stalk allows the camera to be precisely positioned during installation. The lens head can be adjusted 45 degrees up, down, left, or right, and supports a full 360-degree rotation, enabling the viewing angle to be customised to suit any vehicle setup or parking scenario without repositioning the mount.
The camera outputs AHD video at 1920x1080 (default 1080P) across a 170-degree wide-angle field of view. Three selectable features are controlled by wire-cut options: resolution (1080P/720P via purple wire), image orientation for front or rear camera use (mirror/flip via green wire), and parking guide line display on or off (white wire). Working voltage is DC 6V-15V, making it compatible with both 6V and 12V vehicle electrical systems. IP68 waterproof rating confirms protection against sustained water immersion.
Features & Benefits
Adjustable Stalk Mount - 360-Degree Rotation and 45-Degree Head Adjustment: The stalk mount allows the lens head to be adjusted 45 degrees up, down, left, or right and rotated a full 360 degrees, enabling precise camera angle customisation for any vehicle or parking scenario after installation.
OEM-Suitable Installation - Only 8mm Mounting Hole Required: The compact 28 x 22 x 22mm camera body requires only an 8mm mounting hole, making it well suited to OEM and factory-finish installations where a discreet, professional appearance is required and wiring can be routed internally.
Zinc Alloy Housing - Durable and Compact: The zinc alloy body provides a rigid, corrosion-resistant housing in a compact form factor suited to tight mounting locations across a wide range of vehicles.
Selectable Features via Wire-Cut Options: Three on/off selectable features allow the camera to be configured without external switches or menus - resolution (purple wire: 1080P default, cut for 720P), image orientation (green wire: rear camera default, cut for front camera), and parking guide lines (white wire: on by default, cut to disable).
170-Degree Wide-Angle View: The 170-degree field of view provides a wide coverage area behind the vehicle, minimising blind spots and giving the driver maximum visibility when reversing in tight spaces.
IP68 Waterproof Rating: IP68 certification confirms the camera is protected against sustained water immersion, making it suitable for external mounting in exposed locations on all vehicle types including those subject to heavy rain and water spray.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | RCS170A-AHD |
| Brand | DNA |
| Video System | AHD (Analogue High Definition) |
| Resolution | 1920 x 1080 (1080P default / 720P selectable) |
| View Angle | 170 degrees |
| Working Voltage | DC 6V - 15V (±0.5V) |
| Waterproof Rating | IP68 |
| Camera Body Size | 28mm W x 22mm H x 22mm D |
| Butterfly Base Size | 44mm L x 18mm W |
| Mounting Hole Required | 8mm |
| Lens Adjustment | 45 degrees up / down / left / right |
| Rotation | 360 degrees |
| Housing Material | Zinc Alloy |
| Purple Wire | 1080P (default) / Cut for 720P |
| Green Wire | Rear camera / mirror image (default) / Cut for front camera / flip image |
| White Wire | Parking guide lines on (default) / Cut to disable |
| Packaging | DNA Gift Box |
Compatible With / Goes Well With
The RCS170A-AHD is compatible with AHD-capable head units and reverse camera systems. Confirm your head unit supports AHD input before purchasing - it is not compatible with CVBS (analogue composite) only head units.
Goes Well With:
- AHD-compatible head unit - A head unit or monitor with AHD reverse camera input is required to use this camera at full 1080P resolution
- Reverse camera extension cable - Depending on vehicle length, an extension cable may be required to route the camera cable from the rear of the vehicle to the head unit
Frequently Asked Questions
What is AHD and is my head unit compatible?
AHD (Analogue High Definition) is a video transmission standard that delivers 1080P or 720P resolution over standard coaxial cable, unlike CVBS which is limited to standard definition. The RCS170A-AHD requires a head unit or monitor with a dedicated AHD reverse camera input. If your head unit only has a standard CVBS reverse camera input, this camera will not display correctly. Check your head unit's specifications before purchasing.
How do I change the resolution, image orientation, or parking lines?
These features are controlled by cutting wires during installation. The purple wire controls resolution (1080P by default - cut to switch to 720P). The green wire controls image orientation (rear camera / mirror image by default - cut for front camera / flip image). The white wire controls parking guide lines (on by default - cut to disable). Once a wire is cut the setting cannot be reversed, so confirm your preferred configuration before making any cuts.
Does the camera require a large mounting hole?
No. The RCS170A-AHD requires only an 8mm mounting hole, which is one of the smallest footprints available for a reverse camera of this type. This makes it well suited to OEM-style installations in vehicle body panels, number plate surrounds, and other tight mounting locations.
What vehicles is the RCS170A-AHD compatible with?
The RCS170A-AHD is a universal camera compatible with any vehicle with a 12V (or 6V) electrical system and an AHD-capable head unit or monitor. The 8mm mounting hole requirement and compact stalk mount make it adaptable to a wide range of vehicle types and mounting positions.
Is the camera suitable for front camera installation?
Yes. The green wire image control option allows the camera to be configured for front camera use by cutting the wire, which flips the image to the correct orientation for forward-facing installation. This makes the RCS170A-AHD usable as either a front or rear camera depending on the installation requirement.
