DNA RCB170 CMOS Reverse Camera Butterfly & Flush Mount - PAL/NTSC

Ideal For A Wide Range of Vehicles Wanting A Safety Solution!

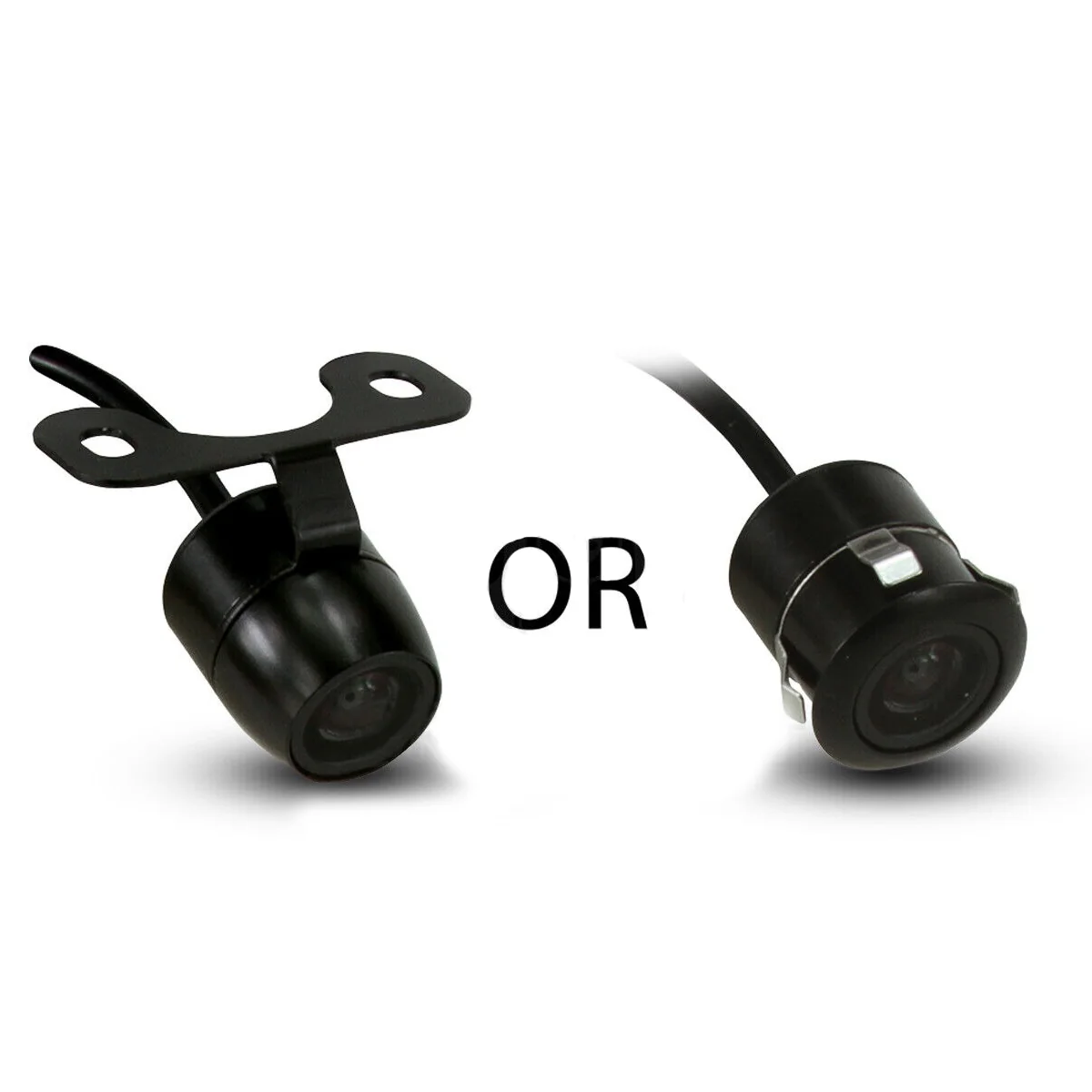

CMOS Reverse Camera Butterfly & Flush Mount
A miniature butterfly camera is a truly universal solution for multipurpose vehicle installations.

Model Strengths:

• Universal
• Zinc Alloy Housing
• Miniature
• Side Mounting Option
• PAL / NTSC Selectable (By Default Set To PAL. To Select NTSC Cut The Wire)
• Parking Guide Lines
• Mirror Image

Features:

• Selectable options include PAL/NTSC video format, parking guidelines & reverse mirror imaging
• The camera also includes butterfly mount & flush mount & has a waterproof IP68 rating
• Ideal for a wide range of vehicles wanting a safety solution. Rear, front, or side mount applications

Specifications:

• Image Sensor: CMOS
• Video System: PAL /NTSC (Selectable)
• Scanning Area: 4.88mm x 3.67mm
• Resolution: 733 (H) x 493 (V)
• Horizontal Resolution: 600 TVL
• Electronic Shutter: 1s-1/10000(S)
• SNR: =45.0dB
• Min Illumination: 0.01LUX
• Video Output: 1.0V ± 0.5Vp-p 75O
• View Angle:170°
• Working Voltage: DC9V-15V ± 0.5V
• Consumption: 100mA±10%
• Waterproof Rating: IP68
• Camera Body Size:
  Butterfly Mount Diameter: 23mm (L) x 19mm (D)
  Flush Mount Diameter: 23mm (L) x 20mm (D)
• Butterfly Base Size: 38mm (L) x 16mm (W)
• Packaging: DNA Gift Box With Sleeve
• Weight: 0.39kg
