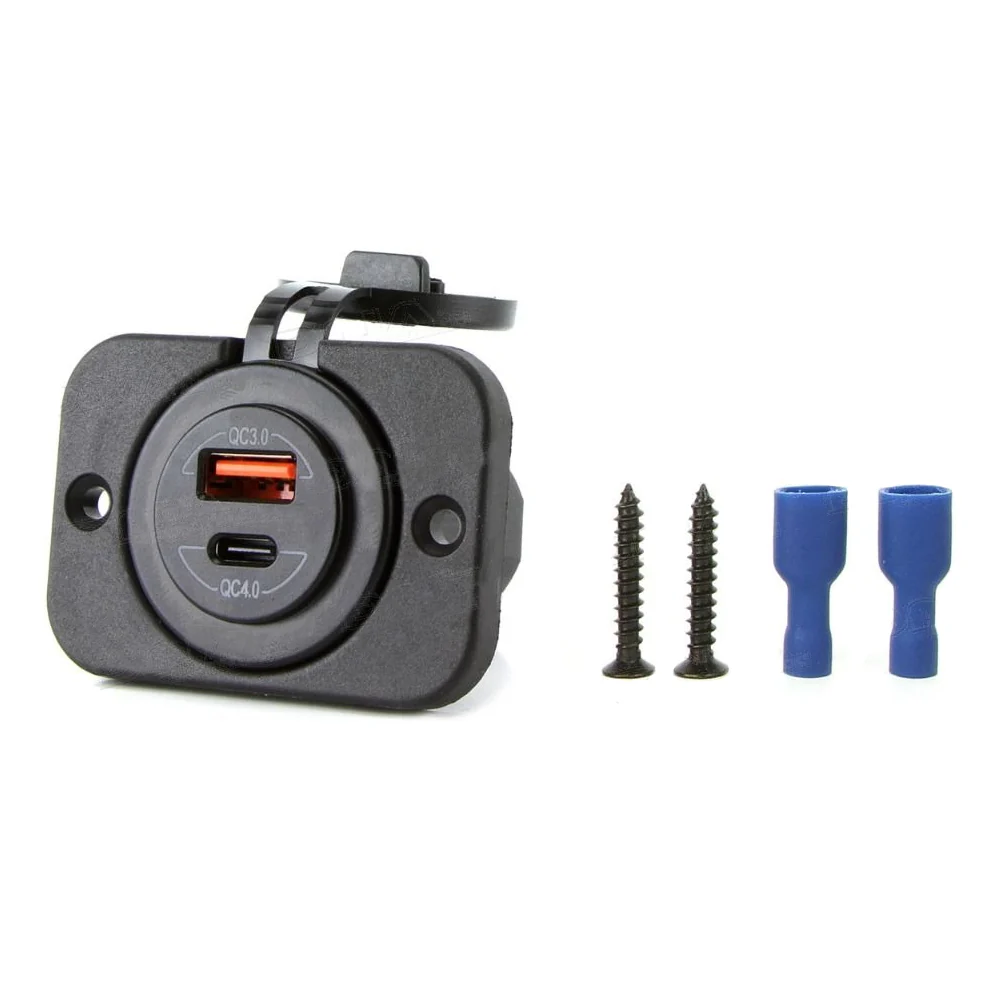

DNA PA105 Heavy-Duty Type-C & USB Socket

DNA PA105 Heavy-Duty Type-C & USB Socket - Professional Fast Charging Solution for Marine, RV & Vehicle Applications

The DNA PA105 Heavy-Duty Type-C & USB Socket delivers professional-grade fast charging capabilities in a robust, easy-to-install package. Featuring both USB Type-C (60W) and USB Type-A (36W) ports with advanced Quick Charge technology, this heavy-duty socket system is perfect for marine, RV, commercial vehicle, and industrial applications where reliable fast charging is essential.

Why Choose the DNA PA105 Type-C & USB Socket:

Dual Fast Charging Technology - Combines USB Type-C with QC4.0 (60W max) and USB Type-A with QC3.0 (36W max) for simultaneous fast charging of multiple devices including smartphones, tablets, and laptops.

Heavy-Duty Construction - Built for demanding environments with dustproof covers and robust construction suitable for marine, RV, and commercial vehicle installations where durability is critical.

Universal Voltage Compatibility - Wide input voltage range (8V-32V) with 12V-24V operation ensures compatibility with various electrical systems including automotive, marine, and industrial applications.

Comprehensive Protection Systems - Multiple safety features including over-voltage, over-current, over-temperature, short circuit, and reverse polarity protection ensure safe operation and equipment protection.

Versatile Installation Options - Fitting mechanism allows installation into interior or exterior panels including steel and aluminium, with all necessary terminals and screws included.

Professional LED Indication - Blue LED indicator provides clear visual confirmation of power status, making it easy to locate and use in low-light conditions.

Key Features

Fast Charging Capabilities

• USB Type-C: QC4.0 up to 60W
• USB Type-A: QC3.0 up to 36W
• Simultaneous dual device charging
• Advanced Quick Charge technology

Heavy-Duty Design

• Dustproof covers included
• Robust construction materials
• Suitable for harsh environments
• Professional-grade durability

Universal Compatibility

• Input voltage: 12V-24V ± 4.0V
• Voltage range: 8V-32V
• 20A at 12V DC, 10A at 24V
• Wide system compatibility

Advanced Protection

• Over-voltage protection
• Over-current protection
• Over-temperature protection
• Short circuit protection
• Reverse polarity protection

Technical Specifications

Charging Specifications:

• USB Type-C output: QC4.0 maximum 60W
• USB Type-A output: QC3.0 maximum 36W
• Input voltage: 12V-24V ± 4.0V
• Amperage rating: 20A at 12V DC, 10A at 24V
• Voltage range: 8V-32V

Physical Specifications:

• Dimensions: 60mm x 43mm
• Mounting depth: 57mm
• Mounting opening: 29mm diameter (per socket)
• Weight: 0.20kg
• LED colour: Blue indication

Installation Specifications:

• Type: Socket system (Type-C & USB)
• Mounting: Interior or exterior panels
• Compatible materials: Steel and aluminium
• Supplied with: Terminals and screws
• Packaging: Heat sealed blister with card and hang hole

Protection Features:

• Over-voltage protection: Yes
• Over-current protection: Yes
• Over-temperature protection: Yes
• Short circuit protection: Yes
• Reverse polarity protection: Yes

Perfect For These Applications

Marine Applications

• Boat electrical systems
• Marine electronics charging
• Yacht power systems
• Waterproof charging solutions

RV and Motorhome

• Caravan electrical systems
• Motorhome interior charging
• Camping power solutions
• Mobile device charging

Commercial Vehicles

• Truck cab charging systems
• Fleet vehicle installations
• Work vehicle power solutions
• Heavy equipment charging

Industrial Applications

• Workshop charging stations
• Equipment panel installations
• Industrial control panels
• Machinery charging solutions

Installation Benefits

Easy Installation

• Complete hardware package included
• Versatile mounting options
• Steel and aluminium compatibility
• Professional installation ready

Reliable Performance

• Multiple protection systems
• Heavy-duty construction
• Wide voltage compatibility
• Professional-grade reliability

User-Friendly Design

• Dustproof covers for protection
• Blue LED status indication
• Easy access dual ports
• Professional appearance

Compatible With / Goes Well With

• 12V and 24V electrical systems
• Marine electrical components
• RV power systems
• Vehicle charging accessories
• Industrial electrical panels
• Mobile device accessories

Weight

Weight: 0.20kg (0.44 lbs)
