DNA DDC001 110mm High Double DIN Cradle Frame

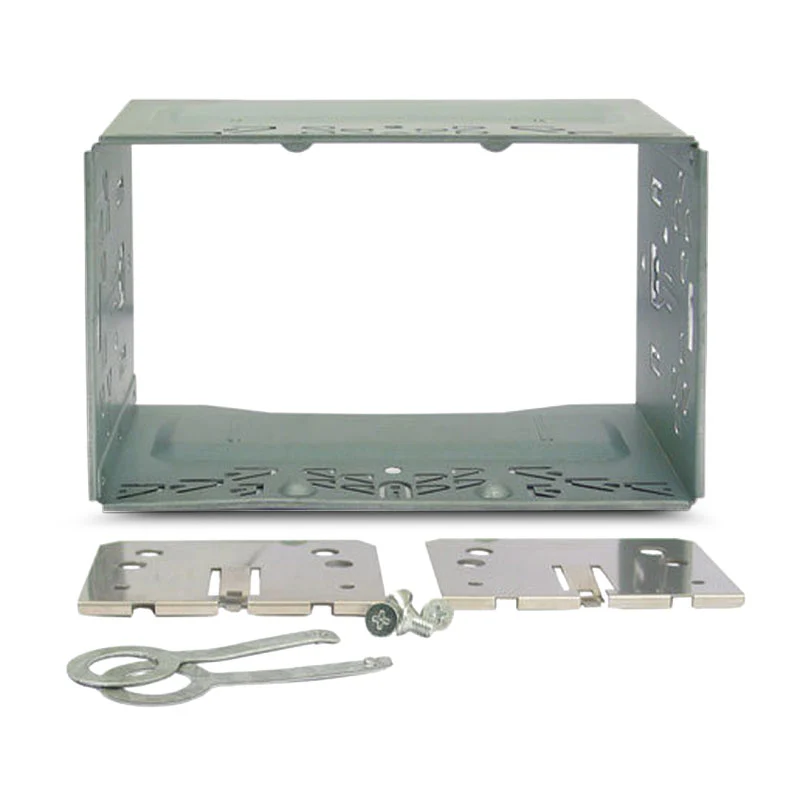

Product image 1

DNA DDC001 110mm High Double DIN Cradle Frame

110mm Double DIN Cradle Fitting Frame

The DNA DDC001 used to surround a double DIN head unit so it can be mounted and locked into place within the vehicles dash. For use where a fascia panel is designed to accept a 110mm high cradle.

Product Specifications:

  • Internal Dimensions (WxH): 180mm x 110m
  • External Dimensions (WxH): 181mm x 111 mm
  • Mounting Cage Dimensions (WxH): 185mm x 115mm
  • Fitting Frame: 180mm Across x 110mm High x 100mm Deep
  • Compatibility: Kenwood
  • Packaging: White Gift Box With DNA Sticker.

What's In the Box:

  • Double DIN Fitting Frame
  • Left & Right Plates That Screw To The Head Unit & Then Lock Into The Double DIN Fitting Frame.
  • Keys For Easy Removal Of The Head Unit From The Double DIN Fitting Frame.
  • 4 x ISO Screws For Fastening The Left & Right Plates To The Sides of The Head Unit.
$28.52
DNA DDC001 110mm High Double DIN Cradle Frame—
$28.52

Product Information

Shipping & Returns

Description

110mm Double DIN Cradle Fitting Frame

The DNA DDC001 used to surround a double DIN head unit so it can be mounted and locked into place within the vehicles dash. For use where a fascia panel is designed to accept a 110mm high cradle.

Product Specifications:

  • Internal Dimensions (WxH): 180mm x 110m
  • External Dimensions (WxH): 181mm x 111 mm
  • Mounting Cage Dimensions (WxH): 185mm x 115mm
  • Fitting Frame: 180mm Across x 110mm High x 100mm Deep
  • Compatibility: Kenwood
  • Packaging: White Gift Box With DNA Sticker.

What's In the Box:

  • Double DIN Fitting Frame
  • Left & Right Plates That Screw To The Head Unit & Then Lock Into The Double DIN Fitting Frame.
  • Keys For Easy Removal Of The Head Unit From The Double DIN Fitting Frame.
  • 4 x ISO Screws For Fastening The Left & Right Plates To The Sides of The Head Unit.
