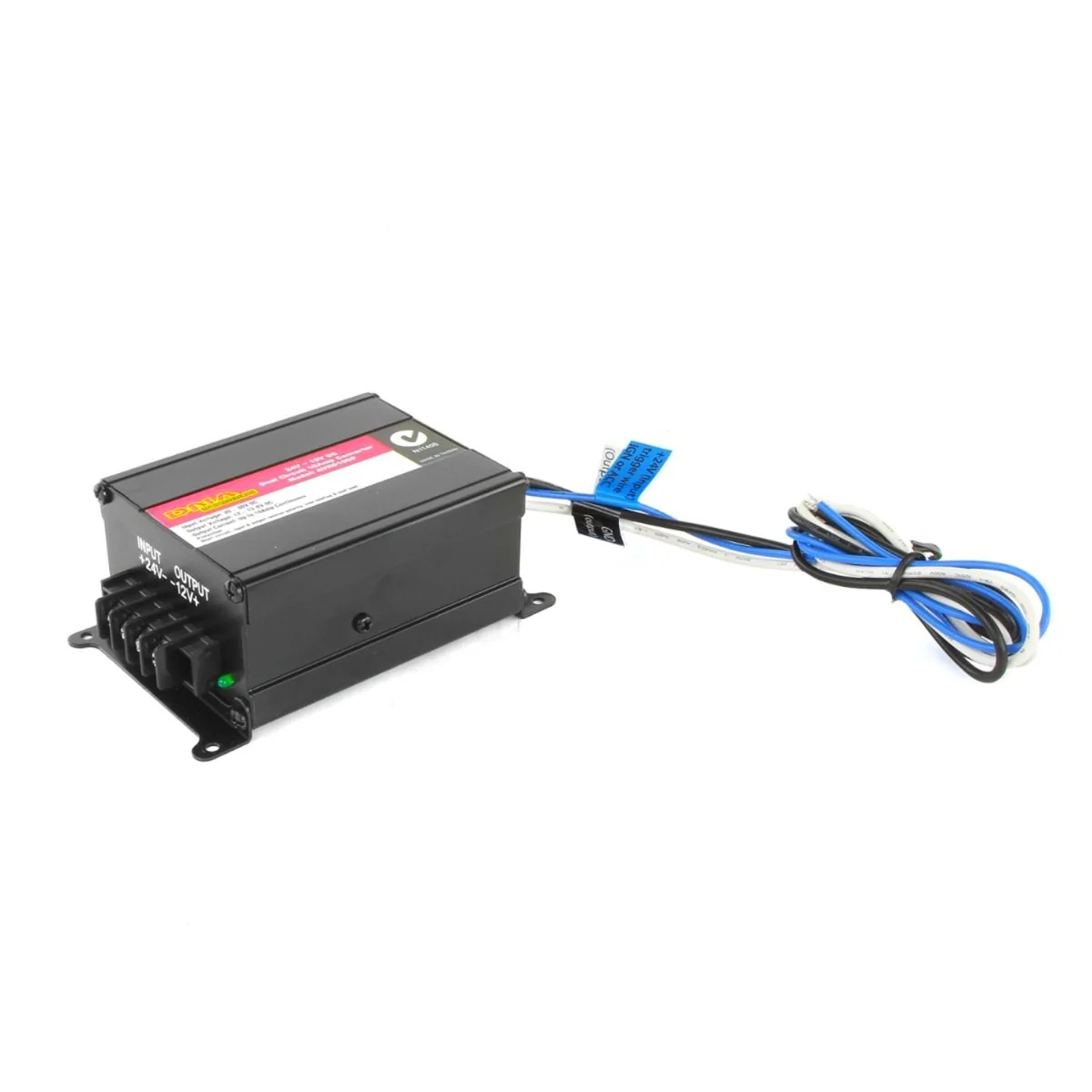

DNA AVR010DP 10 AMP Dual Output 24-12V DC Converter

The DNA AVR010DP is a 10 AMP Dual Output 24 Volt DC To 12 Volt DC Voltage Reducer With Dual Outputs.

DNA AVR010DP Features:

• Fitted With 2 Independent 12v DC Outputs
• Using the Terminals on the Side of the Case for Output 1
• Using the 3 Wires for Output 2
• 12V DC Positive Output
• Negative Output
• 24V DC Trigger Wire For Activating The Circuit

DNA AVR010DP Specifications:

• Input DC Voltage Range: DC20~30V DC
• Output Voltage Range: 12V~13.8V
• Continuous Power: 10 AMPS
• Peak Power: 15 AMPS
• No Load Current Draw: 20mA
• Max. Power Efficiency: >90%
• Cooling: Air Convection
• Input Polarity Reverse: Diode Protection
• Output Polarity Reverse: Circuit Protection
• Over Heating: Circuit Protection
• Over Load: Circuit Protection
• Output Short: Circuit Protection
• Fuse: 15 AMPS
• Dimension (LxWxH): 90 x 73 x 45mm
• Weight: 330g
• Packaging: Sliding Blister & Card With Hang Hole
