DEUTSCH ACX2912 DT #16 4-Way Connector Kit
Professional-grade Deutsch DT connector system engineered for reliable automotive electrical connections in demanding environments.
Product Overview

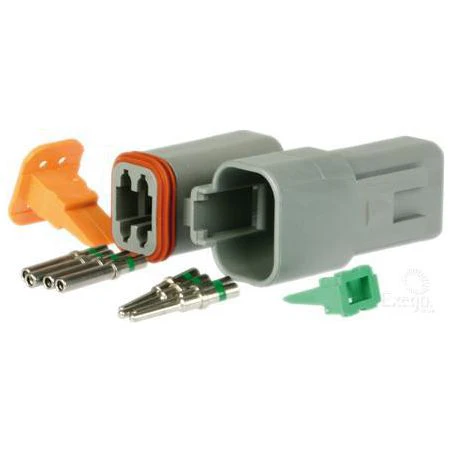

The Deutsch ACX2912 is a complete 4-way connector kit featuring genuine Deutsch DT series components designed for automotive, marine, and industrial wiring applications. This kit includes a matched plug and receptacle pair with all necessary pins, sockets, and retention locks for a secure, weatherproof electrical connection. Rated at 13 amps per circuit, the DT #16 terminal system provides dependable performance for auxiliary lighting, accessory circuits, sensor wiring, and general-purpose 12V installations. The kit arrives ready to assemble with professional-grade terminals that accommodate 16-gauge wire.
Key Specifications
- Current rating: 13 amps per circuit maximum
- Terminal size: #16 gauge wire compatible
- Pin configuration: 4-way (4 circuits)
- Kit includes: 1 complete plug/receptacle assembly with all terminals and locks
- Weight: 0.02 kg
- Connector system: Deutsch DT series
- Warranty: 1 year manufacturer warranty
Features & Benefits
Complete Matched Kit — Every component required for one 4-circuit connection is included, eliminating the need to source individual terminals, locks, and housings separately. Ideal for workshop installations where time and reliability matter.
13A Per Circuit Capacity — Each of the four circuits handles up to 13 amps, making this kit suitable for driving lights, auxiliary accessories, sensor circuits, and medium-current 12V applications commonly found in 4WD builds and automotive upgrades.
Deutsch DT Reliability — The DT connector series is widely recognised in automotive and off-road applications for its robust construction and resistance to vibration, moisture, and dust. The positive lock mechanism ensures terminals remain seated during use.
#16 Terminal Compatibility — Designed for 16-gauge wire, this kit suits most aftermarket automotive wiring scenarios including auxiliary circuits, lighting harnesses, and accessory installations without requiring oversized cable runs.
Workshop-Ready Design — Pin and socket locks (W4S and W4P) hold terminals securely in place during assembly and prevent accidental terminal release during service or cable movement in harsh conditions.
Technical Specs
- Part number: ACX2912
- Connector type: Deutsch DT series
- Receptacle: DT04-4P (1 unit)
- Plug: DT06-4S (1 unit)
- Pin lock: W4S (1 unit)
- Socket lock: W4P (1 unit)
- Male pins: 0460-215-16141 (4 units)
- Female sockets: 0462-209-16141 (4 units)
- Terminal gauge: #16 AWG
- Current capacity: 13A per circuit
- Number of circuits: 4
- Pack quantity: 1 kit
- Weight: 0.02 kg (20 grams)
- Connector style: Plug and receptacle kit
- Brand: Deutsch
Frequently Asked Questions
What wire gauge does this connector accept?
This kit is designed for #16 gauge (AWG) automotive wire. Ensure proper crimping tools are used for reliable terminal connections.
Is this connector waterproof?
Deutsch DT connectors provide environmental sealing when properly assembled with appropriate wire seals. The kit includes housings and locks; wire seals sold separately.
Can I use this for driving lights?
Yes, at 13A per circuit, each pin supports up to 156W at 12V, making it suitable for most auxiliary lighting applications.
Do I need special tools to assemble this?
A proper crimping tool for Deutsch #16 terminals is recommended for reliable connections. Standard automotive crimp tools may not provide adequate terminal retention.
What's included in this kit?
One complete 4-way connector set: plug, receptacle, 4 pins, 4 sockets, and both pin/socket retention locks. Wire seals and crimping tools sold separately.
Compatible With / Goes Well With
- 16 AWG automotive primary wire
- Deutsch crimp tools for #16 terminals
- Auxiliary driving light installations
- 4WD accessory wiring (switches, relays, sensors)
- Trailer wiring harnesses (medium-current circuits)
- Automotive lighting circuits up to 13A per pin
- Workshop electrical projects requiring reliable connections
- Marine and industrial applications (when used with appropriate seals)
Note: Wire seals for environmental protection are available separately and recommended for exposed installations.
Weight
0.02 kg (20 grams)
