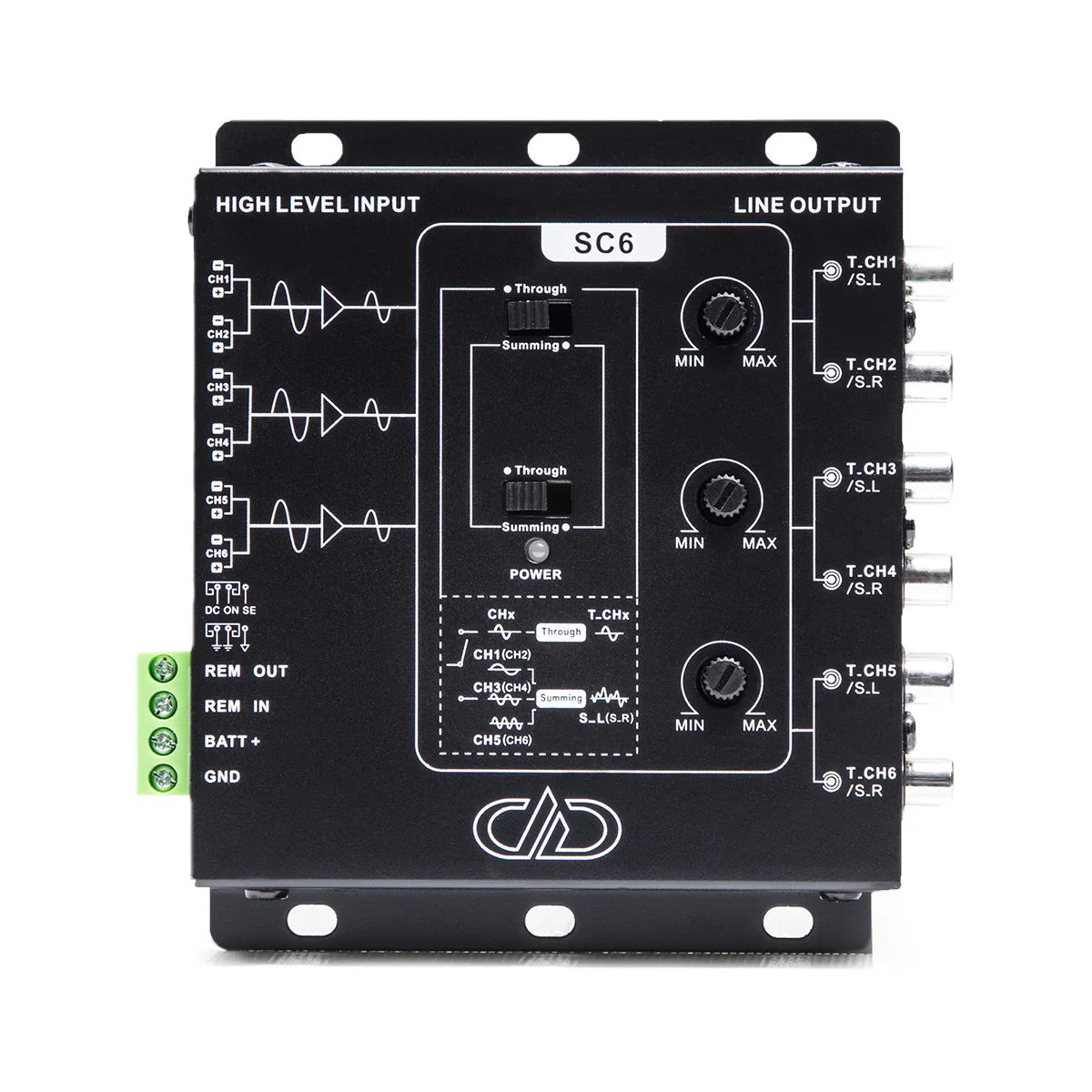

DD Audio DD-SC6 6-Channel Line Output Signal Converter

Premium Quality 6-Channel Line Output Signal Converter!

6-Channel Line Output Signal Converter
Installers will appreciate the metal chassis and easy access to features such as input channel summing, turn on selection, and grounding selection. To allow for greater OEM interface compatibility, the SC6’s input impedance allows it to integrate with most load detect systems without the need for external resistors. The SC6 is an OEM (Original Equipment Manufacturer) interface that allows audio technicians to add aftermarket amplification to a factory-installed source unit.

Features:

• Input Summing
• Differential-Balanced Inputs
• Independent Variable Gains
• Selectable Ground Isolation
• Signal Sense Turn on (RCA and High Level)
• Double Power Supply
• Detachable Power and Speaker Input Terminals
• FR4 PCB
• Aluminum Chassis
• OEM Load Detect Compatible

Specifications:

• Channels: 4
• Input Voltage Sensitivity: 2 - 18V
• Input Channels: 6 x Speaker-Level
• Output Channels: 6 x Low-Level RCA
• Output Voltage: 10V
• Dimensions: 3.8" x 4.6" x .98"
• Dimensions: 98mmx 119mm x 25mm
• Shipping Weight: 0.45kg
