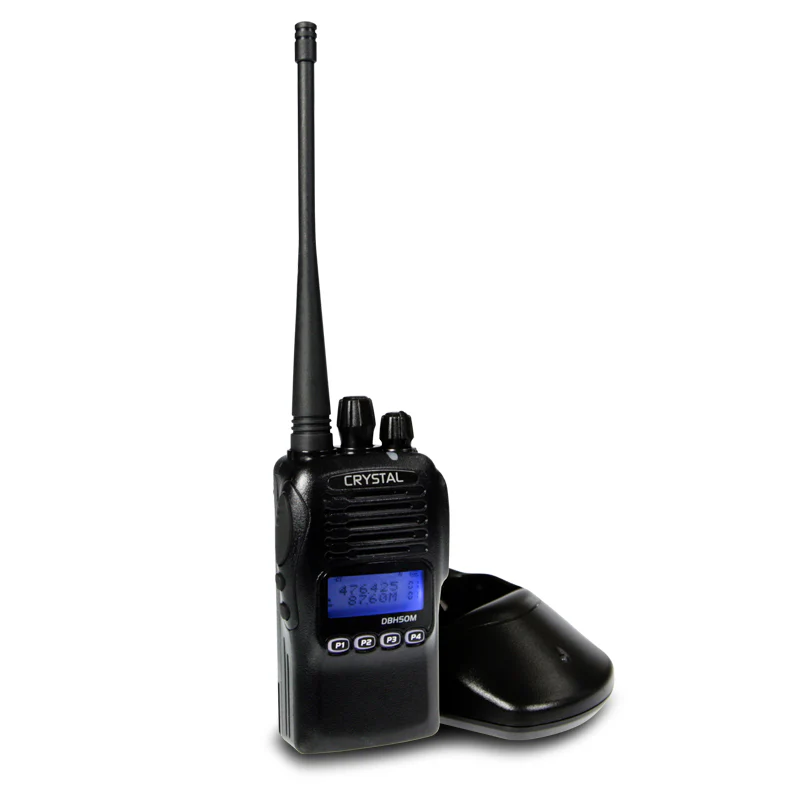

Crystal Mobile DBH50M 5W 80-Channels Pro Handheld Waterproof UHF CB Radio

Ideal For Professional Use & the Serious Off-Roader!

Waterproof 5W Handheld UHF CB Radio
The Crystal Mobile DBH50M Handheld UHF CB Radio is loaded with all the features you would expect to find in our full size in-car UHF radio including 80 channels, 83 DCS codes, duplex range extender, 38 DTCSS codes and the list goes on. Not only does the DBH50M feature a sturdy aluminium die-cast chassis, but it is also IP67 Waterproof and Dustproof. The powerful 5W power output provides a communication radius of up to 15 km. (Depending on terrain and atmospheric conditions)

Notes:

• Free programming software is available at http://tdj.com.au/firmware/Crystal/DBH50M/
• Info on IP ratings can be found here: http://www.dsmt.com/resources/ip-rating-chart/

Features:

• Professional Series
• IP67 Waterproof & Dustproof Rated
• Aluminium Diecast Chassis
• 5 Watts Power Output
• 80 Narrow Band Channels
• Rechargeable Lithium-Ion 1500mAh Battery (1500mAh Battery Included, 12V & 240V Chargers Included)
• Automatic Squelch Control
• 83 DCS Codes
• 38 CTCSS Codes
• Duplex Range Extension
• Channel Scanning
• Dual Channel Monitor
• Hands-Free VOX Capable
• Easy to Read Backlit Display and Buttons
• High Gain Antenna
• FM Radio (Requires Programming Cable to Enable)
• VOX Compatible

Specifications:

• Frequency Range: UHF: 476.4250 - 477.4125MHz
• Channel Capacity: 80 Channels
• Phase-Locked Step: 5KHz, 6.25KHz
• Operating Voltage: 7.4 DC ±20%
• Battery Life: More than 14 Hours (1500mAh), by 5-5-90 Work Cycle
• Frequency Stability: ±2.5ppm
• Operating Temperature: -20~ +55°C
• Sensitivity: (12dB SINAD) ≤0.35_V
• Adjacent Channel Selectivity: ≥60dB
• Intermodulation: ≥60dB
• Spurious Rejection: ≥80dB
• Audio Power Output: 500mW (@ 10%)
• Modulation: 11K_F3E
• Adjacent Channel: ≥60dB
• Hum & Noise: ≥40dB
• Spurious Emission: ≤-36dB
• Audio Response: 6dB / per Interval
• Audio Distortion: ≤5%
• Optional Accessories: DBH50USB Programming Cable
• Packaging Type: Giftbox

What's Included:

• 1x DBH50M Hand Held UHF Radio
• 1x Rechargeable Lithium-Ion Battery
• 1x Charging Dock
• 1x 240V AC Charger
• 1x 12V DC Charger
• 1x High Gain Antenna
• 1x Earpiece/Mic
• 1x Belt Clip
• 1x Wrist Strap
• 1x User Manual
