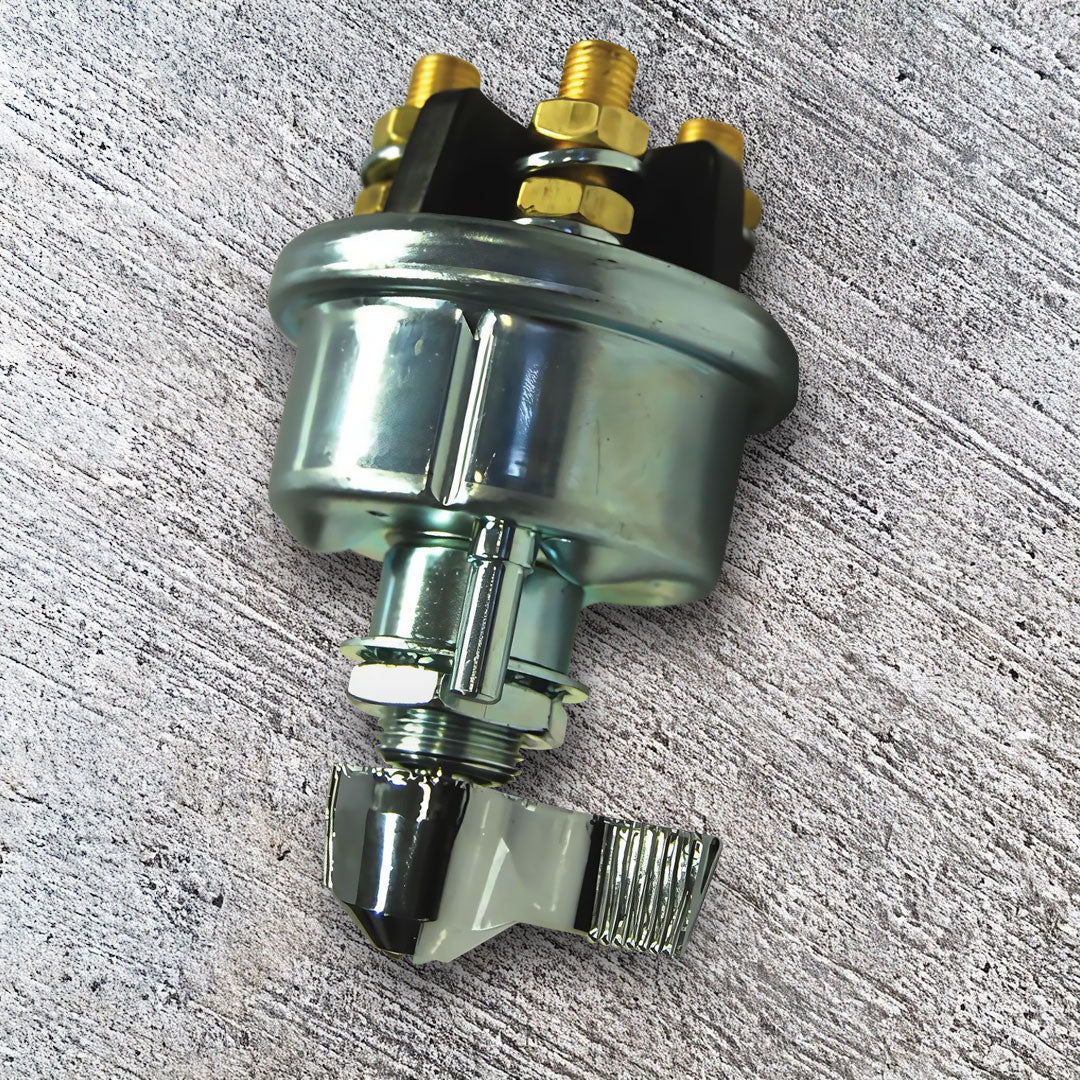

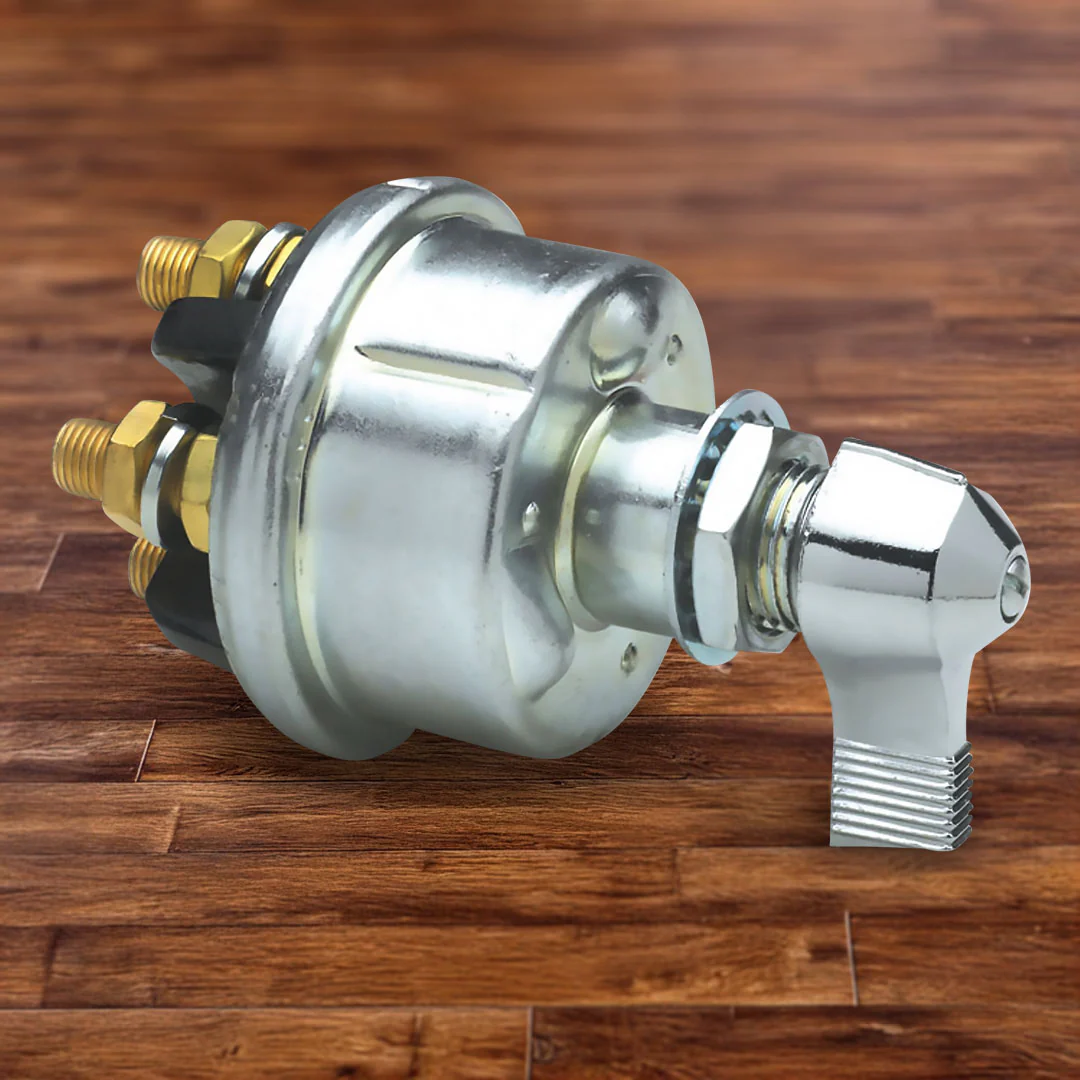

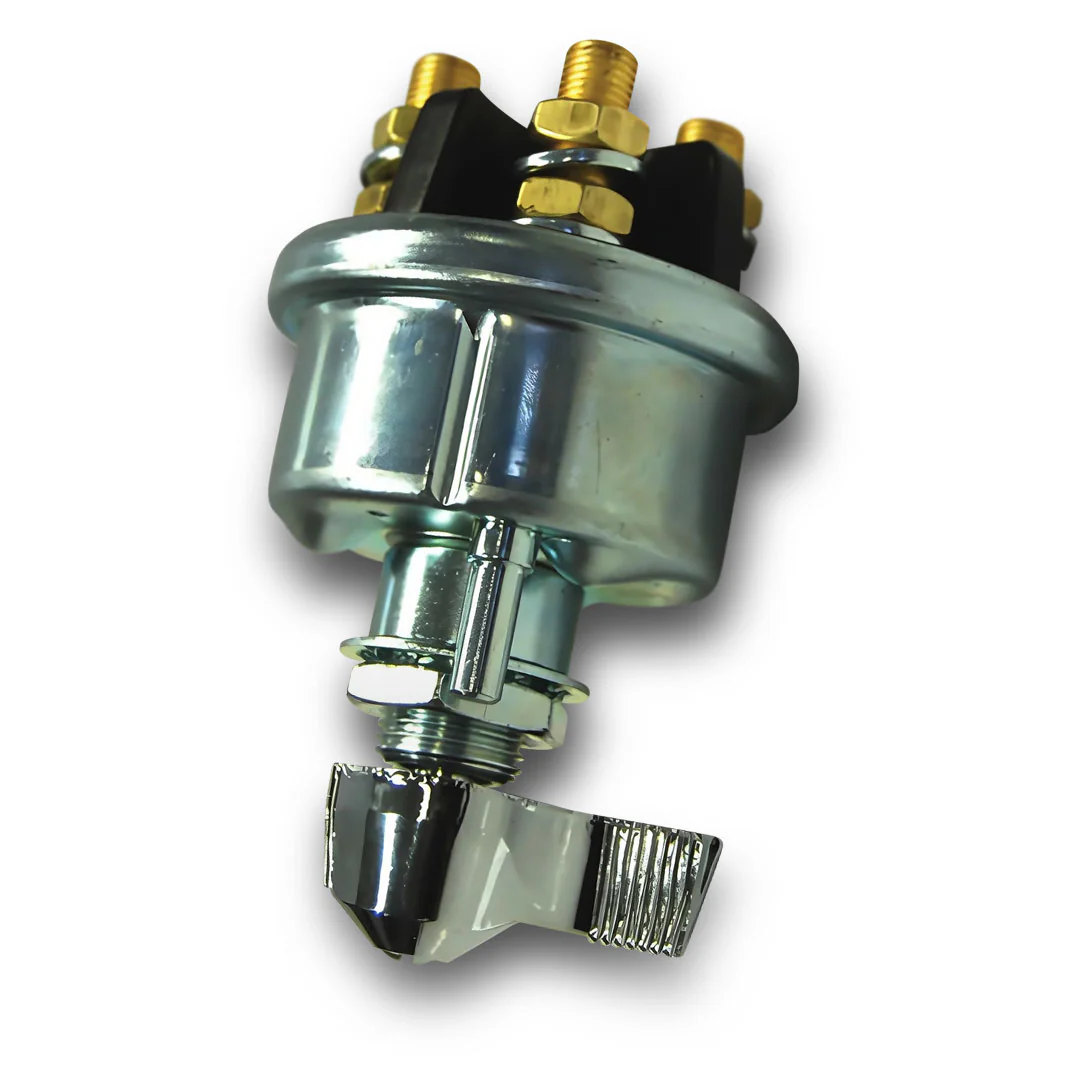

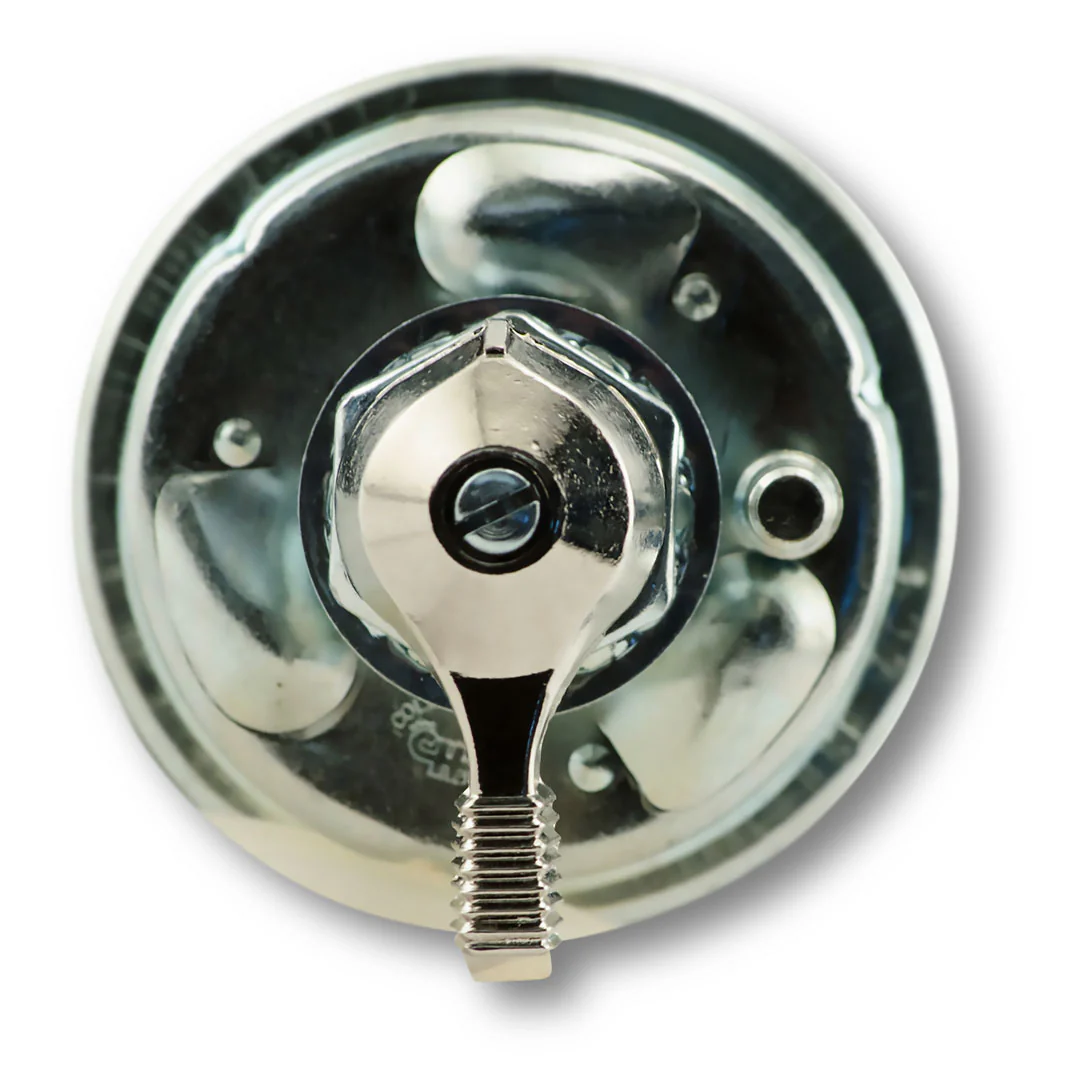

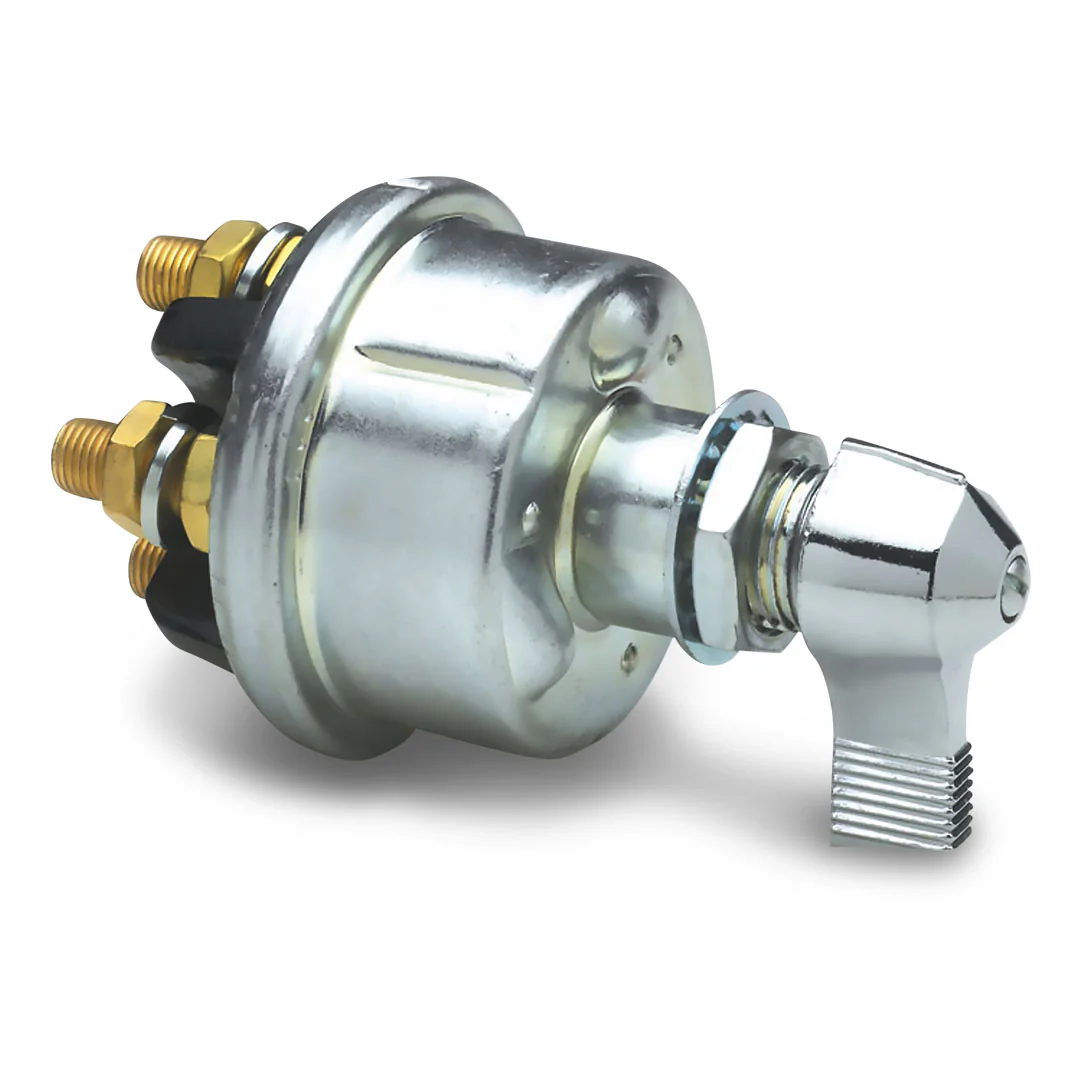

Cole Hersee 75912BX Dual Battery Master Switch Dpst On - Off

Cole Hersee Dual Battery Master Switch Dpst On - Off

Features:

• This switch can be used to switch positive & negative at the same time or for two separate circuits
• 6V - 36V multivoltage
• 125A continuous x 2
• 750A intermittent x 2
• DPST On / Off
• Suitable for two high current loads
• Silver contacts, chrome lever
• Weather resistant, O-ring sealed

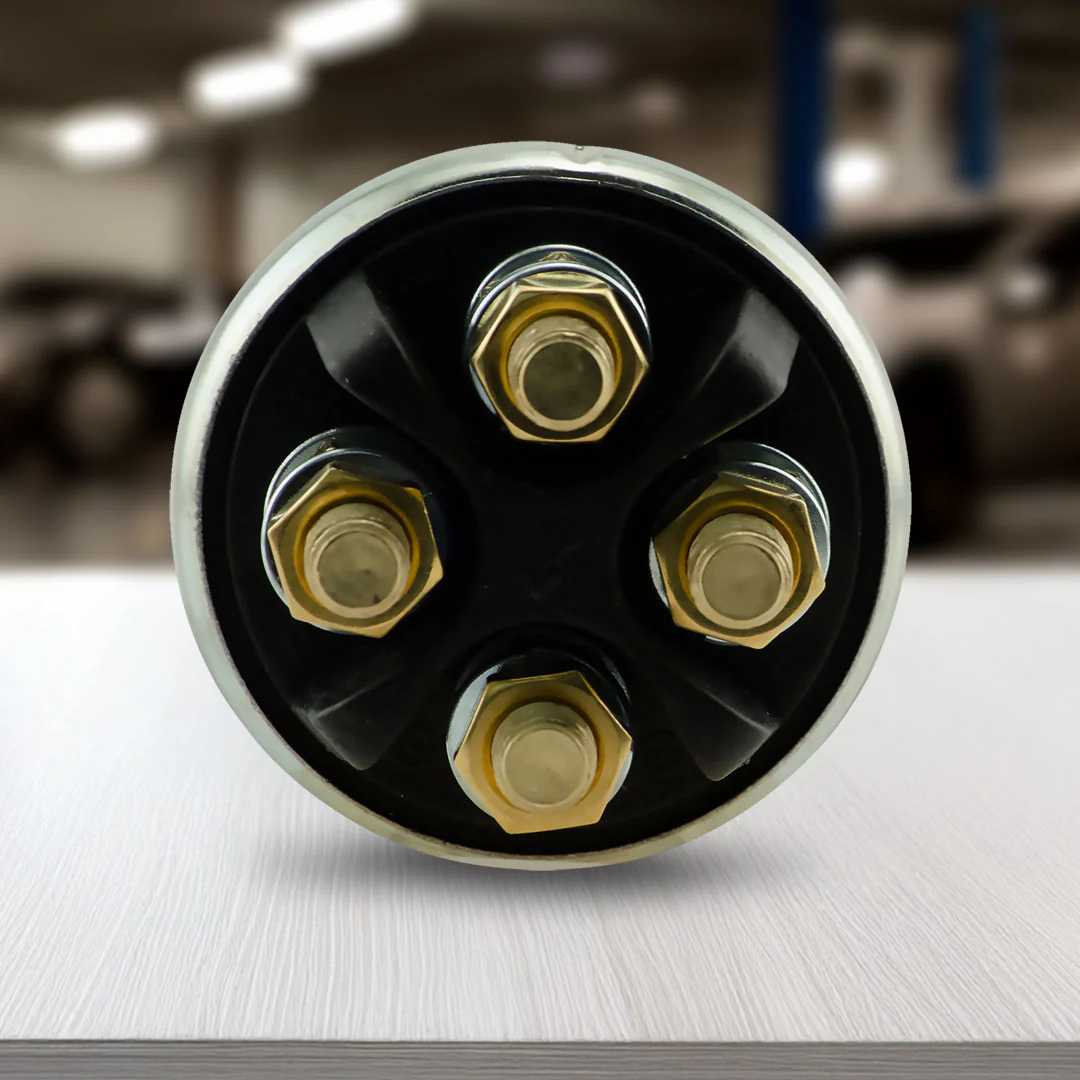

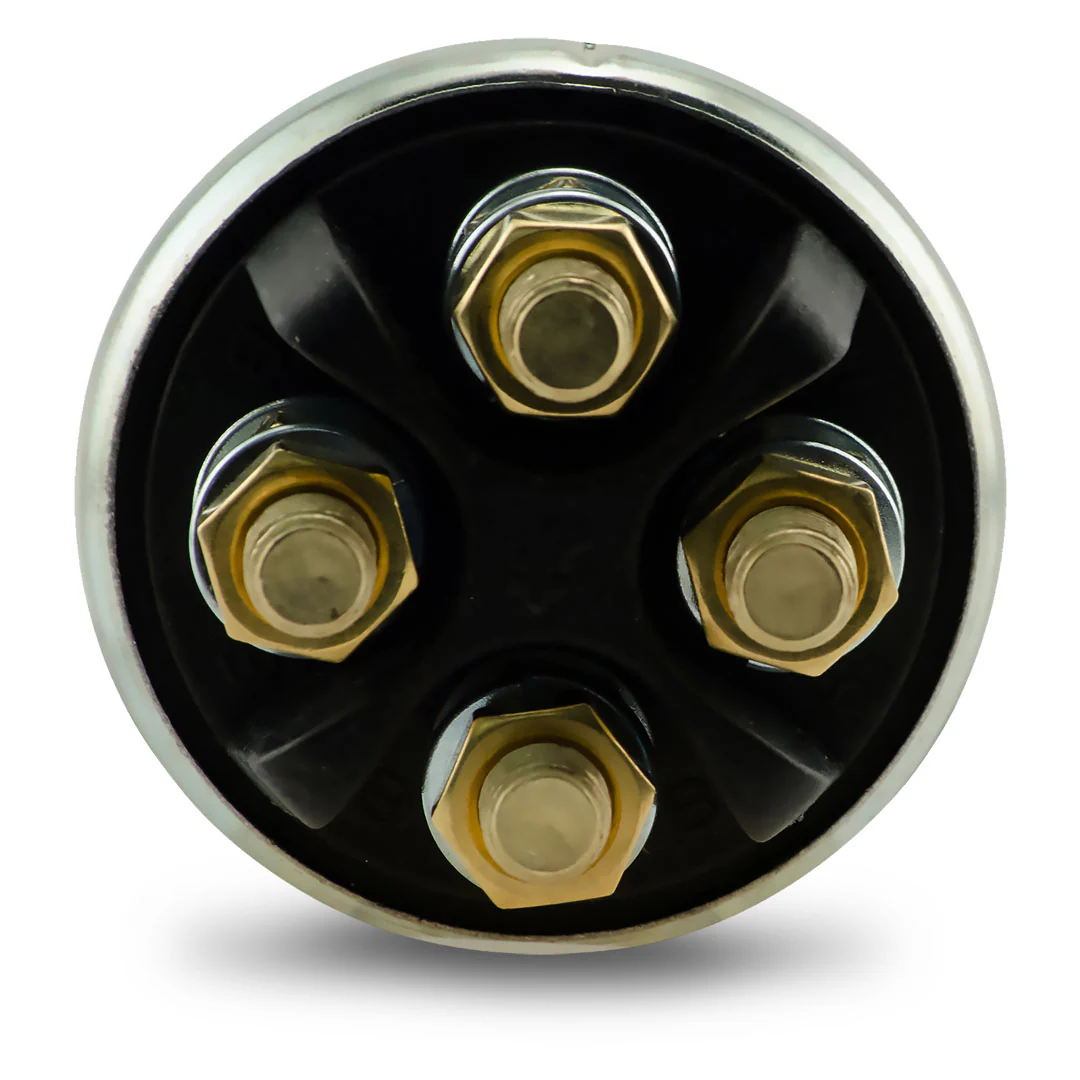

• Battery 4 x stud 3/8"-24 studs
• Indexing pin
• Mounting stem 3/4"-24 thread, L 13mm
• Suits panel thickness to 6.5mm
• Dimensions: H 110 x Ø 67
• Lockout use 24505-01BL, 24505-01RBL, 24505-01YBL or ACX3417BL

Specifications:

• Warranty One Year
• Number of Speeds 1
• Number of Terminals 4
• Power Rating Not Applicable
• Switch Action On - Off - DPST
• Voltage 12 or 24
• Lamp Colour/s Not Applicable
• Mount Diameter 22mm
• Mount Length 6mm
• Note Lockout options include ACX3417BL, 24505-01BL, 24505-01RBL or 24505-01YBL
• Number of Poles 2
• Number of Positions 2
• Switch Type Battery Master / Isolation
• Switch Illumination Non Illuminated
