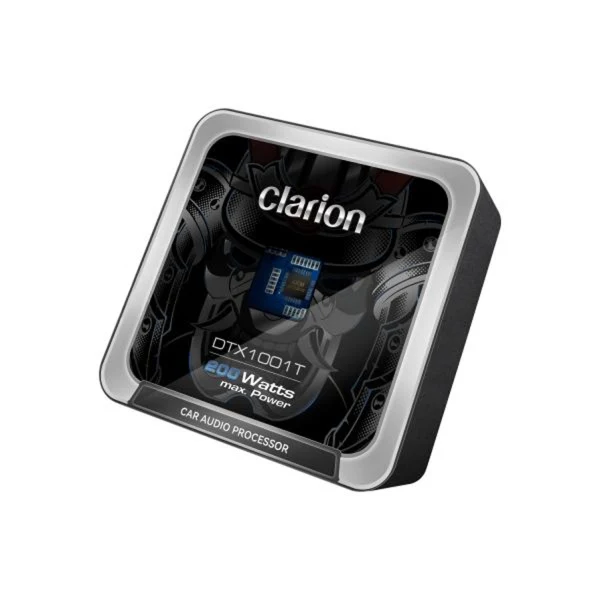

Clarion DTX1001T 4-Channel 200W Amplifier with 6-Channel DSP

Ultra-compact DSP amplifier engineered for stealth installations and factory upgrades

Product Overview

The Clarion DTX1001T is a space-efficient 6-channel digital signal processor and 4-channel Class A/B amplifier designed for installations where footprint is critical but sonic performance cannot be compromised. Measuring just 145mm × 145mm × 36mm and weighing 0.76kg, this unit delivers 200W maximum power (50W peak per channel) while providing comprehensive DSP tuning capabilities typically found in much larger processors. The Class A/B amplification architecture prioritizes sonic accuracy with exceptionally low distortion (0.03% THD) and impressive dynamic range (102dB), making this ideal for upgrading factory systems in vehicles where mounting space under seats or behind panels is severely limited. With four high-level inputs featuring signal sensing for automatic power-on, the DTX1001T integrates seamlessly with OEM audio systems without requiring aftermarket head unit replacement. The 31-band parametric equalizer per channel, independent crossover filters with selectable topologies (Linkwitz-Riley, Butterworth, Bessel), and time alignment up to 20,000ms deliver professional-grade tuning capability in a package small enough to hide almost anywhere.

Key Specifications

• 6-channel DSP processor with 4-channel Class A/B amplification
• Maximum power output: 200W (50W peak per channel across CH1-4)
• 4 high-level inputs: 8-28Vpp signal range @ 4.7Ω impedance
• 6 total outputs: 4 high-level + 2 RCA for system expansion
• 31-band parametric EQ per channel: 20Hz-20kHz, Q value 0.429-16.052, ±20dB gain, 0.1dB resolution
• Independent high-pass/low-pass filters per channel: 20Hz-20kHz, 6-48dB/octave slopes
• Output delay: 0-20,000ms (692cm/272in) for precise time alignment
• Filter types: Linkwitz-Riley, Butterworth, Bessel
• Dynamic range >102dB, signal-to-noise ratio >98dB, THD 0.03%
• Operating temperature: -40°C to +60°C (extreme climate capability)
• Operating voltage: DC 9-17V
• Ultra-compact dimensions: 145mm (L) × 145mm (W) × 36mm (H)
• Lightweight: 0.76kg (packaged)

Features & Benefits

Ultra-compact 145mm square footprint makes this the most space-efficient DSP amplifier in the Clarion range, fitting under most vehicle seats, behind dashboard panels, or in door cavities where full-size amplifiers simply won't mount—perfect for modern vehicles with limited installation real estate.

Extended operating temperature range (-40°C to +60°C) ensures reliable performance in extreme Australian conditions from Tasmanian winters to outback summer heat, plus the wide voltage tolerance (9-17V) maintains stable operation during engine cranking or charging system fluctuations common in 4WD touring setups.

Class A/B amplification with 0.03% THD delivers audiophile-grade sonic accuracy superior to Class D designs, revealing subtle detail in vocals and acoustic instruments while maintaining clean transient response—critical for front stage component systems where midrange clarity matters most.

Four high-level inputs with signal sensing accept factory speaker-level outputs directly from OEM head units, automatically powering the amplifier when audio is detected—eliminates complex remote wire routing and makes this ideal for upgrading Mazda, Subaru, or Honda factory systems without cutting harnesses.

31-band parametric EQ with ±20dB range provides surgical correction of factory speaker response curves, cabin resonances, and acoustic anomalies, with 0.1dB resolution enabling the precise adjustments needed to compensate for door-mounted midbass loading or dashboard-reflected tweeter response.

Time alignment to 20,000ms accommodates off-axis listening positions in dual-cab utes, vans, or right-hand-drive vehicles where the driver sits opposite the optimal soundstage center, creating convincing stereo imaging despite asymmetric speaker placement.

Two RCA outputs enable system expansion by feeding signal to an external subwoofer amplifier or additional channels, allowing the compact DTX1001T to serve as the DSP brain for larger systems while maintaining its stealth mounting location.

102dB dynamic range preserves the full contrast between quiet passages and crescendos in high-resolution recordings, revealing detail in acoustic jazz, classical, or unplugged performances that gets lost in lesser amplifiers with compressed dynamic capability.

Technical Specs

• Amplifier type: Class A/B (all channels)
• Input channels: 4 high-level @ 4.7Ω impedance
• Output channels: 6 total (4 high-level + 2 RCA)
• Peak power output: 50W per channel (200W total maximum across CH1-4)
• Signal input range: high-level 8-28Vpp max
• Equalizer: 31-band parametric per channel, 20Hz-20kHz (1Hz resolution), Q 0.429-16.052, ±20dB gain (0.1dB steps)
• Crossover filters: Linkwitz-Riley, Butterworth, Bessel types, 20Hz-20kHz (1Hz resolution), OFF/6/12/18/24/30/36/42/48dB per octave slopes
• Output phase: 0° or 180° selectable per channel
• Output delay: 0-20,000ms (0-692cm/0-272in)
• Frequency response: 20Hz-20kHz
• Total harmonic distortion: 0.03%
• Signal-to-noise ratio: >98dB (RCA)
• Dynamic range: >102dB
• Remote input: high-level sense or ACC start
• Remote output: +12V DC @ 100mA
• Standby power consumption: 0.1W
• Operating temperature: -40°C to +60°C
• Working voltage: DC 9-17V
• Dimensions: 145mm × 145mm × 36mm (L × W × H)
• Weight: 0.76kg (packaged)

Frequently Asked Questions

Can this power front components and a small subwoofer?

The DTX1001T delivers 50W peak per channel—sufficient for front component speakers. For subwoofers, use the two RCA outputs to feed an external mono block amplifier while the DTX1001T handles DSP processing and powers front speakers directly, creating a space-efficient two-unit system.

Will this fit under my seat?

At 145mm × 145mm × 36mm, the DTX1001T fits under most vehicle seats with at least 150mm clearance. The square footprint and low profile (36mm height) make it one of the most installation-friendly DSP amplifiers available for tight mounting locations.

Does this work with factory head units?

Yes, the four high-level inputs accept speaker-level signals from factory head units (8-28Vpp range), and the signal-sensing feature automatically powers the unit on when audio is detected—no aftermarket head unit or remote wire connection required for basic factory integration.

What's the advantage of Class A/B over Class D in this size?

Class A/B amplification provides lower distortion (0.03% vs typical 0.1% for Class D) and better linearity, particularly in midrange frequencies where the ear is most sensitive. While Class D is more efficient, Class A/B delivers noticeably cleaner vocal reproduction and imaging—the DTX1001T prioritizes sound quality over power efficiency.

Is professional tuning required?

The DTX1001T uses Clarion's Windows-based tuning software (free download) via USB-to-serial adapter (not included). While basic setup is achievable for experienced DIYers, optimal DSP tuning benefits from measurement equipment (calibrated microphone, RTA software) to properly set crossovers, EQ curves, and time alignment.

Compatible With / Goes Well With

• Aftermarket component speakers (4" to 6.5" sizes for front stage)
• Factory audio system upgrades in compact vehicles (Mazda3, Subaru Impreza, Honda Civic, Toyota Corolla)
• External mono block amplifiers for subwoofer power (fed via RCA pre-outs)
• Compact under-seat subwoofers (8" active enclosures recommended to complement limited power)
• Stealth installations in vehicles with minimal mounting space
• USB-to-serial adapters for laptop tuning connection
• 8-gauge or 10-gauge amplifier wiring kits for 200W total power requirement
• Calibrated measurement microphones for professional DSP setup

Weight

0.76kg (packaged)
